  • LG LP1200DXR Parts List

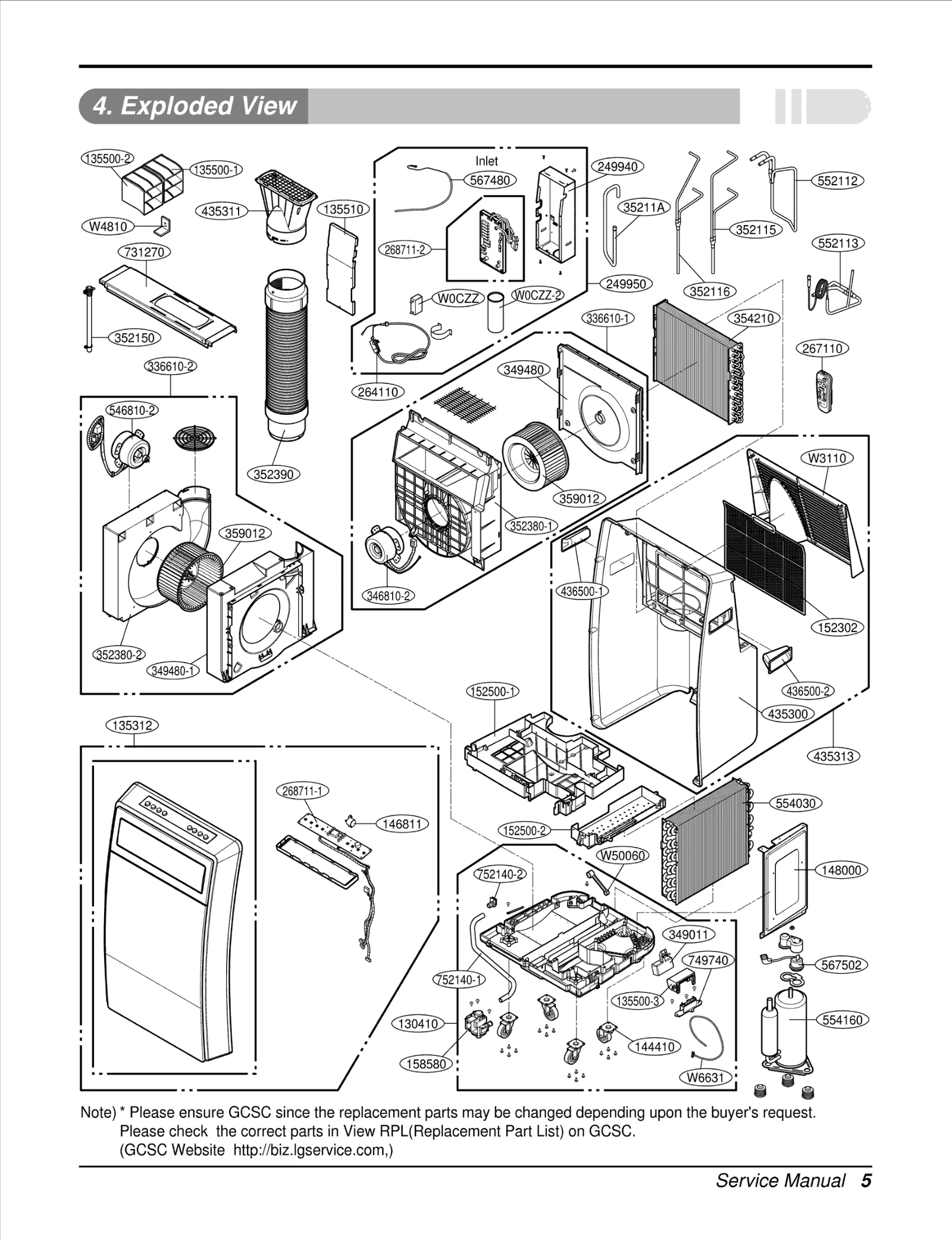

Model LG LP1200DXR WINDOW - Portable A/C – Common Parts & Diagrams

135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB32601901 Contact Us For Availability
View on Model
135500-1
Cover
Cover LGE MCK37756602 Contact Us For Availability
View on Model
135500-2
Cover
Cover LGE MCK37756601 Contact Us For Availability
View on Model
135500-3
Cover
Cover LGE MCK37367101 Contact Us For Availability
View on Model
135510
Cover Assembly,Control
Cover Assembly,Control LGE ACQ33075001 Contact Us For Availability
View on Model
144410
Roller
Roller LGE MHA36945501 Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE EAU36490201 Contact Us For Availability
View on Model
148000
Supporter
Supporter LGE MJH35711601 Contact Us For Availability
View on Model
152302
Filter,Air
Filter,Air LGE MDJ35736701 Contact Us For Availability
View on Model
152500-1
Pan,Drain
Pan,Drain LGE MGB35730401 Contact Us For Availability
View on Model
152500-2
Pan,Drain
Pan,Drain LGE MGB35730201 Contact Us For Availability
View on Model
249940
Case,Control
Case,Control LGE MBN35711201 Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ32554101 Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048F Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSY
REMOTE CONTROLLER ASSY LGE 6711A20034D Contact Us For Availability
View on Model
268711-1
PCB Assembly,Display
PCB Assembly,Display LGE EBR33381701 Contact Us For Availability
View on Model
336610-1
Housing Assembly
Housing Assembly LGE AEN32600801 Contact Us For Availability
View on Model
336610-2
Housing Assembly
Housing Assembly LGE AEN32600701 Contact Us For Availability
View on Model
346810-2
Motor Assembly,AC,Single
Motor Assembly,AC,Single LGE EAU35790801 Contact Us For Availability
View on Model
349011
Damper Assembly
Damper Assembly LGE ACV33282301 Contact Us For Availability
View on Model
349480
Orifice
Orifice LGE MFX35736601 Contact Us For Availability
View on Model
349480-1
Orifice
Orifice LGE MFX35730001 Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR32554601 Contact Us For Availability
View on Model
352116
Tube Assembly,Evaporator(Out)
Tube Assembly,Evaporator(Out) LGE AJR32554501 Contact Us For Availability
View on Model
352150
Hose Assembly,Drain
Hose Assembly,Drain LGE AEM33207201 Contact Us For Availability
View on Model
352380-1
Guide,Air
Guide,Air LGE MEA35736401 Contact Us For Availability
View on Model
352380-2
Guide,Air
Guide,Air LGE MEA35760601 Contact Us For Availability
View on Model
352390
Duct Assembly
Duct Assembly LGE ADJ32676101 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL32506901 Contact Us For Availability
View on Model
359012
Fan,Blower
Fan,Blower LGE MDG35747602 Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE MDX35753701 Contact Us For Availability
View on Model
435311
Grille Assembly,Discharge(Outdoor)
Grille Assembly,Discharge(Outdoor) LGE AEB32676201 Contact Us For Availability
View on Model
435313
Grille Assembly,Rear
Grille Assembly,Rear LGE AEB32602002 Contact Us For Availability
View on Model
436500-1
Handle
Handle LGE MEB35753803 Contact Us For Availability
View on Model
436500-2
Handle
Handle LGE MEB35753804 Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE AJR32554201 Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR32554301 Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE ACG32506701 Contact Us For Availability
View on Model
731270
Install Part Assembly,Set
Install Part Assembly,Set LGE AET32602101 Contact Us For Availability
View on Model
749740
Guide
Guide LGE MEA35712701 Contact Us For Availability
View on Model
752140-1
Connector,Hose
Connector,Hose LGE MCD36984801 Contact Us For Availability
View on Model
752140-2
Connector,Hose
Connector,Hose LGE MCD35730701 Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 3H00660V Contact Us For Availability
View on Model
W3110
Case
Case LGE MBN35736901 Contact Us For Availability
View on Model
W4810
Bracket
Bracket LGE 4810A30309C Contact Us For Availability
View on Model
W6631
Harness,Single
Harness,Single LGE EAD36072401 Contact Us For Availability
View on Model
W50060
Cap
Cap LGE MBL37104701 Contact Us For Availability
View on Model
