Model LG LP096CD3A AC – Common Parts & Diagrams

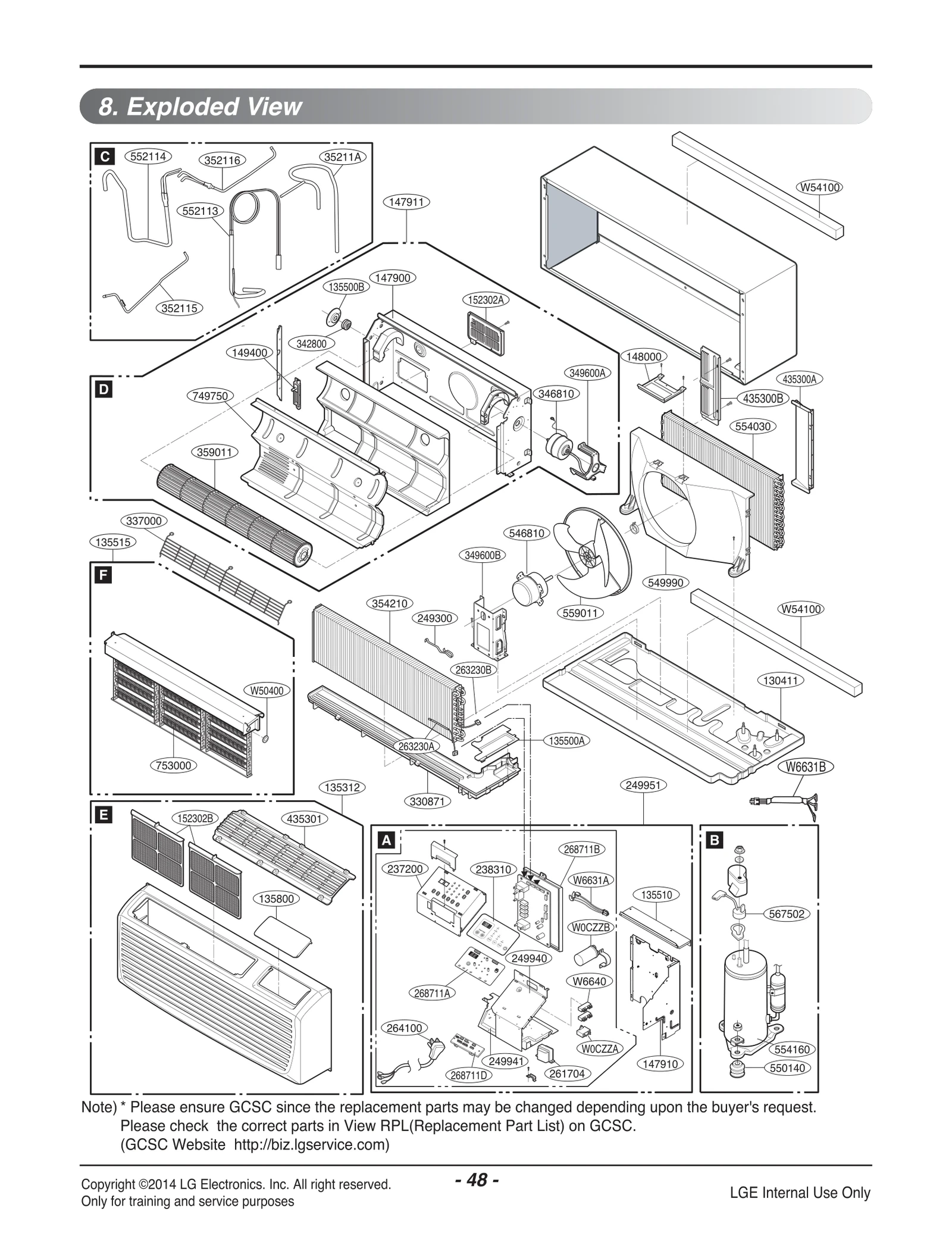

Diagram 0
Common parts from model LG LP096CD3A AC
135800
DOOR LGE 3580A20021B Contact Us For Availability
152302B
FILTER(MECH),A/C LGE 5230A20021A Contact Us For Availability
237200
Panel,Control LGE 3720A20710A Contact Us For Availability
249941
Case,Control(Indoor) LGE 4994A20128A Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ52750105 Contact Us For Availability
263230A
Thermistor Assembly,NTC LGE 6323A20006B Contact Us For Availability
263230A
THERMISTOR ASSEMBLY LGE 6323A20006A Contact Us For Availability
263230A
Thermistor Assembly,NTC LGE 6323A20006H Contact Us For Availability
264100
Power Cord LGE 6411A20022J Contact Us For Availability
268711A
PCB Assembly,Display LGE 6871A00085A Contact Us For Availability
268711B
PCB Assembly,Main LGE 6871A00084R Contact Us For Availability
330871
DRAIN PAN ASSEMBLY LGE 3087A20033A Contact Us For Availability
346810
Motor Assembly,AC,Indoor LGE 4681A20064P Contact Us For Availability
349600A
MOUNT,MOTOR LGE 4960A20032A Contact Us For Availability
349600B
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20118C Contact Us For Availability
435300A
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
435300B
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530A20040B Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE 5211A24129T Contact Us For Availability
554030
Condenser Assembly,First/OBSOLETE PART/SEE GC LGE 5403A20076H Contact Us For Availability
753000
Heater,Electric LGE 5300A20006D Contact Us For Availability
W6631A
Harness,Multi LGE 6631A20305F Contact Us For Availability
W54100
INSULATION, PE LGE 5410A20305A Contact Us For Availability
× ![]()
