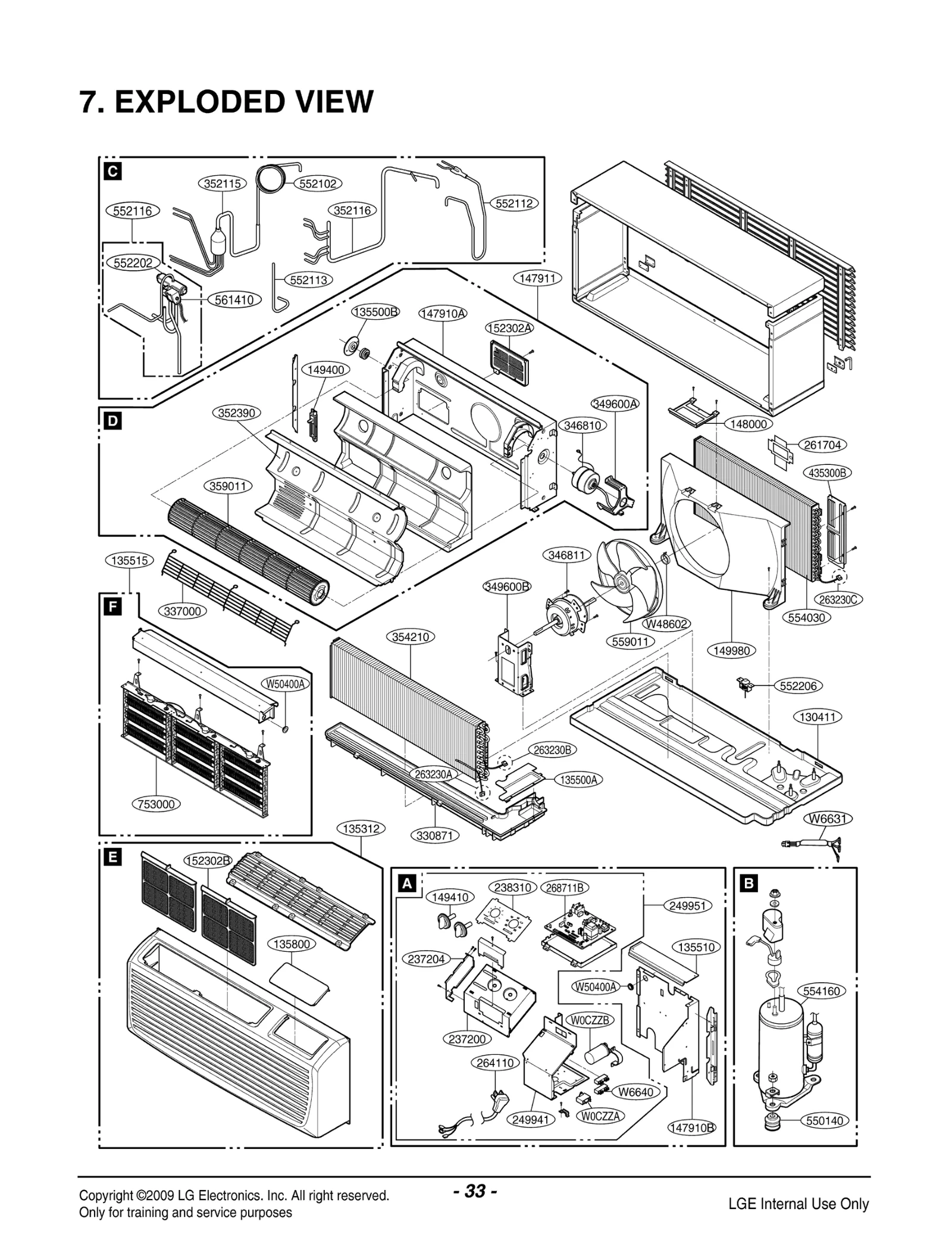

Model LG LP090HEM AC – Common Parts & Diagrams

135800
DOOR
DOOR LGE 3580A20021B Contact Us For Availability
View on Model
147910B
BARRIER ASSEMBLY,SINGLE
BARRIER ASSEMBLY,SINGLE LGE 4791A20019A Contact Us For Availability
View on Model
147911
Barrier Assembly,Indoor
Barrier Assembly,Indoor LGE 4791A10005D Contact Us For Availability
View on Model
149410
KNOB ASSEMBLY
KNOB ASSEMBLY LGE 4941A30015B Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A20001B Contact Us For Availability
View on Model
152302B
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20021A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20169A Contact Us For Availability
View on Model
237204
PANEL,SIDE
PANEL,SIDE LGE 3720A20186A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A30008A Contact Us For Availability
View on Model
249941
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20052A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20466U Contact Us For Availability
View on Model
263230A
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20006A Contact Us For Availability
View on Model
263230B
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20003K Contact Us For Availability
View on Model
263230C
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20003L Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048M Contact Us For Availability
View on Model
330871
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A20033A Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE EAU60688703 Contact Us For Availability
View on Model
346810
MOTOR ASSEMBLY,INDOOR BRACKET NOT INCLUDED
MOTOR ASSEMBLY,INDOOR BRACKET NOT INCLUDED LGE 4681A20064E Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,OUTDOOR
MOTOR ASSEMBLY,OUTDOOR LGE 4681A20063E Contact Us For Availability
View on Model
349600A
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20026A Contact Us For Availability
View on Model
349600B
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
View on Model
352115
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20671B Contact Us For Availability
View on Model
352116
TUBE ASSEMBLY,EVAPORATOR OUT
TUBE ASSEMBLY,EVAPORATOR OUT LGE 5211A20673A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20118A Contact Us For Availability
View on Model
359011
FAN ASSEMBLY,CROSS FLOW
FAN ASSEMBLY,CROSS FLOW LGE 5901A10027A Contact Us For Availability
View on Model
435300B
GRILLE,REAR
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
View on Model
552102
LGE 5210A20492W
LGE 5210A20492W LGE 5210A20492W Contact Us For Availability
View on Model
552112
TUBE ASSEMBLY,CONDENSER IN
TUBE ASSEMBLY,CONDENSER IN LGE 5211A20678B Contact Us For Availability
View on Model
552113
TUBE ASSEMBLY,CONDENSER OUT
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A20676B Contact Us For Availability
View on Model
552116
TUBE ASSEMBLY,REVERSING
TUBE ASSEMBLY,REVERSING LGE 5211A20675B Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UKYK2BA Contact Us For Availability
View on Model
559011
FAN "WC" CHASSIS LW-C1211/1011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
View on Model
561410
COIL ASSEMBLY,REVERSING VALVE
COIL ASSEMBLY,REVERSING VALVE LGE 6141A20006B Contact Us For Availability
View on Model
753000
HEATER,ELECTRIC
HEATER,ELECTRIC LGE 5300A20006A Contact Us For Availability
View on Model
