Model LG LMV600VMLZ LMV600VMLZ – Common Parts & Diagrams

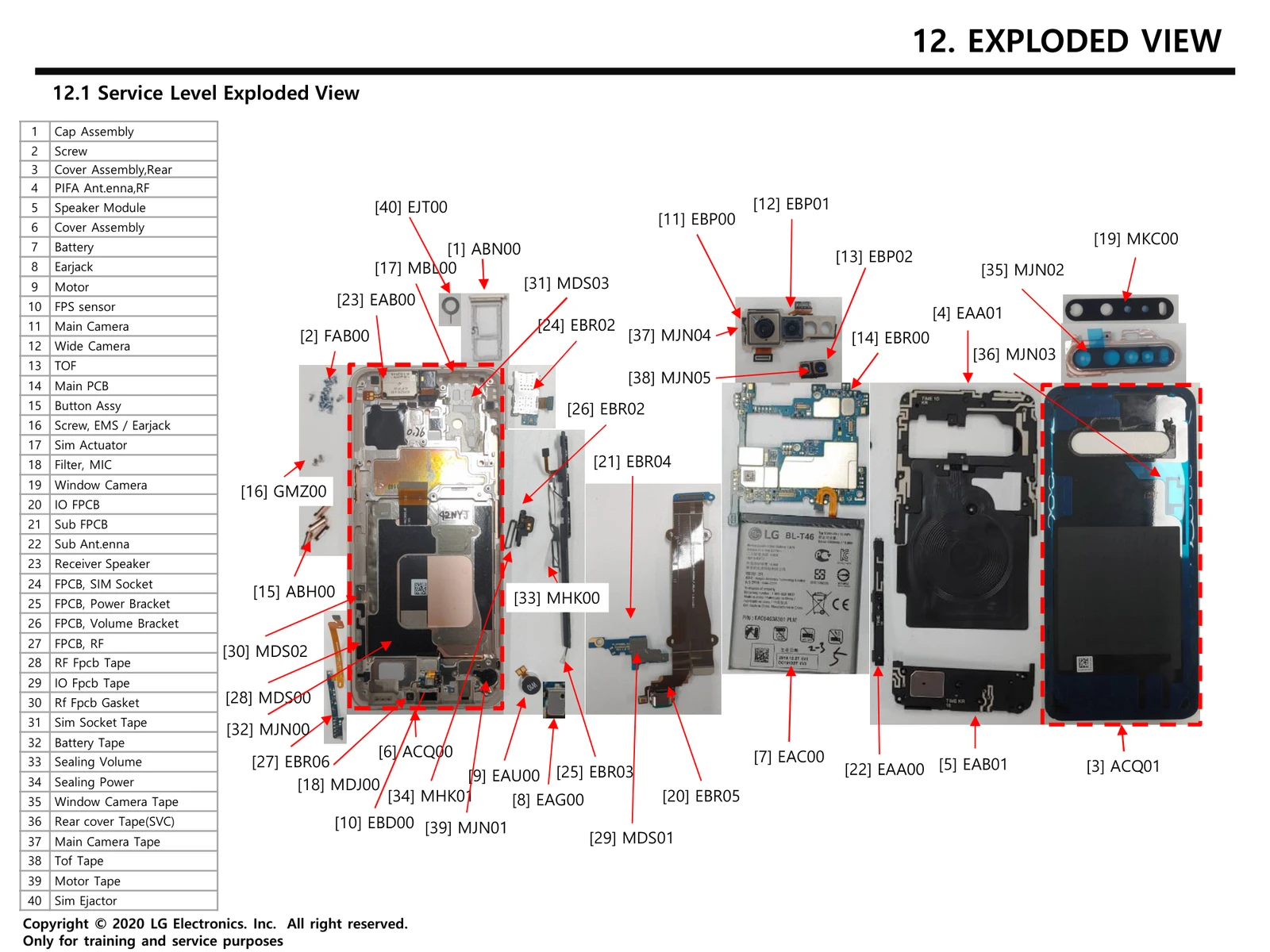

Diagram 0
Diagram 1
Common parts from model LG LMV600VMLZ LMV600VMLZ
ABH00
Button Assembly LGE ABH30000201 Contact Us For Availability
ABN00
Cap Assembly LGE ABN76378311 Contact Us For Availability
ACQ00
Cover Assembly LGE ACQ30058301 Contact Us For Availability
ACQ105801
Cover Assembly,Rear(SVC) LGE ACQ30096801 Contact Us For Availability
ANT1102,ANT11
C-Clip LGE EAG65453901 Contact Us For Availability
CN7401
Connector,BtoB LGE EAG63891001 Contact Us For Availability
CRB38
Unused,Recycle Board LGE CRB38321401 Contact Us For Availability
EAB00
Speaker,Dual Mode LGE EAB65549501 Contact Us For Availability
EAB01
Speaker Module LGE EAB65649702 Contact Us For Availability
EAC00
Rechargeable Battery,Lithium Polymer LGE EAC64638301 Contact Us For Availability
EAG00
Jack,Phone LGE EAG65855602 Contact Us For Availability
EAU00
Motor,DC LGE EAU63722901 Contact Us For Availability
EBD00
Sensor,Fingerprint LGE EBD64148501 Contact Us For Availability
EBP00
Camera Module LGE EBP64141701 Contact Us For Availability
EBP01
Camera Module LGE EBP64002001 Contact Us For Availability
EBP02
Camera Module LGE EBP64141801 Contact Us For Availability
EBR00
PCB Assembly,Main,Auto LGE EBR31200401 Contact Us For Availability
EBR01
PCB Assembly,Flexible LGE EBR30619901 Contact Us For Availability
EBR02
PCB Assembly,Flexible LGE EBR30620101 Contact Us For Availability
EBR03
PCB Assembly,Flexible LGE EBR30621001 Contact Us For Availability
EBR04
PCB Assembly,Sub LGE EBR30611202 Contact Us For Availability
EBR05
PCB Assembly,Flexible LGE EBR30620001 Contact Us For Availability
EBR06
PCB Assembly,Flexible LGE EBR30591202 Contact Us For Availability
EBR070500
PCB Assembly,Flexible LGE EBR31211901 Contact Us For Availability
EJT00
Accessory Assembly LGE AAA77175302 Contact Us For Availability
FAB00
Screw,Machine LGE FAB32038801 Contact Us For Availability
FAB020000
Screw,Tapping LGE FAB32218901 Contact Us For Availability
GMZ00
SCREW MACHINE LGE GMZZ0017701 Contact Us For Availability
MAY047100
Box,Master LGE MAY67831919 Contact Us For Availability
MAY084000
Box,Unit LGE MAY69616801 Contact Us For Availability
MBL00
Cap LGE MBL67479612 Contact Us For Availability
MCQ074200
Damper,Speaker LGE MCQ70607901 Contact Us For Availability
MDJ00
Filter LGE MDJ65984201 Contact Us For Availability
MDJ00
Filter LGE MDJ65984202 Contact Us For Availability
MDJ000000
Filter LGE MDJ65944201 Contact Us For Availability
MDJ000000
Filter LGE MDJ65944202 Contact Us For Availability
MDS00
Gasket LGE MDS67281001 Contact Us For Availability
MDS000000
Gasket LGE MDS67549101 Contact Us For Availability
MDS01
Gasket LGE MDS67296701 Contact Us For Availability
MDS02
Gasket LGE MDS67296801 Contact Us For Availability
MDS03
Gasket LGE MDS67410201 Contact Us For Availability
MED000000
Heat Sink LGE MED65470701 Contact Us For Availability
MEV000000
Insulator LGE MEV67437801 Contact Us For Availability
MFZ000000
Packing LGE MFZ66294701 Contact Us For Availability
MFZ005500
Packing,Blister LGE MFZ67183302 Contact Us For Availability
MHK00
Sheet LGE MHK67445801 Contact Us For Availability
MHK000000
Sheet LGE MHK67426001 Contact Us For Availability
MHK01
Sheet LGE MHK67445901 Contact Us For Availability
MIC1001
Microphone,Condenser LGE EAB65488201 Contact Us For Availability
MIC6053
Microphone,Condenser LGE EAB65649601 Contact Us For Availability
MJN00
Tape LGE MJN71687901 Contact Us For Availability
MJN000000
Tape LGE MJN71709001 Contact Us For Availability
MJN000002
Tape LGE MJN71708201 Contact Us For Availability
MJN000002
Tape LGE MJN71708202 Contact Us For Availability
MJN01
Tape LGE MJN71708101 Contact Us For Availability
MJN01
Tape LGE MJN71708102 Contact Us For Availability
MJN02
Tape LGE MJN71707701 Contact Us For Availability
MJN03
Tape LGE MJN71848601 Contact Us For Availability
MJN04
Tape LGE MJN71708801 Contact Us For Availability
MJN05
Tape LGE MJN71828201 Contact Us For Availability
MKC00
Window,Camera LGE MKC67261401 Contact Us For Availability
RAC003500
Grease LGE RAC35117801 Contact Us For Availability
U4100
IC,PMIC LGE EAN66125901 Contact Us For Availability
U4200
IC,PMIC LGE EAN65506401 Contact Us For Availability
U4200
IC,PMIC LGE EAN66004901 Contact Us For Availability
U4300
IC,PMIC LGE EAN65506501 Contact Us For Availability
U4300
IC,PMIC LGE EAN66005001 Contact Us For Availability
U4600
IC,PMIC LGE EAN66105801 Contact Us For Availability
× ![]()
