  • LG LMN095HV Parts List

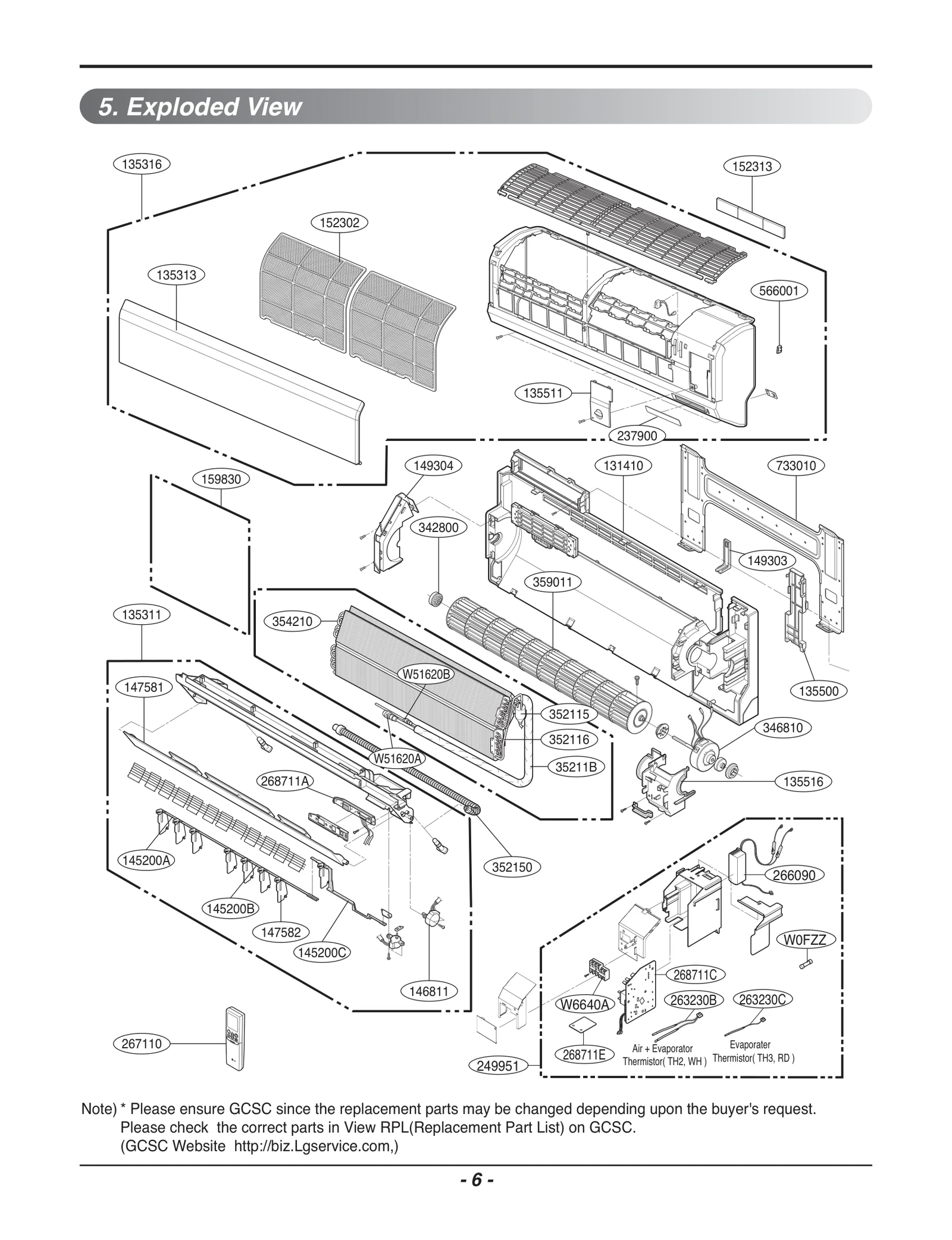

Model LG LMN095HV AC – Common Parts & Diagrams

135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A18015L Contact Us For Availability
View on Model
135500
Cover
Cover LGE 3550A30315A Contact Us For Availability
View on Model
135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A20208T Contact Us For Availability
View on Model
135516
Cover Assembly,Motor
Cover Assembly,Motor LGE 3551A20156E Contact Us For Availability
View on Model
145200A
Link
Link LGE 4520A30090A Contact Us For Availability
View on Model
145200C
Link
Link LGE 4520A30080A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
149304
Holder,Evaporator
Holder,Evaporator LGE 4930A30070A Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE 3790A20129A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE ABQ71337904 Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE AKB35149717 Contact Us For Availability
View on Model
268711C
PCB Assembly,Main
PCB Assembly,Main LGE EBR35936503 Contact Us For Availability
View on Model
268711E
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR59494501 Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091U Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091J Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE 5211A29040C Contact Us For Availability
View on Model
352116
Tube Assembly,Evaporator(Out)
Tube Assembly,Evaporator(Out) LGE 5211A25048C Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20258C Contact Us For Availability
View on Model
566001
Switch,Micro
Switch,Micro LGE 6600AQ9173G Contact Us For Availability
View on Model
566001
Switch,Micro
Switch,Micro LGE 6600K000001 Contact Us For Availability
View on Model
733010
Plate Assembly,Installation
Plate Assembly,Installation LGE 3301A20020A Contact Us For Availability
View on Model
W0FZZ
Fuse,Time Delay
Fuse,Time Delay LGE 0FZZA90005C Contact Us For Availability
View on Model
W51620A
Socket,Flare
Socket,Flare LGE 3A00375A Contact Us For Availability
View on Model
W51620B
Socket,Flare
Socket,Flare LGE 3A00375D Contact Us For Availability
View on Model
