Model LG LMN090HE AC – Common Parts & Diagrams

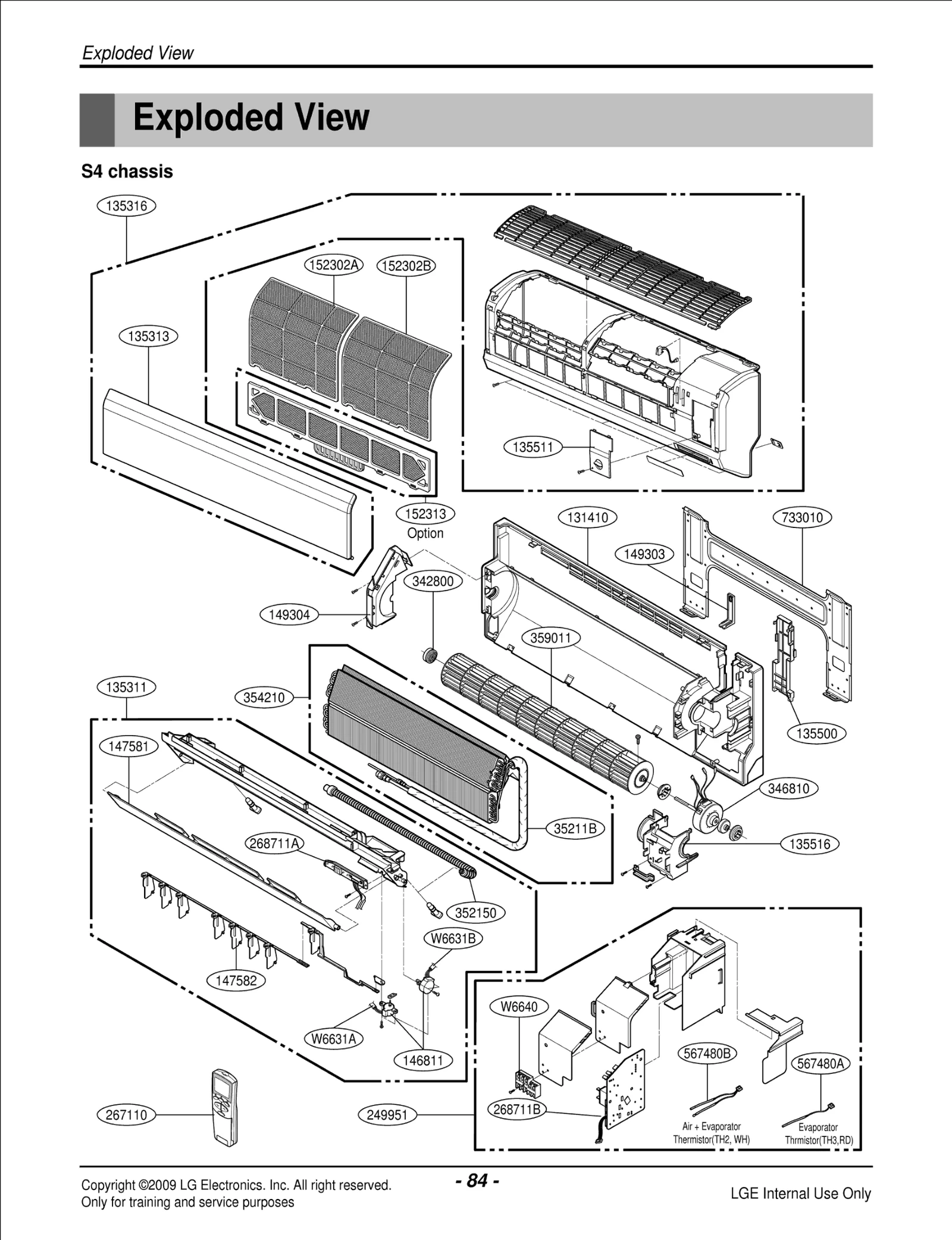

Diagram 0
Common parts from model LG LMN090HE AC
131410
Chassis Assembly LGE 3141A20019J Contact Us For Availability
135311
Grille Assembly,Discharge(Indoor) LGE 3531A11307A Contact Us For Availability
135313
Grille,Inlet LGE 3530A10255A Contact Us For Availability
135316
Grille Assembly,Front(Indoor) LGE 3531A14003K Contact Us For Availability
135500
Cover LGE 3550A30262A Contact Us For Availability
135511
Cover Assembly,Control(Indoor) LGE 3551A30138K Contact Us For Availability
146811
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
146811
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
149304
Holder,Evaporator LGE 4930A30053A Contact Us For Availability
152313
Filter Assembly,Deodorizer LGE 5231A20040A Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE 4995A20831A Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20128C Contact Us For Availability
346810
Motor Assembly,AC,Indoor LGE 4681AR2295L Contact Us For Availability
352150
HOSE ASSEMBLY,DRAIN LGE 5251A20011B Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A20218B Contact Us For Availability
359011
Fan Assembly,Cross Flow LGE 5901A20017F Contact Us For Availability
733010
Plate Assembly,Installation LGE 3301A20020C Contact Us For Availability
W6631A
Harness,Single LGE 6631A30001B Contact Us For Availability
W6631B
Harness,Single LGE 6631A30001A Contact Us For Availability
× ![]()
