  • LG LMN090CE.AWHAEUS Parts List

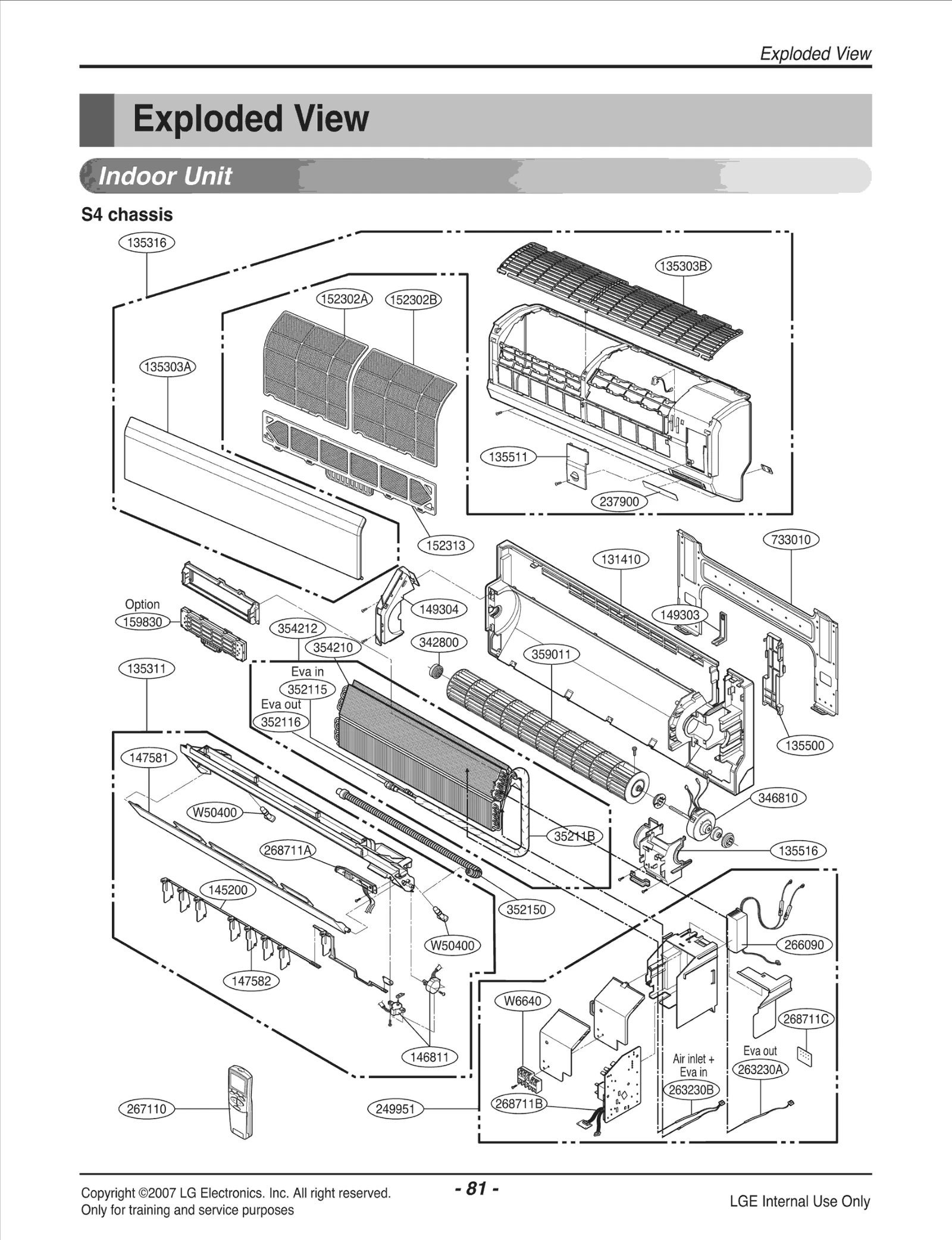

Model LG LMN090CE.AWHAEUS AC – Common Parts & Diagrams

135303A
Grille,Inlet
Grille,Inlet LGE 3530A10254J Contact Us For Availability
View on Model
135303B
Grille,Inlet
Grille,Inlet LGE 3530A10255A Contact Us For Availability
View on Model
135311
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A10307V Contact Us For Availability
View on Model
135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A14003K Contact Us For Availability
View on Model
135500
Cover
Cover LGE 3550A30262A Contact Us For Availability
View on Model
135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A30138K Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
149304
Holder,Evaporator
Holder,Evaporator LGE 4930A30053A Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040A Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE 3790A20129A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20831A Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128A Contact Us For Availability
View on Model
268711C
PCB Assembly
PCB Assembly LGE 6871A20989D Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE 4681AR2295L Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE 5211A29010A Contact Us For Availability
View on Model
352116
Tube Assembly,Evaporator(Out)
Tube Assembly,Evaporator(Out) LGE 5211A22110A Contact Us For Availability
View on Model
352150
HOSE ASSEMBLY,DRAIN
HOSE ASSEMBLY,DRAIN LGE 5251A20011B Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20218B Contact Us For Availability
View on Model
354212
Evaporator Assembly,Final
Evaporator Assembly,Final LGE 5421A20222C Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 5901A20017F Contact Us For Availability
View on Model
733010
Plate Assembly,Installation
Plate Assembly,Installation LGE 3301A20020C Contact Us For Availability
View on Model
