Model Whirlpool LIT8183910 Microwave Oven 1.1 Cubic Foot – Common Parts & Diagrams

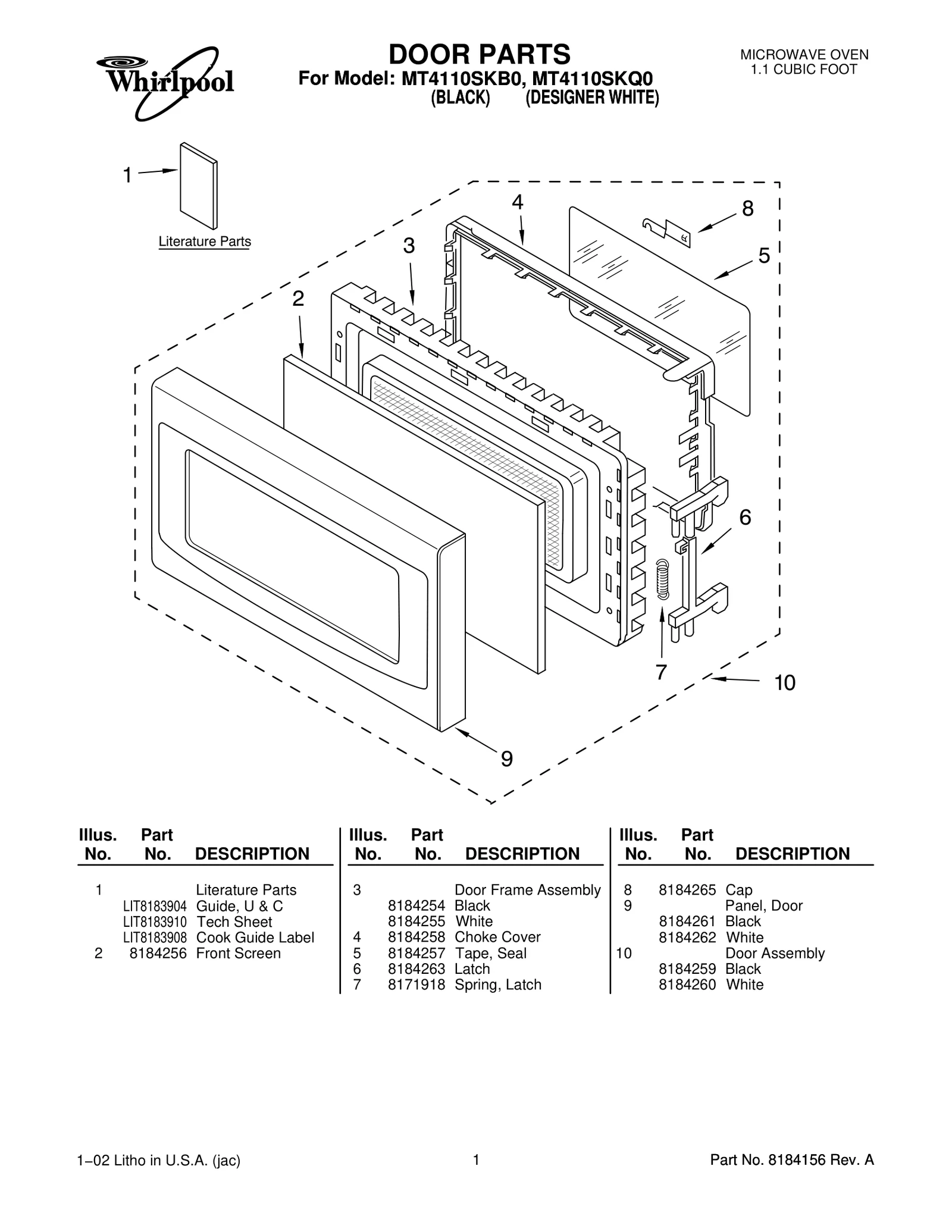

DOOR PARTS
DOOR PARTS
DOOR PARTS
DOOR PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
OVEN CAVITY PARTS
OVEN CAVITY PARTS
OVEN CAVITY PARTS
OVEN CAVITY PARTS
LATCH BOARD PARTS
LATCH BOARD PARTS
LATCH BOARD PARTS
LATCH BOARD PARTS
OVEN INTERIOR PARTS
OVEN INTERIOR PARTS
OVEN INTERIOR PARTS
OVEN INTERIOR PARTS
BASE PLATE PARTS
BASE PLATE PARTS
BASE PLATE PARTS
Common parts from model Whirlpool LIT8183910 Microwave Oven 1.1 Cubic Foot
1
Canopy WPL 8184278 Contact Us For Availability
1
Latch Board Assembly WPL N/S Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Canopy WPL 8171983 Contact Us For Availability
1
Propeller WPL 8184292 Contact Us For Availability
1
Propeller WPL 8184531 Contact Us For Availability
1
Base Plate WPL 8184297 Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Button — Biscuit WPL 8184441 Contact Us For Availability
2
Button — Black WPL 8184273 Contact Us For Availability
2
Button — White WPL 8184274 Contact Us For Availability
2
Button — Black WPL 8184427 Contact Us For Availability
2
Button — White WPL 8184336 Contact Us For Availability
2
Mount WPL 8184281 Contact Us For Availability
2
Latch Board WPL 8184284 Contact Us For Availability
2
Latch Board WPL 4359156 Contact Us For Availability
2
Latch Board WPL 8184812 Contact Us For Availability
2
Guide, Suction WPL 8184289 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Base Plate (R) WPL 8183516 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Door Frame Assembly — Black WPL 4359761 Contact Us For Availability
3
Door Frame Assembly — White WPL 8172024 Contact Us For Availability
3
Door Frame Assembly — Biscuit WPL 8172025 Contact Us For Availability
3
Switch, Membrane — Black WPL 8184275 Contact Us For Availability
3
Switch, Membrane — White WPL 8184276 Contact Us For Availability
3
Switch, Membrane — Black WPL 8184422 Contact Us For Availability
3
Switch, Membrane — White WPL 8184424 Contact Us For Availability
3
Switch, Membrane — Biscuit WPL 8184544 Contact Us For Availability
3
Switch, Membrane — Black WPL 8184595 Contact Us For Availability
3
Switch, Membrane — White WPL 8184598 Contact Us For Availability
3
Leg WPL 8184298 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
Lever, Release WPL 8184269 Contact Us For Availability
4
Choke Cover WPL 8184532 Contact Us For Availability
4
Outer Case — Black WPL 8184279 Contact Us For Availability
4
Outer Case — White WPL 8184280 Contact Us For Availability
4
Outer Case — Black WPL 8183611 Contact Us For Availability
4
Outer Case — White WPL 8184534 Contact Us For Availability
4
Outer Case — Biscuit WPL 4359941 Contact Us For Availability
4
Outer Case — Black WPL 8184342 Contact Us For Availability
4
Outer Case — White WPL 8184343 Contact Us For Availability
4
H.V. Capacitor WPL 8184287 Contact Us For Availability
4
H.V. Capacitor WPL 8183764 Contact Us For Availability
4
Transformer WPL 8184293 Contact Us For Availability
4
Transformer WPL 8184338 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Control Panel — Black WPL 8184267 Contact Us For Availability
5
Control Panel — White WPL 8184268 Contact Us For Availability
5
Control Panel — Black WPL 8184541 Contact Us For Availability
5
Control Panel — White WPL 8184533 Contact Us For Availability
5
Control Panel — Biscuit WPL 8184543 Contact Us For Availability
5
Control Panel — Black WPL 8184426 Contact Us For Availability
5
Control Panel — White WPL 8184341 Contact Us For Availability
5
Lever, Switch WPL 4358795 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
5
H.V.C Bracket WPL 4359161 Contact Us For Availability
5
Screw WPL 4358192 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Latch WPL 8205074 Contact Us For Availability
6
Microcomputer WPL 8184277 Contact Us For Availability
6
Microcomputer WPL 8184421 Contact Us For Availability
6
Microcomputer WPL 8184425 Contact Us For Availability
6
Microcomputer WPL 8205183 Contact Us For Availability
6
Tray, Glass WPL 8171807 Contact Us For Availability
6
Leadwire Assembly WPL 8184296 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Leadwire Assembly WPL 8184609 Contact Us For Availability
6
Leadwire Assembly WPL 8184596 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Spring WPL 8184272 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Bracket, Support WPL 8184290 Contact Us For Availability
7
Bracket, Support WPL 8184337 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
8
Turntable Support WPL 8184282 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Spring WPL 4158178 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door — Black WPL 8184594 Contact Us For Availability
9
Panel, Door — White WPL 8184597 Contact Us For Availability
9
Panel, Door — Black WPL 8184530 Contact Us For Availability
9
Panel, Door — White WPL 8184540 Contact Us For Availability
9
Panel, Door — Biscuit WPL 8184542 Contact Us For Availability
9
Power Cord WPL 8184294 Contact Us For Availability
9
Power Cord WPL 8205185 Contact Us For Availability
10
Door Assembly — Black WPL 8184487 Contact Us For Availability
10
Door Assembly — White WPL 8184488 Contact Us For Availability
10
Door Assembly — Black WPL 8184419 Contact Us For Availability
10
Door Assembly — White WPL 8184423 Contact Us For Availability
10
Door Assembly — Biscuit WPL 8184537 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
11
Motor, Synchronous WPL 8184283 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Cap WPL 8171798 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Duct, Air WPL 8184291 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Holder WPL 8184362 Contact Us For Availability
15
Screw — Black WPL 4358829 Contact Us For Availability
15
Screw — Black WPL 8184819 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
