Model Whirlpool LIT4359998 Microwave Oven 1.8 Cubic Foot – Common Parts & Diagrams

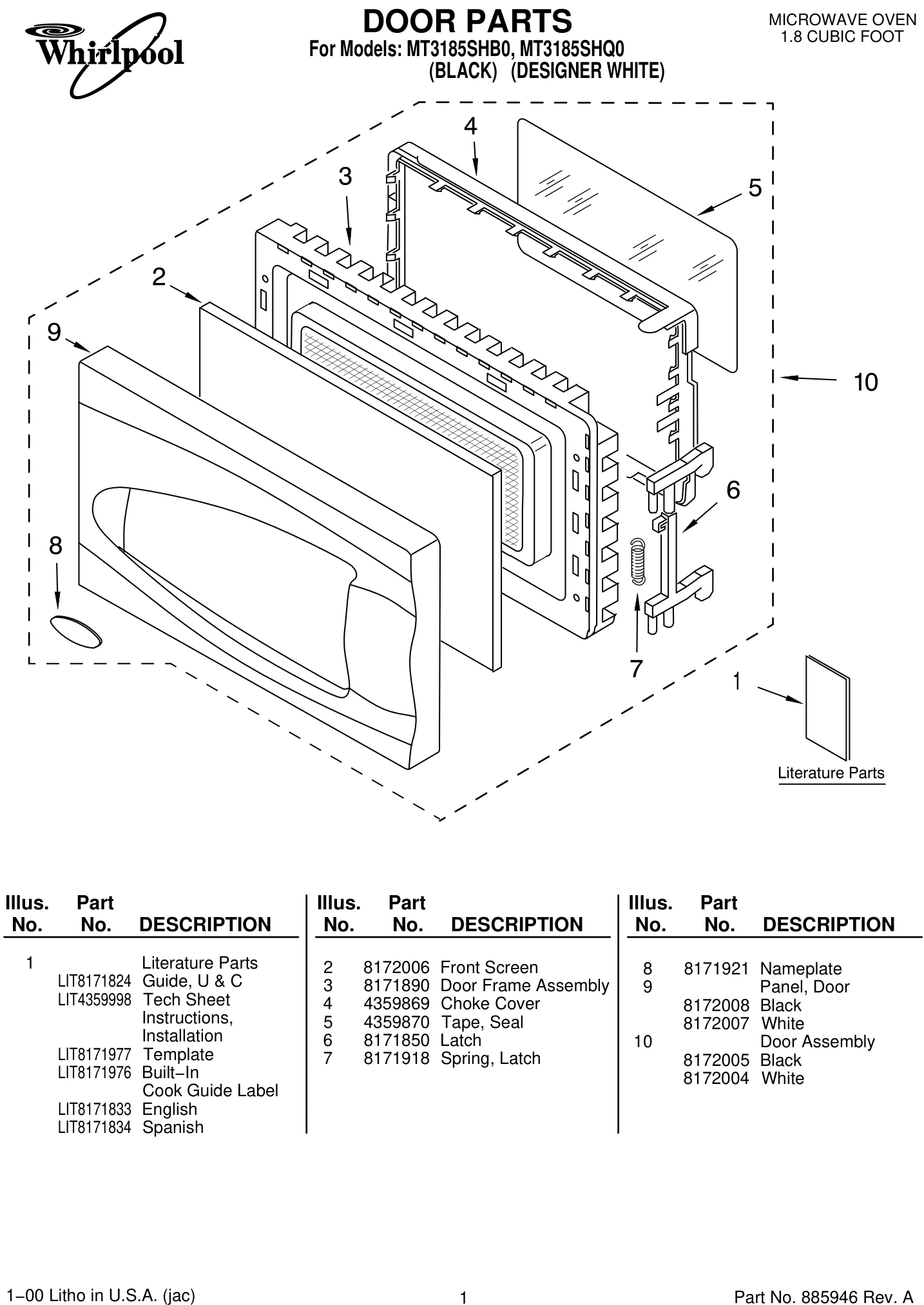

DOOR PARTS
CONTROL PANEL PARTS
OVEN CAVITY PARTS
LATCH BOARD PARTS
OVEN INTERIOR PARTS
BASE PLATE PARTS
Common parts from model Whirlpool LIT4359998 Microwave Oven 1.8 Cubic Foot
1
Propeller WPL 4158758 Contact Us For Availability
1
Screw WPL 4358376 Contact Us For Availability
1
Canopy WPL 4359825 Contact Us For Availability
1
Latch Board Assembly WPL N/S Contact Us For Availability
1
Base Plate (L) WPL 8172021 Contact Us For Availability
2
Motor, Fan WPL 8172059 Contact Us For Availability
2
Knob — Black WPL 8171929 Contact Us For Availability
2
Knob — White WPL 8171928 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 8172020 Contact Us For Availability
3
Button, Cook — Black WPL 8171923 Contact Us For Availability
3
Button, Cook — White WPL 8171922 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
PCB Assy WPL 8172014 Contact Us For Availability
4
Outer Case — Black WPL 4359882 Contact Us For Availability
4
Outer Case — White WPL 8172016 Contact Us For Availability
4
H.V. Capacitor WPL 8171898 Contact Us For Availability
4
Transformer WPL 8171899 Contact Us For Availability
5
Control Panel — Black WPL 8172010 Contact Us For Availability
5
Control Panel — White WPL 8172009 Contact Us For Availability
5
Seal, Water WPL 8171805 Contact Us For Availability
5
Screw WPL 4358192 Contact Us For Availability
5
H.V.C Bracket WPL 4359161 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8172015 Contact Us For Availability
6
Leadwire Assembly WPL 8172019 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Button, Clock — Black WPL 8171925 Contact Us For Availability
7
Button, Clock — White WPL 8171924 Contact Us For Availability
7
Fan, Stirrer WPL 8172022 Contact Us For Availability
8
Window WPL 8172013 Contact Us For Availability
8
Turntable Support WPL 8172018 Contact Us For Availability
9
Panel, Door — Black WPL 8172008 Contact Us For Availability
9
Panel, Door — White WPL 8172007 Contact Us For Availability
9
Button, Start — Black WPL 8172012 Contact Us For Availability
9
Button, Start — White WPL 8172011 Contact Us For Availability
9
Holder WPL 8172023 Contact Us For Availability
9
Power Cord WPL 4359342 Contact Us For Availability
10
Door Assembly — Black WPL 8172005 Contact Us For Availability
10
Door Assembly — White WPL 8172004 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Cover WPL 8171869 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
12
Support, Rack WPL 4358383 Contact Us For Availability
12
Duct, Air WPL 4359888 Contact Us For Availability
13
Rack WPL 8172101 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw — Black WPL 8171877 Contact Us For Availability
15
Screw — White WPL 8171876 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 4359892 Contact Us For Availability
18
Guide, Sensor WPL 4359893 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
25
Screw WPL 4358271 Contact Us For Availability
× ![]()
