Model Whirlpool LIT1181714 Dehumidifier – Common Parts & Diagrams
UNIT PARTS

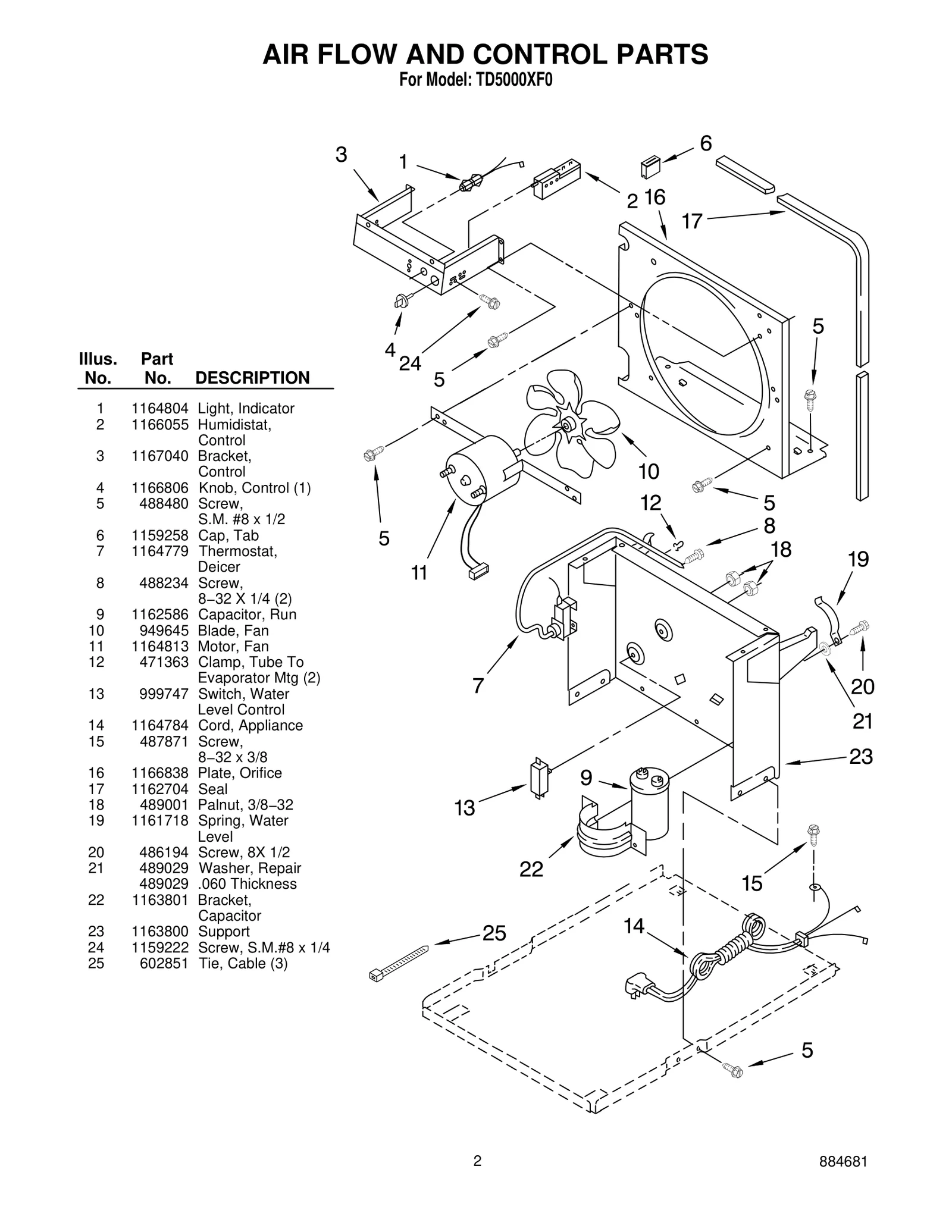

AIR FLOW AND CONTROL PARTS

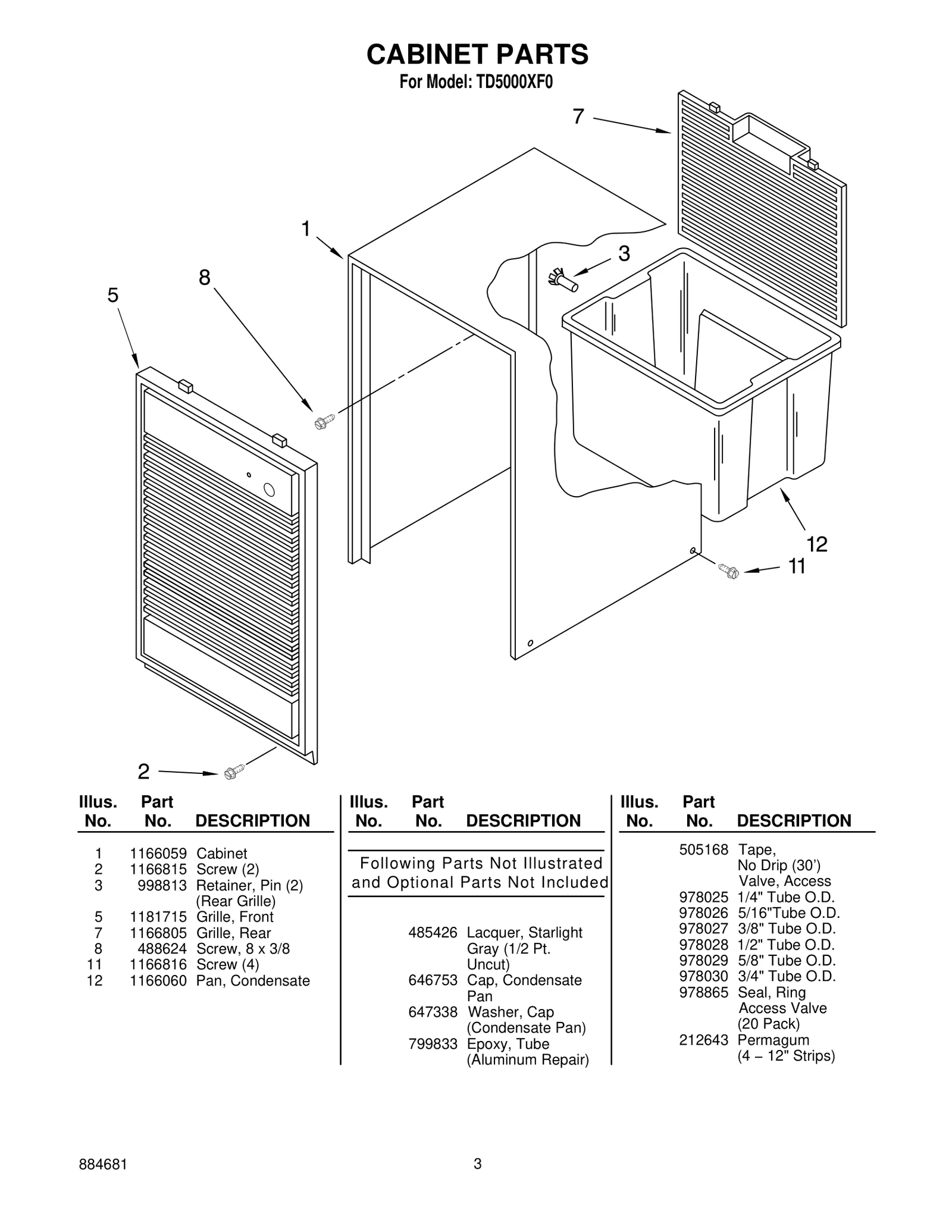

CABINET PARTS
Common parts from model Whirlpool LIT1181714 Dehumidifier
1
Light, Indicator WPL 1164804 Contact Us For Availability
1
Cabinet WPL 1166059 Contact Us For Availability
2
Humidistat, Control WPL 1166055 Contact Us For Availability
2
Screw (2) WPL 1166815 Contact Us For Availability
3
Bracket, Control WPL 1167040 Contact Us For Availability
3
Retainer, Pin (2) WPL 998813 Contact Us For Availability
4
Knob, Control (1) WPL 1166806 Contact Us For Availability
5
Grille, Front WPL 1181715 Contact Us For Availability
6
Cap, Tab WPL 1159258 Contact Us For Availability
7
Thermostat, Deicer WPL 1164779 Contact Us For Availability
7
Grille, Rear WPL 1166805 Contact Us For Availability
8
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
9
Capacitor, Run WPL 1162586 Contact Us For Availability
10
Blade, Fan WPL 949645 Contact Us For Availability
11
Motor, Fan WPL 1164813 Contact Us For Availability
11
Screw (4) WPL 1166816 Contact Us For Availability
12
5/8" Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30’) Valve, Access WPL 505168 Contact Us For Availability
12
Cover, Terminal WPL 1167005 Contact Us For Availability
12
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
12
Pan, Condensate Following Parts Not Illustrat WPL 1166060 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube WPL 799833 Contact Us For Availability
12
1/2" Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring Access Valve WPL 978865 Contact Us For Availability
13
Retainer, Cover WPL 1167006 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1168184 Contact Us For Availability
14
Cord, Appliance WPL 1164784 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
16
Plate, Orifice WPL 1166838 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Bolt, 1/4−28 x 1 (4) WPL 1166034 Contact Us For Availability
18
Palnut, 3/8−32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 1167026 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
.060 Thickness WPL 489029 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
22
Bracket, Capacitor WPL 1163801 Contact Us For Availability
23
Roll Pin−2.0 LG WPL 489015 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Glide−Natural (2) WPL 951886 Contact Us For Availability
24
Screw, S.M.#8 x 1/4 WPL 1159222 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1167003 Contact Us For Availability
26
Bend, Return (4) WPL 708532 Contact Us For Availability
27
Bend, Return (8) WPL 855199 Contact Us For Availability
28
Bend, Return (1) WPL 1169760 Contact Us For Availability
30
Seal, Evaporator Top REFRIGERANT CHARGE 8.50 WPL 1162348 Contact Us For Availability
× ![]()
