Model Whirlpool LIT1166025 Dehumidifier – Common Parts & Diagrams

1

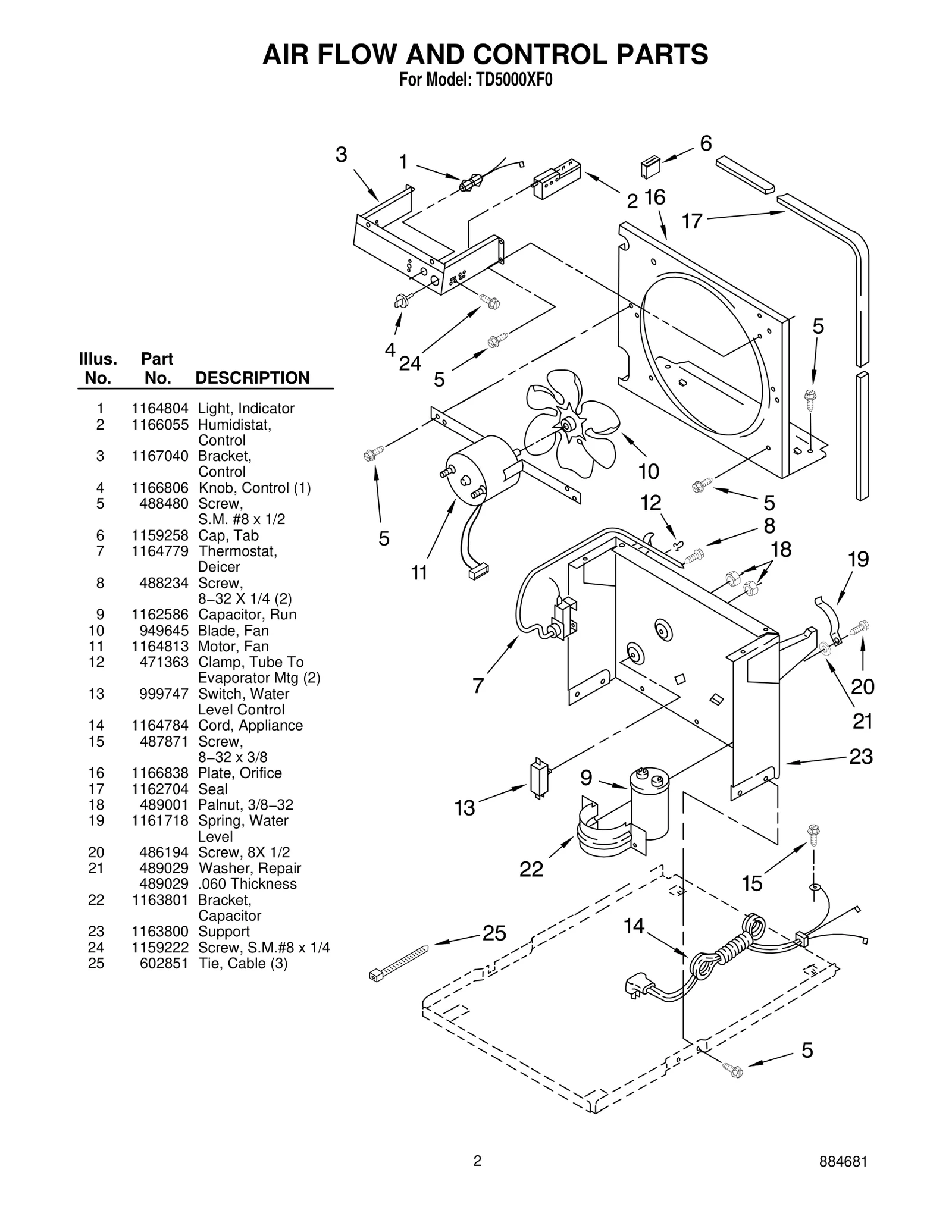

Light, Indicator
Light, Indicator WPL 1164804 Contact Us For Availability
View on Model
1

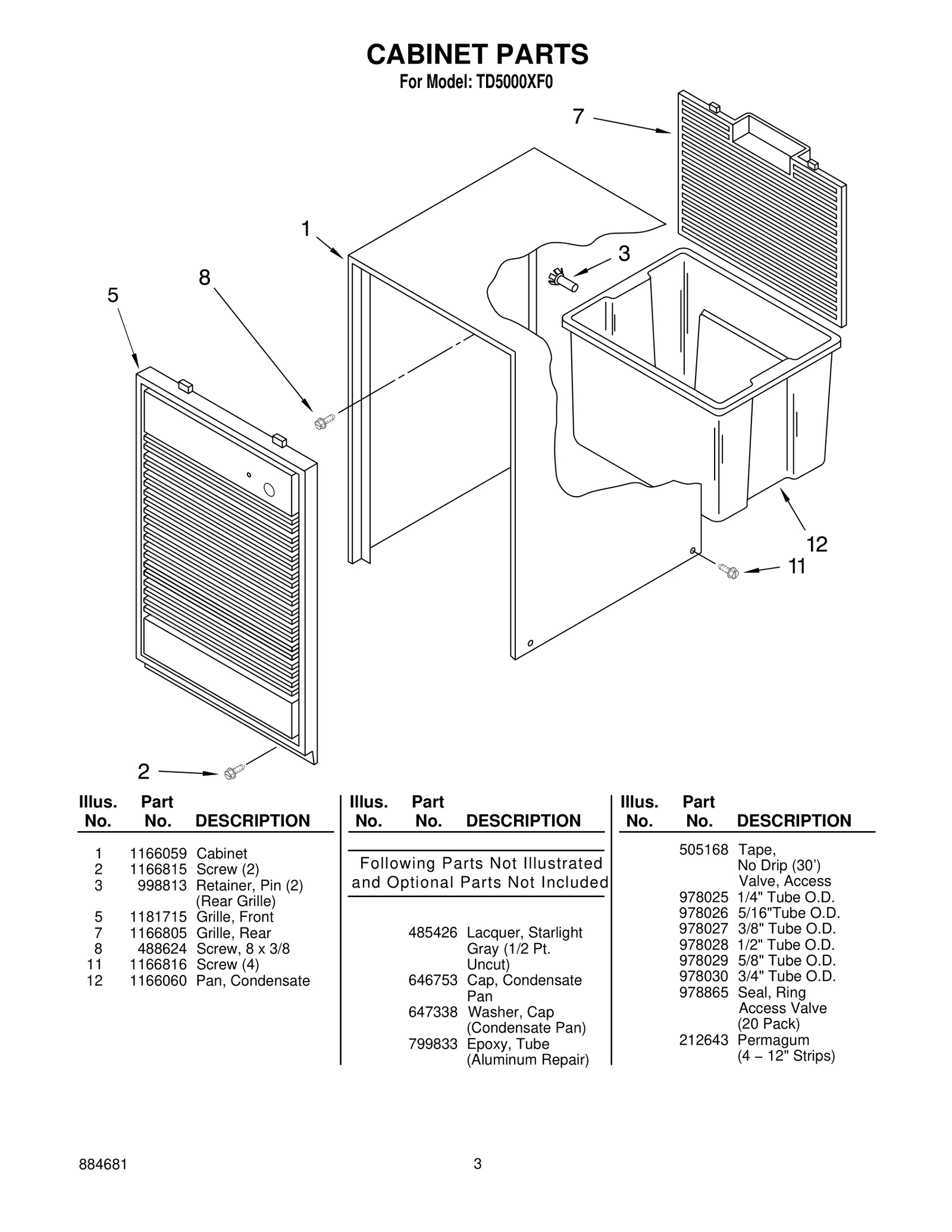

Cabinet
Cabinet WPL 1166059 Contact Us For Availability
View on Model
2
Humidistat, Control
Humidistat, Control WPL 1166055 Contact Us For Availability
View on Model
2
Screw (2)
Screw (2) WPL 1166815 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL 1167040 Contact Us For Availability
View on Model
3
Retainer, Pin (2)
Retainer, Pin (2) WPL 998813 Contact Us For Availability
View on Model
4
Knob, Control (1)
Knob, Control (1) WPL 1166806 Contact Us For Availability
View on Model
5
Grille, Front
Grille, Front WPL 1181715 Contact Us For Availability
View on Model
6
Cap, Tab
Cap, Tab WPL 1159258 Contact Us For Availability
View on Model
7
Thermostat, Deicer
Thermostat, Deicer WPL 1164779 Contact Us For Availability
View on Model
7
Grille, Rear
Grille, Rear WPL 1166805 Contact Us For Availability
View on Model
8
Screw, 8 x 3/8
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
View on Model
9
Capacitor, Run
Capacitor, Run WPL 1162586 Contact Us For Availability
View on Model
10
Blade, Fan
Blade, Fan WPL 949645 Contact Us For Availability
View on Model
11
Motor, Fan
Motor, Fan WPL 1164813 Contact Us For Availability
View on Model
11
Screw (4)
Screw (4) WPL 1166816 Contact Us For Availability
View on Model
12
5/8" Tube O.D.
5/8" Tube O.D. WPL 978029 Contact Us For Availability
View on Model
12
Tape, No Drip (30’) Valve, Access
Tape, No Drip (30’) Valve, Access WPL 505168 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 1167005 Contact Us For Availability
View on Model
12
Clamp, Tube To Evaporator Mtg (2)
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
View on Model
12
Pan, Condensate Following Parts Not Illustrat
Pan, Condensate Following Parts Not Illustrat WPL 1166060 Contact Us For Availability
View on Model
12
Lacquer, Starlight Gray (1/2 Pt. Uncut)
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
View on Model
12
Cap, Condensate Pan
Cap, Condensate Pan WPL 646753 Contact Us For Availability
View on Model
12
Epoxy, Tube
Epoxy, Tube WPL 799833 Contact Us For Availability
View on Model
12
1/2" Tube O.D.
1/2" Tube O.D. WPL 978028 Contact Us For Availability
View on Model
12
Seal, Ring Access Valve
Seal, Ring Access Valve WPL 978865 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 1167006 Contact Us For Availability
View on Model
13
Switch, Water Level Control
Switch, Water Level Control WPL 999747 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168184 Contact Us For Availability
View on Model
14
Cord, Appliance
Cord, Appliance WPL 1164784 Contact Us For Availability
View on Model
16
Seal
Seal WPL 1162372 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1166838 Contact Us For Availability
View on Model
17
Seal
Seal WPL 1162704 Contact Us For Availability
View on Model
18
Bolt, 1/4−28 x 1 (4)
Bolt, 1/4−28 x 1 (4) WPL 1166034 Contact Us For Availability
View on Model
18
Palnut, 3/8−32
Palnut, 3/8−32 WPL 489001 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 1167026 Contact Us For Availability
View on Model
19
Spring, Water Level
Spring, Water Level WPL 1161718 Contact Us For Availability
View on Model
21
Base
Base WPL 1157584 Contact Us For Availability
View on Model
21
.060 Thickness
.060 Thickness WPL 489029 Contact Us For Availability
View on Model
22
Roller (2)
Roller (2) WPL 998726 Contact Us For Availability
View on Model
22
Bracket, Capacitor
Bracket, Capacitor WPL 1163801 Contact Us For Availability
View on Model
23
Roll Pin−2.0 LG
Roll Pin−2.0 LG WPL 489015 Contact Us For Availability
View on Model
23
Support
Support WPL 1163800 Contact Us For Availability
View on Model
24
Glide−Natural (2)
Glide−Natural (2) WPL 951886 Contact Us For Availability
View on Model
24
Screw, S.M.#8 x 1/4
Screw, S.M.#8 x 1/4 WPL 1159222 Contact Us For Availability
View on Model
25

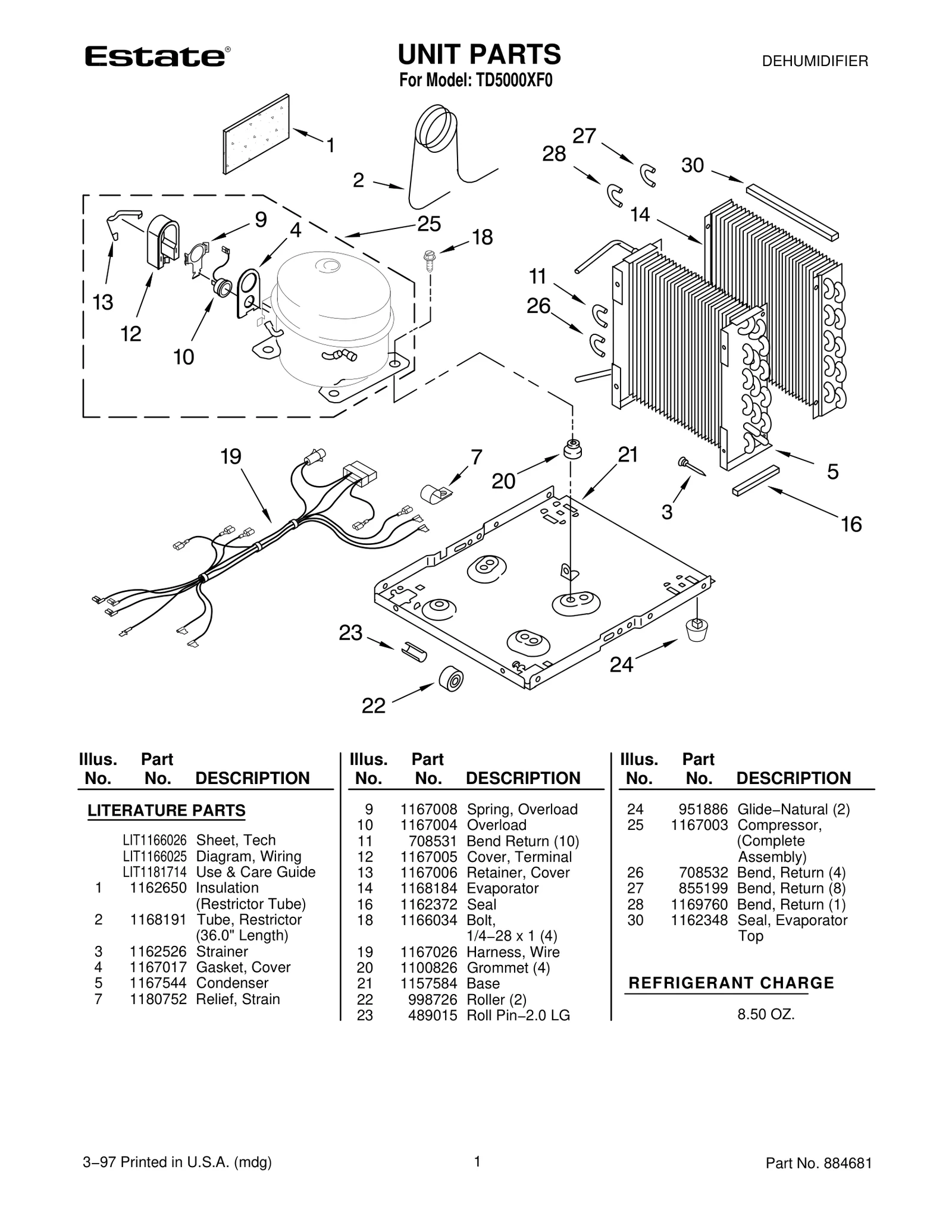

Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1167003 Contact Us For Availability
View on Model
26
Bend, Return (4)
Bend, Return (4) WPL 708532 Contact Us For Availability
View on Model
27
Bend, Return (8)
Bend, Return (8) WPL 855199 Contact Us For Availability
View on Model
28
Bend, Return (1)
Bend, Return (1) WPL 1169760 Contact Us For Availability
View on Model
30
Seal, Evaporator Top REFRIGERANT CHARGE 8.50
Seal, Evaporator Top REFRIGERANT CHARGE 8.50 WPL 1162348 Contact Us For Availability
View on Model
