Model LG LHX-557 – Common Parts & Diagrams
Diagram 0

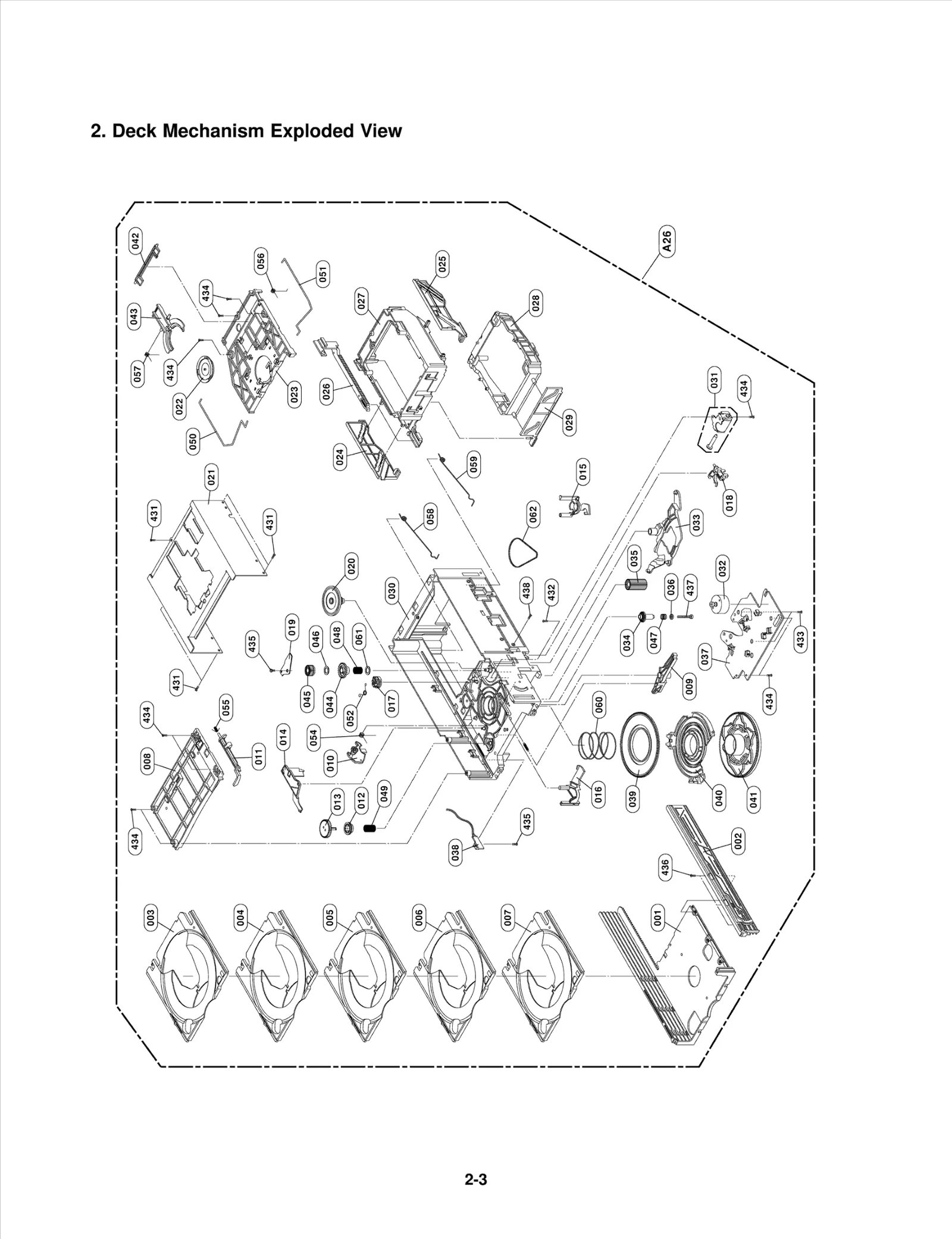

Diagram 1

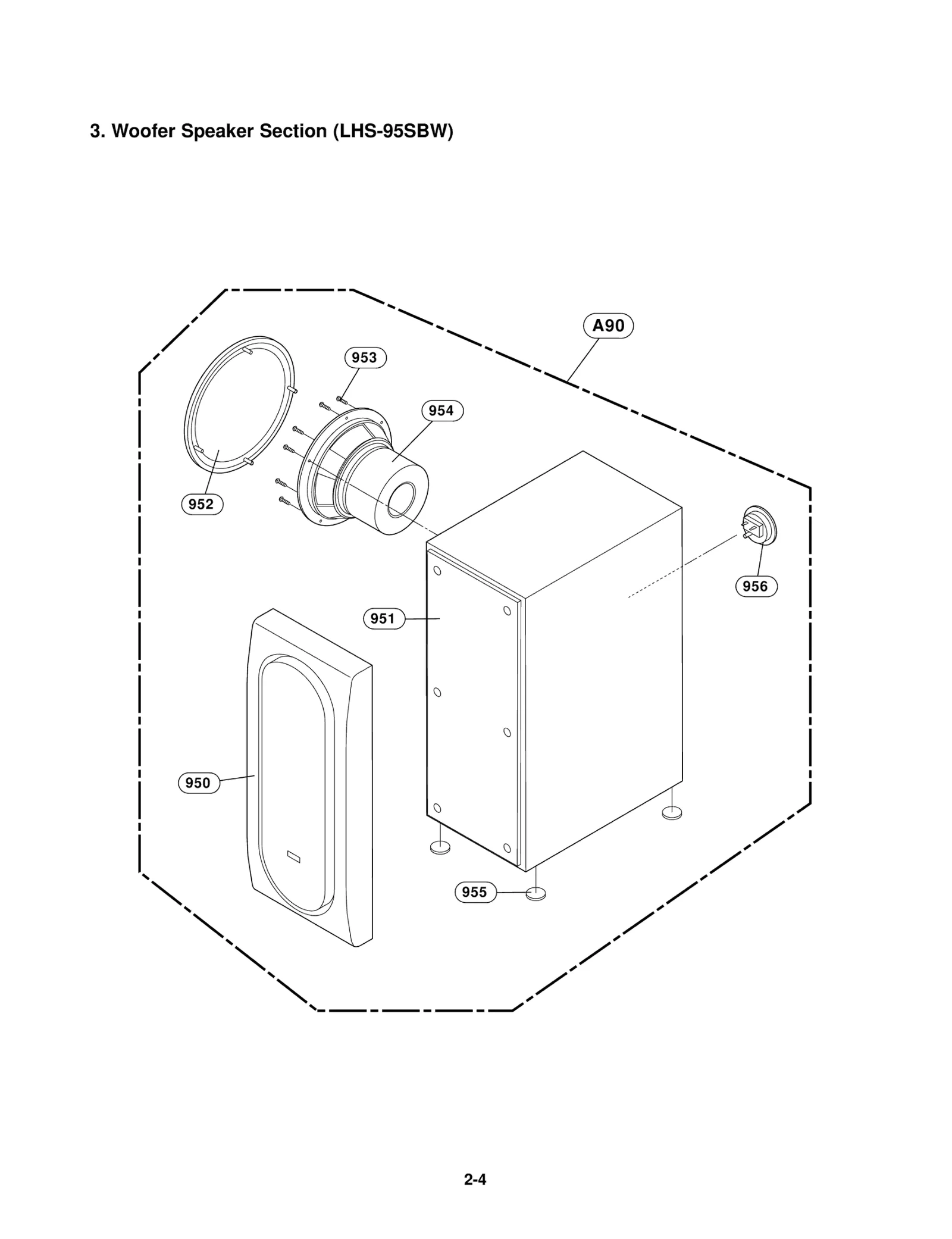

Diagram 2

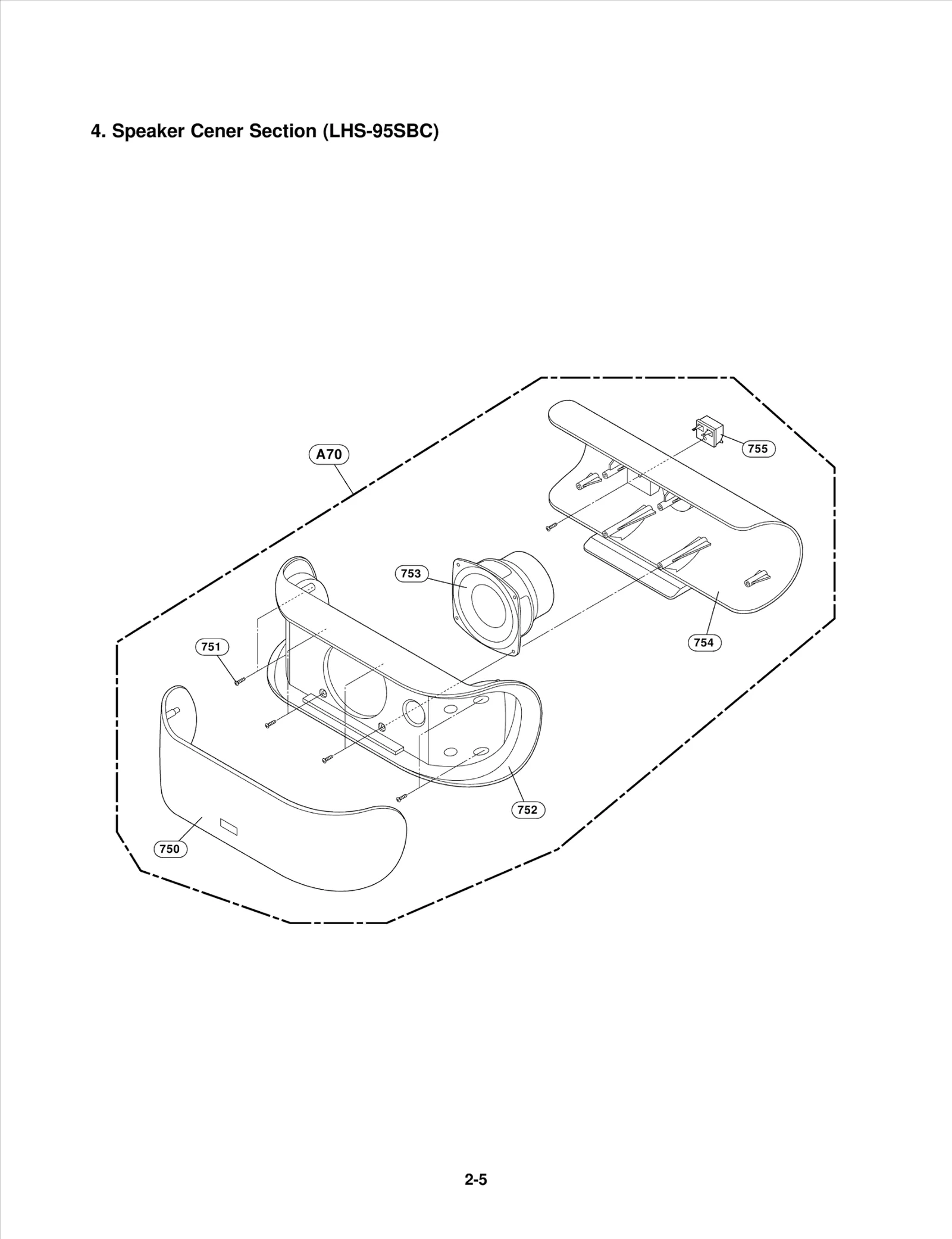

Diagram 3

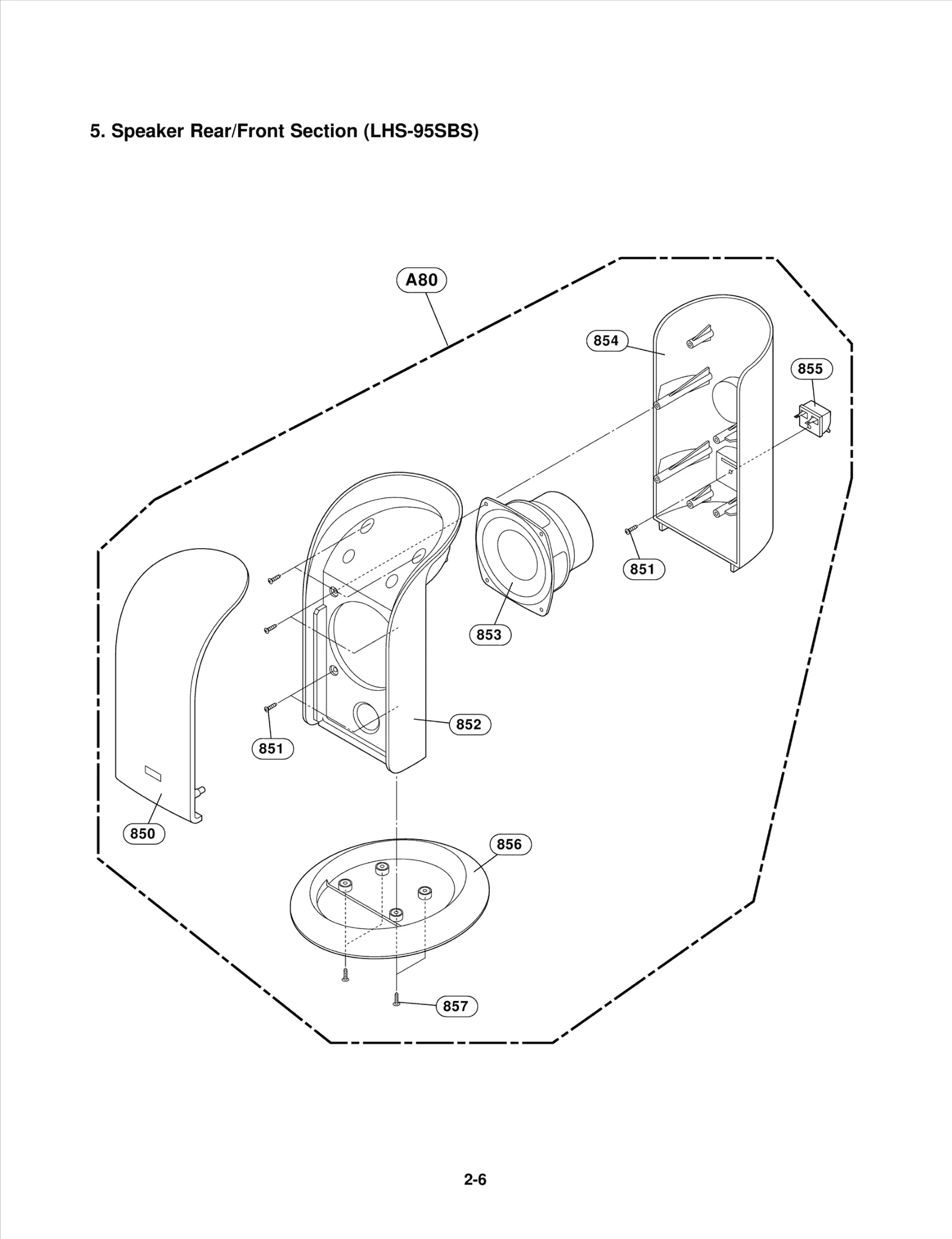

Diagram 4

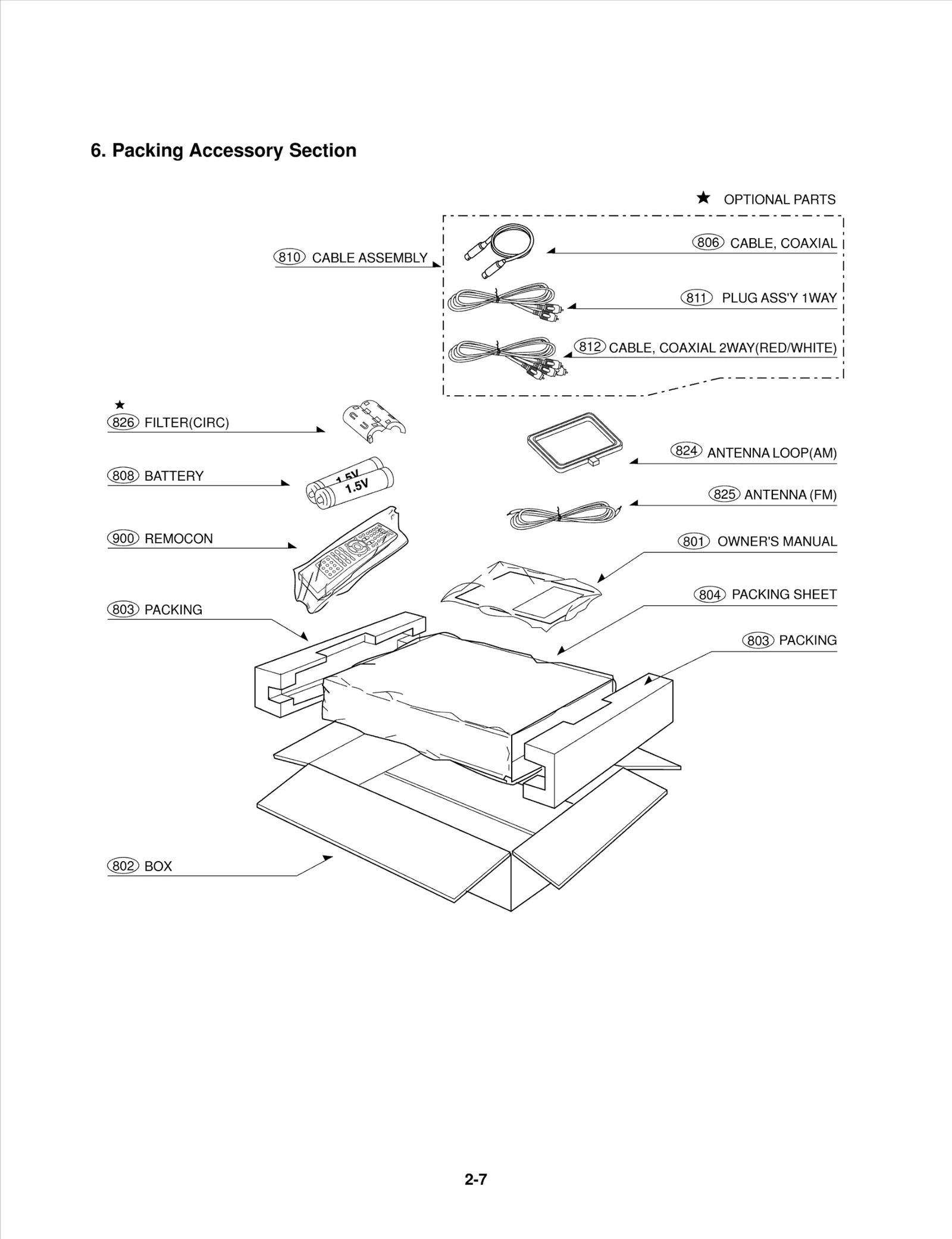

Diagram 5

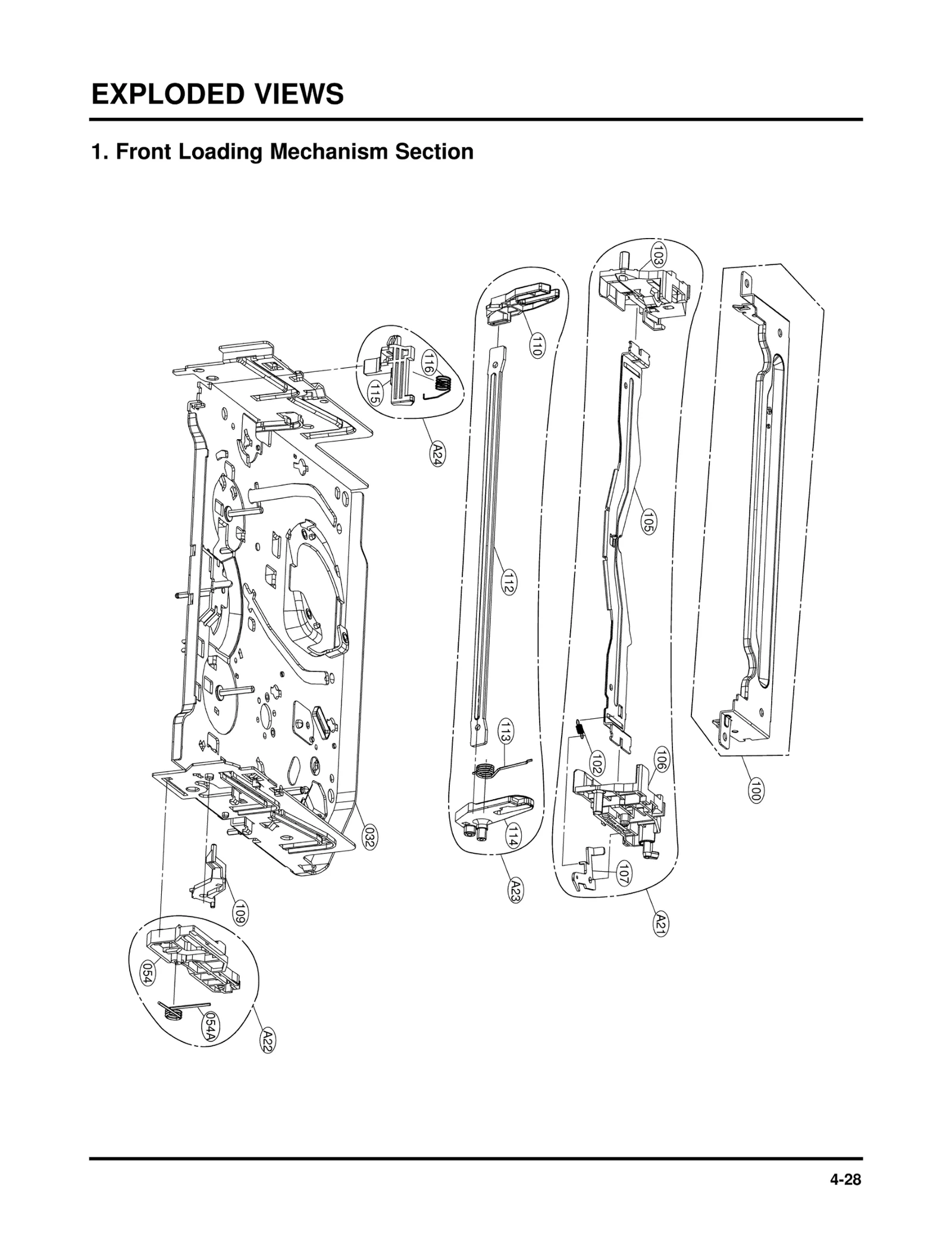

Diagram 6

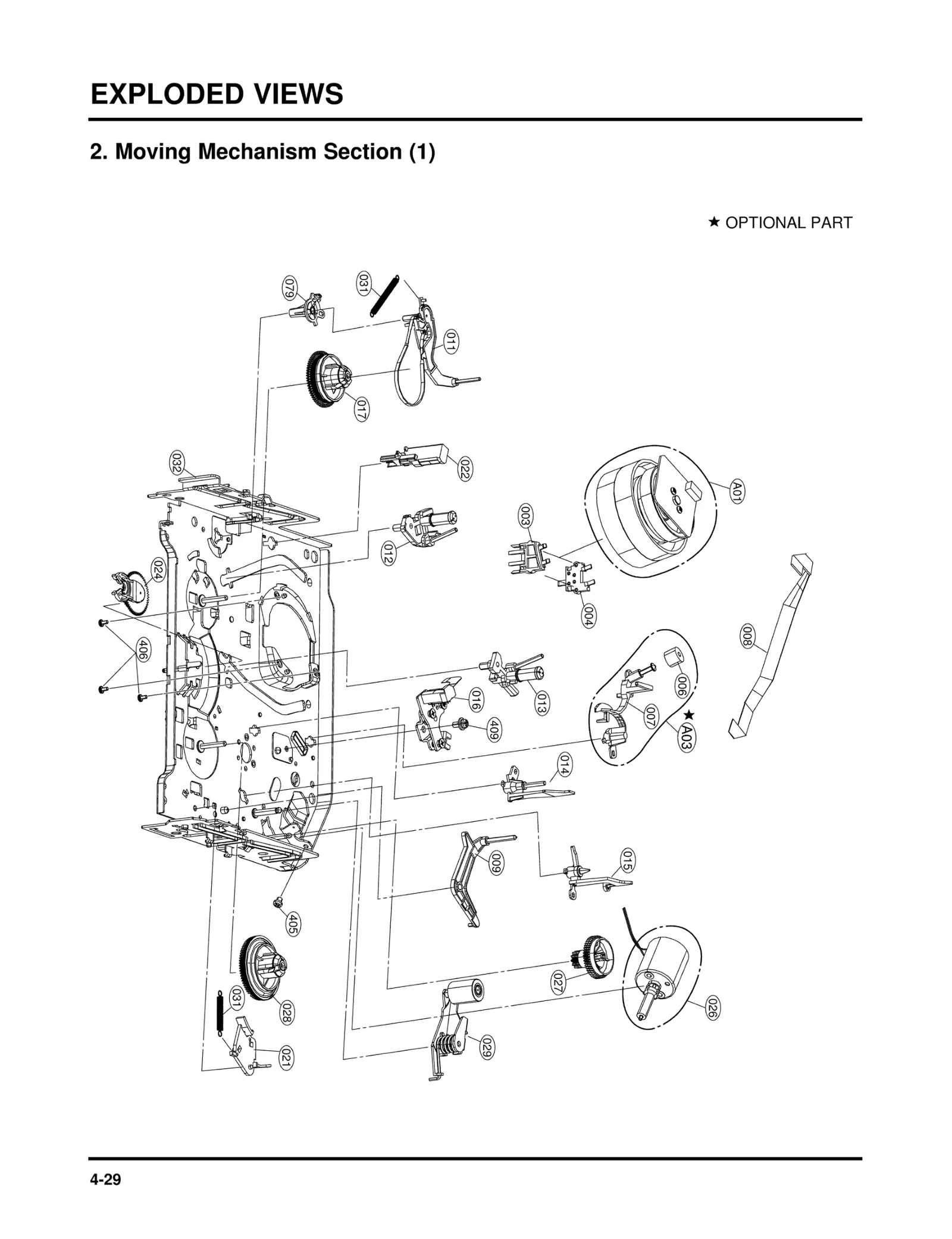

Diagram 7

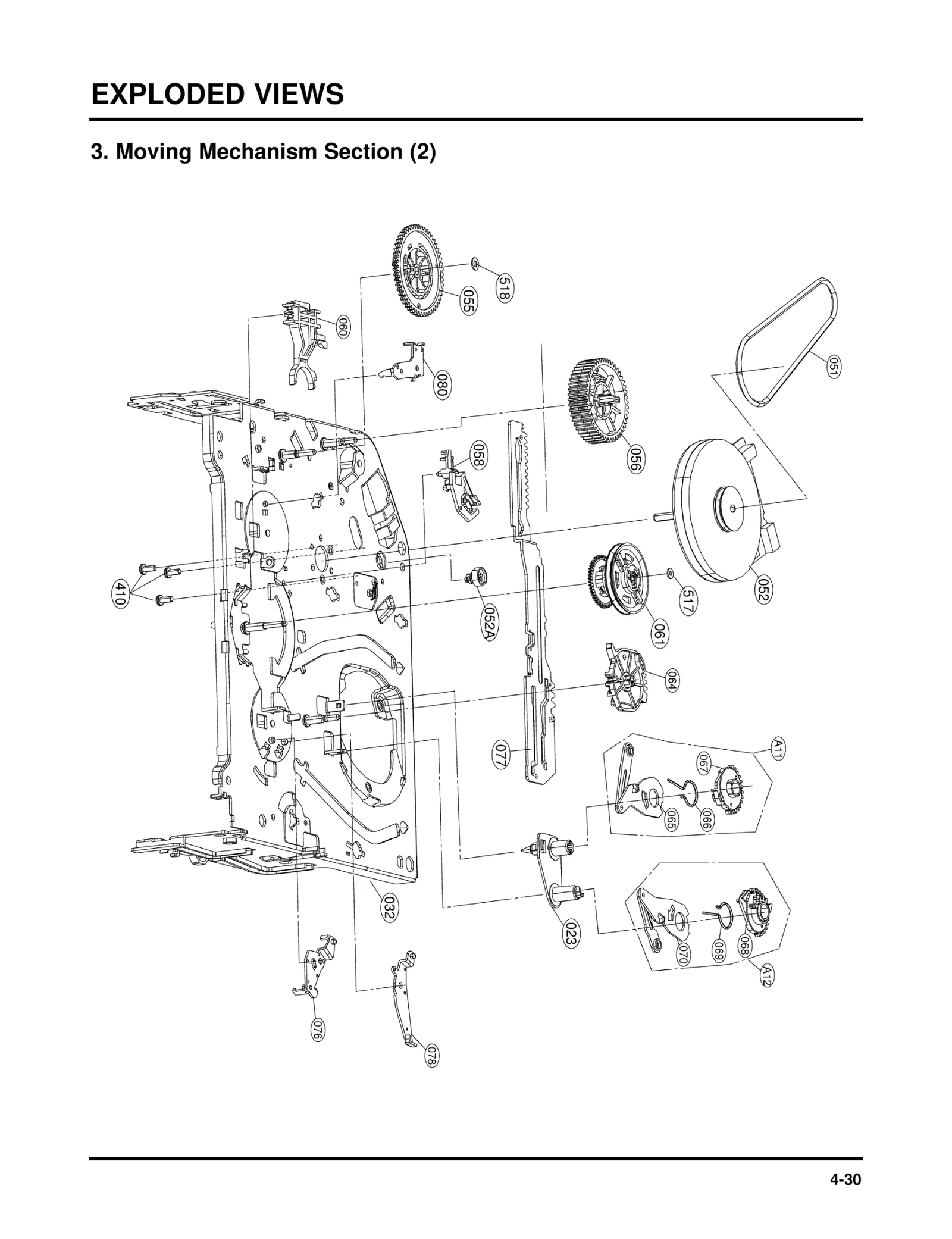

Diagram 8
Diagram 9
Common parts from model LG LHX-557
001
FRAME LGE 3210RZM001A Contact Us For Availability
002
FRAME LGE 3210RZM002A Contact Us For Availability
003
TRAY LGE 3390RZ0002A Contact Us For Availability
003
HOLDER LGE 4930R-0376A Contact Us For Availability
004
TRAY LGE 3390RZ0002B Contact Us For Availability
004
CAP LGE 5006R-0042A Contact Us For Availability
005
TRAY LGE 3390RZ0002C Contact Us For Availability
006
Roller LGE 4580R-0004A Contact Us For Availability
006
TRAY LGE 3390RZ0002D Contact Us For Availability
007
Arm LGE 4260R-0053A Contact Us For Availability
007
TRAY LGE 3390RZ0002E Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
008
FRAME LGE 3210RZM003A Contact Us For Availability
009
ARM LGE 4260RZ0001A Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
010
ARM LGE 4260RZ0001B Contact Us For Availability
011
ARM LGE 4260RZ0001C Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
GEAR LGE 4470RZ0005A Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
013
GEAR LGE 4470RZ0005B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
014
ARM LGE 4260RZ0002A Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
015
ARM LGE 4260RZ0002B Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036A Contact Us For Availability
016
ARM LGE 4260RZ0002C Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036C Contact Us For Availability
016
Base Assembly LGE 3041R-M036B Contact Us For Availability
017
ARM LGE 4260RZ0003A Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
017
REEL LGE 4408R-0005B Contact Us For Availability
018
LEVER LGE 4510RZ0001A Contact Us For Availability
019
BRACKET LGE 4810RZ0003A Contact Us For Availability
020
GEAR LGE 4470RZ0006A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
021
COVER LGE 3550RZ0001A Contact Us For Availability
022
CLAMP ASSEMBLY LGE 4861RZ0002A Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004A Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
023
ARM LGE 4260RZ0004A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0042A Contact Us For Availability
024
FRAME LGE 3210RZM004A Contact Us For Availability
025
FRAME LGE 3210RZM004B Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039C Contact Us For Availability
026
LEVER LGE 4510RZ0002A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
027
FRAME LGE 3210RZM005A Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
FRAME LGE 3210RZM006A Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
029
FRAME LGE 3210RZM007A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
030
CHASSIS LGE 3140RZM001A Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
031
DECK MECHANISM PARTS LGE 6768RZVP01A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
032
MOTOR ASSEMBLY LGE 4681RZ0001A Contact Us For Availability
033
ARM LGE 4260RZ0005A Contact Us For Availability
034
GEAR LGE 4470RZ0007A Contact Us For Availability
035
GEAR LGE 4470RZ0008A Contact Us For Availability
036
RING LGE 4350RZ0001A Contact Us For Availability
037
PWB(PCB) ASSEMBLY,OT LGE 6871RZ0022A Contact Us For Availability
038
PWB(PCB) ASSEMBLY,OT LGE 6871RZ0023A Contact Us For Availability
039
GEAR LGE 4470RZ0009A Contact Us For Availability
040
PLATE LGE 3300RZM001A Contact Us For Availability
041
GEAR LGE 4470RZ0010A Contact Us For Availability
042
LEVER LGE 4510RZ0003A Contact Us For Availability
043
LEVER LGE 4510RZ0004A Contact Us For Availability
044
GEAR LGE 4470RZ0011A Contact Us For Availability
045
GEAR LGE 4470RZ0012A Contact Us For Availability
046
FELT LGE 4766RZ0001A Contact Us For Availability
047
SPRING LGE 4970RZ0001A Contact Us For Availability
048
SPRING LGE 4970RZ0002A Contact Us For Availability
049
SPRING LGE 4970RZ0003A Contact Us For Availability
050
STOPPER LGE 4620RZ0001A Contact Us For Availability
051
STOPPER LGE 4620RZ0002A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A015A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016A Contact Us For Availability
052
SPRING LGE 4970RZ0004A Contact Us For Availability
052
LGE 4680R-A017A LGE 4680R-A017A Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
053
SPRING LGE 4970RZ0005A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054
SPRING LGE 4970RZ0006A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
SPRING LGE 4970RZ0007A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
056
SPRING LGE 4970RZ0008A Contact Us For Availability
057
SPRING LGE 4970RZ0009A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
058
SPRING LGE 4970RZ0010A Contact Us For Availability
059
SPRING LGE 4970RZ0011A Contact Us For Availability
060
SPRING LGE 4970RZ0012A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0007A Contact Us For Availability
061
WASHER,DRAWING LGE 1WZZRZ0001A Contact Us For Availability
062
BELT LGE 4400RZ0002A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE LGE 3300R-M202A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0060A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
CABINET LGE 3090RLH001A Contact Us For Availability
255
COVER LGE 3550RL0004A Contact Us For Availability
256
SHEET (MECH) LGE 3858RLP001A Contact Us For Availability
257
CASE LGE 3110RLH001A Contact Us For Availability
258
PLATE LGE 3300RLT002A Contact Us For Availability
259
PLATE LGE 3300RLT002C Contact Us For Availability
260
FRAME LGE 3210RLH001A Contact Us For Availability
263
FAN,DC LGE 5900R-D004D Contact Us For Availability
264
BRACKET LGE 4810RL0003A Contact Us For Availability
268
PLATE LGE 3300RLH007A Contact Us For Availability
274
PLATE LGE 3300RLH006A Contact Us For Availability
275
LGE 4930RL0001A LGE 4930RL0001A Contact Us For Availability
278
BRACKET LGE 4810RL0004A Contact Us For Availability
279
KNOB LGE 4940RLV007A Contact Us For Availability
280
PANEL,FRONT LGE 3720RLF001A Contact Us For Availability
281
DOOR ASSEMBLY LGE 3581RLA004A Contact Us For Availability
282
WINDOW,DECO LGE 3790RLP004A Contact Us For Availability
283
DOOR LGE 3580RLV002A Contact Us For Availability
287
PLATE LGE 3300R-V116A Contact Us For Availability
288
DOOR LGE 3580RLC003A Contact Us For Availability
291
DECORATION LGE 3508RLH008A Contact Us For Availability
292
DECORATION LGE 3508RLH009A Contact Us For Availability
300
POWER CORD LGE 6410RAHK04A Contact Us For Availability
320
CHASSIS LGE 3140RLH002A Contact Us For Availability
321
CASE LGE 3110R-V013A Contact Us For Availability
322
HEAT SINK LGE 4920RLE004A Contact Us For Availability
323
PANEL,AUDIO LGE 3720RCP030A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
431
DECK MECHANISM PARTS LGE 6768RZCP01A Contact Us For Availability
432
DECK MECHANISM PARTS LGE 6768RZCP02A Contact Us For Availability
433
DECK MECHANISM PARTS LGE 6768RZCP03A Contact Us For Availability
434
DECK MECHANISM PARTS LGE 6768RZCP04A Contact Us For Availability
435
DECK MECHANISM PARTS LGE 6768RZCP05A Contact Us For Availability
436
DECK MECHANISM PARTS LGE 6768RZCP06A Contact Us For Availability
437
DECK MECHANISM PARTS LGE 6768RZCP07A Contact Us For Availability
438
DECK MECHANISM PARTS LGE 6768RZCP08A Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098B Contact Us For Availability
453
SCREW,DRAWING LGE 1SZZR-0097B Contact Us For Availability
455
SCREW,DRAWING LGE 1SZZR-0081D Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
471
Screw,Customized LGE 1SZZR-0081A Contact Us For Availability
750
NET ASSEMBLY LGE 3701RM0161A Contact Us For Availability
752
PANEL,AUDIO LGE 3720RMM037A Contact Us For Availability
754
CASE LGE 3110RMP102A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RH0075E Contact Us For Availability
802
BOX,MASTER LGE 3890RCC191B Contact Us For Availability
803
PACKING LGE 3920R-E160A Contact Us For Availability
804
BAG LGE 3880SCS001F Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
824
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
825
ANTENNA,LEAD LGE 563-655C Contact Us For Availability
826
FERRITE CORE LGE 6200JB8010K Contact Us For Availability
850
NET ASSEMBLY LGE 3701RM0160A Contact Us For Availability
851
SCREW,DRAWING LGE 353M025K Contact Us For Availability
852
PANEL,AUDIO LGE 3720RMM036A Contact Us For Availability
853
SPEAKER,FULLRANGE LGE 6400GETC01A Contact Us For Availability
854
CASE LGE 3110RMP101A Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
856
BASE LGE 3040RMP068A Contact Us For Availability
857
SCREW,DRAWING LGE 353M075Q Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710CDAK03A Contact Us For Availability
950
PANEL,AUDIO LGE 3720RMM038A Contact Us For Availability
951
CABINET ASSEMBLY LGE 3091RMW155A Contact Us For Availability
952
NET ASSEMBLY LGE 3701RM0021B Contact Us For Availability
953
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
954
SPEAKER,WOOFER LGE 6400WETM01A Contact Us For Availability
955
LGE 3610RM0002A LGE 3610RM0002A Contact Us For Availability
956
PWB(PCB) ASSEMBLY,SU LGE 6871RU0078A Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0940A Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0603E Contact Us For Availability
A03
ARM ASSEMBLY LGE 4261R-0039A Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0004A Contact Us For Availability
A26
MECHANISM ASSEMBLY LGE 4405RCH500A Contact Us For Availability
A42
HAND INS PWB(PCB) AS LGE 6874R-8855A Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721RLF004A Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141RLT006A Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-8831A Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-6953A Contact Us For Availability
A49
HAND INS PWB(PCB) AS LGE 6874R-8845A Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-8845A Contact Us For Availability
A51
BOARD ASSEMBLY LGE 3501R-1844A Contact Us For Availability
A51A
PWB(PCB) ASSEMBLY,TO LGE 6871R-1844A Contact Us For Availability
A51B
PWB(PCB) ASSEMBLY,TO LGE 6871R-8861A Contact Us For Availability
A52
SUB PWB(PCB) ASSEMBL LGE 6885R-1845A Contact Us For Availability
A54
BOARD ASSEMBLY LGE 3501R-9946A Contact Us For Availability
A60
MECHANISM ASSEMBLY LGE 4405RLH950A Contact Us For Availability
A70
SPEAKER ASSEMBLY LGE 6401RM0220A Contact Us For Availability
A80
SPEAKER ASSEMBLY LGE 6401RM0219A Contact Us For Availability
A90
SPEAKER ASSEMBLY LGE 6401RM0221A Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C6G8
Capacitor,Ceramic,Axial LGE 0CN2210K518 Contact Us For Availability
C102
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C104
CAPACITOR,FIXED ELEC LGE 0CE827RQ6A0 Contact Us For Availability
C106
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C107
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C108
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1030K945 Contact Us For Availability
C109
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C111
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C111
CAPACITOR,FIXED FILM LGE 0CQ4721N449 Contact Us For Availability
C113
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C115
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C118
Capacitor,Film,DIP LGE 0CQ3911N449 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C122
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C132
CAPACITOR LGE 624-087D Contact Us For Availability
C134
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C136
Capacitor,AL,Radial LGE 0CE4776D638 Contact Us For Availability
C173
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C193
LGE 0CE1076H638 LGE 0CE1076H638 Contact Us For Availability
C215
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C307
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C365
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C367
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C416
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C502
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C575
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4100K416 LGE 0CH4100K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C601
Capacitor,AL,Radial LGE 0CE108CC638 Contact Us For Availability
C602
LGE 0CE1073D618 LGE 0CE1073D618 Contact Us For Availability
C613
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C646
Capacitor,AL,Radial LGE 0CE4776F638 Contact Us For Availability
C665
LGE 0CE4776C638 LGE 0CE4776C638 Contact Us For Availability
C756
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C765
CAPACITOR,FIXED CERA LGE 0CH1334K942 Contact Us For Availability
C779
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C804
Capacitor,AL,Radial LGE 0CE3366K638 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-H006Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-H008A Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-HQ18Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-JW16X Contact Us For Availability
CM101
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN202
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
CN203
CONNECTOR (CIRC),FFC LGE 6630XF00417 Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D114
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D121
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D122
BRACKET ASSEMBLY LGE 4811R-0044P Contact Us For Availability
D123
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSTW00099A Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DS141489AB Contact Us For Availability
D193
DIODE 1N5402,RECT,SILTER,FORM LGE 0DD540200CA Contact Us For Availability
D601
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
DIG601
DIGITRON LGE 6302R-V212A Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0078C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
F618
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
IC5A1A
PROGRAM LGE 6957R-183AA Contact Us For Availability
IC6V1
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCR02075A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IPMG00045A Contact Us For Availability
IC104
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC105
IC,KEC LGE 0IKE780900M Contact Us For Availability
IC160
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC161
IC,POWER MANAGEMENT LGE 0IPMGFA030A Contact Us For Availability
IC162
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC163
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC166
IC,POWER MANAGEMENT LGE 0IPMGKE046A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPAK005A Contact Us For Availability
IC203
IC,PERIPHERALS LGE 0IPRPMT007A Contact Us For Availability
IC205
IC JRC(JAPAN RADIO CORP) LGE 0IJR456000B Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMG00022A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNRIJ001B Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF009A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCR02063A Contact Us For Availability
IC503
IC,EEPROM LGE 0ISS241610A Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC506
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC506
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC507
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPGN010B Contact Us For Availability
IC602
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC603
IC,PERIPHERALS LGE 0IPRPS5003A Contact Us For Availability
IC604
IC,POWER MANAGEMENT LGE 0IPMGA7001A Contact Us For Availability
IC605
IC,PERIPHERALS LGE 0IPRPMT004A Contact Us For Availability
IC606
IC,PERIPHERALS LGE 0IPRPPH012A Contact Us For Availability
IC750
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013B Contact Us For Availability
JK601
CONNECTOR(CIRC),DRAW LGE 6630R-SY08Z Contact Us For Availability
JK602
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK802
JACK,RCA LGE 6612JH003DQ Contact Us For Availability
JKS01
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
L6
Coil,RF LGE 6140RCC008A Contact Us For Availability
L122
COIL,RF LGE 6140RCC003H Contact Us For Availability
L123
COIL,RF LGE 6140R-C011A Contact Us For Availability
L131
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
L401
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L510
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L601
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L706
Inductor,Wire Wound,Radial LGE 0LR0222K035 Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0086C Contact Us For Availability
LED603
LGE 0DLEO0039AA LGE 0DLEO0039AA Contact Us For Availability
LED605
LED LGE 0DLLT0359AA Contact Us For Availability
LED609
LED,DIP LGE 0DLAU0249AA Contact Us For Availability
LEH01
Filter,LCR LGE 6200JB8010V Contact Us For Availability
LF101
Filter,Line Noise LGE 6200JB8009P Contact Us For Availability
LF102
FILTER(CIRC),EMC LGE 6200JB8013W Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002C Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P6M02
CONNECTOR(CIRC),DRAW LGE 561-844H Contact Us For Availability
P7M01
Connector,BtoB LGE 561-844F Contact Us For Availability
P6602
CONNECTOR (CIRC),BOA LGE 6630S-BC02L Contact Us For Availability
P6603
CONNECTOR (CIRC),BOA LGE 6630S-BC01L Contact Us For Availability
PAD01
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
PAT01
CONNECTOR(CIRC),DRAW LGE 561-843F Contact Us For Availability
PAV03
Connector,Wafer LGE 561-036N Contact Us For Availability
PCN01
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PDV01
CONNECTOR (CIRC) LGE 561-036K Contact Us For Availability
PHD01
CONNECTOR(CIRC),DRAW LGE 561-712O Contact Us For Availability
PV602
CONNECTOR(CIRC),DRAW LGE 561-843H Contact Us For Availability
PVA02
CONNECTOR (CIRC),FFC LGE 561-6860 Contact Us For Availability
PVS01
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
PWS01
LGE 561-715M LGE 561-715M Contact Us For Availability
Q166
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q310
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q401
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q403
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q405
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q406
LGE 0TR320500AB LGE 0TR320500AB Contact Us For Availability
Q602
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q603
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R103
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R106
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R117
RESISTOR,FIXED CARBON FILM LGE 0RD1102F608 Contact Us For Availability
R119
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R133
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R136
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R137
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R155
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R324
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R448
RESISTOR CHIP LGE 0RH0201D622 Contact Us For Availability
R607
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R621
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R630
INDUCTOR,CHIP LGE 0LCCE00005T Contact Us For Availability
R712
Resistor,Chip LGE 0RJ0331G676 Contact Us For Availability
R865
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R869
RESISTOR,METAL GLAZE LGE 0RH1002E622 Contact Us For Availability
RA605
Resistor,Array LGE 0RRZVTA001L Contact Us For Availability
RS501
SENSOR LGE 6500RAB009A Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW18Z Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW18R Contact Us For Availability
TF131
THERMISTOR,PTC LGE 6322B62216A Contact Us For Availability
TH102
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU101
TUNER LGE 6700FM0091A Contact Us For Availability
TU701
TUNER LGE 6700NFNL05E Contact Us For Availability
TU701
TUNER LGE 6700NFNL05A Contact Us For Availability
VR601
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271C Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271A Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271B Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE83
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271K Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X201
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AB2135C Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZ910009BE Contact Us For Availability
ZD111
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD162
DIODE,ZENERS LGE 0DZ152609AB Contact Us For Availability
ZD605
DIODE,ZENER LGE 0DZ562609AB Contact Us For Availability
× ![]()
Login and Registration Form
