Model LG LHN247HV.ENWAEUS Duct_I/D_Inverter_H/P – Common Parts & Diagrams

Common parts from model LG LHN247HV.ENWAEUS Duct_I/D_Inverter_H/P

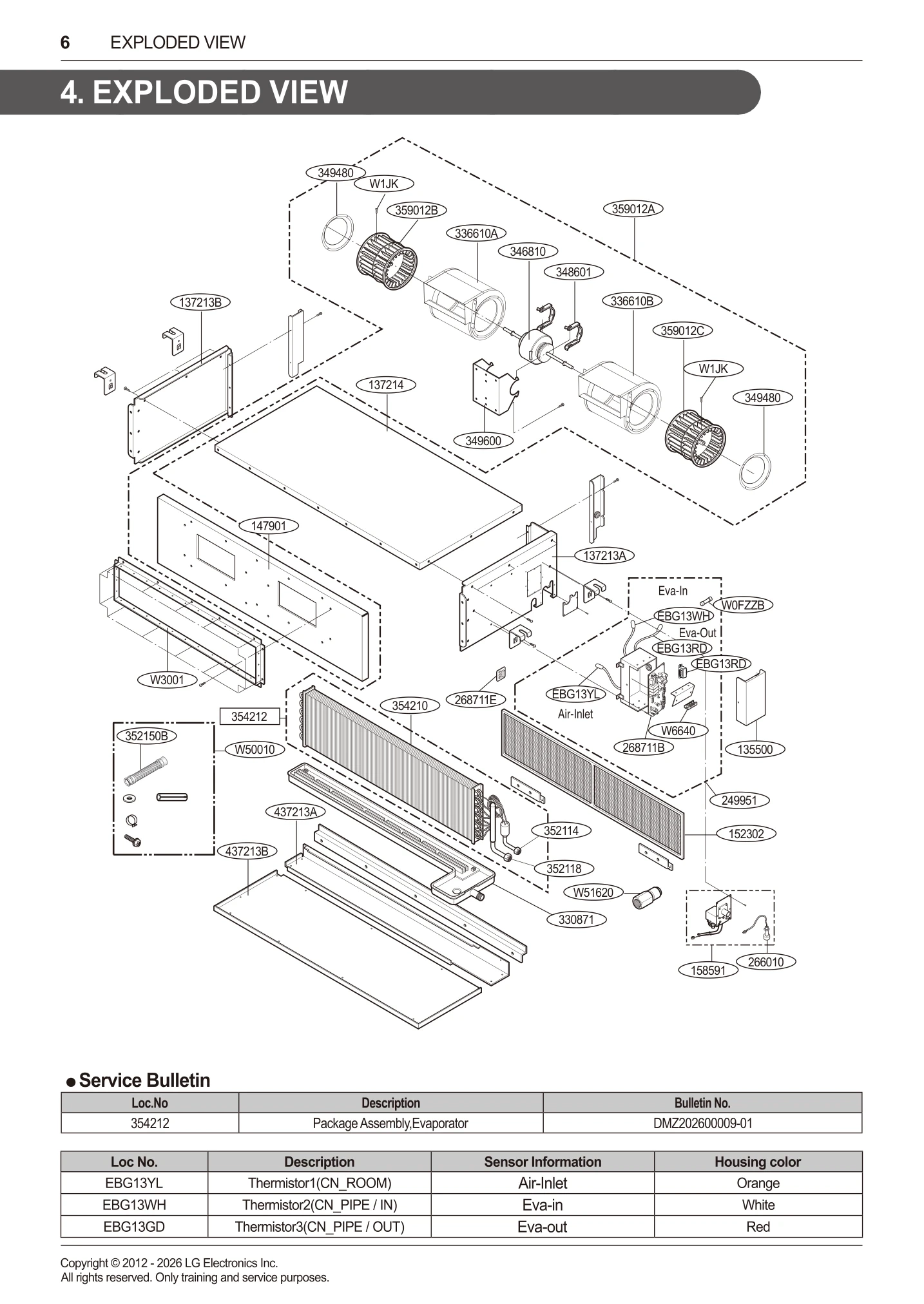

Diagram 0

Print

• This Diagram
• All Diagrams

137214

3721A20180C LG Upper Panel Assembly Backorder LGE 3721A20180C View Details $105.84

View on Model

147901

Barrier,Indoor LGE 4790A10027L Contact Us For Availability

View on Model

152302

5230A30001L LG Air Filter Backorder LGE 5230A30001L View Details $71.83

View on Model

158591

5859A20002D LG Water Pump Assembly In Stock LGE 5859A20002D View Details $229.89

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ73101226 Contact Us For Availability

View on Model

266010

6601A20013P LG Switch Assembly Backorder LGE 6601A20013P View Details $63.09

View on Model

268711B

EBR79004817 LG Main PCB Assembly Backorder LGE EBR79004817 View Details $285.12

View on Model

268711E

PCB Assembly,Sub LGE EBR58014116 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain LGE 3087A10008K Contact Us For Availability

View on Model

336610A

Housing Assembly LGE 3661A10009C Contact Us For Availability

View on Model

336610B

Housing Assembly LGE 3661A10009D Contact Us For Availability

View on Model

346810

4681A20197F LG DC Motor Assembly In Stock LGE 4681A20197F View Details $465.03

View on Model

348601

4860A20008A LG Motor Clamp In Stock LGE 4860A20008A View Details $19.86

View on Model

349480

Orifice LGE 4948A10010A Contact Us For Availability

View on Model

349600

Bracket,Motor LGE 4960A20105F Contact Us For Availability

View on Model

352114

5211A20693G LG Tube Assembly,Distributor Backorder LGE 5211A20693G View Details $70.61

View on Model

352118

Tube Assembly,Manifold(Indoor) LGE 5211A20416J Contact Us For Availability

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $20.74

View on Model

354210

5421A10027A LG Evaporator Assembly First Backorder LGE 5421A10027A View Details $260.58

View on Model

359012A

Fan Assembly,Blower LGE ADP73713701 Contact Us For Availability

View on Model

359012B

Fan Assembly,Blower LGE 5901A10015D Contact Us For Availability

View on Model

359012C

Fan Assembly,Blower LGE 5901A10015C Contact Us For Availability

View on Model

437213A

Panel Assembly,Rear(Indoor) LGE 3721A21006C Contact Us For Availability

View on Model

437213B

Panel Assembly,Rear(Indoor) LGE 3721A21007C Contact Us For Availability

View on Model

EBG13RD

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $25.61

View on Model

EBG13WH

EBG61287706 LG Temperature Sensor Thermistor Backorder LGE EBG61287706 View Details $25.61

View on Model

EBG13YL

EBG61106822 LG Temperature Sensor Thermistor Backorder LGE EBG61106822 View Details $19.86

View on Model

W0FZZB

6900AQ9028D LG Time Delay Fuse Backorder LGE 6900AQ9028D View Details $9.60

View on Model

W1JK

4H00026A LG Screw Set Backorder LGE 4H00026A View Details $3.21

View on Model

W3001

Angle Assembly LGE 3001A20006A Contact Us For Availability

View on Model

W6640

Connector,Terminal Block LGE EAG38884441 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA73031501 Contact Us For Availability

View on Model

W51620

Socket,Flare LGE 4010AR3071A Contact Us For Availability

View on Model

×
