Model LG LHD45ELY8 Dehumidifier – Common Parts & Diagrams

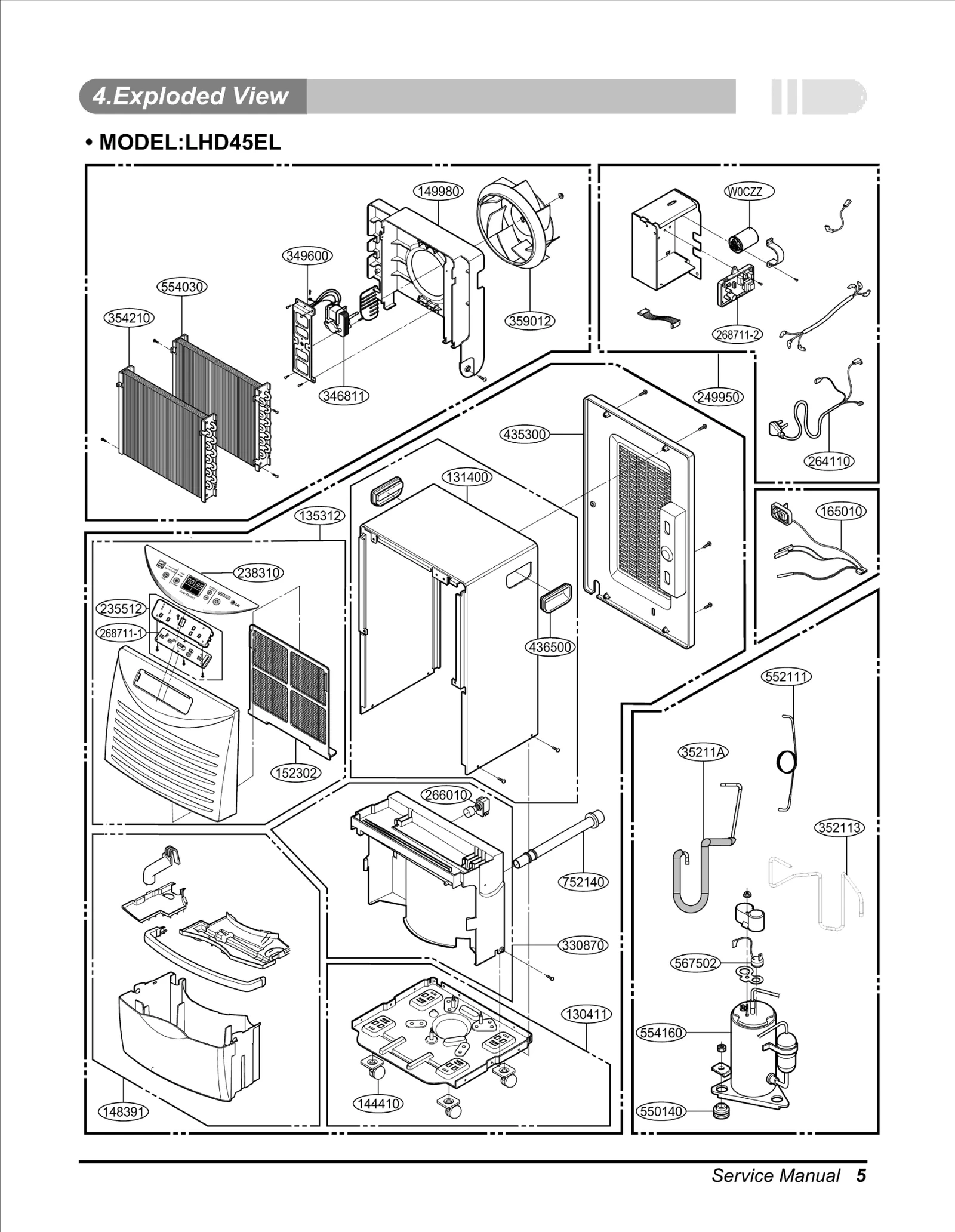

Diagram 0
Diagram 1
Common parts from model LG LHD45ELY8 Dehumidifier
135312
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A18012J Contact Us For Availability
148391
Tank Assembly,Bucket LGE 4839A10004G Contact Us For Availability
149980
SHROUD LGE 4998A10034B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
165010
Sensor Assembly LGE 6877A30013R Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A20109C Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20079Q Contact Us For Availability
249950
Case Assembly,Control LGE ABQ36532602 Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266010
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20600B Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR36909301 Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20040J Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009W Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193C Contact Us For Availability
436500
Handle LGE 3650A20004B Contact Us For Availability
550140
BUSHING LGE 4830A30005A Contact Us For Availability
552111
Tube Assembly,Capillary LGE AJR71503601 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG65488301 Contact Us For Availability
554160
Compressor Set,China LGE TBZ32067201 Contact Us For Availability
567502
Overload Protect LGE EAF43158801 Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
W6631
Harness,Single LGE 6877A20025Q Contact Us For Availability
× ![]()
