Model LG LHB996 – Common Parts & Diagrams
Diagram 0

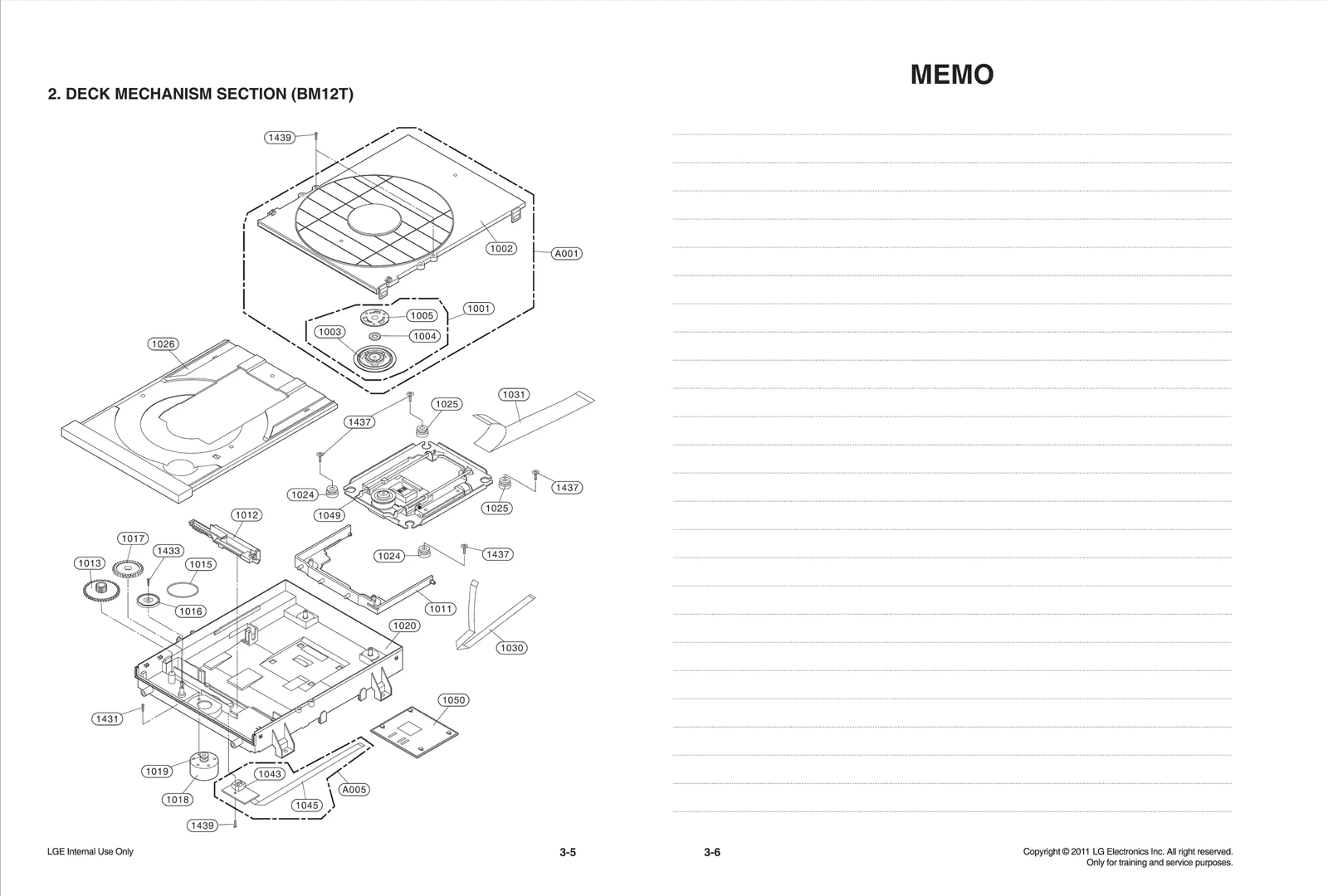

Diagram 1

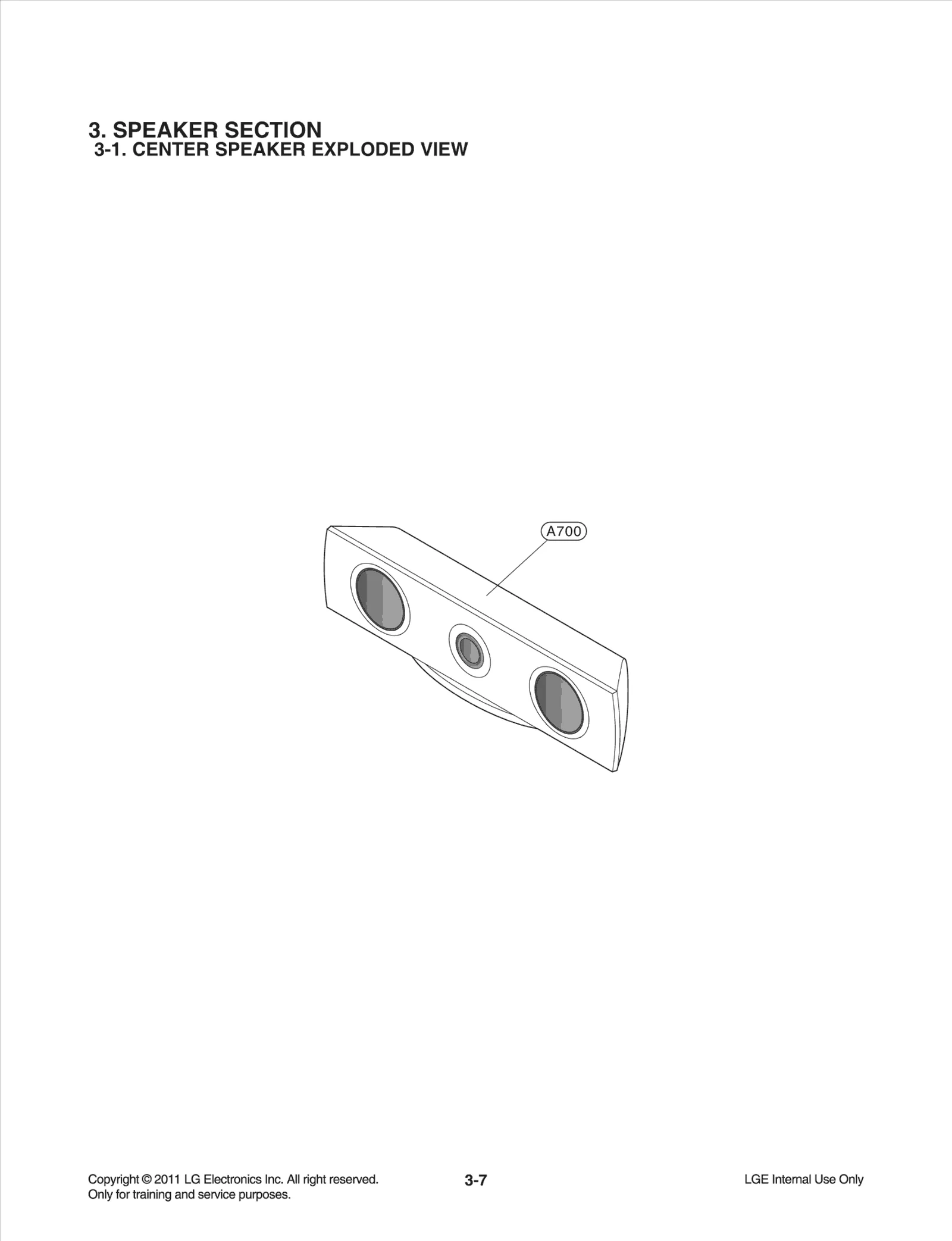

Diagram 2

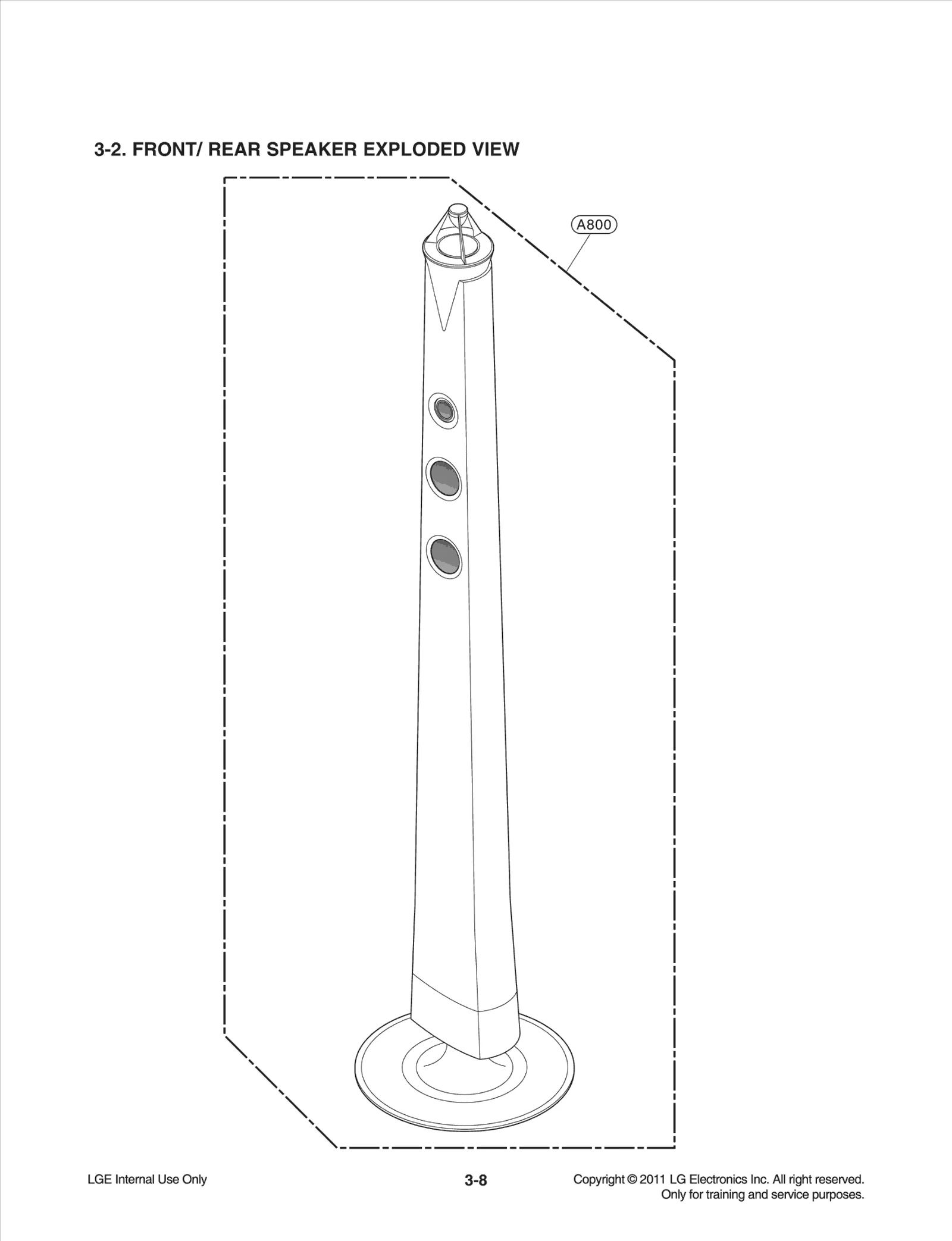

Diagram 3

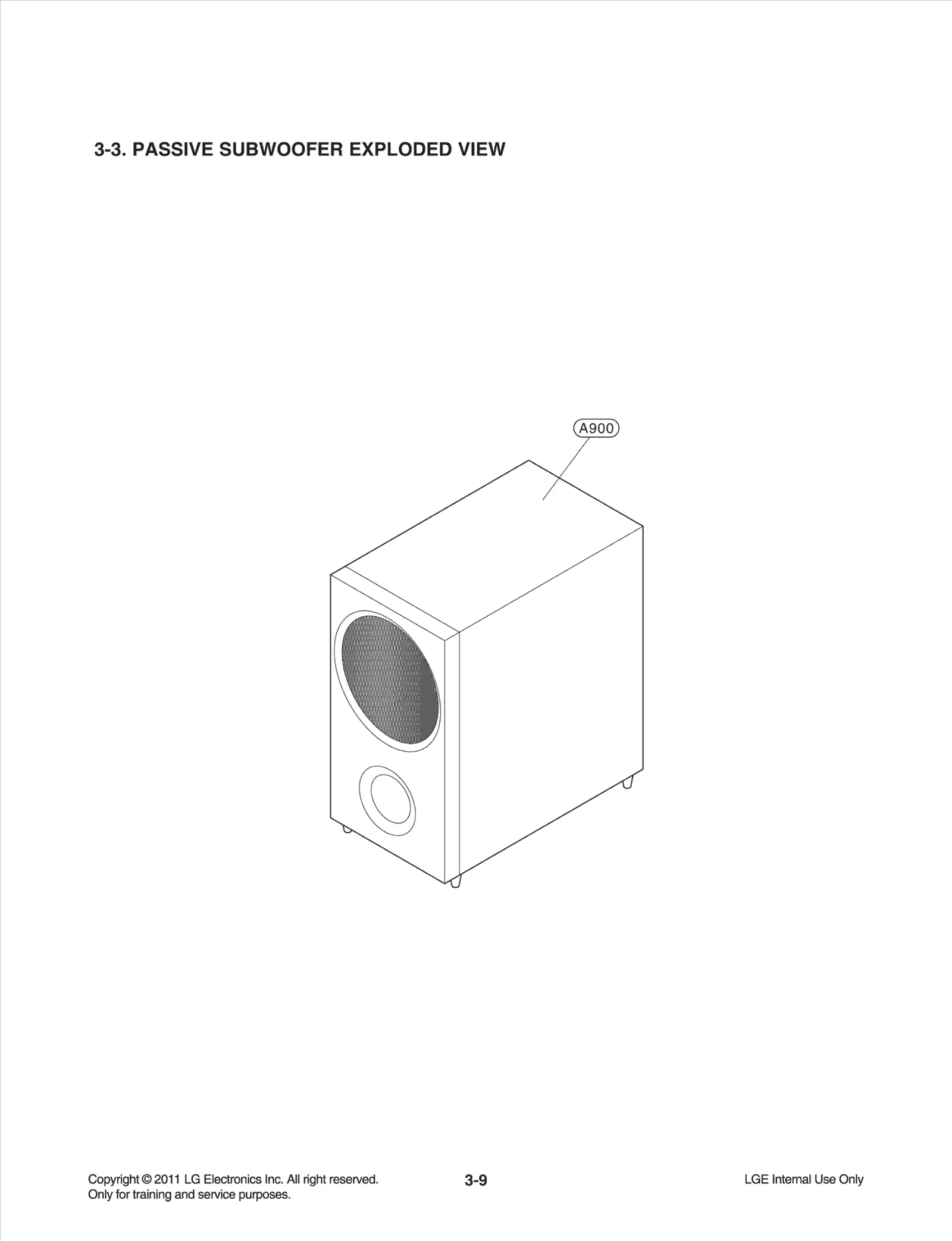

Diagram 4

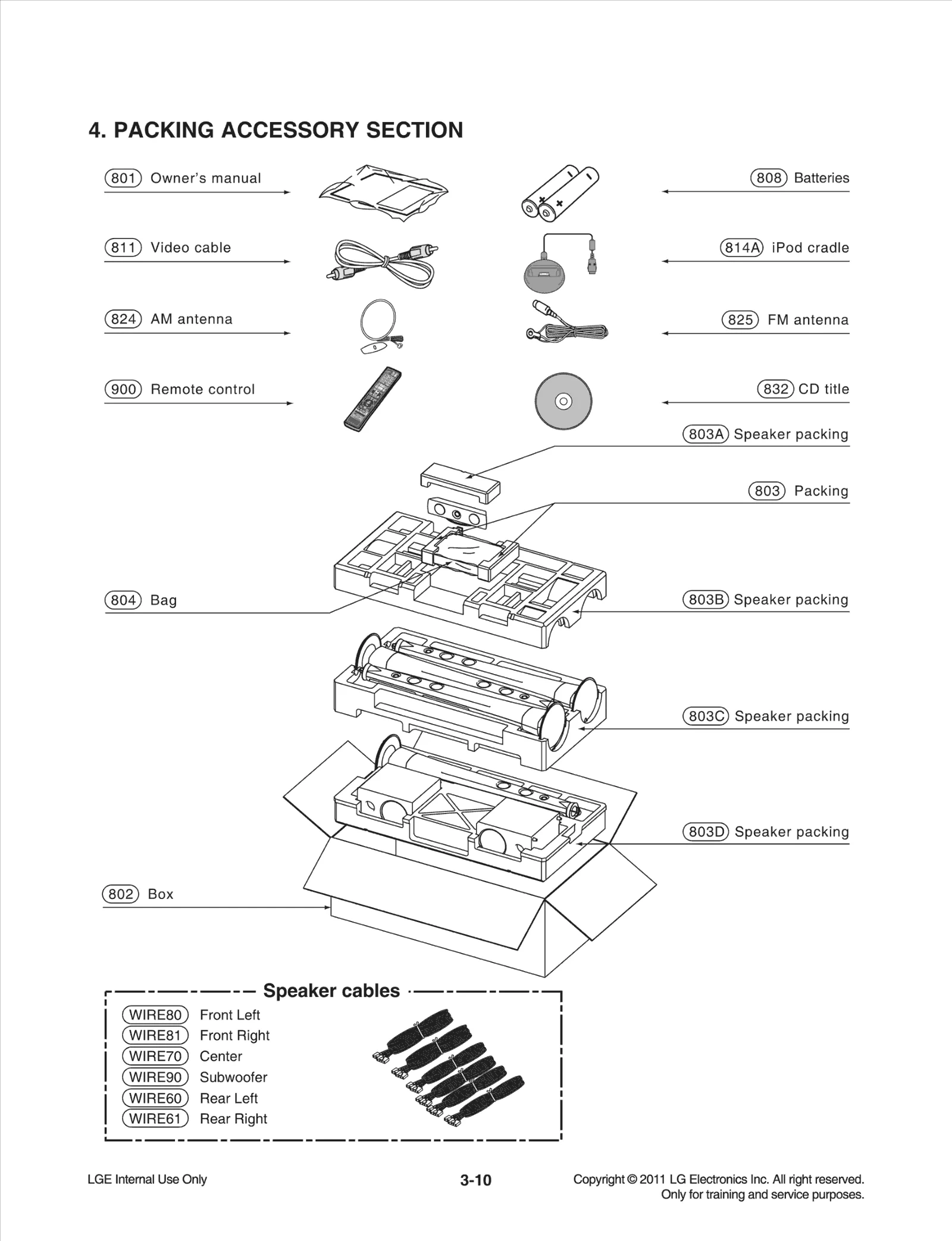

Diagram 5
Diagram 6
Common parts from model LG LHB996
250
Board Assembly LGE AAX73469545 Contact Us For Availability
250L
Cover LGE MCK66691202 Contact Us For Availability
250R
Cover LGE MCK66671602 Contact Us For Availability
260
Chassis LGE MBS61845001 Contact Us For Availability
261
RUBBER LGE 5040R-0069T Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
268
Holder LGE MEG58371702 Contact Us For Availability
269
Holder LGE MEG61895901 Contact Us For Availability
273
Damper LGE MCQ63084902 Contact Us For Availability
285
Holder LGE MEG62520601 Contact Us For Availability
300
Power Cord LGE EAD60816611 Contact Us For Availability
300
Power Cord LGE EAD60816731 Contact Us For Availability
320
Panel,Rear LGE MGC62302344 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75473157 Contact Us For Availability
802
Box,Master LGE MAY65120554 Contact Us For Availability
803
Packing LGE MFZ62138945 Contact Us For Availability
803A
Packing LGE MFZ62839446 Contact Us For Availability
803B
Packing LGE MFZ62839447 Contact Us For Availability
803C
Packing LGE MFZ62839448 Contact Us For Availability
803D
Packing LGE MFZ62839449 Contact Us For Availability
804
Bag LGE MAF58050903 Contact Us For Availability
805
Sheet LGE MHK37290703 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
814A
PCB Assembly LGE EBR36932343 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
832
Title LGE SAC35235210 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73356001 Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK66030402 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM62246401 Contact Us For Availability
1012
Guide LGE MEA62411101 Contact Us For Availability
1013
Gear LGE MDT62067301 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT62067401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62225801 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62172101 Contact Us For Availability
1030
Cable,FFC LGE EAD61049005 Contact Us For Availability
1031
Cable,FFC LGE EAD61048209 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Traverse Assembly LGE EAZ61122502 Contact Us For Availability
1050
Cover LGE MCK66014301 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ84674501 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR72909101 Contact Us For Availability
A41
PCB Assembly LGE EBR73068712 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL73732806 Contact Us For Availability
A44
Frame Assembly LGE ADV73865728 Contact Us For Availability
A45
PCB Assembly LGE EBR73388601 Contact Us For Availability
A46
Option Code Assembly LGE EBR73374927 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72440577 Contact Us For Availability
A49
PCB Assembly LGE EBR72867501 Contact Us For Availability
A50
PCB Assembly LGE EBR72866802 Contact Us For Availability
A51
Module,WLAN LGE EAT61333201 Contact Us For Availability
A700
Speaker Assembly LGE EAB62429101 Contact Us For Availability
A800
Speaker Assembly LGE EAB62410005 Contact Us For Availability
A900
Speaker Assembly LGE EAB62388604 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986801 Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C1C7
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C1F9
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2U4
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C2U5
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C5B2
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C7A5
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C7B7
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C7D7
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7E0
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C7G7
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C7K7
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C156
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C205
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C211
Capacitor,Ceramic,Ch LGE 0CK472BHG6A Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C223
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
C238
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C256
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C289
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C304
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
C309
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C506
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CC100BKG1A Contact Us For Availability
C557
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C638
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C780
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C797
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C823
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C885
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C887
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C906
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C910
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C917
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C919
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C920
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C925
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C927
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C928
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C937
Capacitor,Ceramic,Chip LGE 0CH4470K416 Contact Us For Availability
C939
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
CA254
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CA260
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
CA407
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
CABLE1
Cable,FFC LGE EAD61548302 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD41672708 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638805 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD35201509 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD54155307 Contact Us For Availability
CABLE6
Harness,Single LGE EAD35863003 Contact Us For Availability
CF809
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN3T1
Connector,Wafer LGE 6630V90078G Contact Us For Availability
CN3T2
Connector,FFC/FPC/PIC LGE 6630R-FB11E Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN150
Connector,Wafer LGE EAG61452601 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE EAG62890901 Contact Us For Availability
CN203
Connector,Wafer LGE 561-712D Contact Us For Availability
CN250
CONNECTOR (CIRC),FFC LGE 6630XE01224 Contact Us For Availability
CN251
Connector,FFC/FPC/PI LGE 6630R-FB11I Contact Us For Availability
CN252
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN253
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630R-FB11X Contact Us For Availability
CN304
Harness,Single LGE 6631R-C001L Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
CN602
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN901
Harness,Single LGE EAD52412103 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D101
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D101
Diode,Schottky LGE 0DSON00098A Contact Us For Availability
D204
Diode,Switching LGE EAH35293601 Contact Us For Availability
D901
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D903
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D906
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D906
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D913
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D922
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D924
Diode,Schottky LGE EAH60695601 Contact Us For Availability
D924
Diode,Switching LGE EAH30982402 Contact Us For Availability
D925
Diode,Rectifier LGE EAH61233501 Contact Us For Availability
D927
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D928
Diode,Schottky LGE EAH60705801 Contact Us For Availability
DIS301
VFD LGE EAJ60868401 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
FB902
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB903
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
FC702
Filter,EMI/Power LGE SFEY0008901 Contact Us For Availability
FR952
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
IC3P1A
S/W,System Program LGE SAA35421701 Contact Us For Availability
IC3T1A
S/W,System Program LGE SAA35421601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35521001 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61566901 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC152
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
IC153
IC,LDO Voltage Regul LGE EAN40230101 Contact Us For Availability
IC154
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC202
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC250
IC,Power Driver LGE 0ILNRMT003A Contact Us For Availability
IC251
IC,Video Amplifier LGE EAN60918701 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN61489101 Contact Us For Availability
IC402
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC402
IC,SDRAM LGE 0IMMREB004G Contact Us For Availability
IC403A
S/W,System Program LGE SAA35521101 Contact Us For Availability
IC404
IC,CMOS LGE EAN61130301 Contact Us For Availability
IC404
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC405
IC,LDO Voltage Regul LGE EAN37068001 Contact Us For Availability
IC500
IC,Video Processors LGE EAN61608101 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61859601 Contact Us For Availability
IC506A
S/W,System Program LGE SAA35520901 Contact Us For Availability
IC509
IC,I/O Support Chip LGE EAN42565602 Contact Us For Availability
IC603
IC,PWM Controller LGE EAN60993101 Contact Us For Availability
IC703
IC,Power Amplifier LGE EAN60996202 Contact Us For Availability
IC801
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC810
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN61926001 Contact Us For Availability
IC904
IC,Voltage Regulator LGE EAN37663801 Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
JK2U3
Connector,USB LGE EAG35130502 Contact Us For Availability
JK2U4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK203
Jack,Fiber Optic LGE 6612K00010E Contact Us For Availability
JK250
Jack,Modular LGE EAG32089105 Contact Us For Availability
JK251
Jack,RCA LGE EAG61072104 Contact Us For Availability
JK299
Connector,I/O LGE EAG57068001 Contact Us For Availability
JK701
Connector,Terminal Block LGE EAG62893501 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L2U2
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L151
Inductor,Wire Wound,Chip LGE EAP60966001 Contact Us For Availability
L202
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L221
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L253
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L403
Filter,Bead LGE EAM60887201 Contact Us For Availability
L403
Filter,Bead LGE 0LCCE00003C Contact Us For Availability
L706
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L709
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L922
COIL,RF LGE 6140RCC003H Contact Us For Availability
LD3T2
LED,Chip LGE 0DLLP0058AC Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
LF901
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
LF902
Filter,Line Noise LGE EAM61230102 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61253101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q3T2
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q104
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q302
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q901
FET LGE 0TFFN10009A Contact Us For Availability
Q910
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q910
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q911
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q912
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q913
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q914
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q916
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
R1A1
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R1A2
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R1A4
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R1A5
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R1A7
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R1A8
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R1B5
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R1C3
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R1C6
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R1E0
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R1E3
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1E4
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R1E5
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R2U2
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R2U5
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R2U6
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R2U7
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R3P1
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R3T9
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R5E9
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R7A0
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R100
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R163
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R208
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R210
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R332
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R337
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R338
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R341
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R352
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R354
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R401
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R404
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R406
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R528
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R591
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R661
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R755
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R787
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R846
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R855
Resistor,Chip LGE 0RH5100C422 Contact Us For Availability
R861
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R862
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R864
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R889
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R890
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R895
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0390K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R909
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R911
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R913
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R918
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R922
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R924
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R925
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R926
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R927
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R935
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R939
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R940
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R944
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R946
Resistor,Chip LGE 0RH8201D422 Contact Us For Availability
R951
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R954
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R956
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R957
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R958
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R960
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R961
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
RC301
Receiver Module LGE EAV41426102 Contact Us For Availability
SC704
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
SC737
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
SC740
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
SCN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
SCN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
SCN705
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
SIC704
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
SIC705
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
SIC706
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
SIC710
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
SQ712
TR,Bipolar LGE EBK61012201 Contact Us For Availability
SQ712
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
SQ717
TR,Bipolar LGE EBK52465101 Contact Us For Availability
SQ717
TR,Bipolar LGE EBK33822201 Contact Us For Availability
SR71A
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
SR706
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
SR718
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
SR735
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
SR736
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
SR737
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
SR740
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
× ![]()
Login and Registration Form
