Model LG LH-E9674PA – Common Parts & Diagrams

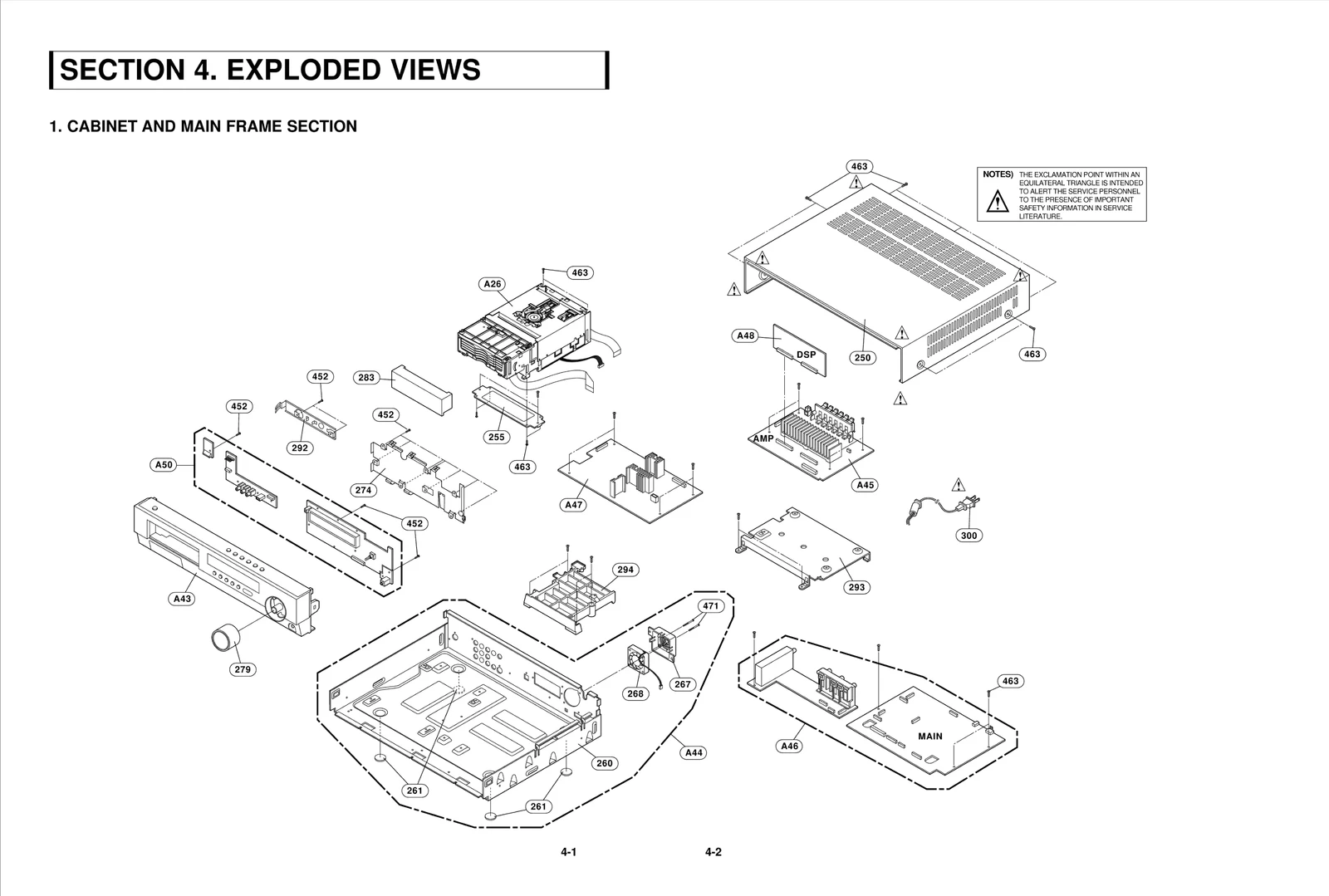

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG LH-E9674PA
001
FRAME LGE 3210RZM001A Contact Us For Availability
002
FRAME LGE 3210RZM002A Contact Us For Availability
003
TRAY LGE 3390RZ0002A Contact Us For Availability
004
TRAY LGE 3390RZ0002B Contact Us For Availability
005
TRAY LGE 3390RZ0002C Contact Us For Availability
006
TRAY LGE 3390RZ0002D Contact Us For Availability
007
TRAY LGE 3390RZ0002E Contact Us For Availability
011
ARM LGE 4260RZ0001C Contact Us For Availability
023
ARM LGE 4260RZ0004A Contact Us For Availability
031
DECK MECHANISM PARTS LGE 6768RZVP01A Contact Us For Availability
032
MOTOR ASSEMBLY LGE 4681RZ0001A Contact Us For Availability
037
PCB Assembly LGE 6871RZ0045A Contact Us For Availability
038
PCB Assembly LGE 6871RZ0045C Contact Us For Availability
062
BELT LGE 4400RZ0002A Contact Us For Availability
071
Damper LGE 4900RB0005A Contact Us For Availability
072
Pick Up Assembly LGE 6717R-D001B Contact Us For Availability
072
Pick Up Assembly LGE 6717R-D001C Contact Us For Availability
073
Cable,FFC LGE 6850R-HQ25D Contact Us For Availability
074
Cable,FFC LGE 6850R-JW32Z Contact Us For Availability
075
PCB Assembly LGE 6871RZ0045B Contact Us For Availability
076
Harness,Single LGE 6631R-E103A Contact Us For Availability
250
Cover LGE 3090RCT001C Contact Us For Availability
255
HOLDER LGE 4930RC0185A Contact Us For Availability
260
Chassis LGE 3140RLT730C Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
267
Holder LGE 4930RL1726A Contact Us For Availability
268
Fan Module LGE 5900R-D009D Contact Us For Availability
274
Plate LGE 3300RLT733A Contact Us For Availability
279
Knob Assembly LGE 4941RL0010A Contact Us For Availability
283
Door LGE 3580RLC697A Contact Us For Availability
292
Plate LGE 3300RLT734A Contact Us For Availability
293
Bracket LGE 4810RL0697A Contact Us For Availability
294
Holder LGE 4930RL0731A Contact Us For Availability
300
Power Cord LGE 6410RAHP06A Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0104A Contact Us For Availability
452
Screw,Customized LGE 353-025P Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
471
SCREW,DRAWING LGE 1SZZR-0098X Contact Us For Availability
650
Frame Assembly LGE 3701RM0195A Contact Us For Availability
651
Decor LGE 3508RMP157A Contact Us For Availability
652
SCREW,DRAWING LGE 353M025K Contact Us For Availability
653
Speaker,Fullrange LGE 6400GKGC01A Contact Us For Availability
654
Panel,Audio LGE 3720RMM078A Contact Us For Availability
655
SCREW LGE 353M025G Contact Us For Availability
656
Case LGE 3110RMP144A Contact Us For Availability
657
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
750
Frame Assembly LGE 3701RM0193A Contact Us For Availability
754
Panel,Front LGE 3720RMF180A Contact Us For Availability
755
PCB Assembly,Sub LGE 6871RU0137A Contact Us For Availability
757
Case Assembly LGE 3111RMP010A Contact Us For Availability
758
Base LGE 3040RMP100A Contact Us For Availability
759
Base LGE 3040RMP101A Contact Us For Availability
761
Foot LGE 3610RM0093A Contact Us For Availability
801
Manual Assembly LGE 3835RH0120C Contact Us For Availability
802
Box,Master LGE MAY32146590 Contact Us For Availability
803
Packing LGE 3920R-E209A Contact Us For Availability
804
BAG LGE 3880SCS001F Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Frame Assembly LGE 3701RM0192A Contact Us For Availability
851
Speaker,Woofer LGE 6400WBHC03A Contact Us For Availability
852
Panel,Front LGE 3720RMF178A Contact Us For Availability
853
Cover LGE 3550RM0077A Contact Us For Availability
854
Speaker,Tweeter LGE 6400TBHY01A Contact Us For Availability
855
PCB Assembly,Sub LGE 6871RU0135A Contact Us For Availability
857
Case LGE 3110RMP142A Contact Us For Availability
858
Bracket LGE 4810RM0039A Contact Us For Availability
860
Decor LGE 3508RMP152A Contact Us For Availability
861
Panel,Front LGE 3720RMF179A Contact Us For Availability
862
Case LGE 3110RMP141A Contact Us For Availability
863
PCB Assembly,Sub LGE 6871RU0136A Contact Us For Availability
864
Screw,Customzied LGE 353M012F Contact Us For Availability
865
Bracket LGE 4810RM0038A Contact Us For Availability
866
PCB Assembly LGE 6871RJ0001A Contact Us For Availability
867
Base LGE 3040RMP098A Contact Us For Availability
868
Base LGE 3040RMP097A Contact Us For Availability
869
Base LGE 3040RMP099A Contact Us For Availability
870
Foot LGE 3610RM0006A Contact Us For Availability
876
Screw,Machine LGE 1MPC0402618 Contact Us For Availability
900
Remote Controller LGE 6710CDAK13A Contact Us For Availability
950
Decor LGE 3508RMP160A Contact Us For Availability
951
Decor LGE 3508RMP161A Contact Us For Availability
952
Decor LGE 3508RMP151A Contact Us For Availability
953
SCREW,DRAWING LGE 353M025C Contact Us For Availability
954
Cover LGE 3090RMP125A Contact Us For Availability
955
Foot LGE 3610RM0089A Contact Us For Availability
956
Foot LGE 3610RM0090B Contact Us For Availability
957
Speaker,Tweeter LGE 6400WBHM04A Contact Us For Availability
958
Duct LGE 5208RM0113B Contact Us For Availability
959
PCB Assembly,Sub LGE 6871RU0103A Contact Us For Availability
960
Cover LGE 3550RM0076A Contact Us For Availability
961
Duct LGE 5208RM0114A Contact Us For Availability
962
Duct LGE 5208RM0115A Contact Us For Availability
A26
Mechanism Assembly LGE 4405RLH500A Contact Us For Availability
A43
Panel Assembly,Front LGE 3721RLF966A Contact Us For Availability
A44
Frame Assembly LGE 3141RLT966A Contact Us For Availability
A45
PCB Assembly LGE 6871R-9674A Contact Us For Availability
A46
Option Code Assembly LGE 6885R-9674A Contact Us For Availability
A47
PCB Assembly LGE 6871R-9769B Contact Us For Availability
A48
PCB Assembly LGE 6871R-9677A Contact Us For Availability
A50
PCB Assembly LGE 6871R-9675A Contact Us For Availability
A60
Speaker Assembly LGE 6401RM0328C Contact Us For Availability
A60A
Case Assembly LGE 3111RMP006A Contact Us For Availability
A70
Speaker Assembly LGE 6401RM0332C Contact Us For Availability
A70A
Panel Assembly,Audio LGE 3721RMM015A Contact Us For Availability
A70B
Base Assembly LGE 3041RMP002A Contact Us For Availability
A80A
Speaker Assembly LGE 6401RM0330A Contact Us For Availability
A80B
Speaker Assembly LGE 6401RM0331C Contact Us For Availability
A80C
Case Assembly LGE 3111RMP008A Contact Us For Availability
A80D
Case Assembly LGE 3111RMP009A Contact Us For Availability
A90
Speaker Assembly LGE 6401RM0318B Contact Us For Availability
A90A
Cover Assembly LGE 3091RMW191C Contact Us For Availability
AR592
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C2A9
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C2B3
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C2B4
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C2B9
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C2L3
CAPA,CHIP CERAMIC M/ LGE 0CH4050K172 Contact Us For Availability
C4D9
Capacitor,TA,Niobium LGE 0CH7226F621 Contact Us For Availability
C4E2
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C4F5
Capacitor,TA,Niobium LGE 0CH7106F611 Contact Us For Availability
C4F6
CAPACITOR,FIXED TANT LGE 0CS476IF6DC Contact Us For Availability
C4F8
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C7A8
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C7C7
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C7F3
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C214
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C221
Capacitor,AL,Radial LGE 0CE3366F618 Contact Us For Availability
C232
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C261
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C266
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C270
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C272
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE2276D638 Contact Us For Availability
C314
Capacitor,Ceramic,Chip LGE 0CH1223F512 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C318
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C320
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C390
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C422
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C431
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C445
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C451
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C561
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C572
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C576
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C577
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C590
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C620
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C622
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C628
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C631
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C635
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C638
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C644
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C655
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C757
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C772
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C777
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C785
Capacitor,AL,Radial LGE 0CE4766H638 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C908
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C912
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE 0CH1472K516 Contact Us For Availability
C915
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C916
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C918
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C921
Capacitor,Ceramic,Ch LGE 0CH1391K566 Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C943
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C944
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C947
Capacitor,Ceramic,Ch LGE EAE30962801 Contact Us For Availability
C952
CAPACITOR LGE 624-087D Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
CF4D2
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CF207
Filter,LCR LGE 6200JB8010V Contact Us For Availability
CM901
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN902
Harness,Single LGE 6631R-F039M Contact Us For Availability
D104
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D303
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D404
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D413
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D413
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D503
Diode,Switching LGE 0DD204009AA Contact Us For Availability
D902
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D914
DIODE LGE 0DD221009AA Contact Us For Availability
D914
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D932
DIODE,SWITCHING LGE 0DSTW00060A Contact Us For Availability
D932
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D934
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D934
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D936
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D938
Diode,Rectifier LGE 0DRON00328B Contact Us For Availability
D946
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE 6302R-V255E Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
FB911
COIL LGE 636-004D Contact Us For Availability
FR932
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
IC2A1
IC,Audio Codec LGE 0IPRP00766A Contact Us For Availability
IC2K1
IC,Unclassified LGE 0IPRP00698A Contact Us For Availability
IC2K1
IC,Transceiver LGE 0IPRP00698B Contact Us For Availability
IC2K3
IC,Analog Switch LGE 0IPRP00717A Contact Us For Availability
IC2K4
IC,PERIPHERALS LGE 0IPRP00664A Contact Us For Availability
IC4D1
IC,PERIPHERALS LGE 0IPRP00666A Contact Us For Availability
IC4D4
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC101A
S/W,System Program LGE 6957R-910AA Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC104
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC104
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC201
IC,PERIPHERALS LGE 0IPRPJR004A Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE 0ILNR00061A Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173B Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173A Contact Us For Availability
IC502
DRAM LGE 0IMMRII009B Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMRHY015G Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC503A
S/W,System Program LGE 6957R-967AB Contact Us For Availability
IC506
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC507
IC,POWER MANAGEMENT LGE 0IPMGON014A Contact Us For Availability
IC591
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC591
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC601
IC,LDO Voltage Regul LGE 0IPMG00022C Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC602
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC704
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC705
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC911
IC,LDO Voltage Regul LGE 0IPMG00045B Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC931
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC932
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE053B Contact Us For Availability
IC934
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC935
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
JK2K1
Conector,USB LGE 6630S70054A Contact Us For Availability
JK4D1
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
JK201
Jack,Complex LGE 6612JH002UE Contact Us For Availability
JK301
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK304
Connector,USB LGE 6630S70048B Contact Us For Availability
JK304
Conector,USB LGE 6630S70022A Contact Us For Availability
JK305
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK306
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK307
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK701
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
JK702
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
JK703
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
L2K1
Inductor,Multilayer,Chip LGE 0LCCE00004P Contact Us For Availability
L234
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L242
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L321
INDUCTOR AXIAL LEAD * R-V422M LGE 0LA1000K018 Contact Us For Availability
L405
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L505
INDUCTOR,RADIAL LEAD LGE 0LR0101K035 Contact Us For Availability
L509
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0151K035 Contact Us For Availability
L601
INDUCTOR,RADIAL LEAD LGE 0LR0272J025 Contact Us For Availability
L708
Coil,RF LGE 6140RCC008A Contact Us For Availability
L905
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L931
COIL,RF LGE 6140RCC003H Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD304
LED LGE 0DLLT0359AA Contact Us For Availability
LD309
LED,DIP LGE 0DLBE0175AC Contact Us For Availability
LD310
LED LGE 0DLRH0049AA Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P1101
Connector,Wafer LGE 561-711J Contact Us For Availability
P2101
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
P2201
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
P2301
CONNECTOR LGE 561-711E Contact Us For Availability
P3101
Connector,FFC/FPC/PIC LGE 6630R-FB05W Contact Us For Availability
P3301
CONNECTOR (CIRC),BOA LGE 6630R-BF07F Contact Us For Availability
P3302
CONNECTOR (CIRC),BOA LGE 6630R-BF03F Contact Us For Availability
P3401
Connector,Wafer LGE 561-711G Contact Us For Availability
P4401
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P4402
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
P4403
CONNECTOR (CIRC),FFC LGE 6630XF00417 Contact Us For Availability
P6702
Conector,BtoB LGE 561-844S Contact Us For Availability
P7601
Connector,Unclassifi LGE 561-843S Contact Us For Availability
P7701
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P7901
CONNECTOR (CIRC),FFC LGE 6630XE00130 Contact Us For Availability
P7902
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
P9901
Cable & Wire,Unclass LGE 6631R-F039L Contact Us For Availability
PC910
Sensor,Ambient Light LGE 6500RDT009A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q104
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q104
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q304
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q304
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q308
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q310
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q390
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q390
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q409
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q501
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q506
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q601
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR130209AA Contact Us For Availability
Q904
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q905
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q931
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q932
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
R2K2
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R2K9
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R2L1
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R4D2
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R7A5
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R217
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R272
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R275
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R279
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R328
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R351
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R352
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R353
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R354
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R355
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R356
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R362
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R368
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R374
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R375
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R376
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
R382
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R390
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R392
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R419
RESISTOR,FIXED METAL LGE 0RS0271K619 Contact Us For Availability
R420
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R423
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R426
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R433
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R435
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R437
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ9101C677 Contact Us For Availability
R440
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R447
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R488
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R489
Resistor,Chip LGE 0RH1502C422 Contact Us For Availability
R514
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R515
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R532
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R543
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R572
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R599
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R641
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R643
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R644
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R650
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R651
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R654
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R724
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R734
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R770
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R905
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R907
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R908
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R911
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R912
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R919
Resistor,Chip LGE 0RH1102D622 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R931
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R936
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R937
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R943
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R945
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R946
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R952
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R953
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R955
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R956
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R967
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R973
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
RM301
REMOTE CONTROLLER RE LGE 6712R2038GJ Contact Us For Availability
SW301
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25G Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW18R Contact Us For Availability
TF951
THERMISTOR,PTC LGE 6322B62216A Contact Us For Availability
TH901
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU201
Tuner,Analog LGE EBL34811201 Contact Us For Availability
V2K2
Varistor LGE 6102R7E001A Contact Us For Availability
VR301
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE83
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X2K1
Crystal LGE 6212AB2451F Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X702
Crystal LGE EAW32919901 Contact Us For Availability
ZD201
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZDI00098D Contact Us For Availability
ZD901
Diode,Zener LGE 0DZON00198A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZON00198B Contact Us For Availability
ZD902
Diode,Zener LGE 0DZDI00098C Contact Us For Availability
ZD904
Diode,Zener LGE 0DZON00198C Contact Us For Availability
ZD904
Diode,Zener LGE 0DZDI00098B Contact Us For Availability
ZD942
Diode,Zener LGE 0DZON00198D Contact Us For Availability
ZD942
Diode,Zener LGE 0DZDI00098A Contact Us For Availability
× ![]()
Login and Registration Form
