Model LG LH-C6235 DVD VCP/R RECEIVER – Common Parts & Diagrams
Diagram 0

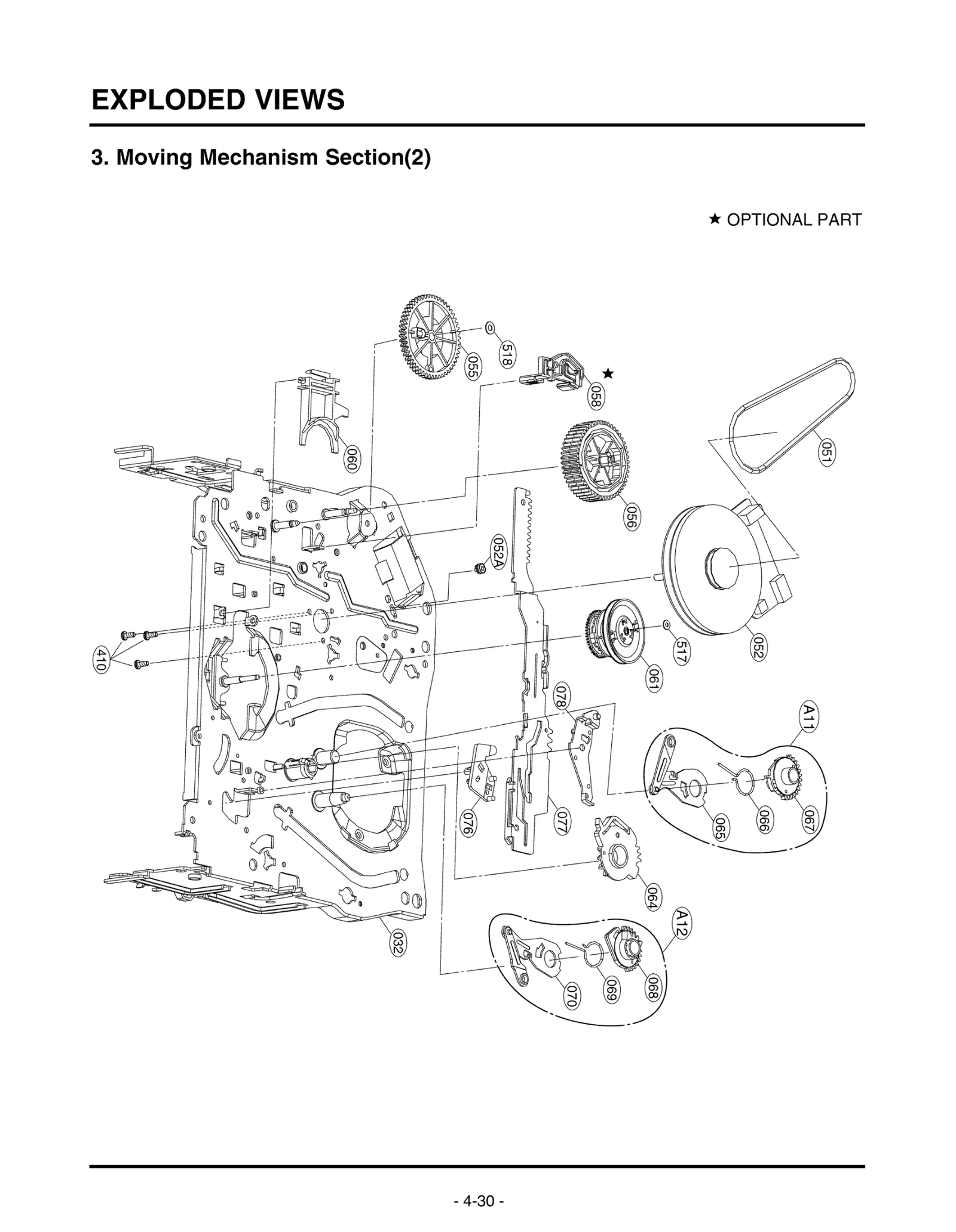

Diagram 1

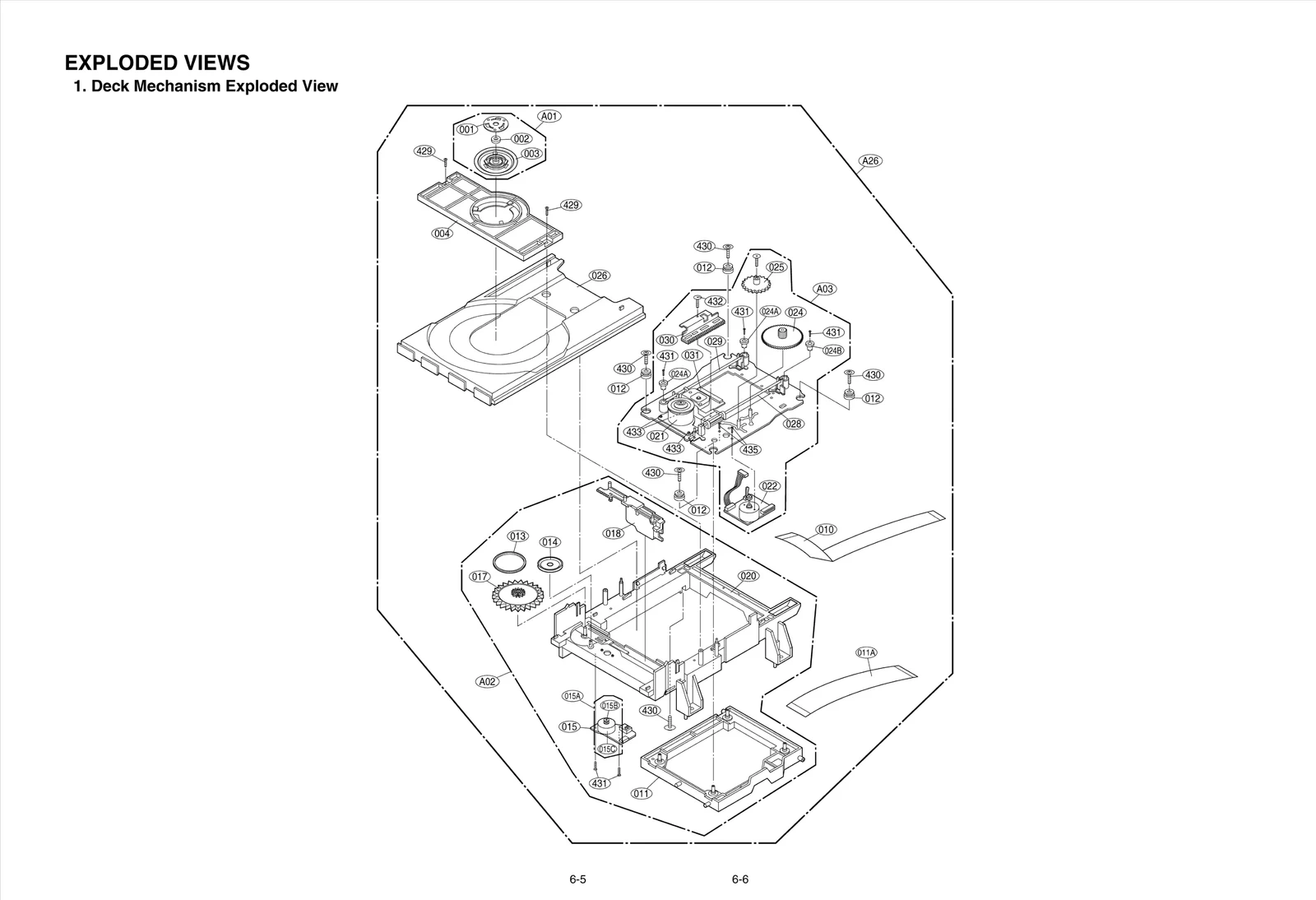

Diagram 2

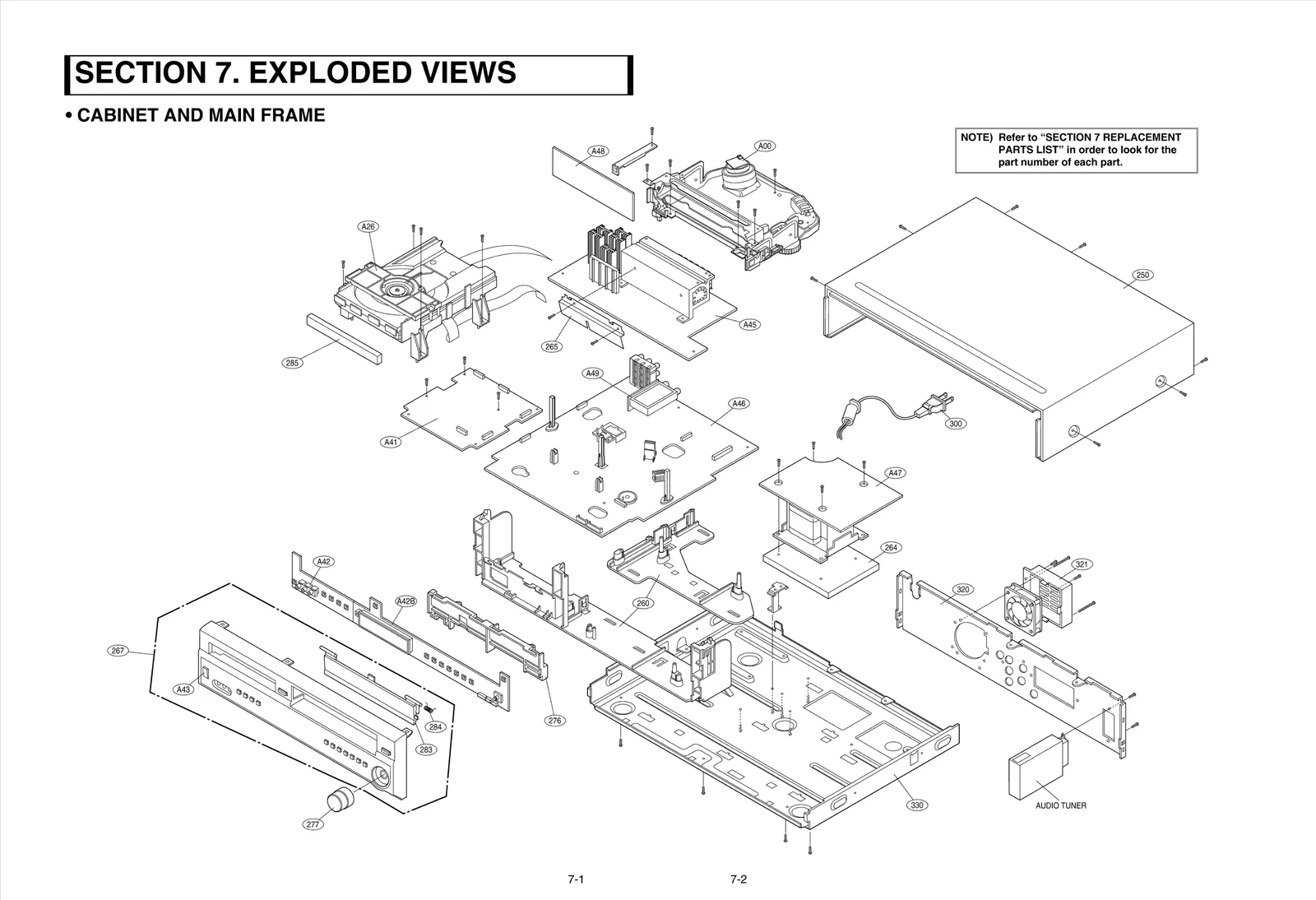

Diagram 3

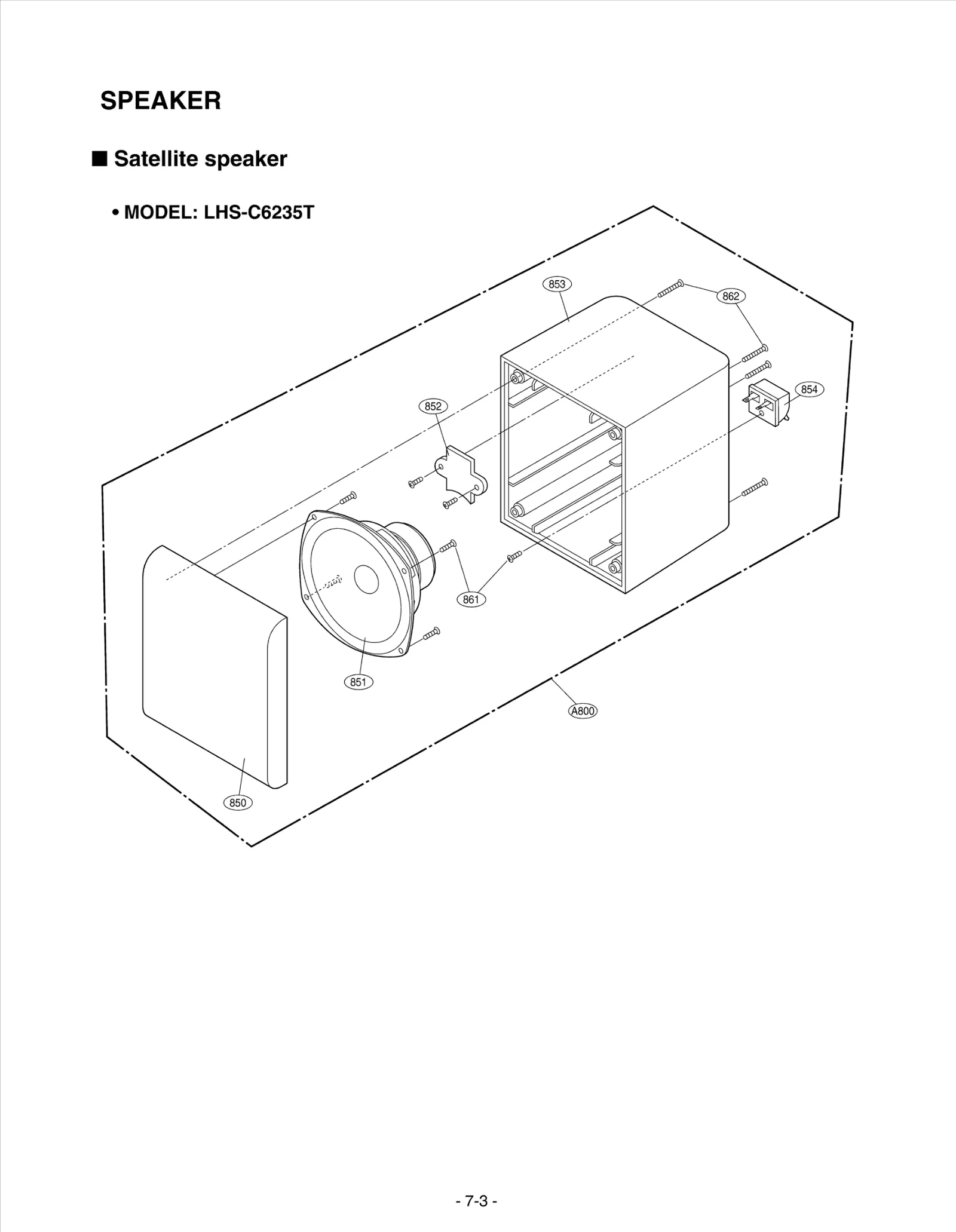

Diagram 4

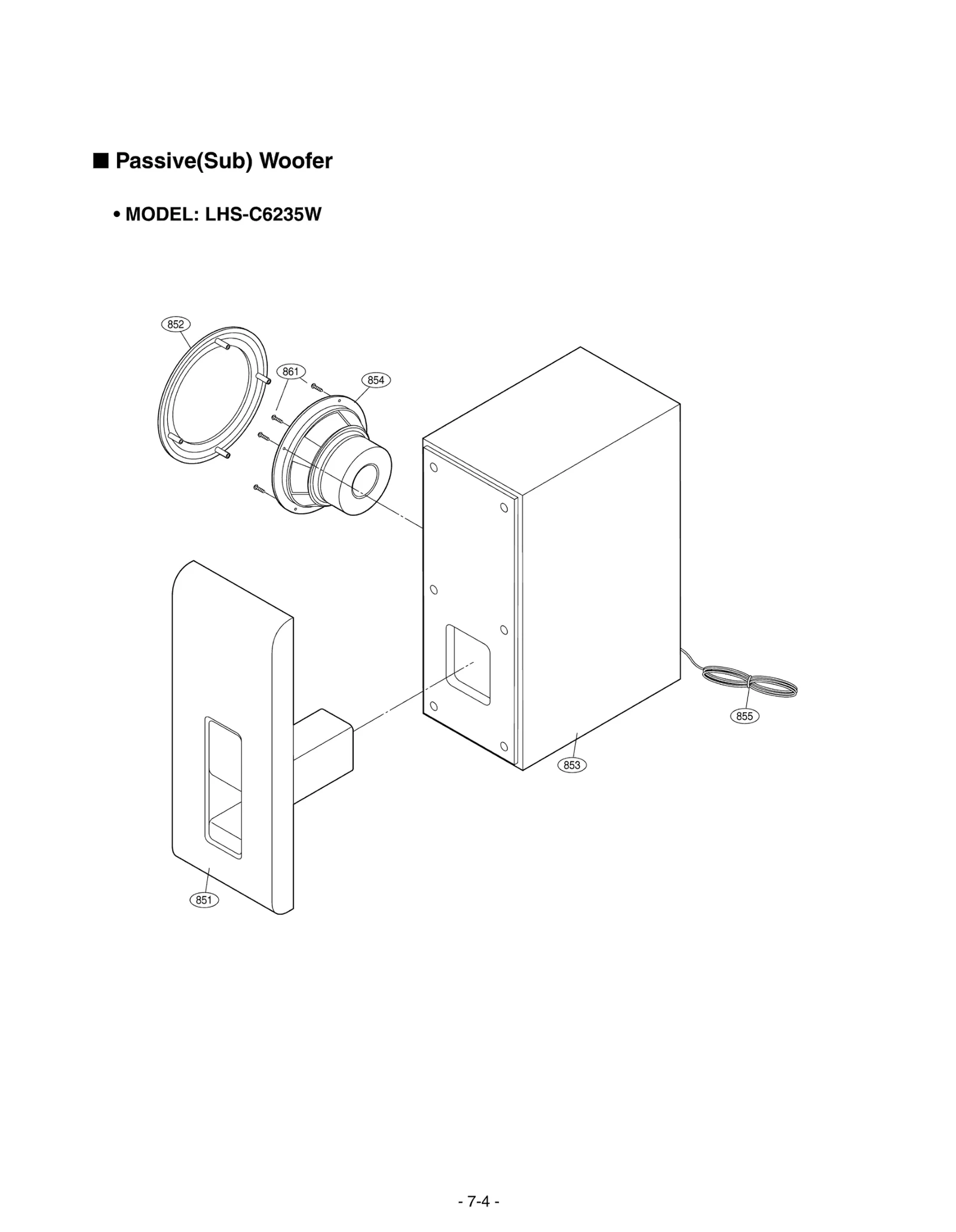

Diagram 5
Diagram 6
Common parts from model LG LH-C6235 DVD VCP/R RECEIVER
001
PLATE LGE 3300R-0547A Contact Us For Availability
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
002
LGE 4680R-B010A LGE 4680R-B010A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW16B Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,OT LGE 6871RZ5130A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023E Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
015C
Motor,Unclassified LGE 4680R-D003A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680HP2011A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034C Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0014A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013C Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
052
LGE 4680R-A009A LGE 4680R-A009A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A011A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A010A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
CASE LGE 3110R-H001A Contact Us For Availability
260
LGE 3211R-V004A LGE 3211R-V004A Contact Us For Availability
264
BRACKET LGE 4810R-0173A Contact Us For Availability
265
BRACKET LGE 4810R-0175A Contact Us For Availability
276
HOLDER,SHELF LGE 4930R-0298B Contact Us For Availability
277
KNOB LGE 4940R-V041A Contact Us For Availability
280
PANEL,FRONT LGE 3720R-F730A Contact Us For Availability
283
DOOR,CASE LGE 3580R-V067A Contact Us For Availability
285
LGE 3580R-T101A LGE 3580R-T101A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
320
LGE 3720R-P014A LGE 3720R-P014A Contact Us For Availability
321
COVER LGE 3550R-4056A Contact Us For Availability
330
CHASSIS LGE 3140R-H001A Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
801
LGE 3829RDT028A LGE 3829RDT028A Contact Us For Availability
802
LGE 3890RCC074L LGE 3890RCC074L Contact Us For Availability
803
PACKING,CASING LGE 3920R-E079A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
813
ANTENNA,T LGE 5010SCT001A Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
850
LGE 3701RM0042A LGE 3701RM0042A Contact Us For Availability
851
SPEAKER,FULLRANGE LGE 6400FTTC02A Contact Us For Availability
851
LGE 3720RMF045A LGE 3720RMF045A Contact Us For Availability
852
LGE 3701RM0043A LGE 3701RM0043A Contact Us For Availability
853
LGE 3110RMP009A LGE 3110RMP009A Contact Us For Availability
853
LGE 3091RMW050A LGE 3091RMW050A Contact Us For Availability
854
SPEAKER,WOOFER LGE 6400WTTJ03A Contact Us For Availability
854
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271A Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271F Contact Us For Availability
856
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271B Contact Us For Availability
857
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271C Contact Us For Availability
858
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
859
WIRE R,L LGE 6871RU9271E Contact Us For Availability
861
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
861
SCREW,DRAWING LGE 353M025V Contact Us For Availability
862
SCREW,DRAWING LGE 353M025W Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710RCAM21A Contact Us For Availability
A00
LGE 6721RF0740C LGE 6721RF0740C Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M013C Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016C Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RF0378A Contact Us For Availability
A41
SUB PWB(PCB) ASSEMBL LGE 6885R-7435A Contact Us For Availability
A43
PANEL ASSEMBLY,AUDIO LGE 3721R-M176A Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-7240A Contact Us For Availability
A49
PWB(PCB) ASSEMBLY,TO LGE 6871R-7330A Contact Us For Availability
C113
Capacitor,AL,Radial LGE 0CE4746K618 Contact Us For Availability
C119
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C240
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C241
LGE 0CE477CF638 LGE 0CE477CF638 Contact Us For Availability
C241
Capacitor,AL,Radial LGE 0CE4775F638 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C309
CAPACITOR ELECTROLYTIC 47M SMS LGE 0CE4766F638 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C316
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1030K945 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C362
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C402
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C404
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C438
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C510
LGE 0CN2230H948 LGE 0CN2230H948 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C583
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C599
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C602
Capacitor,AL,Radial LGE 0CE4766D618 Contact Us For Availability
C618
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C621
Capacitor,Ceramic,Axial LGE 0CN1010K518 Contact Us For Availability
C703
LGE 0CE4786H650 LGE 0CE4786H650 Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CH4150K416 Contact Us For Availability
C708
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C709
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C710
LGE 0CE228CF630 LGE 0CE228CF630 Contact Us For Availability
C711
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C716
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C721
LGE 0CE1076J618 LGE 0CE1076J618 Contact Us For Availability
C724
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C728
CAPACITOR,FIXED ELEC LGE 0CE688CF650 Contact Us For Availability
C795
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C797
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C798
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C878
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D706
LGE 0DR154020AA LGE 0DR154020AA Contact Us For Availability
DG601
DIGITRON LGE 6302R-V212A Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0050C Contact Us For Availability
F501
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F618
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
F701
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
F702
Fuse,Time Delay LGE 0FS4001B51D Contact Us For Availability
FAN
FAN,DC LGE 5900R-D010A Contact Us For Availability
FB104
FILTER(CIRC),EMI LGE 6200S-JC01B Contact Us For Availability
IC5A1
LGE 0IMMRBA001A LGE 0IMMRBA001A Contact Us For Availability
IC5A1
IC,MEMORIES LGE 0IMMRFU010A Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC102
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC103
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC105
IC,MITSUBISHI LGE 0IMI624460B Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC161
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC400
IC,SGS-THOMSON LGE 0ISG726500A Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC451
LGE 0IPRPBB004A LGE 0IPRPBB004A Contact Us For Availability
IC453
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007A Contact Us For Availability
IC501
LGE 0IMCRMI060A LGE 0IMCRMI060A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRSA045A Contact Us For Availability
IC502
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC506
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC701
IC,KEC LGE 0IKE790900A Contact Us For Availability
IC707
IC,POWER MANAGEMENT LGE 0IPMGKE012A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013A Contact Us For Availability
JK303
JACK,DIN LGE 6612R-H001A Contact Us For Availability
JK400
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK801
LGE 6612JH003DK LGE 6612JH003DK Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L706
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
LD501
LGE 4931R-0017C LGE 4931R-0017C Contact Us For Availability
LED603
LGE 0DL112000AK LGE 0DL112000AK Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q163
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q301
TRANSISTOR FH-R20R UG3 CD-340A LGE 0TR319809AB Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q310
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q400
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q401
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q601
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
R180
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R329
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R704
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
RS502
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
T701
TRANSFORMER,POWER LGE 6170RCT06LS Contact Us For Availability
T701
LGE 6170RCT10LD LGE 6170RCT10LD Contact Us For Availability
TH300
THERMISTOR,PTC LGE 6322R-0005A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
TUNER
TUNER LGE 6700FM0029A Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
ZD161
DIODE,ZENER LGE 0DZ562609AB Contact Us For Availability
ZD161
Diode,Zener LGE 0DZ560009CB Contact Us For Availability
ZD162
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
ZD302
DIODE,ZENER LGE 0DZ512609BA Contact Us For Availability
ZD704
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD711
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD711
DIODE,ZENER LGE 0DZ272609BA Contact Us For Availability
× ![]()
Login and Registration Form
