Model LG LFU300CP – Common Parts & Diagrams

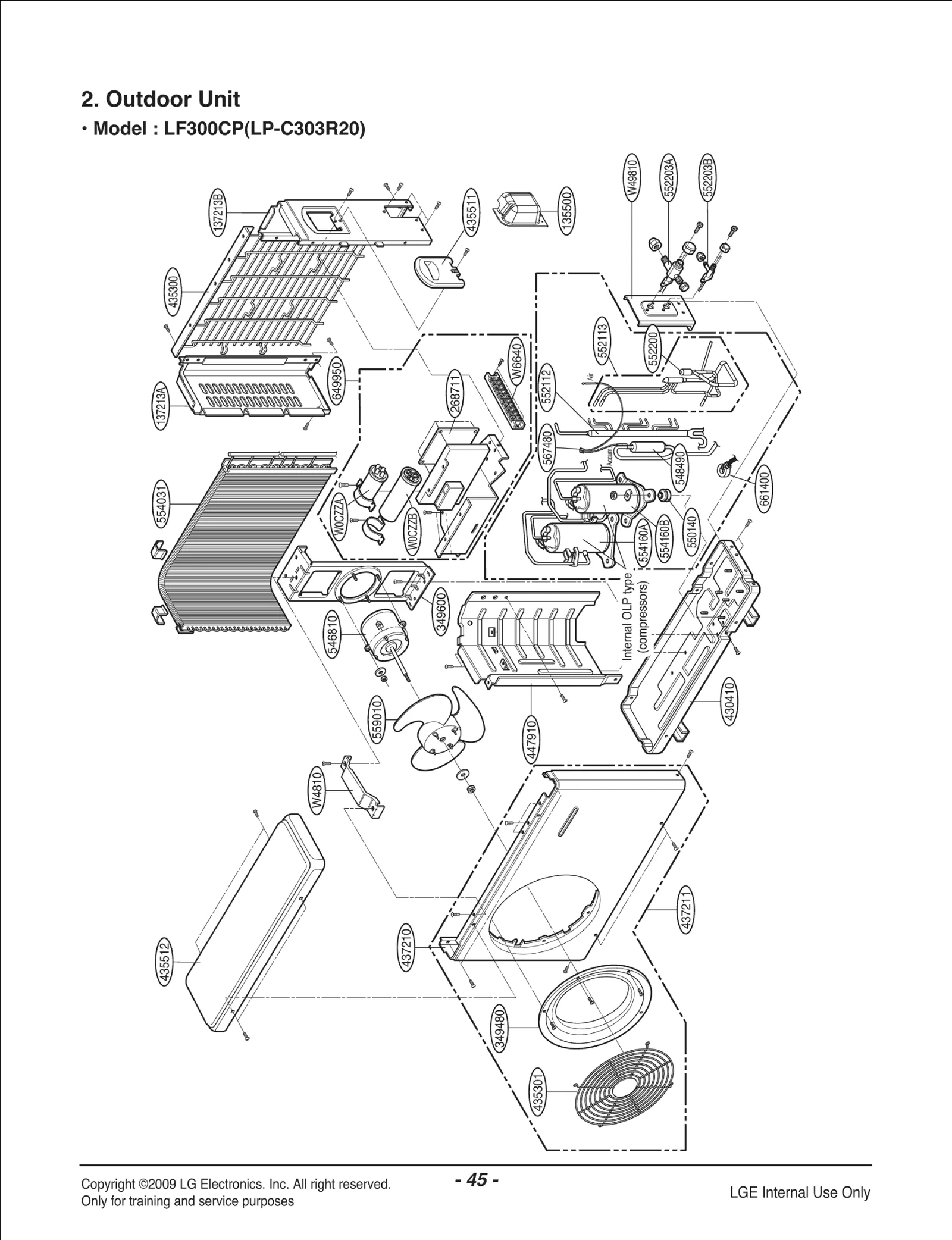

Diagram 0
Common parts from model LG LFU300CP
137213A
PANEL ASSEMBLY,SIDE LGE 1A00202F Contact Us For Availability
137213B
Panel Assembly,Side LGE 3A02284N Contact Us For Availability
349600
MOUNT,MOTOR LGE 1A00206B Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN73130002 Contact Us For Availability
435300
Grille,Rear LGE MDX59045502 Contact Us For Availability
435511
COVER ASSY,CONTROL(OUTDOOR) LGE 3550AR2886C Contact Us For Availability
437210
PANEL ASSY,FRONT SUB_AGL32105602 is HCI Assem LGE 1A00197C Contact Us For Availability
447910
BARRIER ASSEMBLY,OUTDOOR LGE 4791A30004H Contact Us For Availability
546810
MOTOR ASSEMBLY,OUTDOOR LGE 4681A20181A Contact Us For Availability
548490
Accumulator Assembly LGE 4849A20075A Contact Us For Availability
552112
Tube Assembly,Condenser(In) LGE 5211A20313D Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE 5211A20308J Contact Us For Availability
552200
Valve,Expansion Body LGE 5220A90010B Contact Us For Availability
552203A
Valve,Service LGE MJX36346601 Contact Us For Availability
552203A
VALVE,SERVICE LGE 2A00392L Contact Us For Availability
552203B
VALVE,SERVICE LGE 2A00393H Contact Us For Availability
552203B
VALVE,SERVICE LGE 2A00393A Contact Us For Availability
554160A
COMPRESSOR SET LGE 2520UMGK1BA Contact Us For Availability
554160B
COMPRESSOR SET LGE 2520UKLK1AA Contact Us For Availability
559010
FAN ASSEMBLY,PROPELLER LGE 5901A10020A Contact Us For Availability
567480
THERMISTOR ASSEMBLY LGE 6323A20002L Contact Us For Availability
649950
CONTROL BOX ASSEMBLY,OUTDOOR LGE 4995A10181A Contact Us For Availability
661400
Coil LGE 6141A20018S Contact Us For Availability
W0CZZB
CAPACITOR 400/35 GA-1015LC 121 LGE 3A00988B Contact Us For Availability
× ![]()
