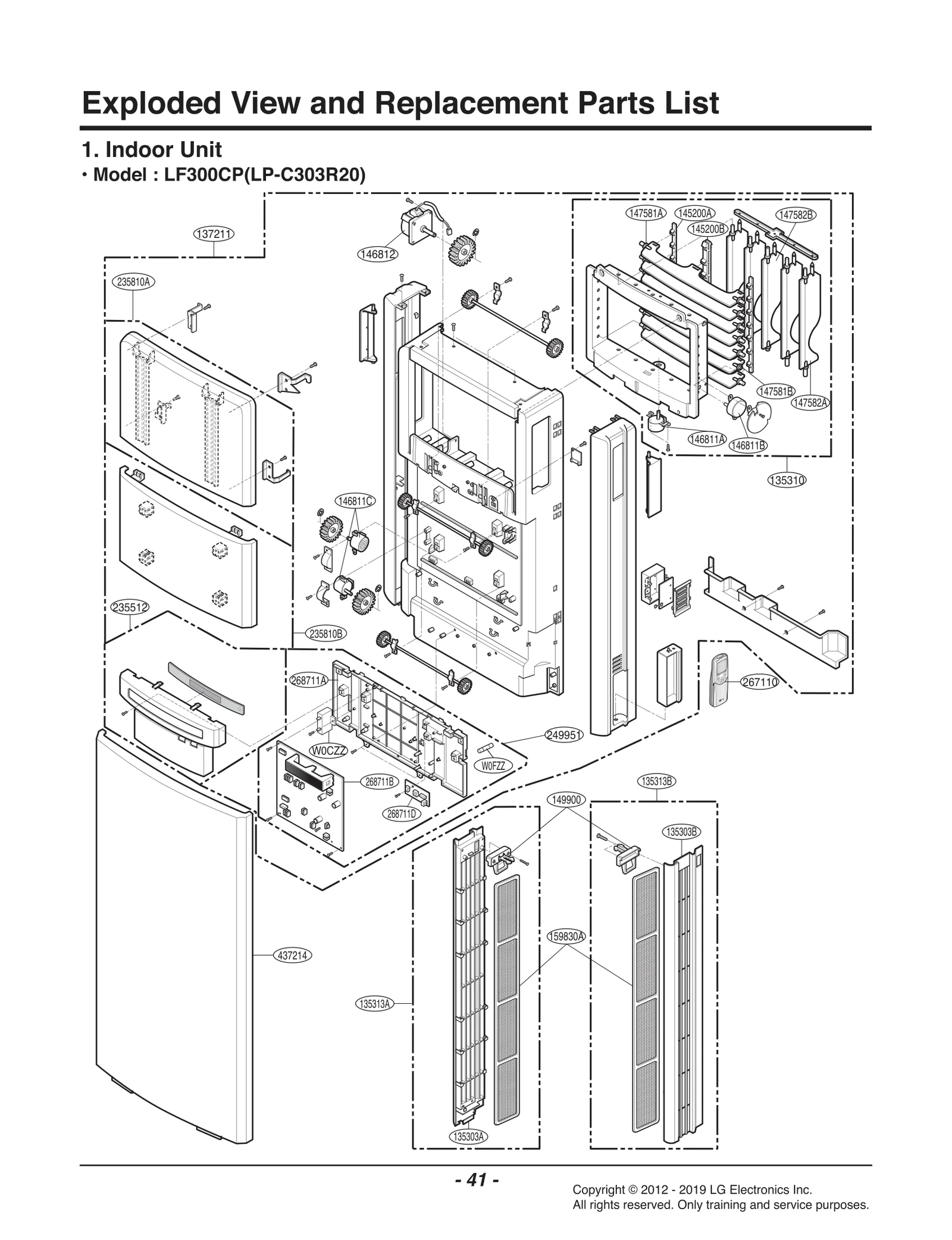

Model LG LFN300CP.AWHAEUS Slim type – Common Parts & Diagrams

35211A
TUBE ASSEMBLY,SUCTION INDOOR
TUBE ASSEMBLY,SUCTION INDOOR LGE 5211A20851B Contact Us For Availability
View on Model
35211C
TUBE ASSEMBLY,DISCHARGE (INDOO
TUBE ASSEMBLY,DISCHARGE (INDOO LGE 5211A20854A Contact Us For Availability
View on Model
130911
CABINET ASSEMBLY,INDOOR
CABINET ASSEMBLY,INDOOR LGE 3091A10037V Contact Us For Availability
View on Model
135303A
Grille,Inlet
Grille,Inlet LGE 3530A10197E Contact Us For Availability
View on Model
135303B
Grille,Inlet
Grille,Inlet LGE 3530A10197F Contact Us For Availability
View on Model
135310
Grille Assembly,Diffuser(Indoor)
Grille Assembly,Diffuser(Indoor) LGE 3531A20164F Contact Us For Availability
View on Model
135313A
GRILLE ASSEMBLY,INLET
GRILLE ASSEMBLY,INLET LGE 3531A10203R Contact Us For Availability
View on Model
135313B
GRILLE ASSEMBLY,INLET
GRILLE ASSEMBLY,INLET LGE 3531A10203S Contact Us For Availability
View on Model
135515
COVER ASSEMBLY,TOP(INDOOR)
COVER ASSEMBLY,TOP(INDOOR) LGE 3551A10022A Contact Us For Availability
View on Model
137211
PANEL ASSEMBLY,FRONT(INDOOR)
PANEL ASSEMBLY,FRONT(INDOOR) LGE 3721A10130R Contact Us For Availability
View on Model
145200A
Link
Link LGE 4520A30011B Contact Us For Availability
View on Model
145200B
Link
Link LGE 4520A30032A Contact Us For Availability
View on Model
146811A
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
146811A
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811A
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042D Contact Us For Availability
View on Model
146811B
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681AP2968F Contact Us For Availability
View on Model
146811C
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681AP2639E Contact Us For Availability
View on Model
146812
Motor Assembly,AC,Synchronous
Motor Assembly,AC,Synchronous LGE 4681AP2596D Contact Us For Availability
View on Model
147581A
Louver,Horizontal
Louver,Horizontal LGE 4758A20039E Contact Us For Availability
View on Model
147581B
Louver,Horizontal
Louver,Horizontal LGE 4758A20038E Contact Us For Availability
View on Model
147582A
Louver,Vertical
Louver,Vertical LGE 4758A30007B Contact Us For Availability
View on Model
147582B
Louver,Vertical
Louver,Vertical LGE 4758A30026A Contact Us For Availability
View on Model
149900
Hanger
Hanger LGE 4990A20012A Contact Us For Availability
View on Model
159830A
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A10015A Contact Us For Availability
View on Model
159830B
AIR CLEANER ASSEMBLY
AIR CLEANER ASSEMBLY LGE 5983A10004L Contact Us For Availability
View on Model
159830C
LGE 5983A10004M
LGE 5983A10004M LGE 5983A10004M Contact Us For Availability
View on Model
235512
COVER ASSEMBLY,DISPLAY
COVER ASSEMBLY,DISPLAY LGE 3551A20135N Contact Us For Availability
View on Model
235810A
DOOR ASSEMBLY,CLEAN
DOOR ASSEMBLY,CLEAN LGE 3581A20005V Contact Us For Availability
View on Model
235810B
DOOR ASSEMBLY,CLEAN
DOOR ASSEMBLY,CLEAN LGE 3581A20006M Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20275E Contact Us For Availability
View on Model
263230B
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106811 Contact Us For Availability
View on Model
263230C
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106008 Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A20060F Contact Us For Availability
View on Model
268711A
PCB Assembly,Display
PCB Assembly,Display LGE 6871A20457H Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10136T Contact Us For Availability
View on Model
268711D
PCB Assembly,Sub
PCB Assembly,Sub LGE 6871AQ3212V Contact Us For Availability
View on Model
336600
HOUSING (MECH),WRAPPER
HOUSING (MECH),WRAPPER LGE 3660A20023L Contact Us For Availability
View on Model
336610
HOUSING ASSEMBLY (MECH)
HOUSING ASSEMBLY (MECH) LGE 3661A20017M Contact Us For Availability
View on Model
337000
NET,STEEL
NET,STEEL LGE 3700A30001A Contact Us For Availability
View on Model
346810
MOTOR ASSEMBLY,INDOOR
MOTOR ASSEMBLY,INDOOR LGE 4681A20180A Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A20009A Contact Us For Availability
View on Model
352150
HOSE ASSY, DRAIN
HOSE ASSY, DRAIN LGE 5251AR1222N Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20039P Contact Us For Availability
View on Model
359012
FAN ASSEMBLY,TURBO
FAN ASSEMBLY,TURBO LGE 5901A20021B Contact Us For Availability
View on Model
437214
Panel Assembly,Base
Panel Assembly,Base LGE 3721A20120K Contact Us For Availability
View on Model
730700
BASE,INSTALL
BASE,INSTALL LGE 3040A20067B Contact Us For Availability
View on Model
W0FZZ
LGE 0FT3001B511
LGE 0FT3001B511 LGE 0FT3001B511 Contact Us For Availability
View on Model
W1NF
NUT.M8 D 8.0 M C 1 SM20C/FZ GA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
View on Model
W1WE
WASHER,SPRING LOCK
WASHER,SPRING LOCK LGE 1WSD0800030 Contact Us For Availability
View on Model
W4811A
BRACKET ASSEMBLY
BRACKET ASSEMBLY LGE 4811A30011B Contact Us For Availability
View on Model
W4811B
BRACKET ASSEMBLY
BRACKET ASSEMBLY LGE 4811A30021A Contact Us For Availability
View on Model
W4811C
Bracket Assembly
Bracket Assembly LGE 4811A20025A Contact Us For Availability
View on Model
W52103
TUBE,DISTRIBUTOR
TUBE,DISTRIBUTOR LGE 2H00351D Contact Us For Availability
View on Model
