Model LG LFN245HV – Common Parts & Diagrams
Diagram 0

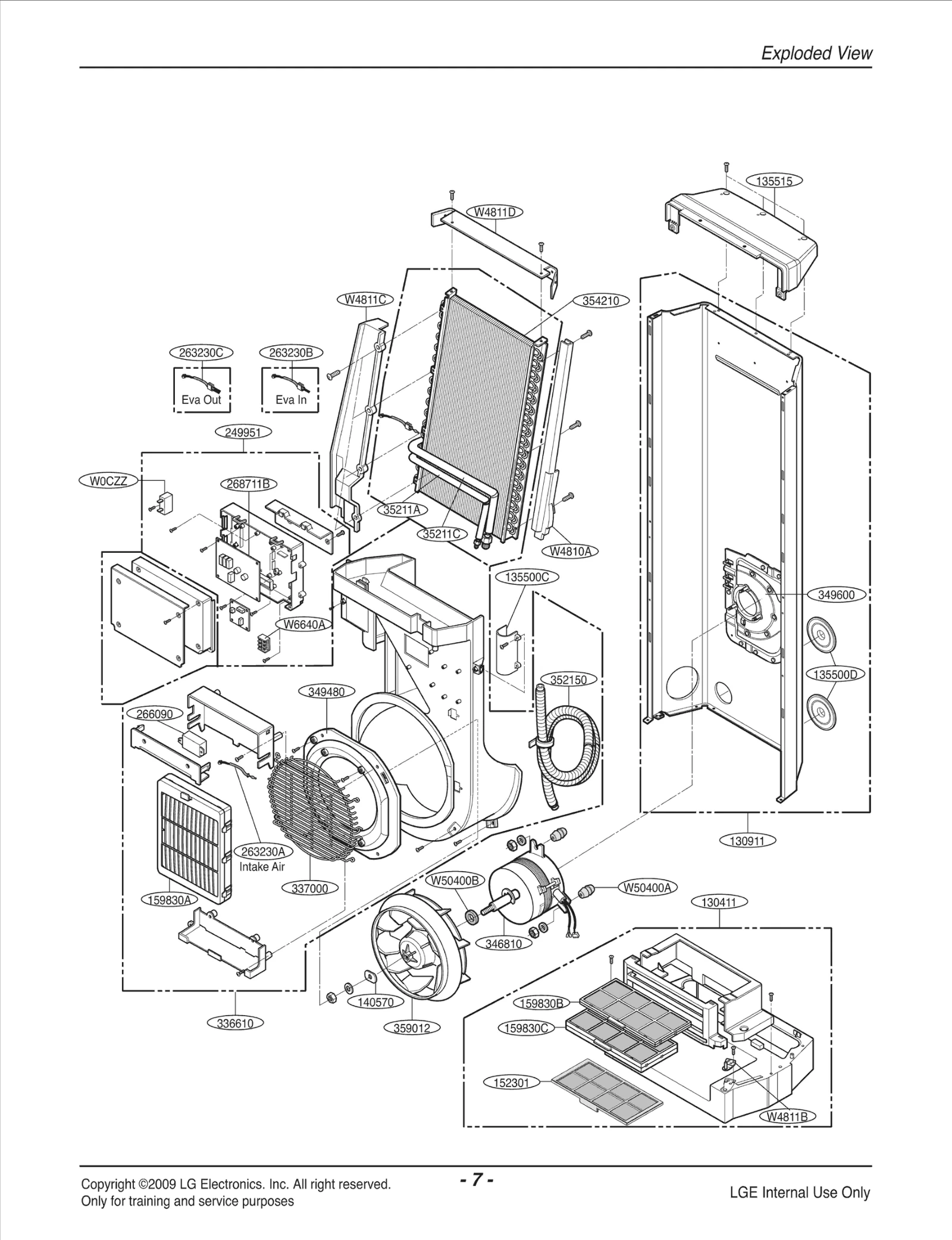

Diagram 1
Common parts from model LG LFN245HV
35211A
Tube Assembly,Suction LGE AJR30121903 Contact Us For Availability
35211C
Tube Assembly,Discharge(Indoor) LGE 5211A12301E Contact Us For Availability
130411
Base Assembly,Indoor LGE 3041A20105C Contact Us For Availability
130911
Cabinet Assembly,Indoor LGE ABJ72915601 Contact Us For Availability
135303A
Grille,Inlet LGE 3530A10303A Contact Us For Availability
135303B
Grille,Inlet LGE 3530A10303B Contact Us For Availability
135313A
Grille Assembly,Inlet LGE 3531A10368A Contact Us For Availability
135313B
Grille Assembly,Inlet LGE 3531A10368B Contact Us For Availability
135500A
Cover LGE 3550A20338A Contact Us For Availability
135500B
Cover LGE 3550A30280A Contact Us For Availability
135500C
Cover LGE 3550A30298C Contact Us For Availability
135500D
Cover LGE 3550A30339A Contact Us For Availability
135515
Cover Assembly,Top(Indoor) LGE 3551A20221A Contact Us For Availability
137211
Panel Assembly,Front(Indoor) LGE 3721A10214E Contact Us For Availability
146811A
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
147581
Louver,Horizontal LGE 5990A20075E Contact Us For Availability
147582A
Louver,Vertical LGE 5990A10029E Contact Us For Availability
147582B
Louver,Vertical LGE 5990A10029F Contact Us For Availability
147582C
Louver,Vertical LGE 5990A20056C Contact Us For Availability
147582D
Louver,Vertical LGE 5990A20056D Contact Us For Availability
152301
Filter,Deodorizing LGE 5230A20056D Contact Us For Availability
152302
Filter,Air LGE 5230A20057A Contact Us For Availability
159830A
Filter Assembly,Air Cleaner LGE 5983A20008A Contact Us For Availability
159830B
Filter Assembly,Air Cleaner LGE 5983A20019C Contact Us For Availability
159830C
Filter Assembly,Air Cleaner LGE 5231A20048G Contact Us For Availability
235512
Cover Assembly,Display LGE 3551A20175N Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE 4995A20482W Contact Us For Availability
263230A
Thermistor,NTC LGE 6323A20008B Contact Us For Availability
263230B
Thermistor Assembly LGE 6323A20016M Contact Us For Availability
263230B
Thermistor Assembly LGE EBG60767001 Contact Us For Availability
266090
HVPS,DC/DC LGE 6609A20009H Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20107V Contact Us For Availability
268711A
PCB Assembly,Display LGE EBR43441405 Contact Us For Availability
268711B
PCB Assembly LGE EBR61063101 Contact Us For Availability
336610
Housing Assembly LGE 3661A20036E Contact Us For Availability
337000
Mesh,Metal LGE 3700A20023B Contact Us For Availability
346810
Motor Assembly,AC,Indoor LGE 4681A20136L Contact Us For Availability
349480
ORIFICE LGE 4948A20008A Contact Us For Availability
349600
Bracket,Motor LGE MAZ40036301 Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A10056J Contact Us For Availability
359012
Fan Assembly,Turbo LGE 5901A20034A Contact Us For Availability
437214
Panel Assembly,Base LGE AGL33426007 Contact Us For Availability
749740A
Guide LGE 4974A10014A Contact Us For Availability
749740B
Guide LGE 4974A10015A Contact Us For Availability
749740C
Guide LGE 4974A20094A Contact Us For Availability
W3110
Case LGE 3110A20121A Contact Us For Availability
W4810A
Bracket LGE 4810A10052A Contact Us For Availability
W4811A
Bracket Assembly LGE 4811A20080A Contact Us For Availability
W4811B
Bracket Assembly LGE 4811A20037A Contact Us For Availability
W4811C
BRACKET ASSEMBLY LGE 4811A30011B Contact Us For Availability
W4811D
BRACKET ASSEMBLY LGE 4811A30021A Contact Us For Availability
W4830
Bush LGE 4830A20013A Contact Us For Availability
W50400A
Damper LGE 5040A20022A Contact Us For Availability
W50400B
Damper LGE 5040A20023A Contact Us For Availability
× ![]()
