LG LDE3015SW Parts List | Reliable Parts

1008

4890W1N005M LG Glass Window In Stock LGE 4890W1N005M $273.31

View on Model

1018

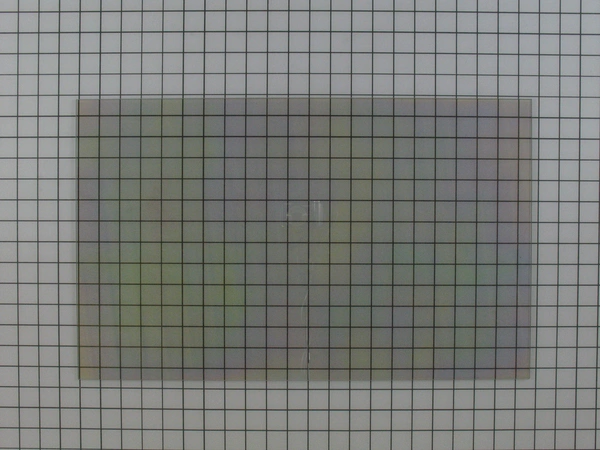

4890W1N005C LG Range Window Glass Backorder LGE 4890W1N005C $226.31

View on Model

1403

4980W1N011E LG Supporter Backorder LGE 4980W1N011E $77.91

View on Model

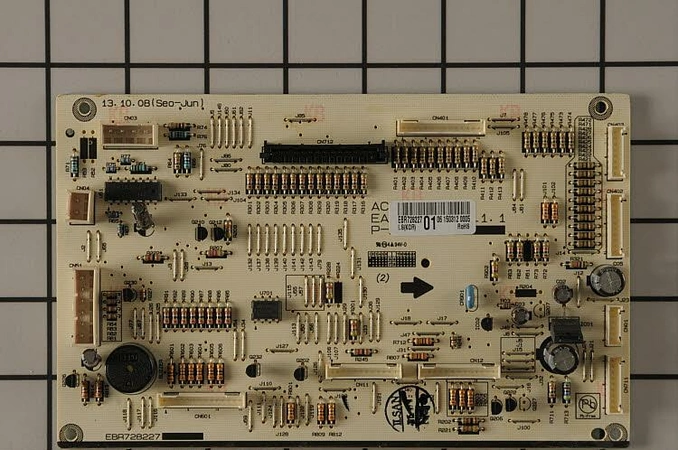

2006

EBR72822701 LG Main PCB Assembly Backorder LGE EBR72822701 $290.59

View on Model

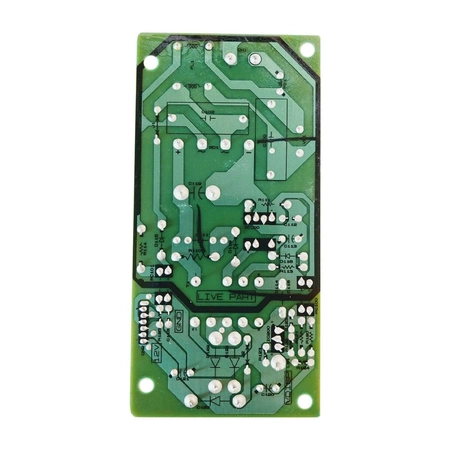

2009

EBR64624703 LG Range Power PCB Assembly Backorder LGE EBR64624703 $226.31

View on Model

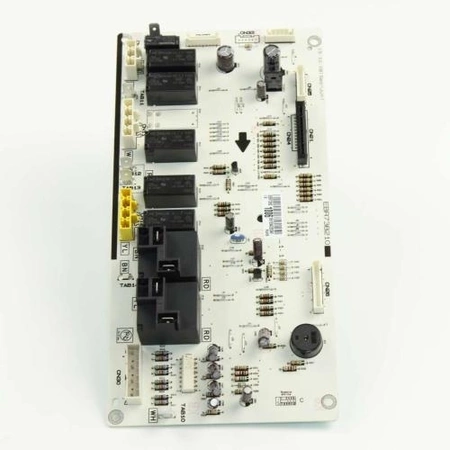

2030

EBR73821006 LG Main PCB Assembly Backorder LGE EBR73821006 $431.77

View on Model

2041

EAD34822916 LG Harness Single Backorder LGE EAD34822916 $47.84

View on Model

2042

EAD34822910 LG Single Harness Backorder LGE EAD34822910 $40.06

View on Model

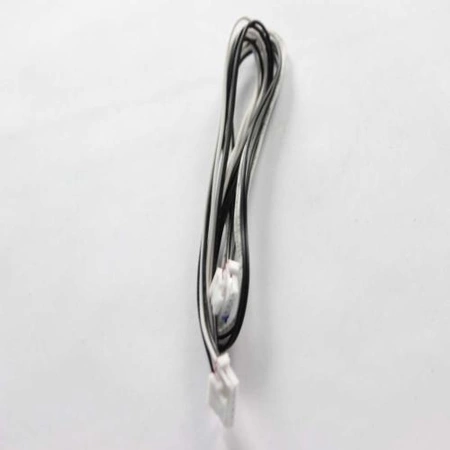

2043

EAD34822913 LG Harness Single Backorder LGE EAD34822913 $32.69

View on Model

2046

Harness,Single LGE EAD34822911 Contact Us For Availability

View on Model

2047

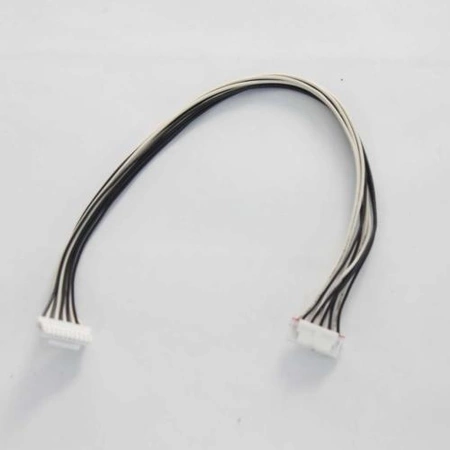

EAD34822924 LG Single Harness Backorder LGE EAD34822924 $60.00

View on Model

2131

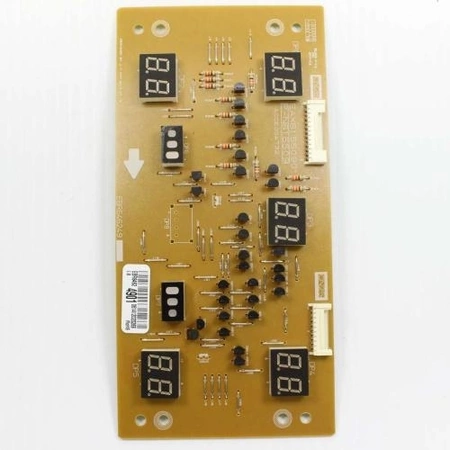

EBR64624901 LG Range Power Control Board Disp Backorder LGE EBR64624901 $197.74

View on Model

2131

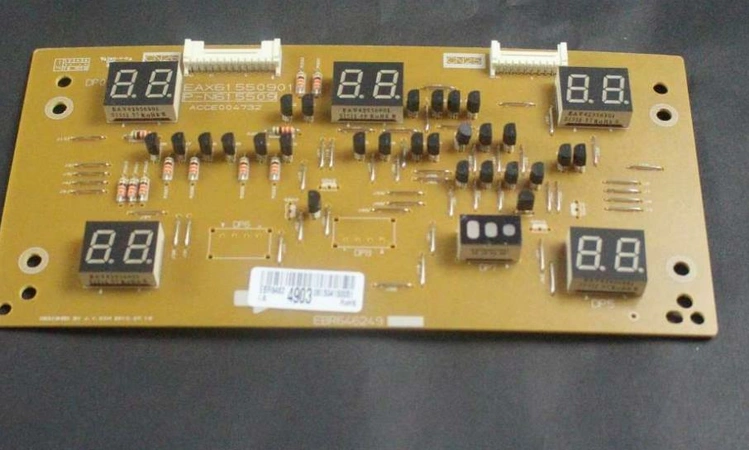

EBR64624903 LG Range Display Assembly Circuit Backorder LGE EBR64624903 $185.63

View on Model

3006

4B72510F LG Wire Holder Backorder LGE 4B72510F $6.53

View on Model

3013

Cover,Rear LGE MCK36350001 Contact Us For Availability

View on Model

3022

AEG33897001 LG Heater Assembly Backorder LGE AEG33897001 $77.91

View on Model

3058

4970W1N004A LG Spring Assembly Backorder LGE 4970W1N004A $6.53

View on Model

3063

Cover,Rear LGE MCK36350002 Contact Us For Availability

View on Model

3212

MCK65215101 LG Heater Cover Backorder LGE MCK65215101 $40.06

View on Model

3301

5300W1R005A LG Range Top Burner Element Heate Backorder LGE 5300W1R005A $309.56

View on Model

3302

MEE62385201 LG Range Oven Heater Element Backorder LGE MEE62385201 $219.12

View on Model

3303

5300W1R004A LG Range Oven Cooktop Small Radia Backorder LGE 5300W1R004A $127.29

View on Model

3401

4980W1N014A LG Supporter Backorder LGE 4980W1N014A $6.53

View on Model

3501

Shelf LGE MHL61952101 Contact Us For Availability

View on Model

3502

MHL63411403 LG Oven Range Standard Shelf Rack Backorder LGE MHL63411403 $56.58

View on Model

4002

EBF60663403 LG Range Oven Door Tact Switch Backorder LGE EBF60663403 $25.49

View on Model

5014

Harness,Single LGE EAD61745801 Contact Us For Availability

View on Model

5019

EAD61076101 LG Single Harness Backorder LGE EAD61076101 $40.06

View on Model

5020

6930W1A003X LG Thermal Safety Fuse Thermostat In Stock LGE 6930W1A003X $11.42

View on Model

5021

EBG61305805 LG Oven Range Temperature Thermis In Stock LGE EBG61305805 $72.96

View on Model

5032

6877W1N024F LG Single Harness Backorder LGE 6877W1N024F $10.38

View on Model

5063

ABA73249401 LG Bracket Assembly Backorder LGE ABA73249401 $68.33

View on Model

5070

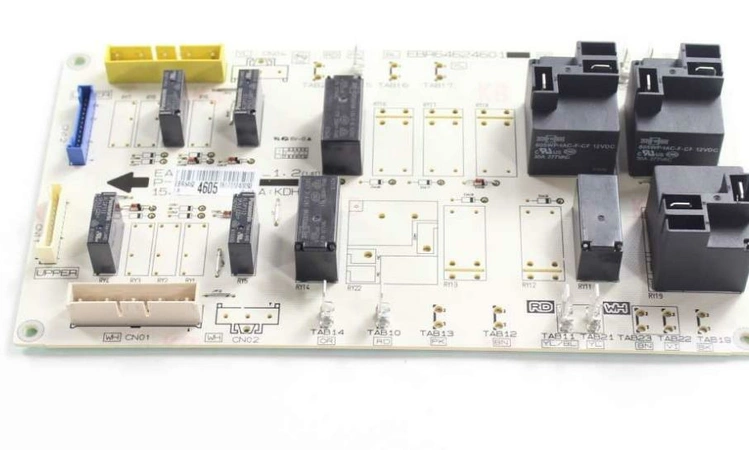

EBR64624605 LG Range Power PCB Assembly Backorder LGE EBR64624605 $284.00

View on Model

5078

AEH73256201 LG Hinge Assembly Backorder LGE AEH73256201 $179.23

View on Model

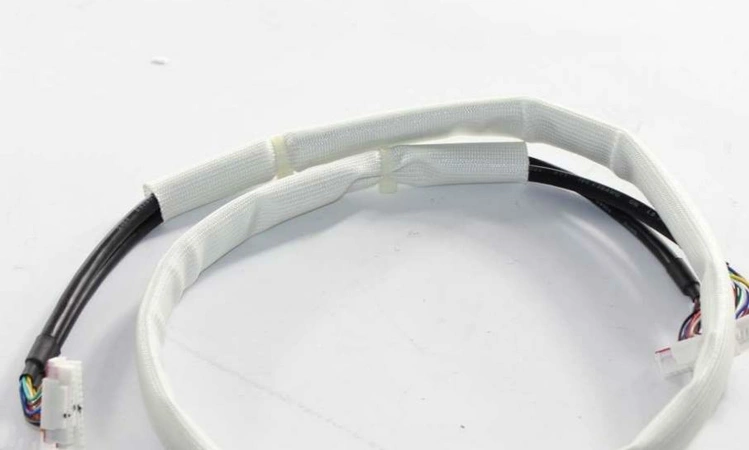

5132

EAD60833504 LG Single Harness Backorder LGE EAD60833504 $120.25

View on Model

5401

MBR61861501 LG Chamber Backorder LGE MBR61861501 $127.29

View on Model

5409

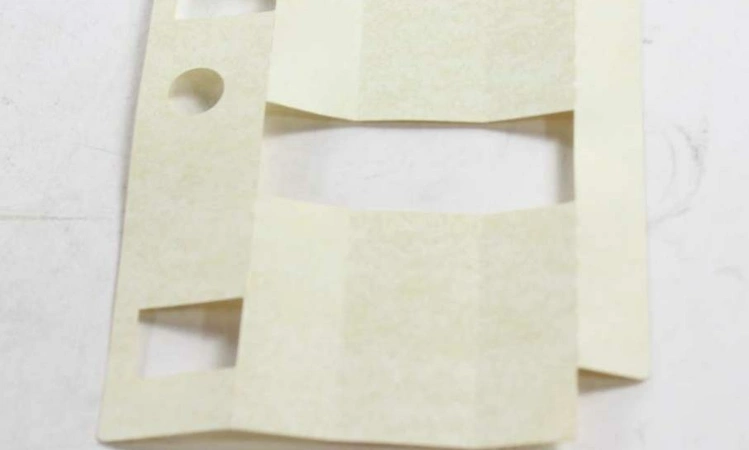

5012W1N016D LG Insulator Backorder LGE 5012W1N016D $15.56

View on Model

5409

Insulator LGE 5012W1N016C Contact Us For Availability

View on Model

5501

Bar LGE MAK61907201 Contact Us For Availability

View on Model

5502

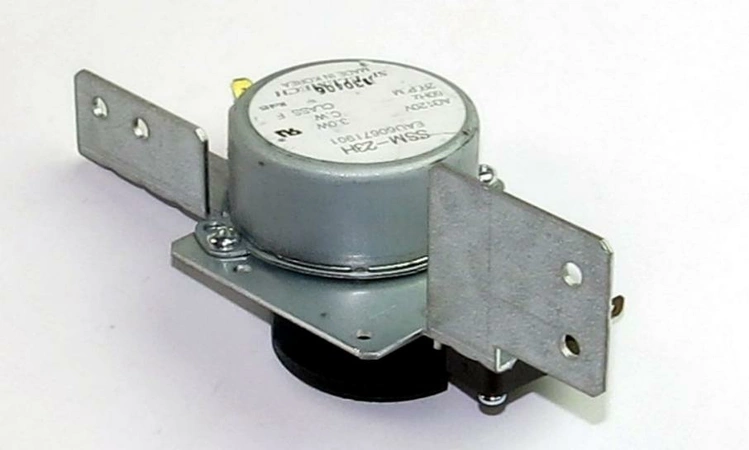

EAU60671901 LG Range AC Motor Synchrono Assem Backorder LGE EAU60671901 $145.57

View on Model

5503

Supporter LGE MJH61997001 Contact Us For Availability

View on Model

5505

4980W1N013A LG Supporter Backorder LGE 4980W1N013A $6.53

View on Model

5508

EAG32629302 LG Dryer Terminal Block Backorder LGE EAG32629302 $60.00

View on Model

5509

Panel,Rear LGE MGC62001801 Contact Us For Availability

View on Model

5510

Panel,Side LGE 3720W0E012R Contact Us For Availability

View on Model

5510

Panel,Side LGE MGC62644008 Contact Us For Availability

View on Model

5511

6913W1N002C LG Range Incandescent Lamp In Stock LGE 6913W1N002C $104.16

View on Model

5512

MAZ61885801 LG Range Hinge Bracket Backorder LGE MAZ61885801 $52.06

View on Model

5513

MEE61945102 LG Range Lower Heater Sheath Backorder LGE MEE61945102 $196.95

View on Model

5514

Heater,Sheath LGE MEE62146302 Contact Us For Availability

View on Model

5515

MFZ54382601 LG Gasket Packing Backorder LGE MFZ54382601 $6.53

View on Model

5517

AJV72909201 LG Vent Assembly Backorder LGE AJV72909201 $67.76

View on Model

5518

Bracket,Idle LGE 4810W1N056B Contact Us For Availability

View on Model

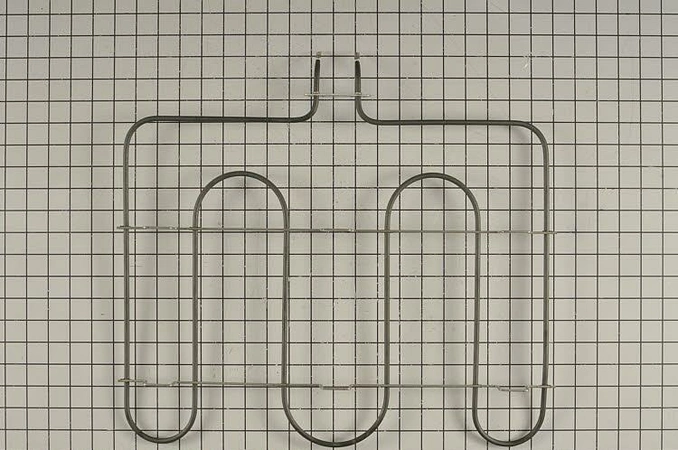

5531

MEE61925302 LG Heater Sheath Backorder LGE MEE61925302 $227.60

View on Model

5536

MFZ62218801 LG Packing Gasket Backorder LGE MFZ62218801 $120.25

View on Model

5540

ADJ52698704 LG Duct Assembly Backorder LGE ADJ52698704 $93.00

View on Model

5541

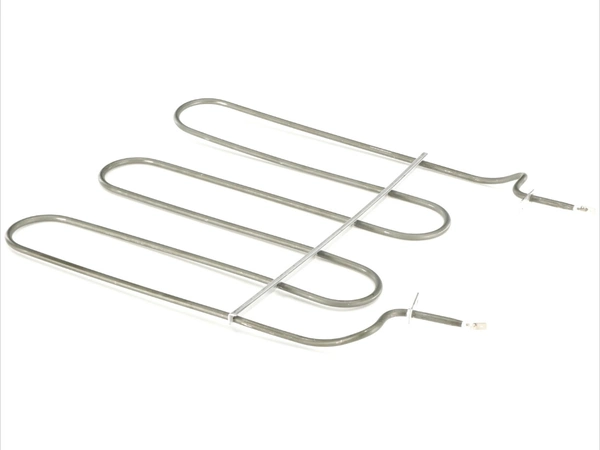

MEE62185602 LG Sheath Heater Backorder LGE MEE62185602 $261.56

View on Model

5545

MJH62373502 LG Supporter Assembly Backorder LGE MJH62373502 $47.84

View on Model

5546

Supporter,Lever LGE MJH62335501 Contact Us For Availability

View on Model

5551

MAK61842901 LG Bar Backorder LGE MAK61842901 $10.38

View on Model

5558

MAZ62231701 LG Idle Bracket Backorder LGE MAZ62231701 $15.56

View on Model

5611

MJH41754001 LG Range PCB Supporter Backorder LGE MJH41754001 $32.69

View on Model

5700

MAL61924001 LG Barrier Backorder LGE MAL61924001 $68.33

View on Model

6000

MGJ62228401 LG Base Plate Backorder LGE MGJ62228401 $185.63

View on Model

6002

4778W1N001B LG Range Oven Leveling Leg Foot In Stock LGE 4778W1N001B $11.42

View on Model

8511

MAZ61859001 LG Oven Anti-Tip Bracket Backorder LGE MAZ61859001 $14.72

View on Model

9381

FAK30249601 LG Customized Anchor In Stock LGE FAK30249601 $6.53

View on Model

W222

1SZZW5N001C LG Range Screw Drawing Backorder LGE 1SZZW5N001C $6.53

View on Model

W225

1WZZW3Z003B LG Washer Customized Backorder LGE 1WZZW3Z003B $6.53

View on Model

W229

1SZZW1N003A LG Screw Customized Backorder LGE 1SZZW1N003A $6.53

View on Model

W230

1SZZW5N001A LG Screw Customized Backorder LGE 1SZZW5N001A $6.53

View on Model

W235

1ATF0502610 LG Screw Laptite Backorder LGE 1ATF0502610 $6.53

View on Model

W243

1SZZW5N001H LG Screw Customized Backorder LGE 1SZZW5N001H $6.53

View on Model

W256

1SZZW5N001F LG Refrigerator Screw Drawing Backorder LGE 1SZZW5N001F $6.53

View on Model

W301

1SZZW1N006D LG Customized Screw Backorder LGE 1SZZW1N006D $6.53

View on Model
