Model LG LD65ELY5 – Common Parts & Diagrams

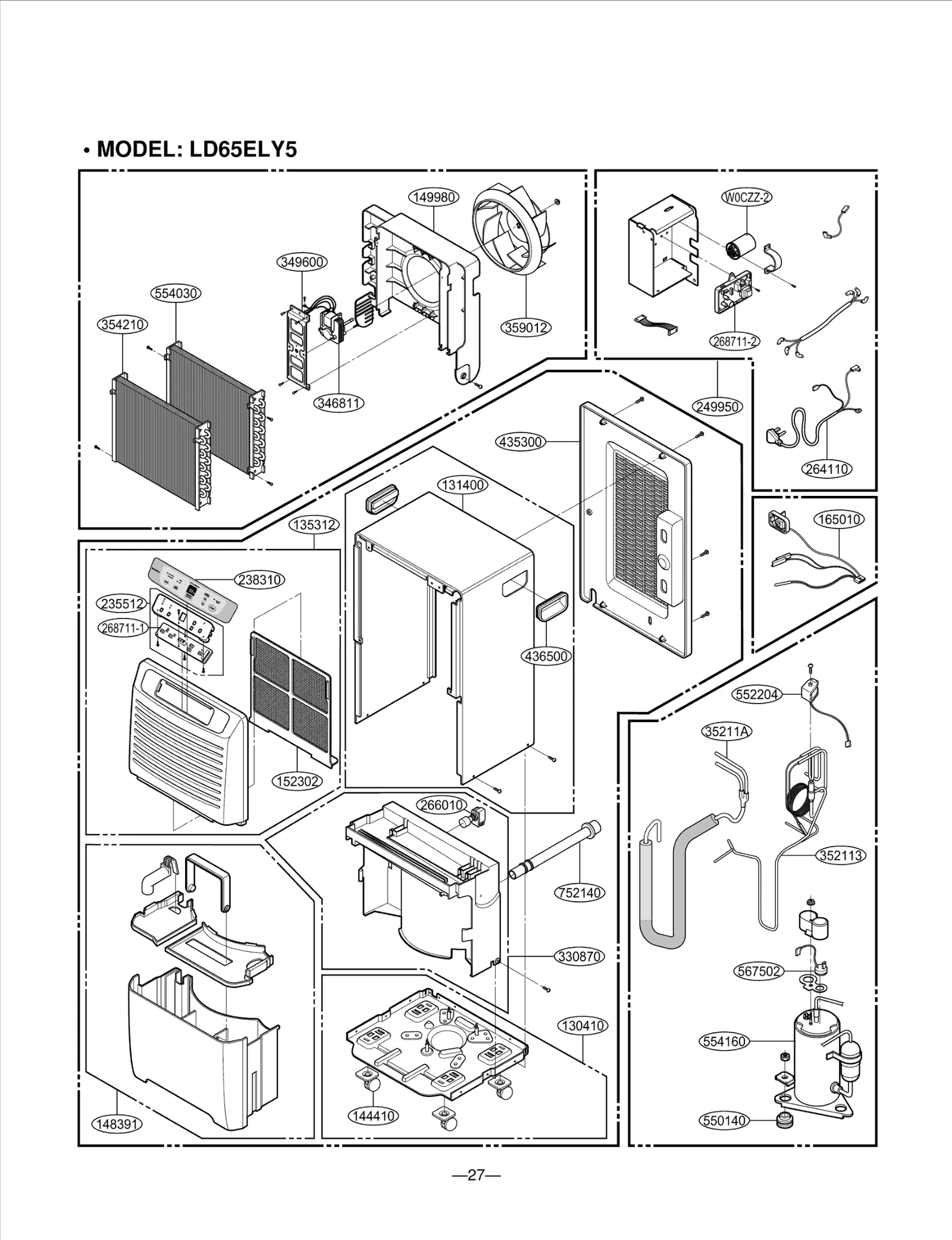

Diagram 0
Common parts from model LG LD65ELY5
135312
Grille Assembly,Front LGE 3531A18012E Contact Us For Availability
148391
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
149980
SHROUD LGE 4998A10034B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
165010
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A20109D Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20079J Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20622L Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266010
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20600A Contact Us For Availability
268711-2
PWB(PCB) ASSEMBLY,MAIN LGE 6871A20888C Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20040R Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A10544A Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193B Contact Us For Availability
550140
BUSHING LGE 4830A30005A Contact Us For Availability
552204
COIL ASSEMBLY,SOLENOID LGE 6421A20003K Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A10008L Contact Us For Availability
554160
TBZ31951701 ALTERNATE LGE 2520UCBA007 Contact Us For Availability
567502
O.L.P LGE 6750U-L048A Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
W0CZZ-2
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
× ![]()
