Model LG LCV900B Ventilation – Common Parts & Diagrams

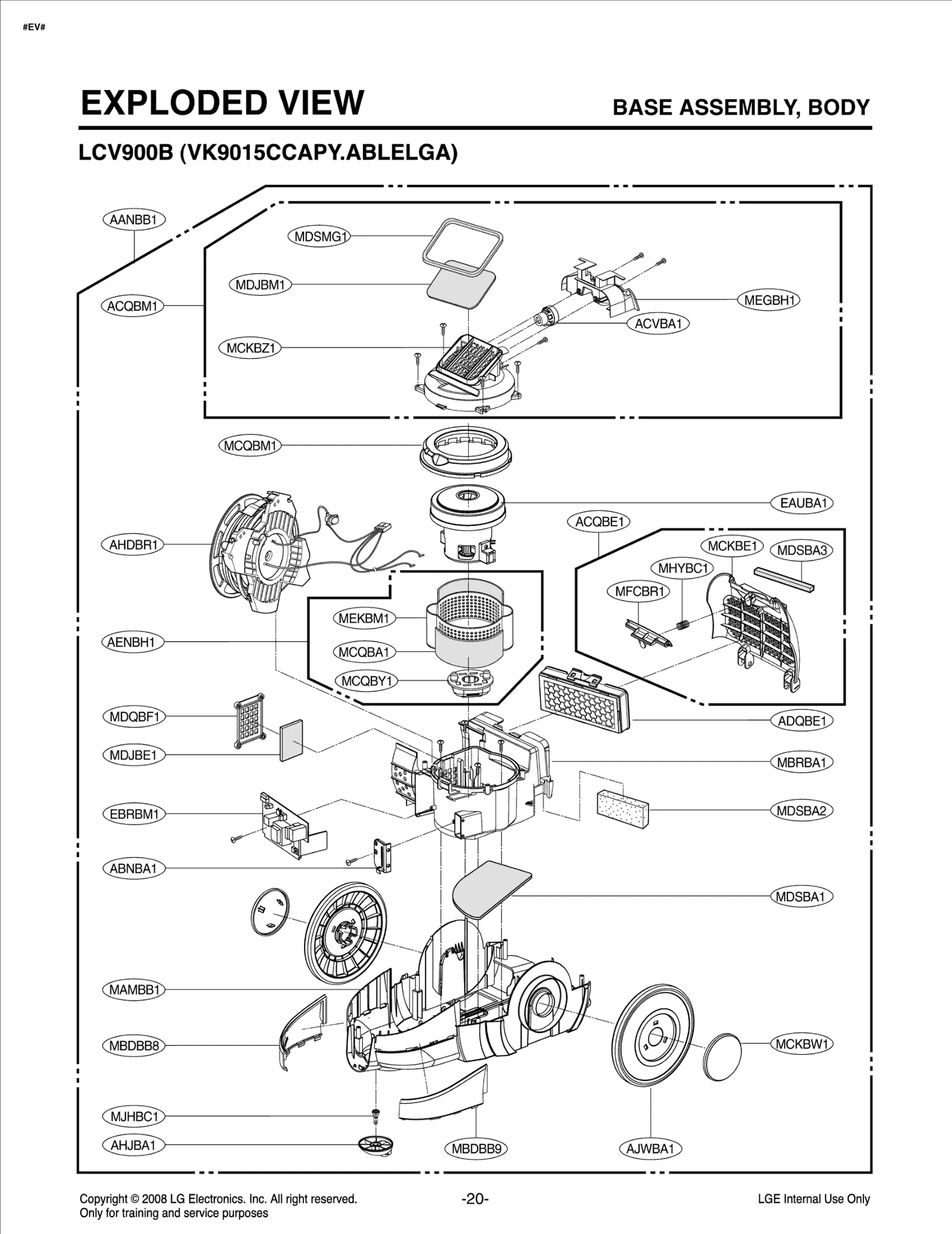

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG LCV900B Ventilation
AANBB1
Base Assembly,Body LGE AAN57472921 Contact Us For Availability
ABCCB1
Brush Assembly,Dust LGE ABC72930101 Contact Us For Availability
ABNBA1
Cap Assembly LGE ABN31571101 Contact Us For Availability
ACQBE1
Cover Assembly,Exhaust LGE ACQ65857006 Contact Us For Availability
ACQBM1
Cover Assembly,Motor LGE ACQ65856708 Contact Us For Availability
ACQCB1
Cover Assembly,Body LGE ACQ83872301 Contact Us For Availability
AECCG1
Guide Assembly,Air LGE AEC73197901 Contact Us For Availability
AEMAC2
Hose Assembly,Connector LGE AEM73153101 Contact Us For Availability
AEMAF1
Hose Assembly,Flexible LGE AEM73153001 Contact Us For Availability
AENBH1
Housing Assembly,Motor LGE AEN73131601 Contact Us For Availability
AFFNS1
Lever Assembly,Selector LGE AFF73030201 Contact Us For Availability
AGBN63
Nozzle Assembly,Floor LGE AGB36646406 Contact Us For Availability
AGBN73
Nozzle Assembly,Power LGE AGB73052401 Contact Us For Availability
AGRCP1
Pipe Assembly,Suction LGE AGR73194601 Contact Us For Availability
AGRNS1
Pipe Assembly,Suction LGE AGR73194701 Contact Us For Availability
AGRNU1
Pipe Assembly,Suction LGE AGR73475201 Contact Us For Availability
AGRPT1
Pipe Assembly,Telescopic LGE AGR73194501 Contact Us For Availability
AHDBR1
Reel Assembly LGE AHD57008825 Contact Us For Availability
AHJBA1
Roller Assembly LGE AHJ31688210 Contact Us For Availability
AJLTD1
Tank Assembly,Dust LGE AJL65856629 Contact Us For Availability
AJWBA1
Wheel Assembly LGE AJW31561714 Contact Us For Availability
AJWNA1
Wheel Assembly LGE AJW72970401 Contact Us For Availability
EADCS1
Harness,Single LGE EAD60854001 Contact Us For Availability
EADCS2
Harness,Single LGE 6631FI3155M Contact Us For Availability
EADCS3
Harness,Single LGE EAD56276702 Contact Us For Availability
EADNS1
Harness,Single LGE 6631FI3156G Contact Us For Availability
EAUBA1
MOTOR ASSY,VC LGE 4681FI2451G Contact Us For Availability
EAUCM1
Motor, AC Synchronous LGE 6549W1S013U Contact Us For Availability
EAUNA1
Switch Assembly,Safety LGE 6601FI3502C Contact Us For Availability
EAUNM1
Motor Assembly,DC,Vacuum Cleaner LGE EAU60885401 Contact Us For Availability
EBRAP1
PCB Assembly,Sub LGE 6871FX3136D Contact Us For Availability
EBRBM1
PCB Assembly,Main LGE EBR41525324 Contact Us For Availability
EBRCP1
PCB Assembly,Sensor LGE EBR73322801 Contact Us For Availability
EBRNA1
Shaft Assembly,Agitator LGE AHR72989701 Contact Us For Availability
EBRND1
PCB Assembly,Sub LGE EBR72784301 Contact Us For Availability
FACHK1
Knob Assembly LGE AEZ59298313 Contact Us For Availability
MAMBB1
Base,Body LGE MAM49987303 Contact Us For Availability
MASNB1
Belt LGE MAS62023801 Contact Us For Availability
MBDBB8
Bumper,Body LGE MBD50004803 Contact Us For Availability
MBDBB9
Bumper,Body LGE MBD50004003 Contact Us For Availability
MBDNB1
Bumper,Head LGE MBD61923901 Contact Us For Availability
MBGCB1
Button,Release LGE MBG53465602 Contact Us For Availability
MBGCR1
Button,Cord Reel LGE MBG47790806 Contact Us For Availability
MBLTT1
Cap,Tank LGE MBL53527710 Contact Us For Availability
MBRBA1
Chamber LGE MBR61901501 Contact Us For Availability
MBVCC1
Clip LGE MBV62082001 Contact Us For Availability
MCDNP1
Connector,Pedal LGE MCD62087201 Contact Us For Availability
MCKAG1
Cover,Grip LGE MCK41951406 Contact Us For Availability
MCKAT1
Cover,Terminal LGE MCK41951904 Contact Us For Availability
MCKBE1
Cover,Exhaust Filter LGE MCK53530406 Contact Us For Availability
MCKBL1
Cover,Lever LGE MCK41952602 Contact Us For Availability
MCKBW1
Cover,Wheel LGE MCK33920607 Contact Us For Availability
MCKBZ1
Cover,Motor Housing LGE MCK53530001 Contact Us For Availability
MCKCA1
Cover,Decor LGE MCK65832901 Contact Us For Availability
MCKCB1
Cover,Body LGE MCK50008506 Contact Us For Availability
MCKCE1
Cover,Decor LGE MCK65832801 Contact Us For Availability
MCKCH1
Cover,Handle LGE MCK65833001 Contact Us For Availability
MCKCS1
Cover,Body(Sub) LGE MCK53467506 Contact Us For Availability
MCKCV1
Cover,Guide LGE MCK53457702 Contact Us For Availability
MCKCZ1
Cover,Terminal LGE MCK62315801 Contact Us For Availability
MCKNC1
Cover,Decor LGE MCK66032601 Contact Us For Availability
MCKND1
Cover,Display LGE MCK66014401 Contact Us For Availability
MCKNH1
Cover,Head LGE MCK66032301 Contact Us For Availability
MCKNL1
Cover,LED LGE MCK66032701 Contact Us For Availability
MCKNP1
Cover,Pipe LGE MCK66013601 Contact Us For Availability
MCKNP2
Cover,Pipe LGE MCK66013701 Contact Us For Availability
MCKNP3
Cover,Pipe LGE MCK66030201 Contact Us For Availability
MCKNS1
Cover,Switch LGE MCK66014501 Contact Us For Availability
MCKTH1
Cover,Handle LGE MCK53527902 Contact Us For Availability
MCKTS1
Cover,Dust LGE MCK53527808 Contact Us For Availability
MCQBA1
Damper,Absorbing LGE 3940FI3754C Contact Us For Availability
MCQBM1
Damper,Motor Mount LGE MCQ57886301 Contact Us For Availability
MCQBY1
Damper,Sealing LGE MCQ53269001 Contact Us For Availability
MDJBM1
Filter,Motor Safety LGE MDJ50005201 Contact Us For Availability
MDSBA1
Gasket LGE MDS49556801 Contact Us For Availability
MDSBA2
Gasket LGE MDS55182701 Contact Us For Availability
MDSBA3
Gasket LGE MDS59390301 Contact Us For Availability
MDSCA1
Gasket LGE MDS49556112 Contact Us For Availability
MDSCA2
Gasket LGE MDS49556113 Contact Us For Availability
MDSCA3
Gasket LGE MDS54988301 Contact Us For Availability
MDSCA4
Gasket LGE MDS49556109 Contact Us For Availability
MDSCA5
Gasket LGE MDS49556111 Contact Us For Availability
MDSCA6
Gasket LGE MDS54997501 Contact Us For Availability
MDSCA7
Gasket LGE MDS49556104 Contact Us For Availability
MDSMG1
Gasket LGE MDS49556114 Contact Us For Availability
MDSNA1
Gasket LGE MDS63231401 Contact Us For Availability
MDSNA2
Gasket LGE MDS63231402 Contact Us For Availability
MDSNA3
Gasket LGE MDS63231403 Contact Us For Availability
MDSNA4
Gasket LGE MDS63231404 Contact Us For Availability
MDSNA5
Gasket LGE MDS63231405 Contact Us For Availability
MDSNA6
Gasket LGE MDS63252101 Contact Us For Availability
MDSTA1
Gasket LGE MDS61904701 Contact Us For Availability
MDSTA2
Gasket LGE MDS54985701 Contact Us For Availability
MDTCA1
Gear LGE MDT35353701 Contact Us For Availability
MEACA1
Guide,Air LGE MEA62331401 Contact Us For Availability
MEACA2
Guide,Air LGE MEA62331501 Contact Us For Availability
MEAGG1
Guide,Filter LGE MEA62331601 Contact Us For Availability
MEANA1
Guide,Air LGE MEA62431601 Contact Us For Availability
MEBAG1
Handle,Grip LGE MEB41951703 Contact Us For Availability
MEBCC1
Handle,Carrier LGE MEB53467203 Contact Us For Availability
MEBCC2
Handle,Carrier LGE MEB62154601 Contact Us For Availability
MEGBH1
Holder,Cover LGE MEG53530103 Contact Us For Availability
MEGCH1
Holder,Fixing LGE MEG62379901 Contact Us For Availability
MEGNF1
Holder,Fixing LGE MEG62519201 Contact Us For Availability
MEGNH1
Holder,LED LGE MEG62480701 Contact Us For Availability
MEKBM1
Housing,Motor LGE MEK62046901 Contact Us For Availability
MFCAR1
Lever,Release LGE MFC41952401 Contact Us For Availability
MFCBR1
Lever,Release LGE MFC53530203 Contact Us For Availability
MFCCL1
Lever,Bottom LGE MFC53516201 Contact Us For Availability
MFCNR1
Lever,Release LGE MFC62169701 Contact Us For Availability
MFCNR2
Lever,Release LGE MFC62169801 Contact Us For Availability
MFCNS1
Lever,Selector LGE MFC62169601 Contact Us For Availability
MFCTL1
Lever,Release LGE MFC53528001 Contact Us For Availability
MFGAC1
Locker,Connector LGE MFG41952501 Contact Us For Availability
MFGCL1
Locker,Connector LGE MFG53516304 Contact Us For Availability
MFGNL1
Locker LGE MFG62458701 Contact Us For Availability
MFGNL2
Locker LGE MFG62458801 Contact Us For Availability
MFQNM2
Mop LGE MFQ61841603 Contact Us For Availability
MFVAC1
Nozzle,Crevice LGE MFV61985001 Contact Us For Availability
MGECB1
Pipe,Bending LGE MGE53468001 Contact Us For Availability
MGECC1
Pipe,Connector LGE MGE53467805 Contact Us For Availability
MGENA1
Pipe,Suction LGE MGE62190401 Contact Us For Availability
MGJNA1
Plate,Bottom LGE MGJ62704901 Contact Us For Availability
MGJNC1
Plate,Fixing LGE MGJ62704801 Contact Us For Availability
MGJTR1
Plate,Rotation LGE MGJ62586701 Contact Us For Availability
MGUNS1
Ratchet LGE MGU61881201 Contact Us For Availability
MGZNR1
Ring LGE MGZ61967301 Contact Us For Availability
MGZTR1
Ring,Guide LGE MGZ47799901 Contact Us For Availability
MHANR1
Roller LGE MHA62152901 Contact Us For Availability
MHJNS1
Shaft LGE MHJ62316101 Contact Us For Availability
MHJNT1
Shaft LGE MHJ62316201 Contact Us For Availability
MHYAC1
Spring,Coil LGE MHY37941601 Contact Us For Availability
MHYBC1
Spring,Coil LGE 4970FI4230K Contact Us For Availability
MHYCC1
Spring,Coil LGE 4970FI4511Y Contact Us For Availability
MHYCC2
Spring,Coil LGE MHY37941602 Contact Us For Availability
MHYCC3
Spring,Coil LGE 4970FI4694M Contact Us For Availability
MHYNA1
Spring,Coil LGE 4970FI3245A Contact Us For Availability
MHYNS1
Spring,Coil LGE MHY62365501 Contact Us For Availability
MHYTC1
Spring,Coil LGE 4970FI4511X Contact Us For Availability
MJCCA1
Strainer,Inner LGE MJC62001701 Contact Us For Availability
MJHCM1
Supporter,Motor LGE MJH47371601 Contact Us For Availability
MJHHP1
Supporter,PCB LGE MJH41952701 Contact Us For Availability
MJHNL1
Supporter,Lever LGE MJH62257901 Contact Us For Availability
MJJTS1
Sweeper LGE MJJ61861501 Contact Us For Availability
MJMTD1
Tank,Dust LGE MJM53522002 Contact Us For Availability
MKCNV1
Window,Viewing LGE MKC63659701 Contact Us For Availability
× ![]()
