Model LG LCV800R Ventilation – Common Parts & Diagrams

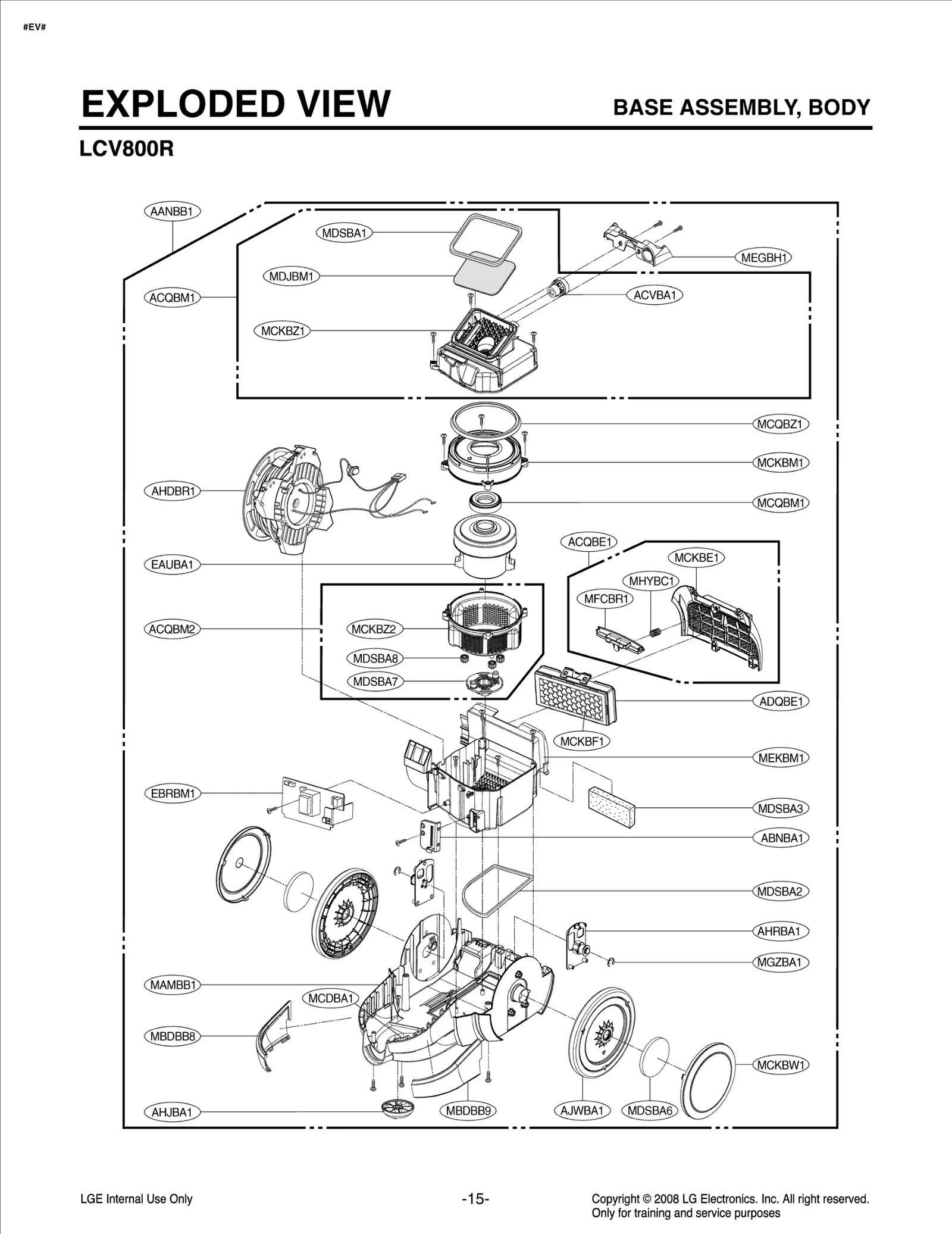

Diagram 0

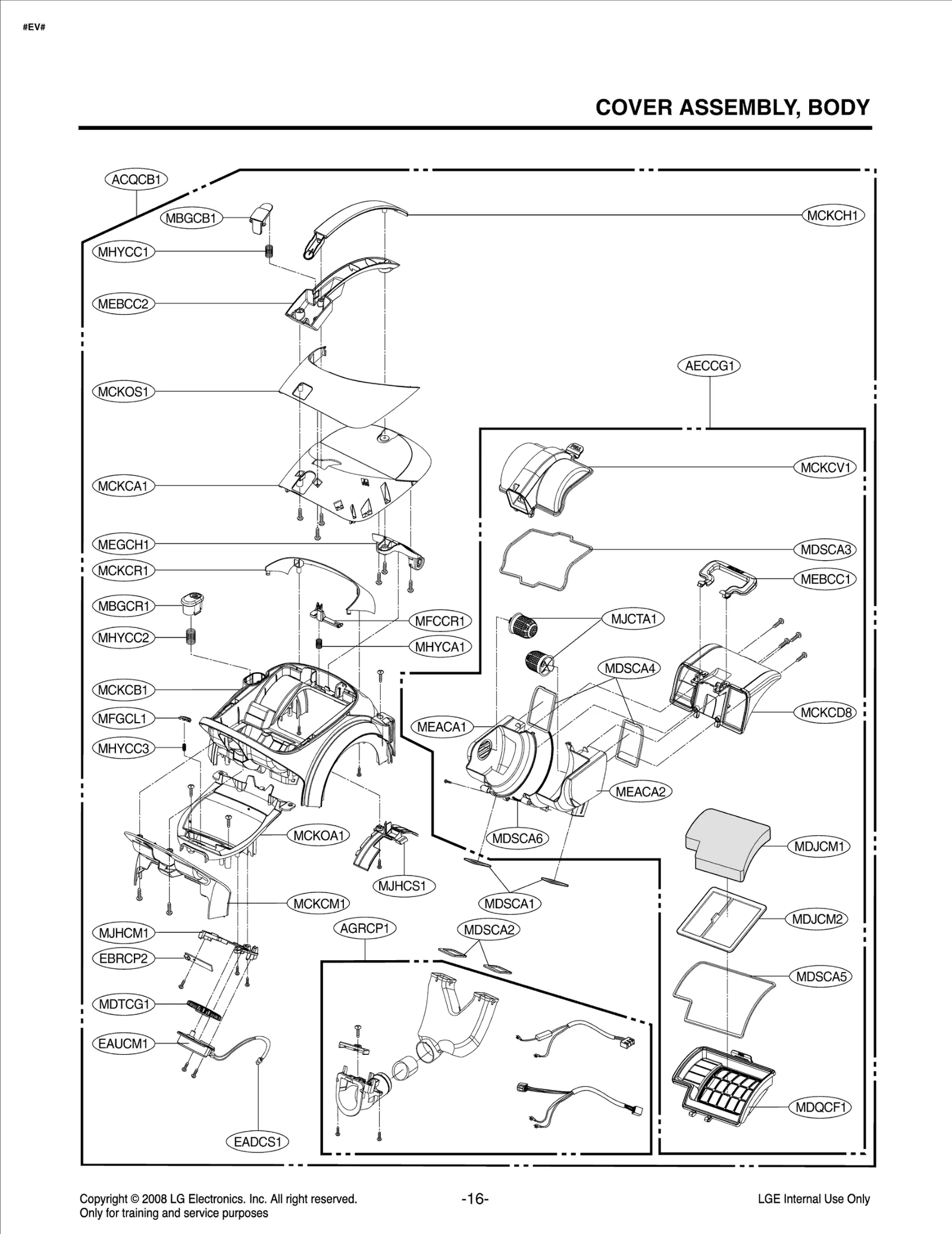

Diagram 1

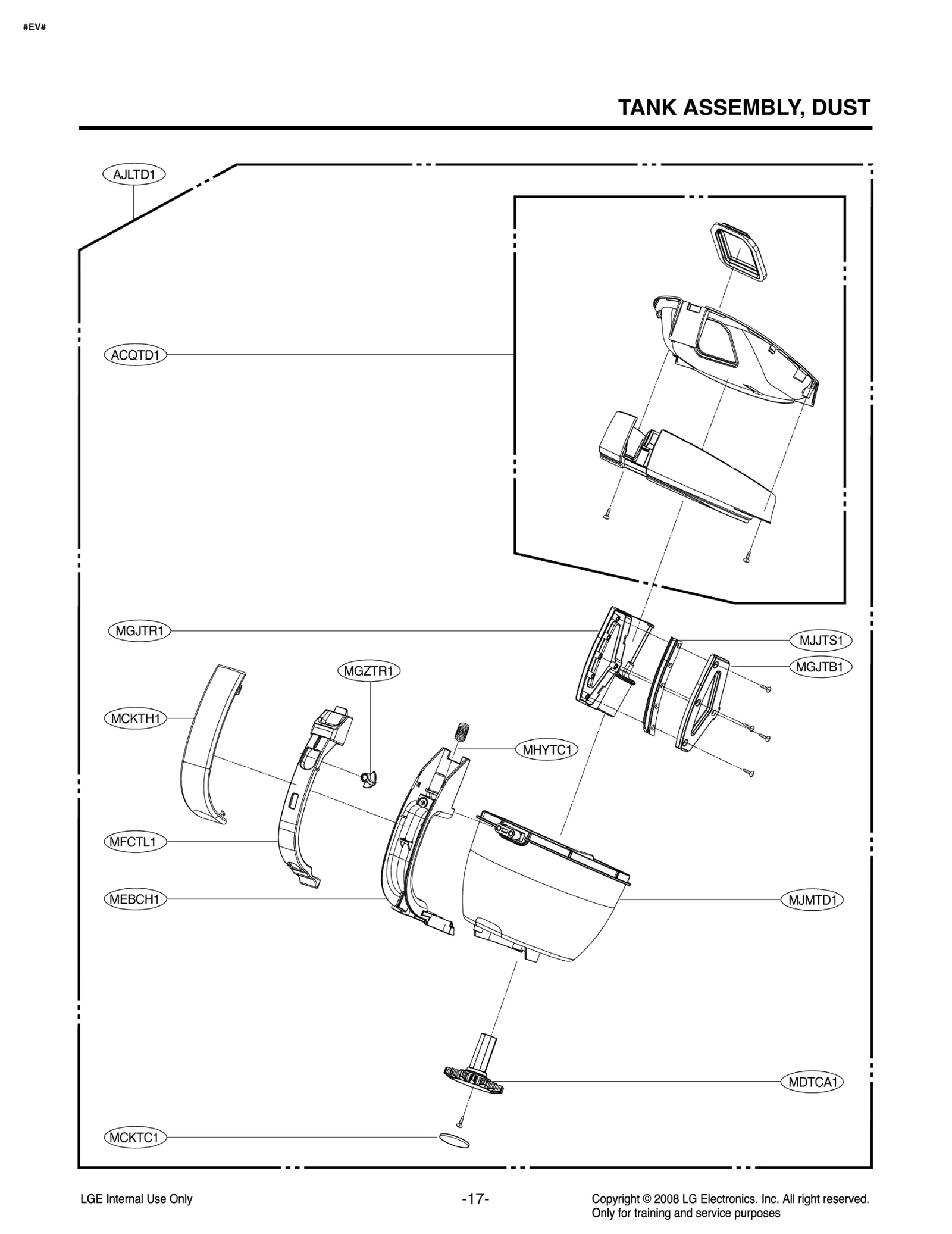

Diagram 2

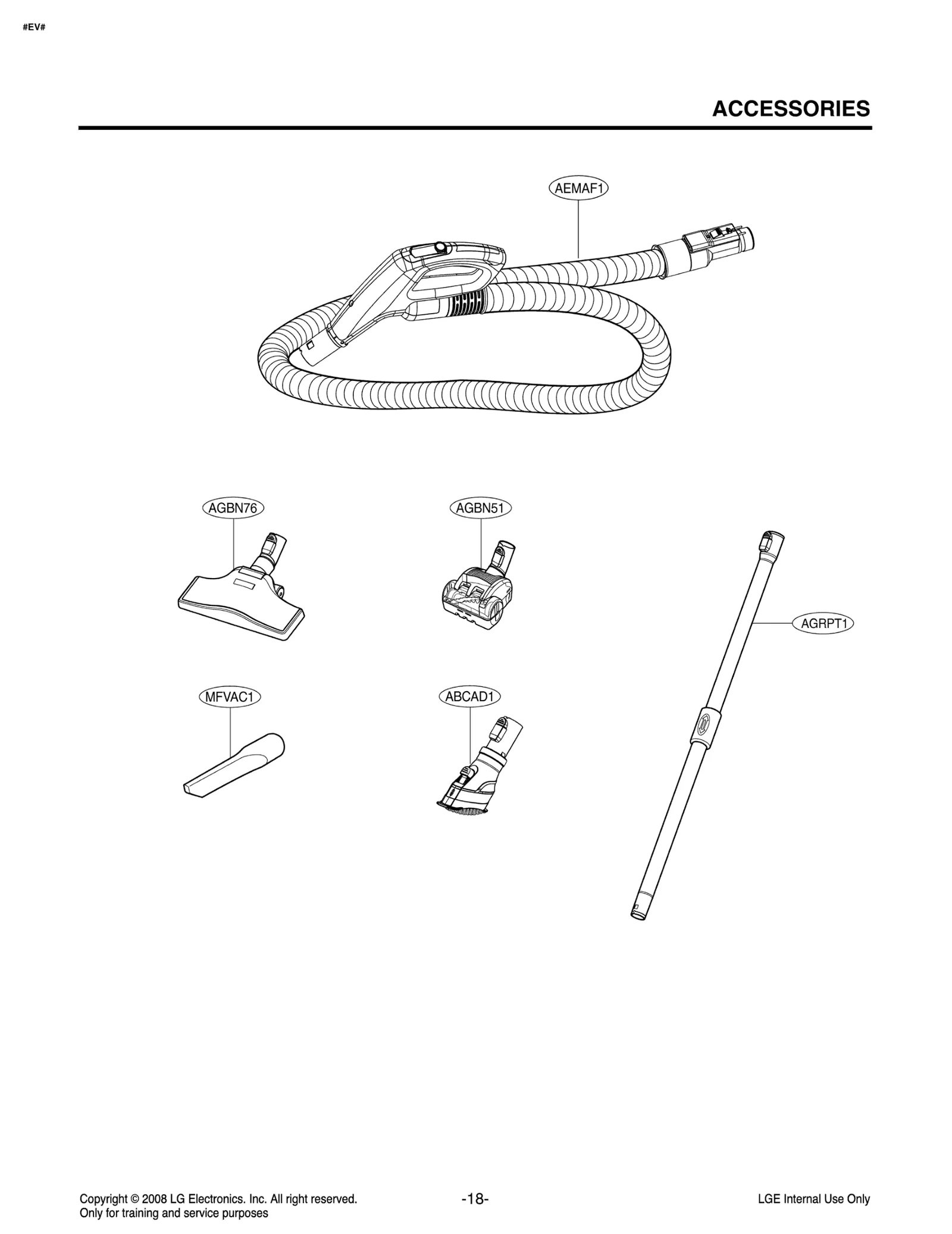

Diagram 3
Common parts from model LG LCV800R Ventilation
AANBB1
Base Assembly,Body LGE AAN72920220 Contact Us For Availability
ABCAD1
Brush Assembly,Dust LGE ABC65852302 Contact Us For Availability
ABNBA1
Cap Assembly LGE ABN31571101 Contact Us For Availability
ACQBE1
Cover Assembly,Exhaust LGE ACQ57029701 Contact Us For Availability
ACQBM1
Cover Assembly,Motor LGE ACQ73307907 Contact Us For Availability
ACQBM2
Cover Assembly,Motor LGE ACQ73308805 Contact Us For Availability
ACQCB1
Cover Assembly,Body LGE ACQ73333430 Contact Us For Availability
ACQTD1
Cover Assembly,Dust LGE ACQ73337201 Contact Us For Availability
ACVBA1
Damper Assembly LGE 4901FI3435Z Contact Us For Availability
AECCG1
Guide Assembly,Air LGE AEC72914710 Contact Us For Availability
AEMAF1
Hose Assembly,Flexible LGE AEM73292906 Contact Us For Availability
AGBN51
Nozzle Assembly,Turbine LGE AGB69504602 Contact Us For Availability
AGBN76
Nozzle Assembly,Floor LGE AGB73072502 Contact Us For Availability
AGRCP1
Pipe Assembly,Suction LGE AGR57026604 Contact Us For Availability
AGRPT1
Pipe Assembly,Telescopic LGE AGR72910302 Contact Us For Availability
AHDBR1
Reel Assembly LGE AHD57008830 Contact Us For Availability
AHJBA1
Roller Assembly LGE AHJ31688206 Contact Us For Availability
AJLTD1
Tank Assembly,Dust LGE AJL73292003 Contact Us For Availability
AJWBA1
Wheel Assembly LGE AJW72909101 Contact Us For Availability
EADCS1
Harness,Single LGE 6631FI3155Q Contact Us For Availability
EAUBA1
MOTOR ASSEMBLY,VC LGE 4681FI2451J Contact Us For Availability
EAUCM1
Motor, AC Synchronous LGE 6549W1S013U Contact Us For Availability
EBRBM1
PCB Assembly,Main LGE EBR41525326 Contact Us For Availability
EBRCP2
PCB Assembly,Sensor LGE EBR73322801 Contact Us For Availability
MAMBB1
Base,Body LGE MAM47356102 Contact Us For Availability
MBDBB8
Bumper,Body LGE MBD47791101 Contact Us For Availability
MBDBB9
Bumper,Body LGE MBD49522601 Contact Us For Availability
MBGCB1
Button,Release LGE MBG47384003 Contact Us For Availability
MBGCR1
Button,Cord Reel LGE MBG47790801 Contact Us For Availability
MCKBE1
Cover,Exhaust Filter LGE MCK47376501 Contact Us For Availability
MCKBF1
Cover,Filter LGE MCK47790701 Contact Us For Availability
MCKBM1
Cover,Motor LGE MCK62425401 Contact Us For Availability
MCKBW1
Cover,Wheel LGE MCK62068507 Contact Us For Availability
MCKBZ1
Cover,Motor Housing LGE MCK62425301 Contact Us For Availability
MCKBZ2
Cover,Motor Housing LGE MCK62068901 Contact Us For Availability
MCKCA1
Cover,Body(Sub) LGE MCK62076801 Contact Us For Availability
MCKCB1
Cover,Body LGE MCK62075801 Contact Us For Availability
MCKCD8
Cover,Decor LGE MCK47785201 Contact Us For Availability
MCKCH1
Cover,Handle LGE MCK62077101 Contact Us For Availability
MCKCM1
Cover,Front LGE MCK62076301 Contact Us For Availability
MCKCR1
Cover,Rear LGE MCK62075901 Contact Us For Availability
MCKCV1
Cover,Guide LGE MCK47357801 Contact Us For Availability
MCKOA1
Cover,Dust LGE MCK62076501 Contact Us For Availability
MCKOS1
Cover,Decor LGE MCK62076701 Contact Us For Availability
MCKTH1
Cover,Handle LGE MCK62791308 Contact Us For Availability
MCQBM1
Damper,Motor Mount LGE MCQ62400501 Contact Us For Availability
MCQBZ1
Damper,Motor LGE MCQ62032801 Contact Us For Availability
MDJBM1
Filter,Motor Safety LGE MDJ49523101 Contact Us For Availability
MDJCM2
Filter,Motor Safety LGE MDJ63305401 Contact Us For Availability
MDSBA1
Gasket LGE MDS49552902 Contact Us For Availability
MDSBA2
Gasket LGE MDS49556117 Contact Us For Availability
MDSBA3
Gasket LGE MDS49556301 Contact Us For Availability
MDSBA6
Gasket LGE MDS61917901 Contact Us For Availability
MDSBA7
Gasket LGE MDS61982301 Contact Us For Availability
MDSBA8
Gasket LGE MDS61903401 Contact Us For Availability
MDSCA1
Gasket LGE MDS61921301 Contact Us For Availability
MDSCA3
Gasket LGE MDS50028901 Contact Us For Availability
MDSCA4
Gasket LGE MDS49531901 Contact Us For Availability
MDSCA6
Gasket LGE MDS49556105 Contact Us For Availability
MDTCA1
Gear LGE MDT47375501 Contact Us For Availability
MDTCG1
Gear LGE MDT35353701 Contact Us For Availability
MEACA1
Guide,Air LGE MEA47785502 Contact Us For Availability
MEACA2
Guide,Air LGE MEA47358002 Contact Us For Availability
MEBCC1
Handle,Carrier LGE MEB50027402 Contact Us For Availability
MEBCH1
Handle,Grip LGE MEB61850101 Contact Us For Availability
MEGBH1
Holder,Cover LGE MEG47376201 Contact Us For Availability
MEGCH1
Holder,Fixing LGE MEG61864301 Contact Us For Availability
MEKBM1
Housing,Motor LGE MEK61842302 Contact Us For Availability
MFCBR1
Lever,Release LGE MFC47376601 Contact Us For Availability
MFCCR1
Lever,Release LGE MFC61843501 Contact Us For Availability
MFCTL1
Lever,Release LGE MFC47374801 Contact Us For Availability
MFGCL1
Locker,Connector LGE MFG47785805 Contact Us For Availability
MFVAC1
Nozzle,Crevice LGE MFV55177802 Contact Us For Availability
MGJTB1
Plate,Bottom LGE MGJ62906403 Contact Us For Availability
MGJTR1
Plate,Rotation LGE MGJ62906303 Contact Us For Availability
MGZBA1
Ring,E LGE 3A00644B Contact Us For Availability
MGZTR1
Ring,Guide LGE MGZ47799901 Contact Us For Availability
MHYBC1
Spring,Coil LGE 4970FI4230K Contact Us For Availability
MHYCA1
Spring LGE 4970FI3156D Contact Us For Availability
MHYCC1
Spring,Coil LGE 4970FI4230C Contact Us For Availability
MHYCC2
Spring,Coil LGE 4970FI4511Y Contact Us For Availability
MHYCC3
Spring,Coil LGE 4970FI4694K Contact Us For Availability
MHYTC1
Spring,Coil LGE 4970FI4694L Contact Us For Availability
MJCTA1
Strainer,Inner LGE MJC47358302 Contact Us For Availability
MJHCM1
Supporter,Motor LGE MJH47371601 Contact Us For Availability
MJHCS1
Supporter,Lever LGE MJH56778801 Contact Us For Availability
MJJTS1
Sweeper LGE MJJ61941501 Contact Us For Availability
MJMTD1
Tank,Dust LGE MJM61843102 Contact Us For Availability
× ![]()
