Model Whirlpool LCRE883 ELECTRIC RANGE – Common Parts & Diagrams

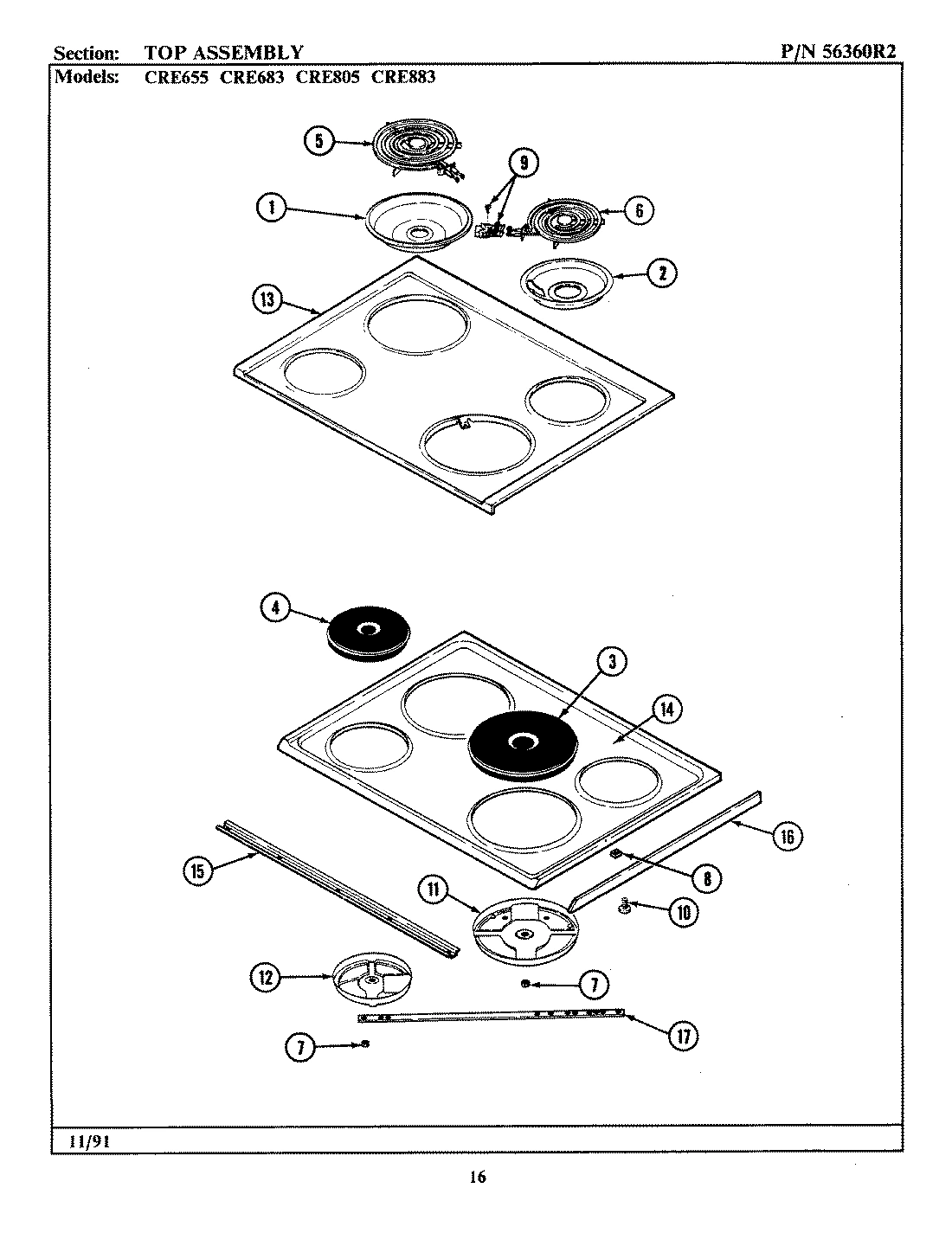

05 - TOP ASSEMBLY

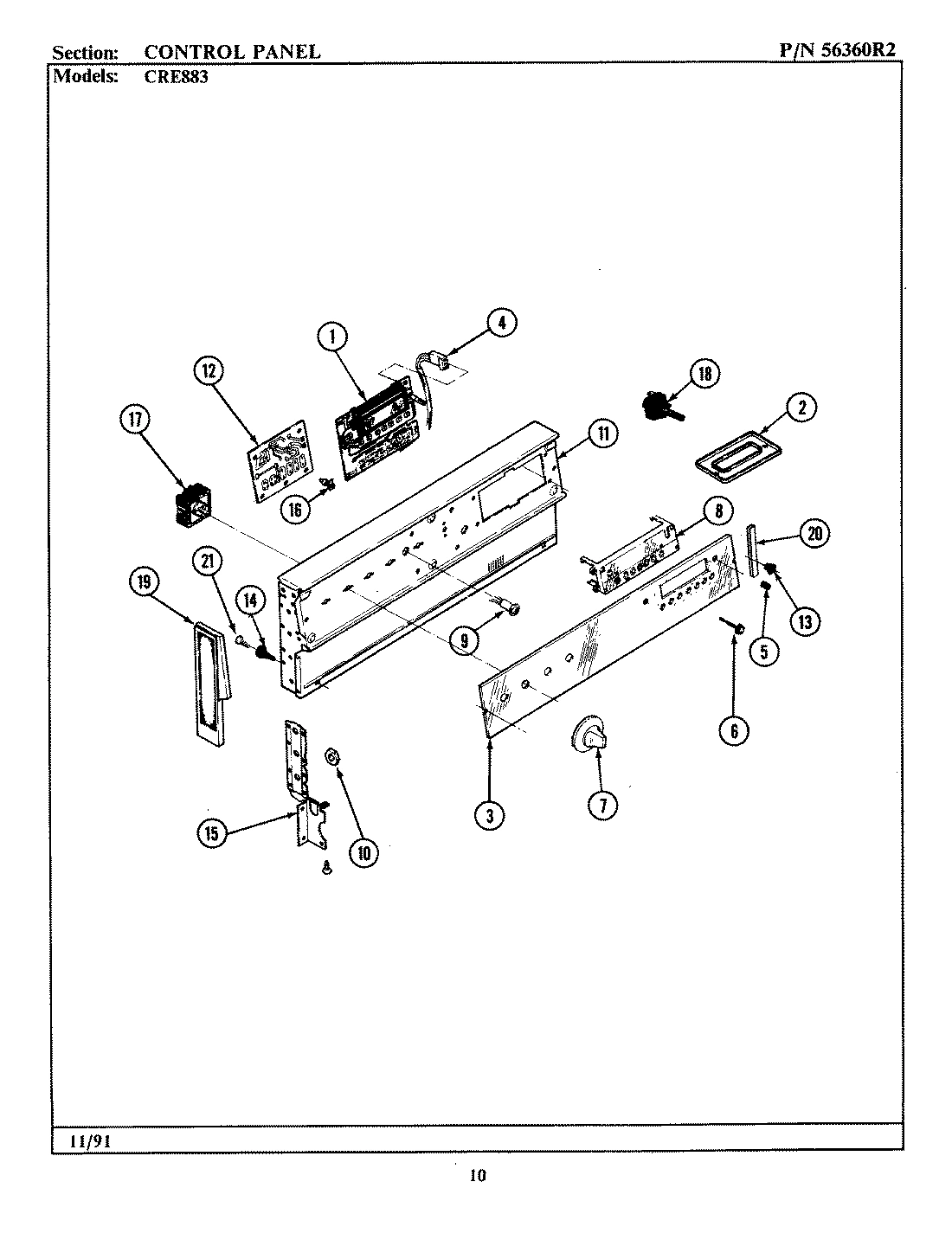

02 - CONTROL PANEL (CRE883)

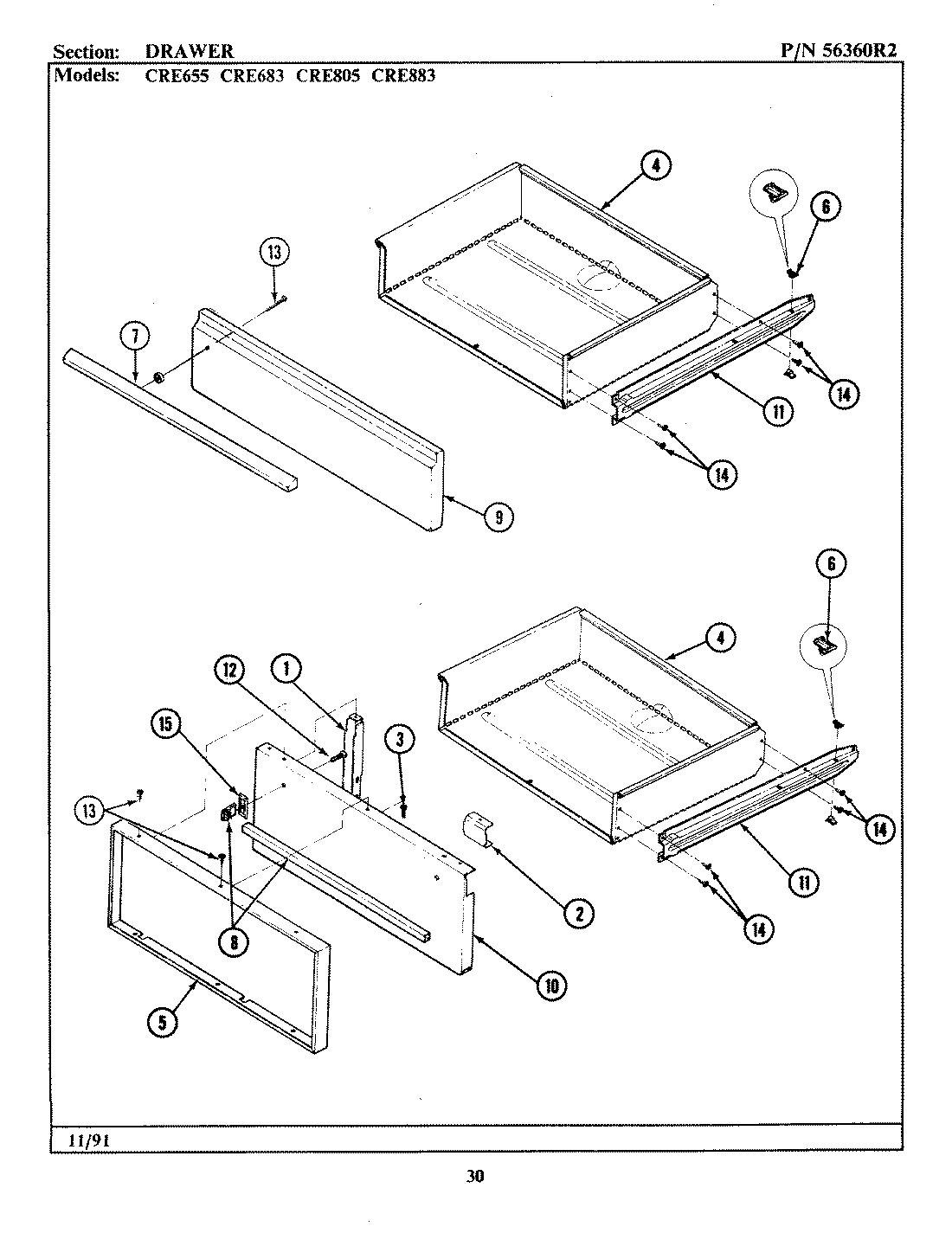

04 - DRAWER

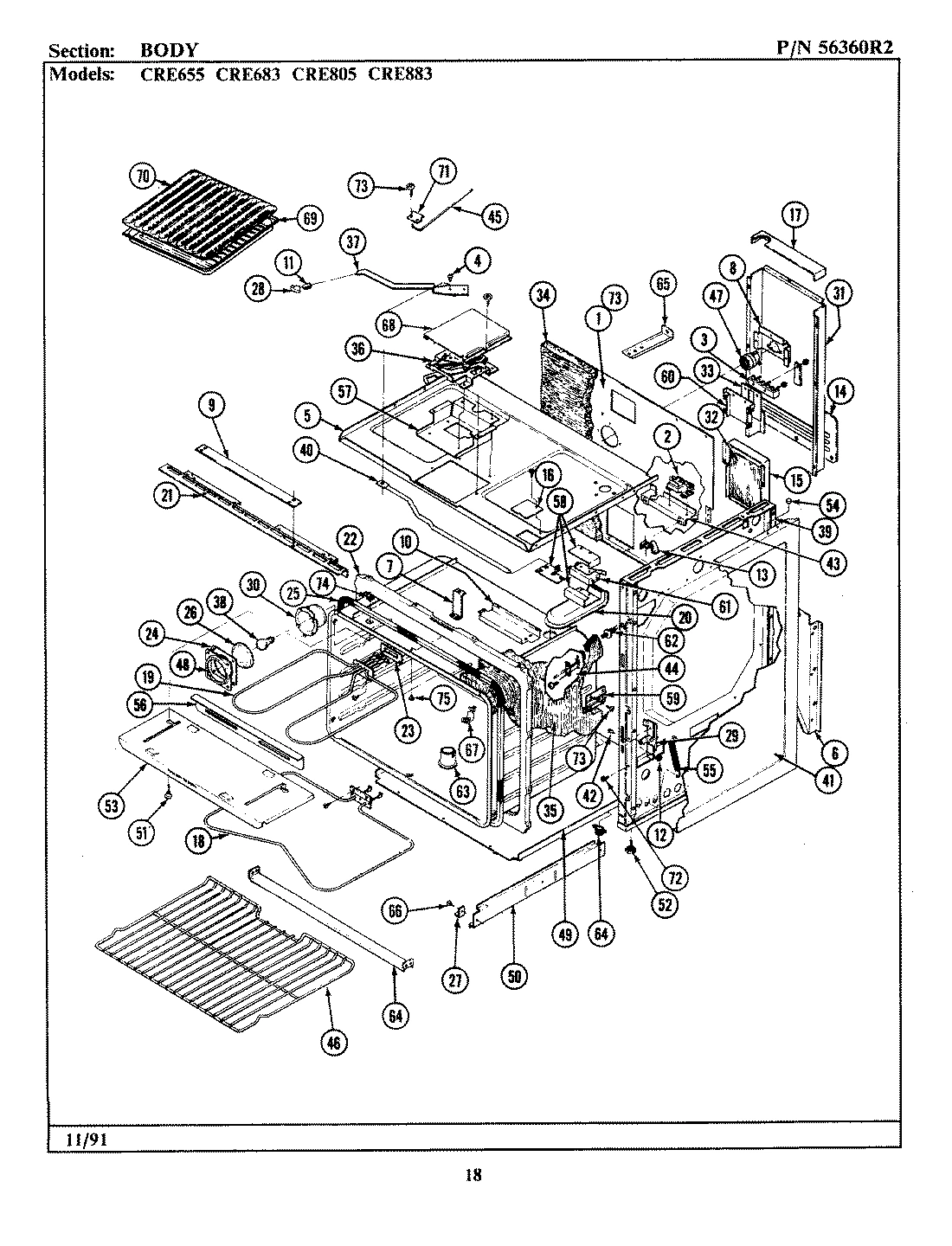

01 - BODY

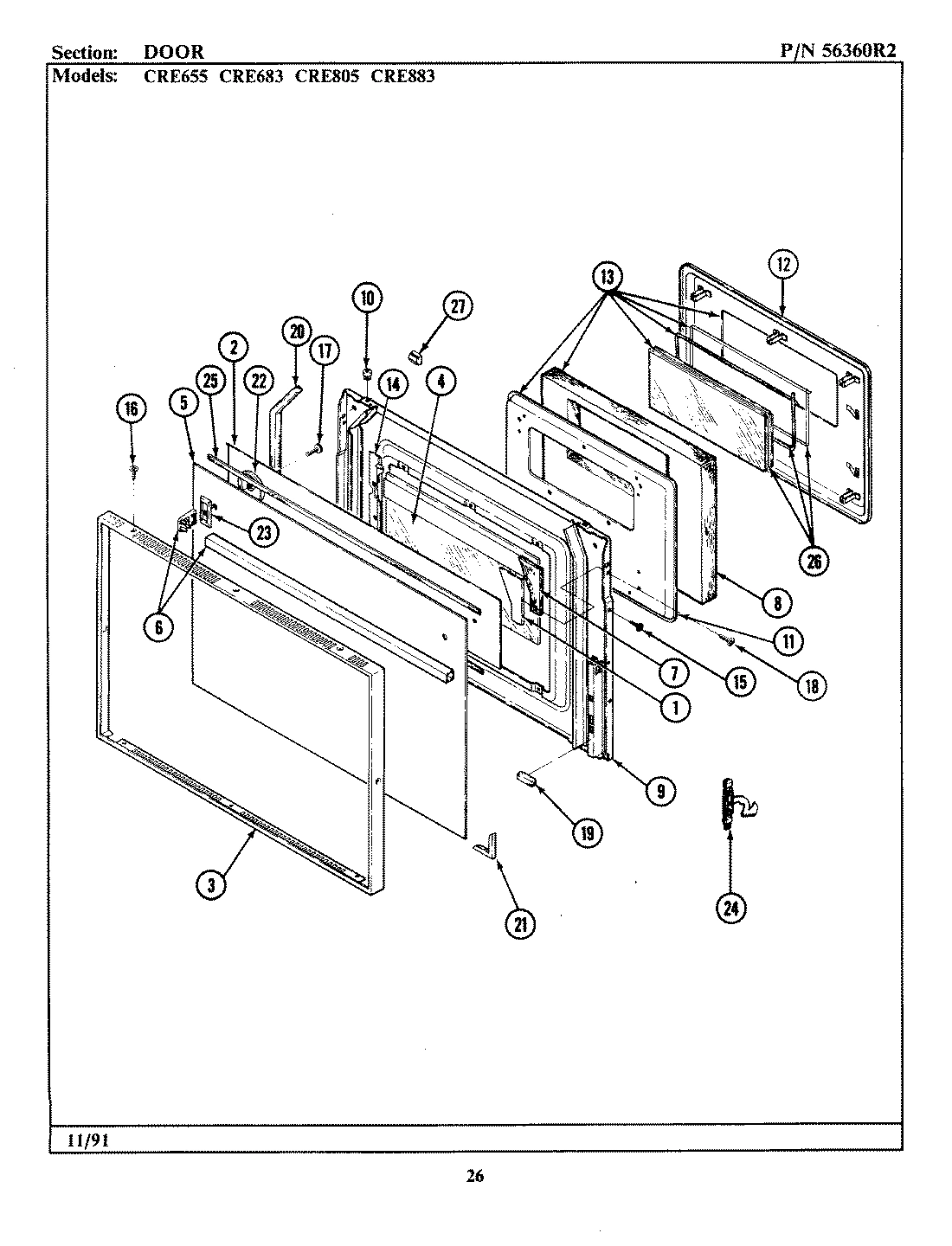

03 - DOOR
Common parts from model Whirlpool LCRE883 ELECTRIC RANGE
1
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
1
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
CLOCK WPL 7601P10060 Contact Us For Availability
1
CLOCK WPL 7601P15460 Contact Us For Availability
1
CLOCK WPL 7601P16260 Contact Us For Availability
1
CLOCK, ELECTRONIC WPL 7601P17560 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
BAFFLE,CORNER (RIGHT) WPL 3601F15870 Contact Us For Availability
1
BAFFLE, CORNER (LEFT) WPL 3601F15970 Contact Us For Availability
2
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
2
GASKET, COVER WPL 4005F29651 Contact Us For Availability
2
SEAL, COVER WPL 7212P03260 Contact Us For Availability
2
BRACKET WPL 3801F03151 Contact Us For Availability
2
BALLAST WPL 7412P00560 Contact Us For Availability
2
BAFFLE, DOOR HANDLE WPL 3601F17045 Contact Us For Availability
3
GLASS, BACKGUARD WPL 7910P09360 Contact Us For Availability
3
BACKGUARD, GLASS WPL 7910P11660 Contact Us For Availability
3
BUMPER WPL 8003P00360 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24660 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
4
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
4
HARNESS, OVEN SENSOR WPL 5170P08760 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
GLASS, INNER WPL 7902P09760 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
5
FRAME, DRAWER WPL 7706P20660 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15880 Contact Us For Availability
5
BOTTOM BURNER BOX WPL 4011F18019 Contact Us For Availability
5
BOTTOM BURNER BOX WPL 4011F19819 Contact Us For Availability
5
GLASS, OUTER WPL 7902P27160 Contact Us For Availability
6
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
6
BUTTON, SET WPL 7711P33560 Contact Us For Availability
6
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
6
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
6
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P04560 Contact Us For Availability
7
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
7
KNOB, CONTROL WPL 7737P02460 Contact Us For Availability
7
BRACKET WPL 3801F09351 Contact Us For Availability
7
INSULATION DOOR WPL 7002P10660 Contact Us For Availability
8
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
8
HANDLE, DRAWER WPL 7701P04660 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
8
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
9
LIGHT, SIGNAL WPL 7407P07960 Contact Us For Availability
9
PANEL, DRAWER ALM WPL 2416F02974 Contact Us For Availability
9
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING WPL 2402W17315 Contact Us For Availability
9
LINING WPL 2402W17319 Contact Us For Availability
10
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
10
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
11
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
11
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
11
BKGD ASSY, ALM WPL 2601W29384 Contact Us For Availability
11
BACKGUARD WPL 2601W32784 Contact Us For Availability
11
COVER, BKGD WIRE WPL 4005F28480 Contact Us For Availability
11
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
11
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
11
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
11
PAD, INNER WPL 2410F01651 Contact Us For Availability
12
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
12
HARNESS, WIRE WPL 5170A00660 Contact Us For Availability
12
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
12
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
PAD, DOOR WPL 2410W02915 Contact Us For Availability
12
PAD, DOOR WPL 2410W04119 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
13
PAD, ASSY. WPL 2410A02915 Contact Us For Availability
13
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
14
TOP ASSY, MAIN WHITE WPL 2002W03281 Contact Us For Availability
14
TOP ASSY, MAIN ALMOND WPL 2002W03284 Contact Us For Availability
14
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
14
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
14
COVER,ACCESS WPL 4005F28851 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
15
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
15
SCREW WPL 7101P05760 Contact Us For Availability
15
SUPPORT, END (LEFT) WPL 3807W22480 Contact Us For Availability
15
SUPPORT, END (RIGHT) WPL 3807W22580 Contact Us For Availability
15
SPACER, HANDLE (BLACK) WPL 8010P04460 Contact Us For Availability
15
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
16
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
16
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
17
BRACKET WPL 3801F10051 Contact Us For Availability
17
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
17
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
17
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
17
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
17
SCREW WPL 7101P06860 Contact Us For Availability
17
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
18
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
18
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
18
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
18
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
19
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
19
SCREW WPL 7101P10460 Contact Us For Availability
19
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
SCREW WPL 7101P00860 Contact Us For Availability
20
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
20
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
20
FLUE BOX ASSY. WPL 4006W05660 Contact Us For Availability
20
SEAL WPL 7208P00260 Contact Us For Availability
21
SCREW WPL 7101P04760 Contact Us For Availability
21
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
21
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
22
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
22
SPACER, BAFFLE WPL 8010P05160 Contact Us For Availability
23
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
23
SPACER, DOOR HANDLE WPL 8010P05260 Contact Us For Availability
24
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
24
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
25
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
25
TAPE, FOAM WPL 8270P03460 Contact Us For Availability
26
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
26
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
26
WINDOW PAK WPL 7902S30360 Contact Us For Availability
27
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
27
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
27
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
28
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
29
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
29
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
29
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
30
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
30
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
31
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
32
INSULATION, VENT COVER WPL 7002P11560 Contact Us For Availability
33
INSULATION, TERM BD WPL 7003P01860 Contact Us For Availability
34
INSULATION, REAR WPL 7002P11660 Contact Us For Availability
35
INSULATION - TOP WPL 4804F00860 Contact Us For Availability
35
INSULATION, WRAPPER WPL 7002P04660 Contact Us For Availability
35
INSULATION TOP WPL 7002P11460 Contact Us For Availability
36
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
37
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
37
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
38
BULB, OVEN WPL 7407P02660 Contact Us For Availability
39
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
39
LINING, INNER SIDE (RIGHT) WPL 4009W03560 Contact Us For Availability
40
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
40
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
41
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
41
PANEL, SIDE WPL 2618F07474 Contact Us For Availability
42
PIN, HINGE WPL 7113P00260 Contact Us For Availability
43
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
43
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
44
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
44
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
45
PROP, MAIN TOP WPL 3807F22634 Contact Us For Availability
46
WPL 7801P03260 WPL 7801P03260 Contact Us For Availability
47
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
48
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
48
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
49
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
49
WPL 3804F10280 WPL 3804F10280 Contact Us For Availability
49
WPL 8008P01360 WPL 8008P01360 Contact Us For Availability
50
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
51
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
51
WPL 7101P28760 WPL 7101P28760 Contact Us For Availability
52
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
53
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
54
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
54
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
55
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
56
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
57
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
57
WPL 3807F40845 WPL 3807F40845 Contact Us For Availability
58
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
59
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
60
WPL 3807F15760 WPL 3807F15760 Contact Us For Availability
61
WPL 7403P04560 WPL 7403P04560 Contact Us For Availability
62
WPL 7403P10560 WPL 7403P10560 Contact Us For Availability
63
WPL 8026A01160 WPL 8026A01160 Contact Us For Availability
64
WPL 3802F07651 WPL 3802F07651 Contact Us For Availability
65
WPL 3801F19851 WPL 3801F19851 Contact Us For Availability
65
WPL 3801F21851 WPL 3801F21851 Contact Us For Availability
× ![]()
Login and Registration Form
