Model LG LCN429HV – Common Parts & Diagrams

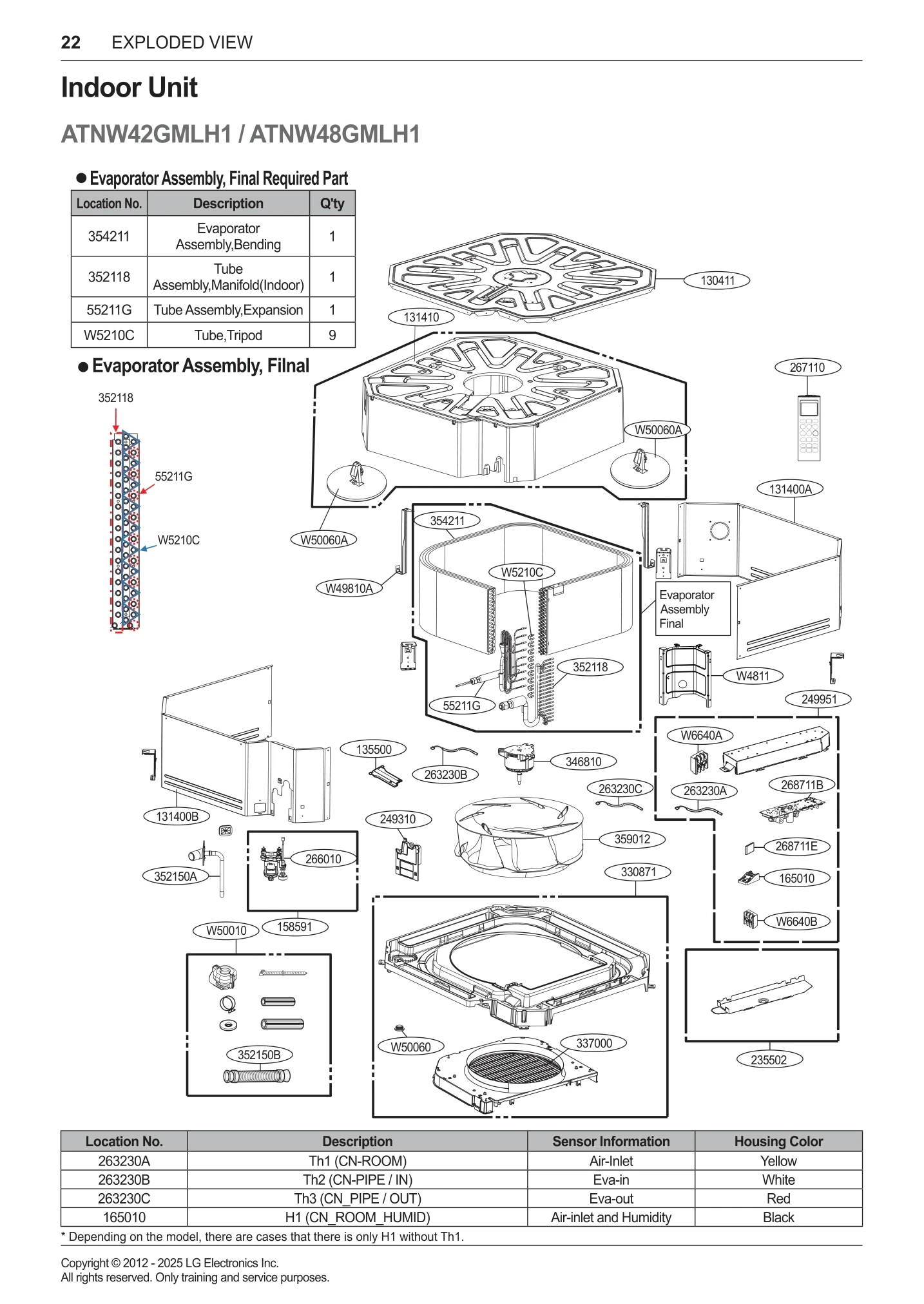

Diagram 0
Common parts from model LG LCN429HV
55211G
Tube Assembly,Expansion LGE AJR76602302 Contact Us For Availability
130411
Base Assembly,Indoor LGE AAN31579010 Contact Us For Availability
131400A
Cabinet LGE MBH65042403 Contact Us For Availability
131400B
Cabinet LGE MBH65062103 Contact Us For Availability
165010
Sensor Assembly LGE EBD62905702 Contact Us For Availability
235502
Cover LGE MCK71515201 Contact Us For Availability
249310
Holder Assembly LGE AEJ75620001 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ76682525 Contact Us For Availability
337000
Mesh,Metal LGE MFN55272305 Contact Us For Availability
352118
Tube Assembly,Manifold(Indoor) LGE AJR30095101 Contact Us For Availability
352150A
Hose Assembly,Drain LGE AEM32883715 Contact Us For Availability
354211
Evaporator Assembly,Bending LGE ADL76021201 Contact Us For Availability
359012
Fan Assembly,Turbo LGE ADP75273404 Contact Us For Availability
W4811
Bracket Assembly LGE ABA30090101 Contact Us For Availability
W5210C
Tube,Tripod LGE MJU65506401 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG38884441 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG63452304 Contact Us For Availability
W49810A
Supporter Assembly LGE AJJ76138306 Contact Us For Availability
W50010
Accessory Assembly LGE AAA31075428 Contact Us For Availability
W50060A
Cap LGE MBL64919401 Contact Us For Availability
× ![]()
