Model LG LCN246HV.ANWBEUS U_Ceiling Cassette I/D – Common Parts & Diagrams

Common parts from model LG LCN246HV.ANWBEUS U_Ceiling Cassette I/D

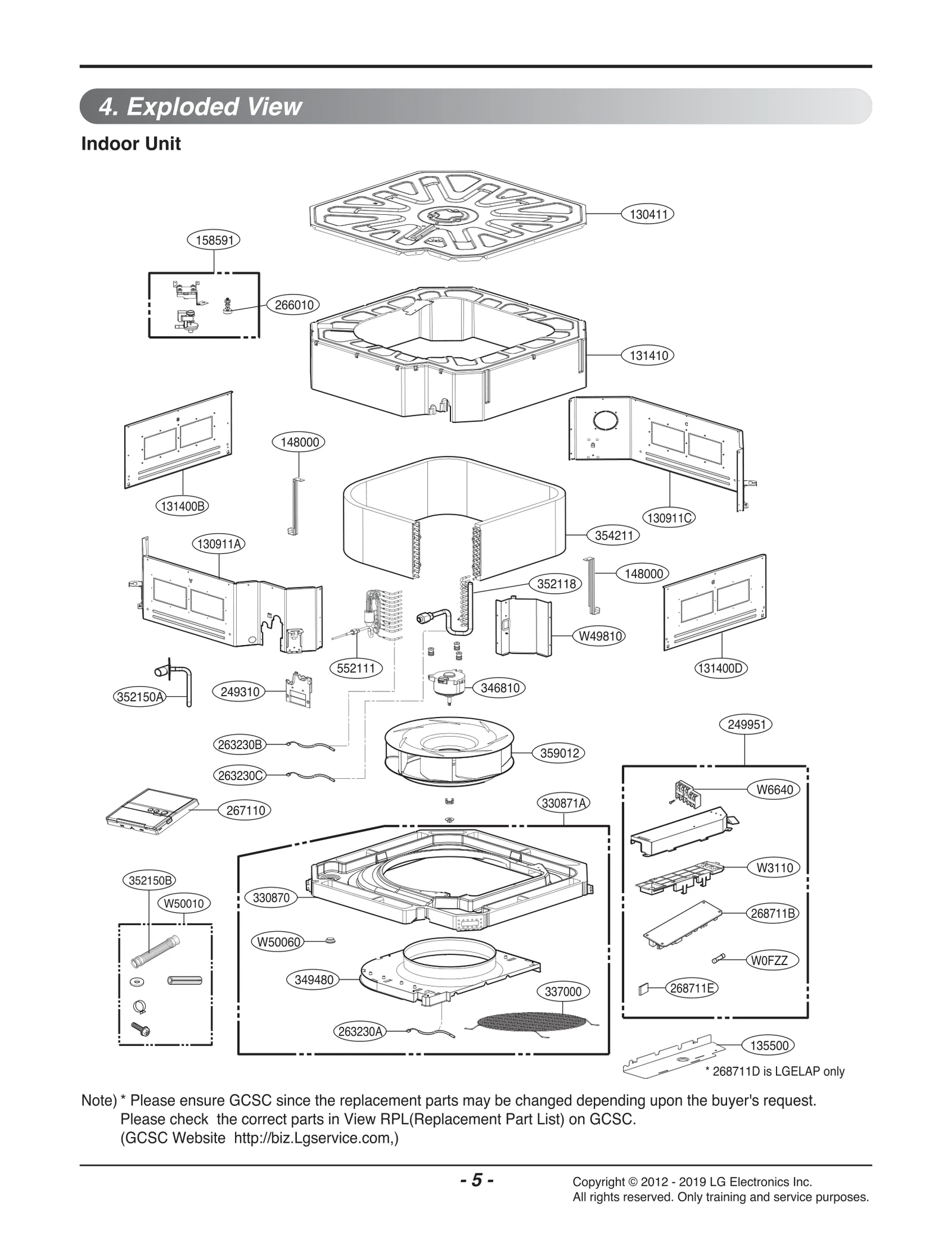

Diagram 0

Print

• This Diagram
• All Diagrams

130911C

Cabinet Assembly,Indoor LGE ABJ32881904 Contact Us For Availability

View on Model

131400B

Cabinet LGE MBH36819002 Contact Us For Availability

View on Model

131400D

Cabinet LGE MBH36818602 Contact Us For Availability

View on Model

131410

Cabinet Assembly Backorder LGE ABJ32581801 View Details $123.24

View on Model

135500

Cover Backorder LGE MCK36239312 View Details $10.15

View on Model

148000

Supporter Backorder LGE MJH62282301 View Details $9.60

View on Model

158591

AHA32883202 LG Water Pump Assembly Backorder LGE AHA32883202 View Details $201.38

View on Model

249310

Holder Assembly LGE AEJ32882701 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ62871309 Contact Us For Availability

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $14.45

View on Model

263230A

Thermistor,NTC LGE 6323A10002E Contact Us For Availability

View on Model

263230B

EBG61287707 LG Temperature Sensor Thermistor Backorder LGE EBG61287707 View Details $25.61

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $25.61

View on Model

266010

Switch Assembly Backorder LGE 6601A20013L View Details $52.55

View on Model

267110

Remote Controller Assembly LGE AKB72911320 Contact Us For Availability

View on Model

268711B

PCB Assembly,Main LGE EBR39187723 Contact Us For Availability

View on Model

268711E

PCB Assembly,Sub LGE EBR61890904 Contact Us For Availability

View on Model

330870

Pan Assembly Backorder LGE AGK73130507 View Details $176.52

View on Model

330871A

Pan Assembly,Drain Backorder LGE AGK32882916 View Details $178.90

View on Model

337000

Mesh,Metal Backorder LGE MFN55272302 View Details $81.93

View on Model

346810

4681A20168A LG Indoor DC Motor Assembly Backorder LGE 4681A20168A View Details $313.86

View on Model

346810

EAU32165801 LG DC Motor Backorder LGE EAU32165801 View Details $334.23

View on Model

349480

Orifice Backorder LGE MFX37499001 View Details $92.00

View on Model

352118

Tube Assembly,Menifold(Indoor) LGE AJR32883902 Contact Us For Availability

View on Model

352150A

Hose Assembly,Drain Backorder LGE AEM32883702 View Details $33.00

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $20.74

View on Model

354211

Evaporator Assembly,Bending LGE ADL32881103 Contact Us For Availability

View on Model

359012

ADP32882601 LG Turbo Fan Assembly Backorder LGE ADP32882601 View Details $201.38

View on Model

552111

Tube Assembly,Capillary Backorder LGE AJR33796503 View Details $79.45

View on Model

W0FZZ

Fuse,Time Delay LGE EAF60673101 Contact Us For Availability

View on Model

W3110

Case LGE MBN36239701 Contact Us For Availability

View on Model

W6640

Connector,Terminal Block Backorder LGE EAG38884403 View Details $13.12

View on Model

W49810

Supporter Assembly LGE AJJ73239003 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA31075410 Contact Us For Availability

View on Model

W50060

MBL36236701 LG Cap Backorder LGE MBL36236701 View Details $3.21

View on Model

×
