Model LG LCE30845 – Common Parts & Diagrams

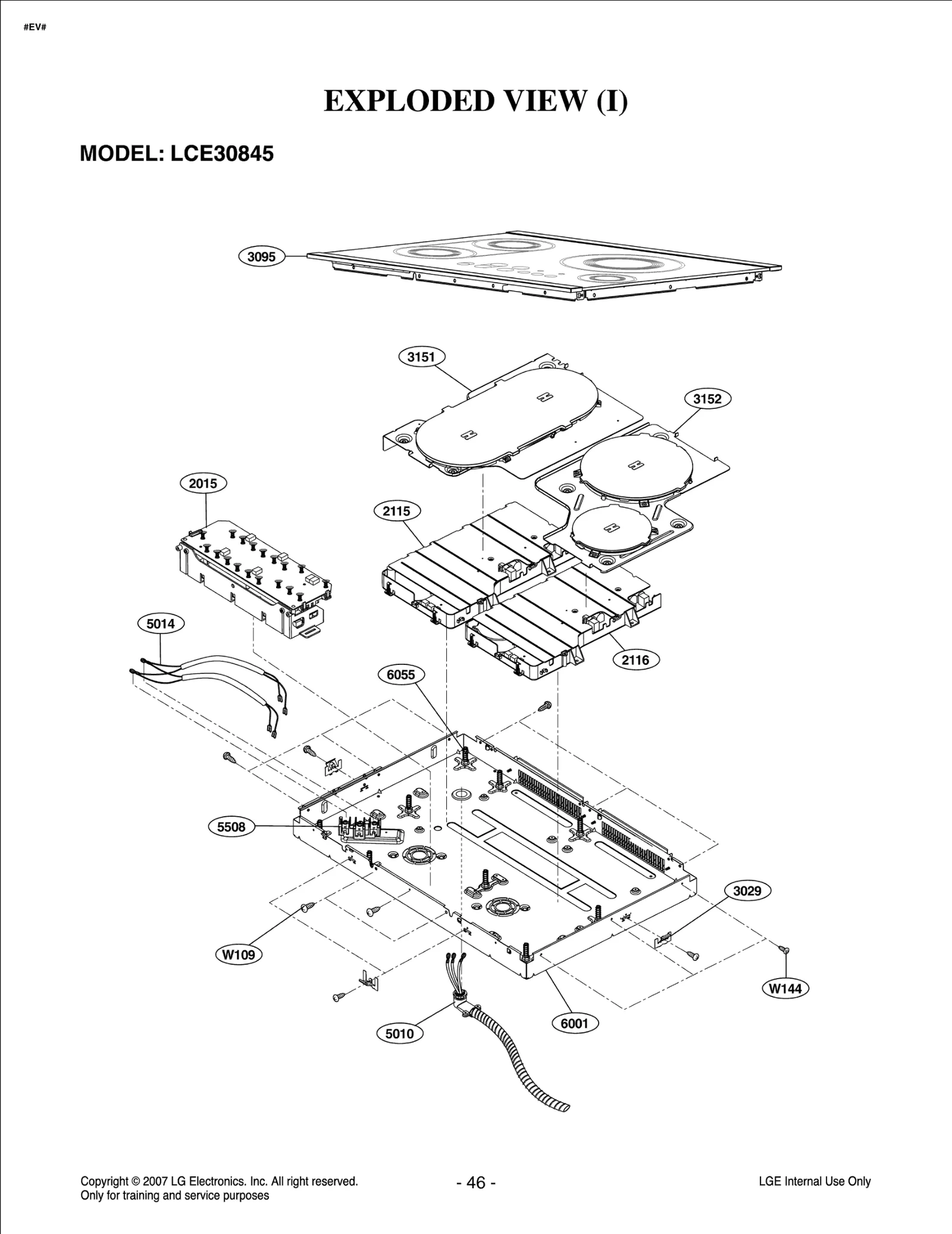

Diagram 0
Diagram 1
Common parts from model LG LCE30845
2015
Controller Assembly,Sub LGE ACM34466901 Contact Us For Availability
2043
Harness,Single LGE EAD39990301 Contact Us For Availability
2044
Harness,Single LGE EAD39990302 Contact Us For Availability
2045
Harness,Single LGE 6877W1N009G Contact Us For Availability
2046
Harness,Single LGE 6877W1N009C Contact Us For Availability
2047
Harness,Single LGE EAD39990306 Contact Us For Availability
2050
Supporter,PCB LGE MJH38349301 Contact Us For Availability
2065
Cover,Base LGE MCK39513901 Contact Us For Availability
2116
Controller Assembly,Mechanical LGE ACM34467001 Contact Us For Availability
2123
Base,PCB LGE MAM37991401 Contact Us For Availability
3095
Plate Assembly,Upper LGE AGU34462501 Contact Us For Availability
3107
Insulator LGE MEV39947601 Contact Us For Availability
3108
Insulator LGE MEV39947701 Contact Us For Availability
3109
Insulator LGE MEV39947702 Contact Us For Availability
3121
Base,Work Coil LGE MAM37882401 Contact Us For Availability
3122
Base,Work Coil LGE MAM37882301 Contact Us For Availability
3152
Burner Assembly LGE ABF34513601 Contact Us For Availability
5010
Power Cord Assembly LGE EAD39575701 Contact Us For Availability
5014
Harness,Single LGE EAD39990101 Contact Us For Availability
6000
Base LGE MAM37918601 Contact Us For Availability
6055
Spring LGE 4970W1N003A Contact Us For Availability
6075
Guide,Air LGE MEA37844301 Contact Us For Availability
9500
Oven LGE MFY39912001 Contact Us For Availability
W275
Screw,Tapping LGE 1TTL0502618 Contact Us For Availability
× ![]()
