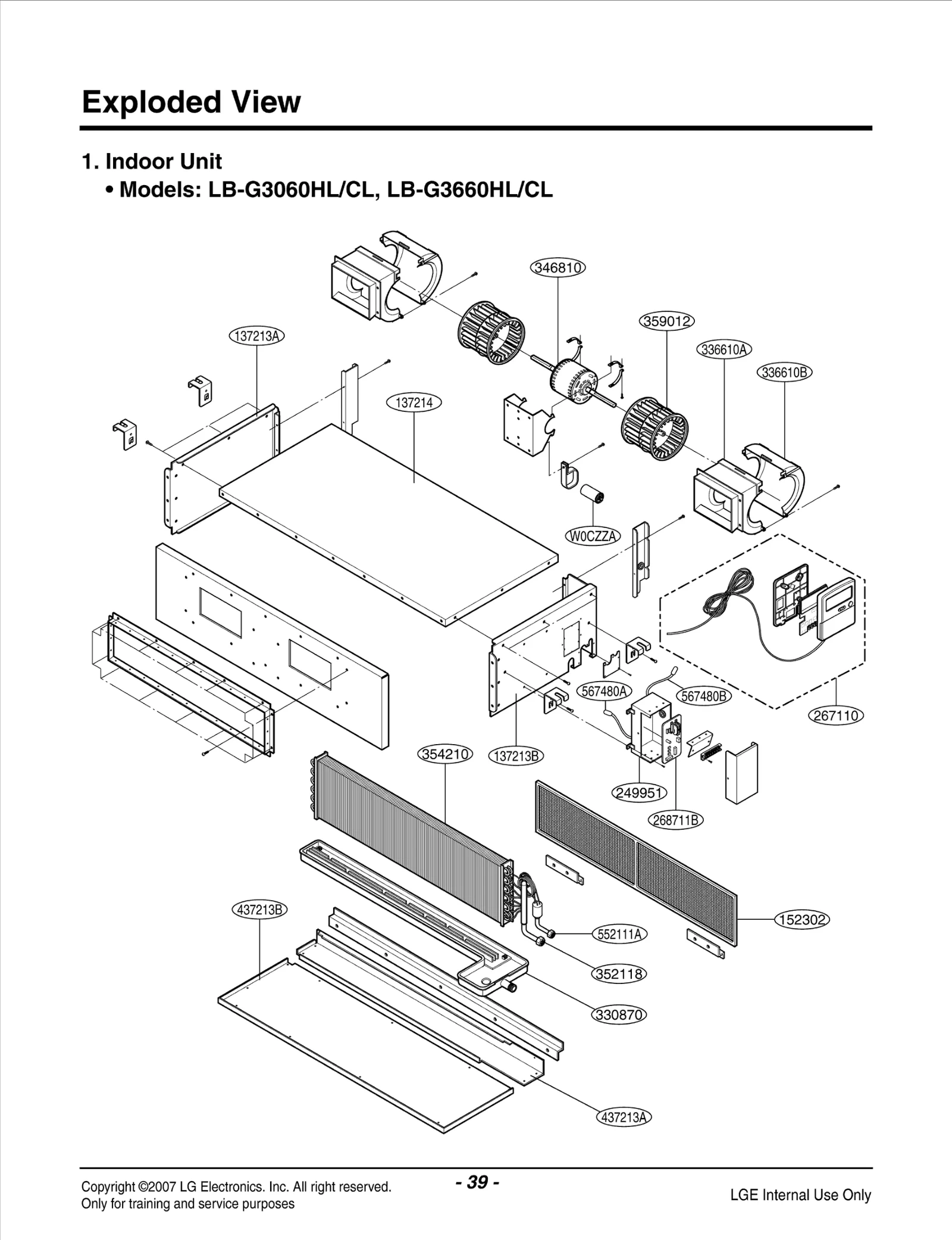

Model LG LB-G3060CL.ANWZLEU Ceiling Concealed Duct AC – Common Parts & Diagrams

137213C
Panel Assembly,Side
Panel Assembly,Side LGE 3A02284N Contact Us For Availability
View on Model
137213D
PANEL ASSEMBLY,SIDE
PANEL ASSEMBLY,SIDE LGE 1A00202F Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20164U Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A90043E Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20043E Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE 6871A20181J Contact Us For Availability
View on Model
330870
Pan Assembly,Drain
Pan Assembly,Drain LGE 3087A10008A Contact Us For Availability
View on Model
336610B
Housing,Wrapper
Housing,Wrapper LGE 3660A20020A Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948AP2527A Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE 3A02086F Contact Us For Availability
View on Model
352118
Tube Assembly,Manifold(Indoor)
Tube Assembly,Manifold(Indoor) LGE 5211A20416A Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90073A Contact Us For Availability
View on Model
430411
Base Assembly,Weld(Outdoor)
Base Assembly,Weld(Outdoor) LGE 3041A20022E Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE 1A00208H Contact Us For Availability
View on Model
435301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20007J Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE 3551A30061G Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE 3H03266Z Contact Us For Availability
View on Model
437210
PANEL ASSY,FRONT SUB_AGL32105602 is HCI Assem
PANEL ASSY,FRONT SUB_AGL32105602 is HCI Assem LGE 1A00197C Contact Us For Availability
View on Model
437213A
Panel Assembly,Rear(Indoor)
Panel Assembly,Rear(Indoor) LGE 3721A21006C Contact Us For Availability
View on Model
437213B
Panel Assembly,Rear(Indoor)
Panel Assembly,Rear(Indoor) LGE 3721A21007C Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 2A01043U Contact Us For Availability
View on Model
546810
Motor Assembly,AC,Outdoor
Motor Assembly,AC,Outdoor LGE 4681A20060E Contact Us For Availability
View on Model
552111A
Tube Assembly,Capillary
Tube Assembly,Capillary LGE 5211A20450A Contact Us For Availability
View on Model
552111B
Tube Assembly,Capillary
Tube Assembly,Capillary LGE 5425AP7109T Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A30298E Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 2A00392Y Contact Us For Availability
View on Model
552203A
SERVICE VALVE
SERVICE VALVE LGE 2A00392E Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20005C Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 5403A20070A Contact Us For Availability
View on Model
554160
Compressor
Compressor LGE 2A01032A Contact Us For Availability
View on Model
559010
EXTRA FAN
EXTRA FAN LGE 1A00195B Contact Us For Availability
View on Model
567480A
Thermistor,NTC
Thermistor,NTC LGE 6323AQ3226G Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4995A20222E Contact Us For Availability
View on Model
W0CZZB
Capacitor,Film,Box
Capacitor,Film,Box LGE 2A00986A Contact Us For Availability
View on Model
W0CZZC
SH CAPACITOR
SH CAPACITOR LGE 2A00986D Contact Us For Availability
View on Model
