Model Whirlpool LATA401ARE WASHER – Common Parts & Diagrams
06 - TUB

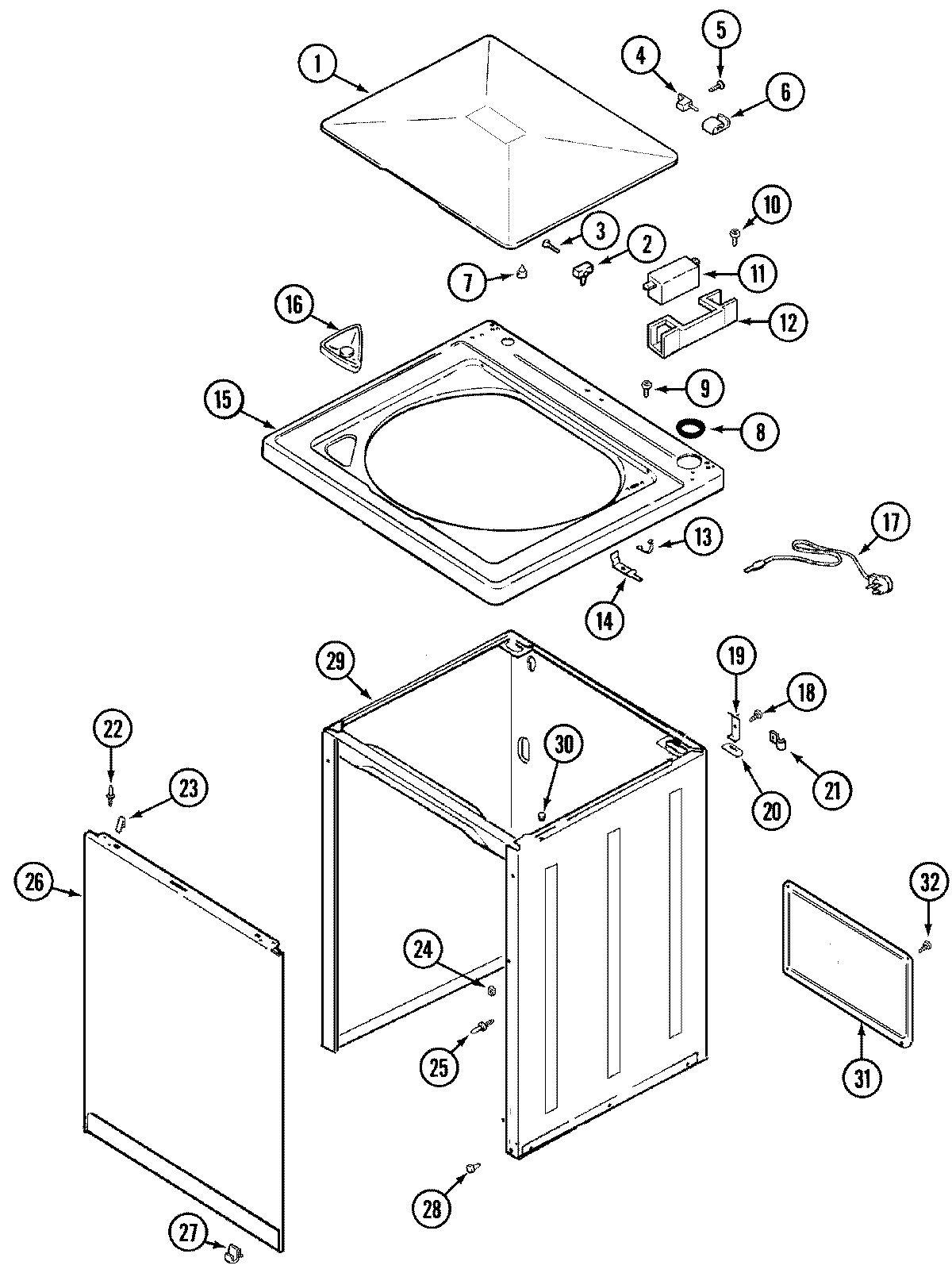

04 - TOP

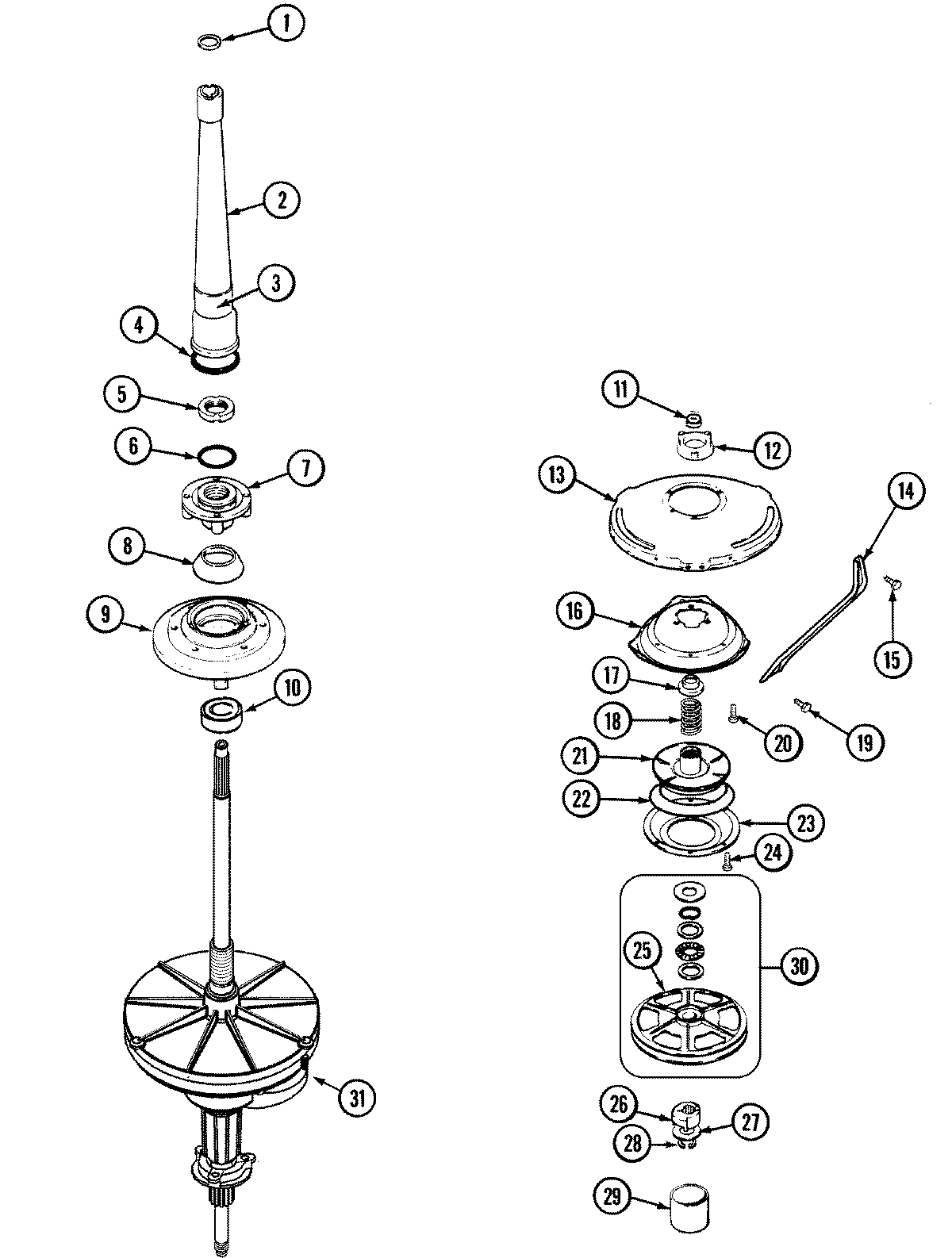

05 - TRANSMISSION (LATA401AGM/KE/RE SERIES10)

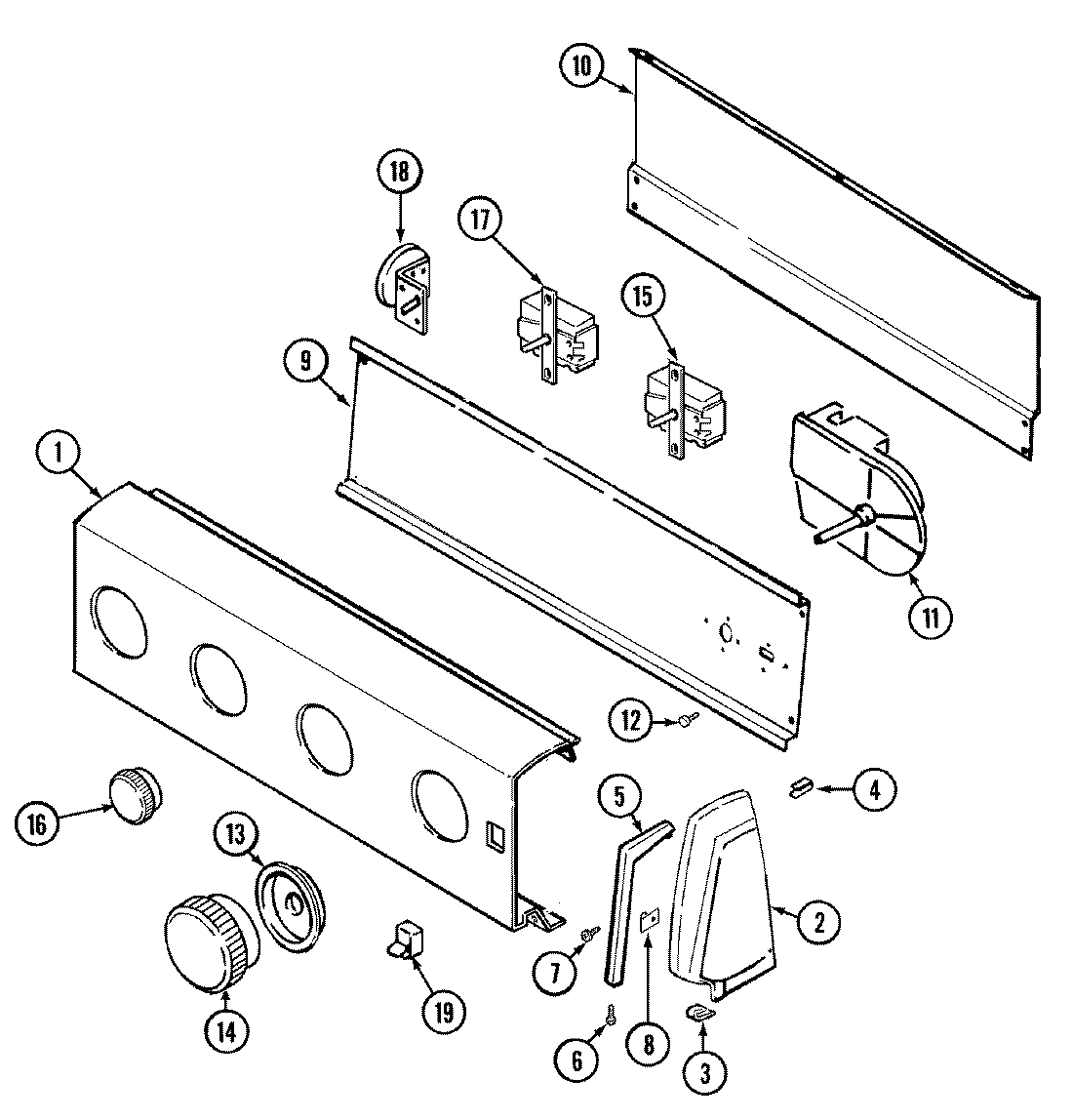

02 - CONTROL PANEL

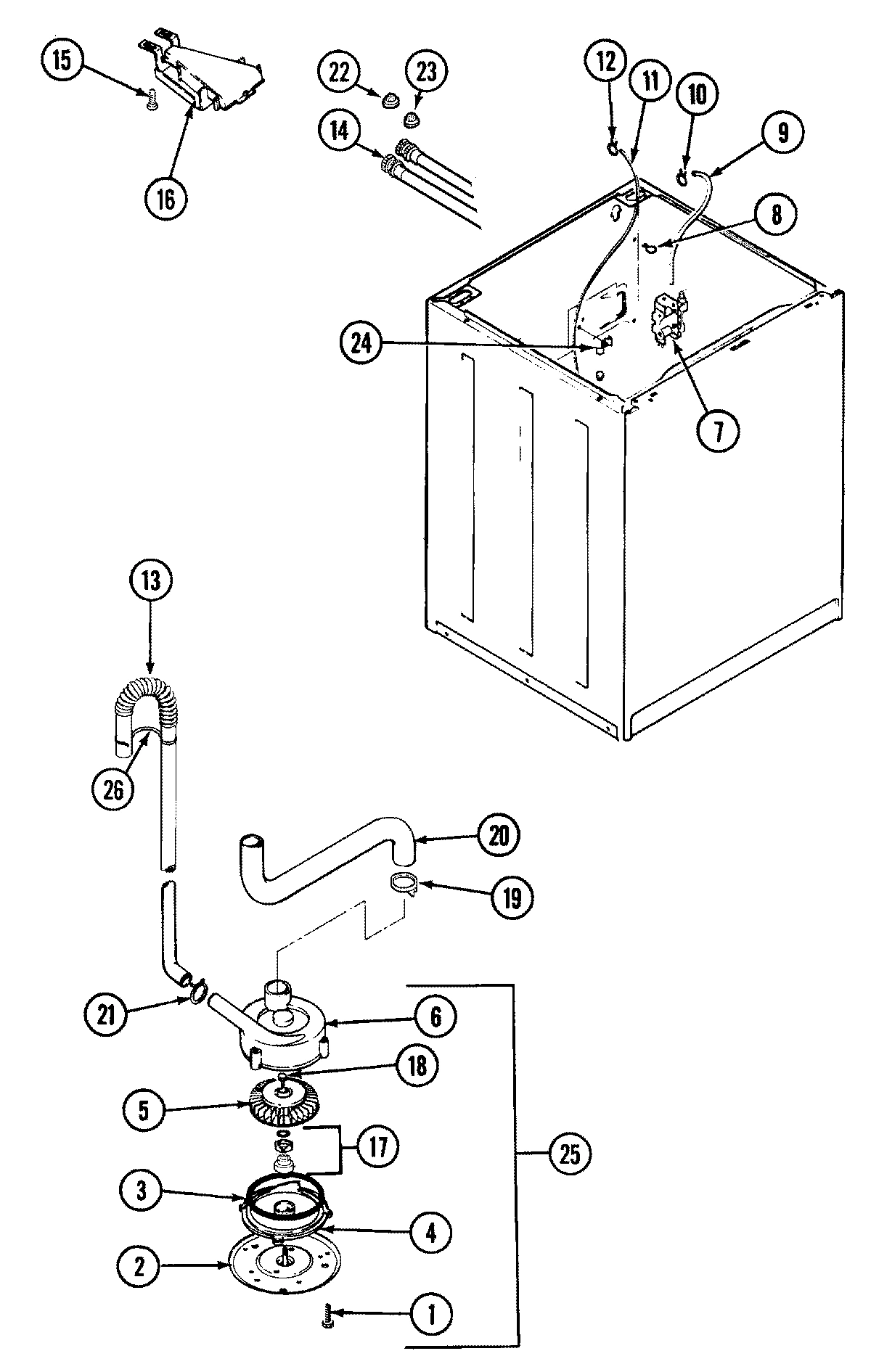

03 - PUMP

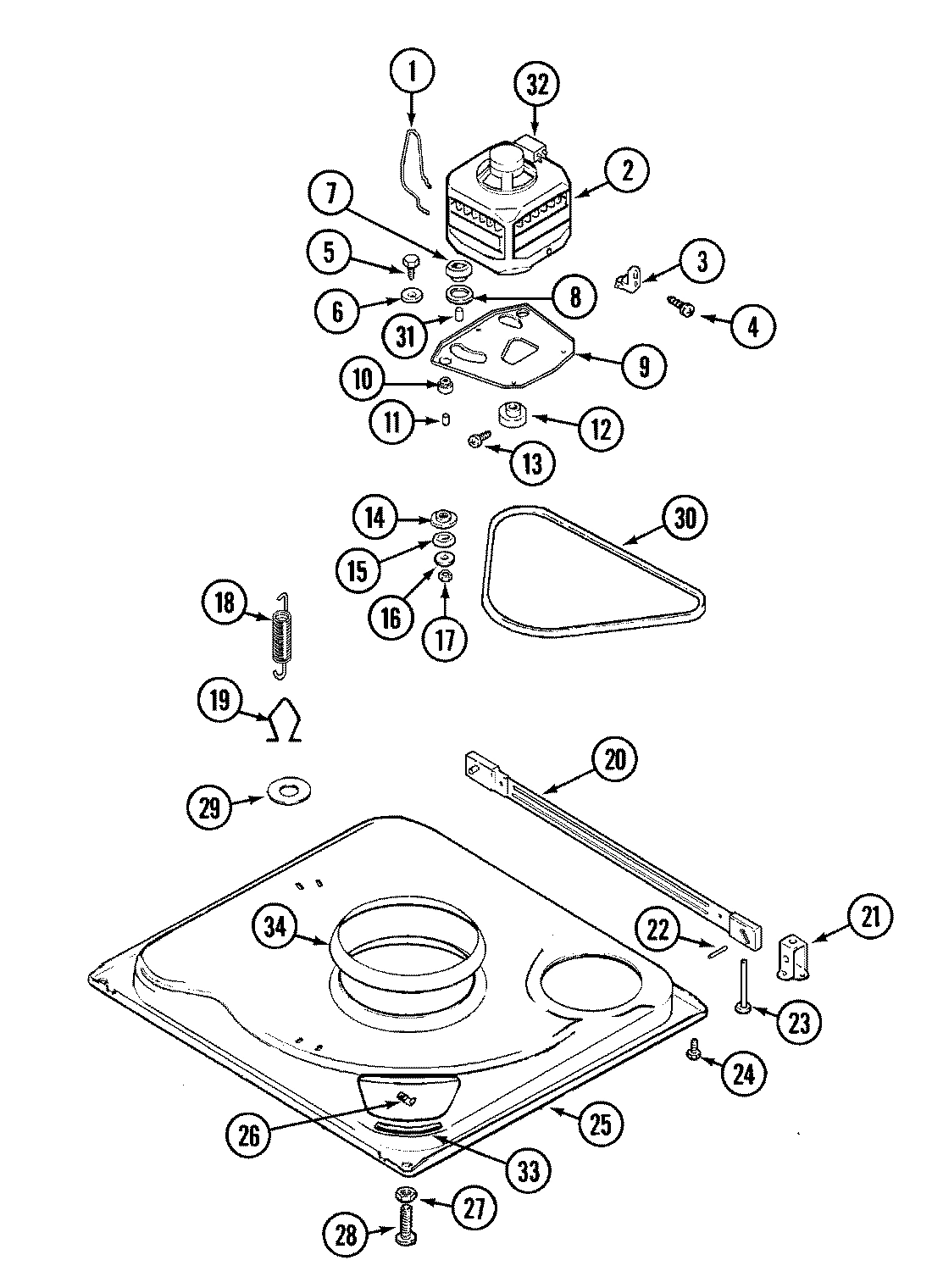

01 - BASE
Common parts from model Whirlpool LATA401ARE WASHER
1
LID (WHT) (DOOR) WPL 352026 Contact Us For Availability
1
``O`` RING WPL 257941 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 21001392 Contact Us For Availability
1
SCREW WPL 257793 Contact Us For Availability
1
SCREW WPL 257405 Contact Us For Availability
2
SCREW SHOULDER WPL 257947 Contact Us For Availability
2
NYLITE WASHER WPL 257436 Contact Us For Availability
2
ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability
2
CENTERPOST WPL 352792 Contact Us For Availability
2
CAP, END (RT)(WHT) WPL 352668 Contact Us For Availability
2
CAP, END (LT)(WHT) WPL 352669 Contact Us For Availability
2
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
2
MOTOR (2 SPEED-230V/50-60HZ) WPL 21001231 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
3
SCREW WPL 257438 Contact Us For Availability
3
BEARING, AGITATOR WPL 336790 Contact Us For Availability
3
CENTERPOST ASSY. WPL 352983 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
GASKET WPL 336032 Contact Us For Availability
3
SLIDE, FOOT WPL 21001109 Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability
4
PIN, HINGE WPL 352045 Contact Us For Availability
4
SEAL, CENTERPOST BOTTOM WPL 352906 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
BASE, PUMP WPL 352058 Contact Us For Availability
4
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED WPL W10124350 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
5
NUT, SPIN TUBE WPL 352791 Contact Us For Availability
5
TRIM, ENDCAP (RT WHT) WPL 31001054 Contact Us For Availability
5
TRIM, ENDCAP (LT WHT) WPL 31001055 Contact Us For Availability
5
IMPELLER WPL 352057 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
6
HINGE, LID WPL 352044 Contact Us For Availability
6
``O`` RING, BASKET DRIVE HUB WPL 257938 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
HOUSING, PUMP WPL 352056 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
7
SCREW WPL 257965 Contact Us For Availability
7
BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability
7
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
7
HUB, BASKET DRIVE WPL 353647 Contact Us For Availability
7
VALVE, WATER MIXING-230V WPL 352375 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
8
SEAL, TUB TOP WPL 352328 Contact Us For Availability
8
BUSHING, INSULATOR WPL 352063 Contact Us For Availability
8
BUSHING, INSULATING WPL 352064 Contact Us For Availability
8
TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability
8
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
8
WASHER WPL 339944 Contact Us For Availability
9
CAP, AGITATOR WPL 352733 Contact Us For Availability
9
SCREW WPL 257463 Contact Us For Availability
9
HOUSING, BEARING & SEAL WPL 352716 Contact Us For Availability
9
SHIELD, CONTROL WPL 21001303 Contact Us For Availability
9
SPACER, CONTROL SHIELD WPL 532504 Contact Us For Availability
9
HOSE, INLET (PLASTIC) WPL 353623 Contact Us For Availability
9
PLATE, MOTOR WPL 21001111 Contact Us For Availability
10
BASKET, SPIN WPL 353687 Contact Us For Availability
10
SCREW WPL 257437 Contact Us For Availability
10
BEARING, SPIN WPL 352205 Contact Us For Availability
10
BEARING & SEAL HOUSING ASSY. WPL 352972 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
RETAINING RING WPL 257853 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
CLAMP WPL 257867 Contact Us For Availability
10
ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability
11
SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability
11
PAD, LID SWITCH WPL 352904 Contact Us For Availability
11
SWITCH, LID WPL 353382 Contact Us For Availability
11
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
11
TIMER, EXPORT WPL 21001359 Contact Us For Availability
11
PAD, PRESSURE SWITCH HOSE WPL 352261 Contact Us For Availability
11
HOSE, PRESSURE SWITCH WPL 352322 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
12
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
12
BRACKET, LID SWITCH WPL 352795 Contact Us For Availability
12
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
12
BEARING ASSY. (LOWER) WPL 352730 Contact Us For Availability
12
TRANSMISSION HSG ASSY W/LWR BR WPL 352973 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
PULLEY (50HZ) WPL 331171 Contact Us For Availability
13
SHIELD, TUB TOP WPL 352262 Contact Us For Availability
13
TOP, TUB WPL 353578 Contact Us For Availability
13
CLIP WPL 257878 Contact Us For Availability
13
SUPPORT, TUB WPL 21001162 Contact Us For Availability
13
SKIRT & RING ASSY. (WHT) WPL 21001238 Contact Us For Availability
13
HOSE, DRAIN (ONE MOLDED RB) WPL 353539 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
14
DISPENSER, RINSE WPL 352550 Contact Us For Availability
14
LEVER, LID SWITCH WPL 353076 Contact Us For Availability
14
BRACE, TUB WPL 21001164 Contact Us For Availability
14
KNOB, TIMER (WHT) WPL 21001237 Contact Us For Availability
14
HOSE, INLET (COLD) WPL 353400 Contact Us For Availability
14
MOTOR SLIDE WPL 339943 Contact Us For Availability
15
TOP, CABINET (WHT) WPL 352739 Contact Us For Availability
15
SWITCH, WATER TEMPERATURE WPL 21001225 Contact Us For Availability
15
SCREW WPL 253092 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
16
DISPENSER, BLEACH WPL 21001167 Contact Us For Availability
16
HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability
16
KNOB, SELECTOR (WHT) WPL 21001239 Contact Us For Availability
16
FLUME, WATER INLET WPL 352051 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
17
CORD, POWER WPL 21001046 Contact Us For Availability
17
STRAIN RELIEF WPL 351007 Contact Us For Availability
17
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
17
SWITCH, SPEED WPL 21001280 Contact Us For Availability
17
SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
18
SCREW WPL 257893 Contact Us For Availability
18
SPRING, BRAKE WPL 352112 Contact Us For Availability
18
SWITCH, WATER LEVEL WPL 353691 Contact Us For Availability
18
SCREW WPL 257894 Contact Us For Availability
18
TOOL, 6 POINT SPRING WPL 21001138 Contact Us For Availability
18
SPRING, SUSPENSION WPL 21001165 Contact Us For Availability
19
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
19
SWITCH, PADDLE 2 POS. WPL 353204 Contact Us For Availability
19
CLAMP, HOSE WPL 256068 Contact Us For Availability
20
PAD, TOP HINGE WPL 330930 Contact Us For Availability
20
SCREW, SUSP HSG TO LWR BRG ASY WPL 257895 Contact Us For Availability
20
MANUAL, USE & CARE WPL 21001403 Contact Us For Availability
20
HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
21
BRAKE ROTOR & LINING ASSY WPL 352948 Contact Us For Availability
21
CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
22
WASHER WPL 257048 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
23
STATOR, BRAKE WPL 352018 Contact Us For Availability
23
STRAINER, HOSE WPL 337313 Contact Us For Availability
23
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
24
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
24
CLAMP WPL 336099 Contact Us For Availability
24
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
25
PIN, LOCATOR WPL 530643 Contact Us For Availability
25
PULLEY, DRIVE WPL 353829 Contact Us For Availability
25
PUMP ASSY (COMPLETE) WPL 352099 Contact Us For Availability
25
RESTRICTOR, FLOW WPL 352344 Contact Us For Availability
25
BASE WPL 21001169 Contact Us For Availability
26
PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability
26
CAM REPLACEMENT KIT WPL LA2007 Contact Us For Availability
26
RETAINER WPL 339537 Contact Us For Availability
26
SPEEDNUT WPL 257838 Contact Us For Availability
27
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
27
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
27
WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability
27
HEX NUT WPL 257915 Contact Us For Availability
28
RING, RETAINING WPL 257854 Contact Us For Availability
28
FOOT, FRONT WPL 350772 Contact Us For Availability
28
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
29
CABINET ASSY. (WHT) WPL 352106 Contact Us For Availability
29
CAP, DUST WPL 352007 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
30
BUMPER, CABINET WPL 332653 Contact Us For Availability
30
BELT, DRIVE WPL 352279 Contact Us For Availability
31
SHIELD,REAR(NLA,ORDER CAB KIT) WPL 352108 Contact Us For Availability
31
TRANSMISSION ASSY., DUAL DRIVE WPL 21001394 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
SCREW WPL 257733 Contact Us For Availability
32
SWITCH, MOTOR WPL 339765 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
34
SNUBBER WPL 21001161 Contact Us For Availability
× ![]()
