Model LG LASC58R – Common Parts & Diagrams
Diagram 0

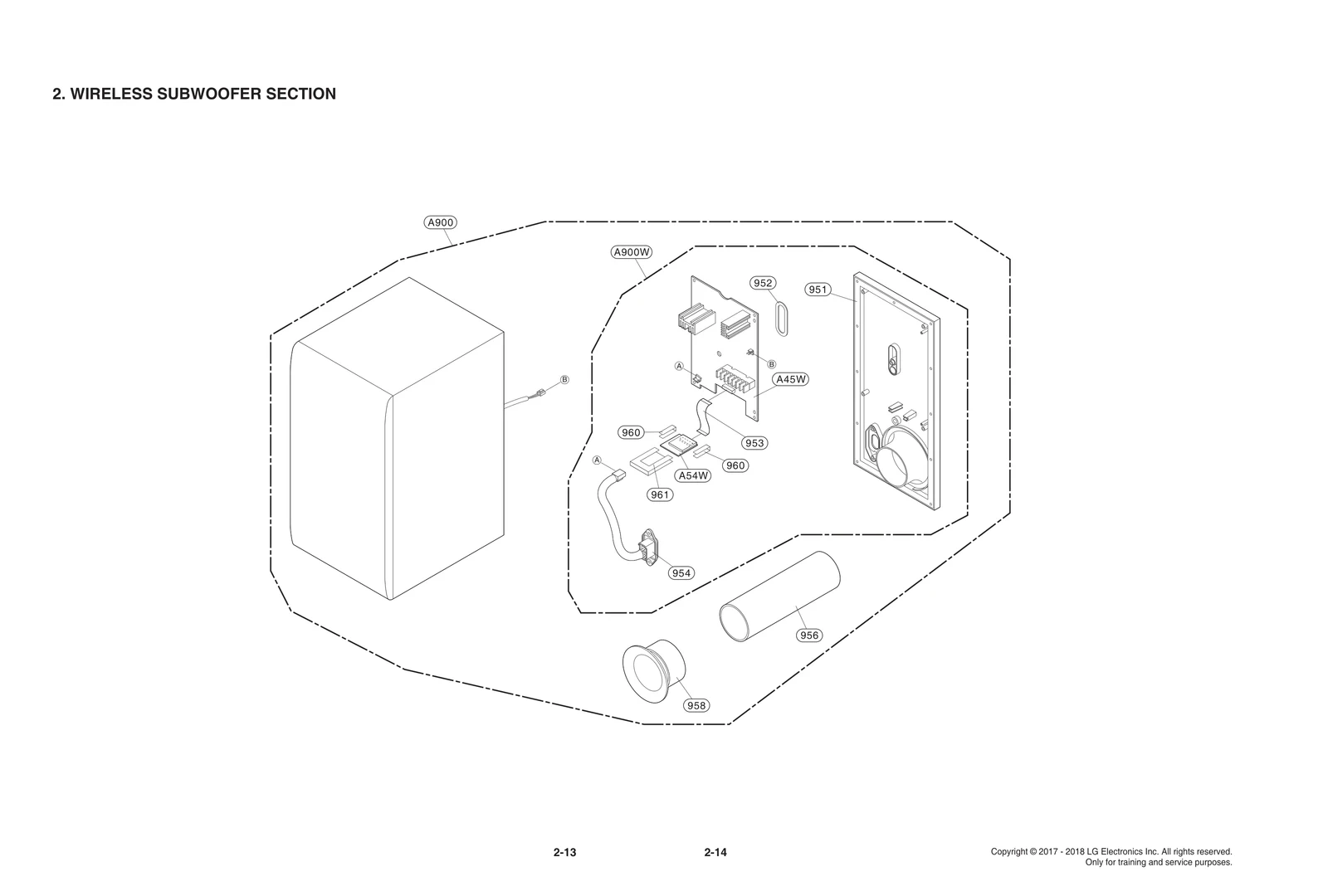

Diagram 1

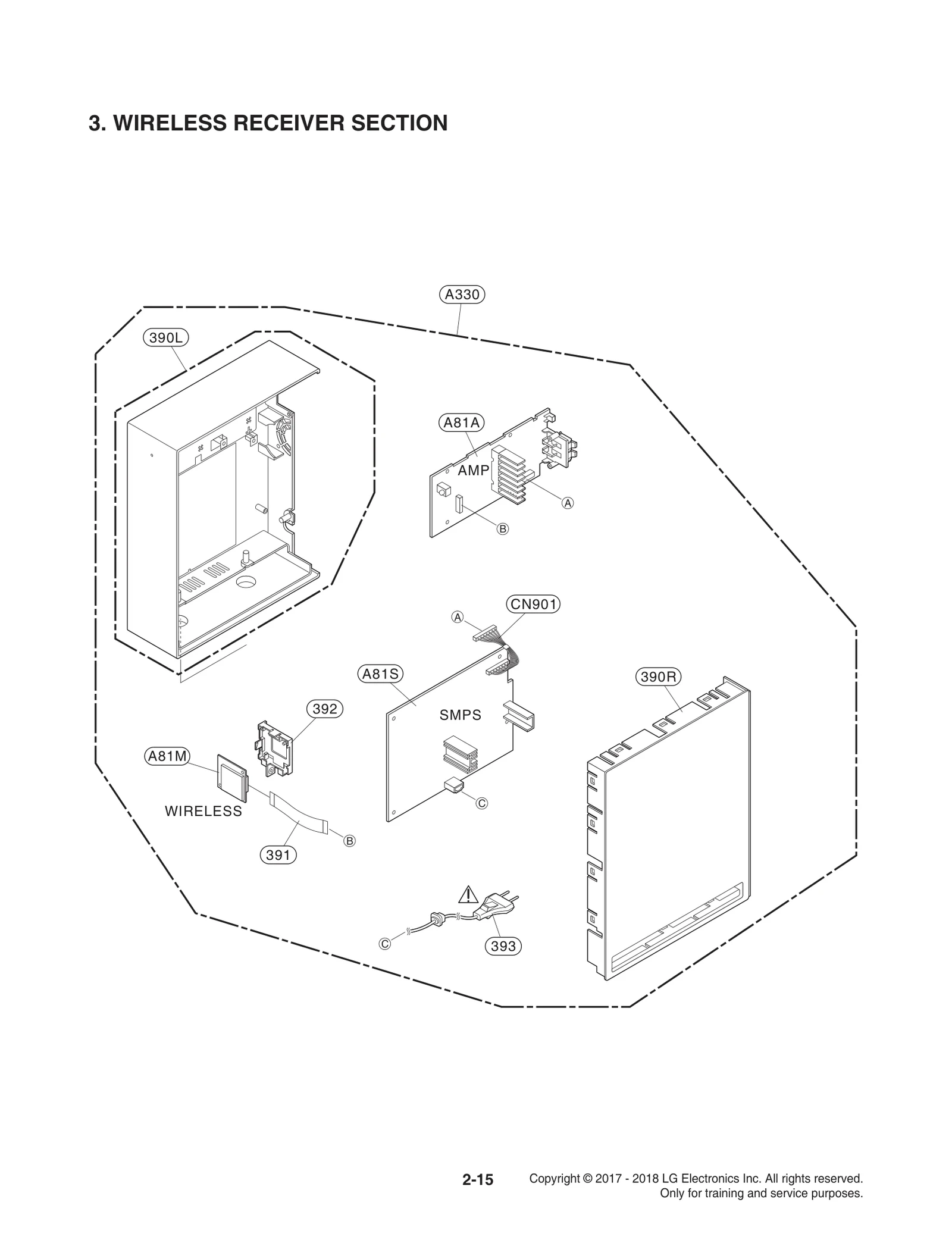

Diagram 2

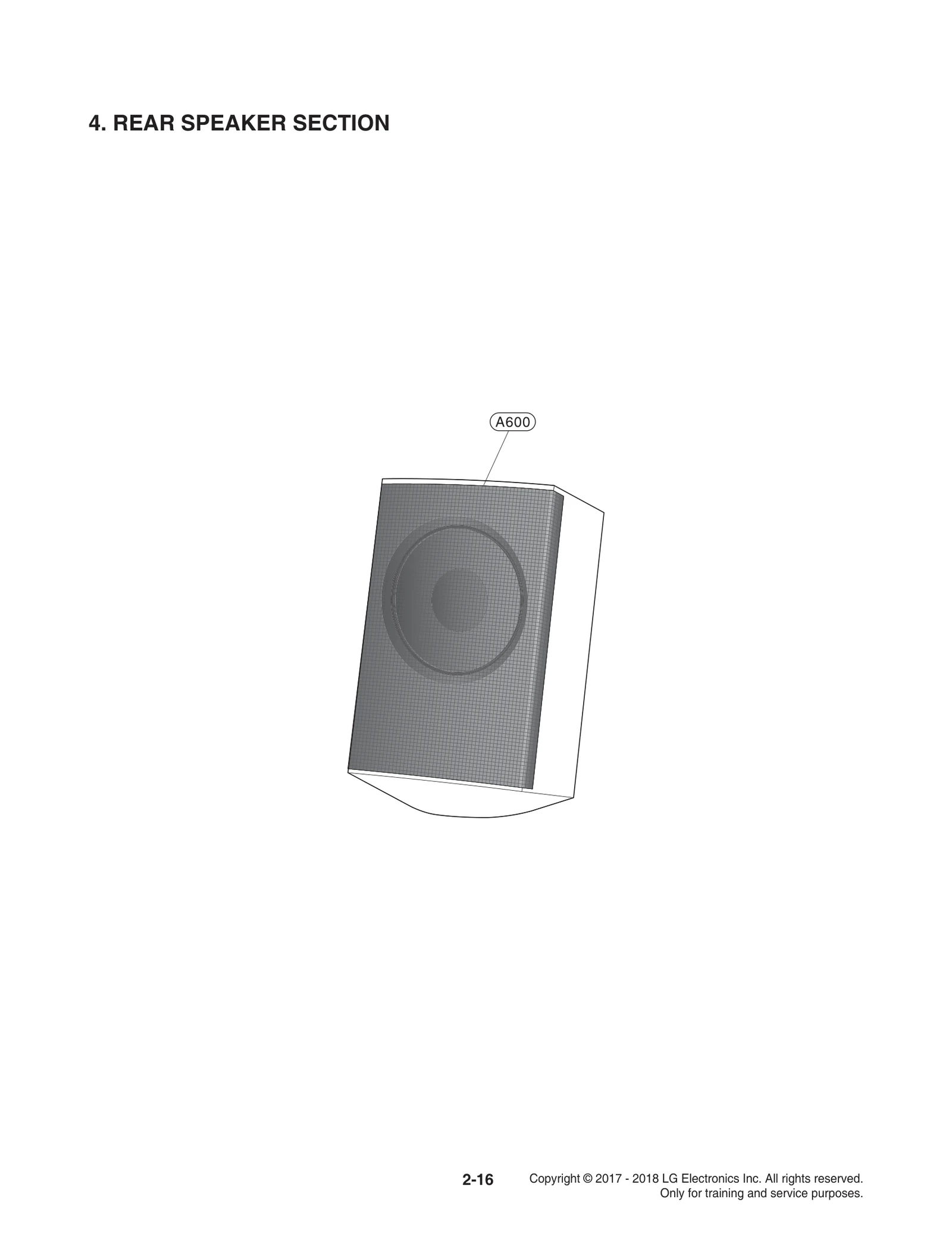

Diagram 3

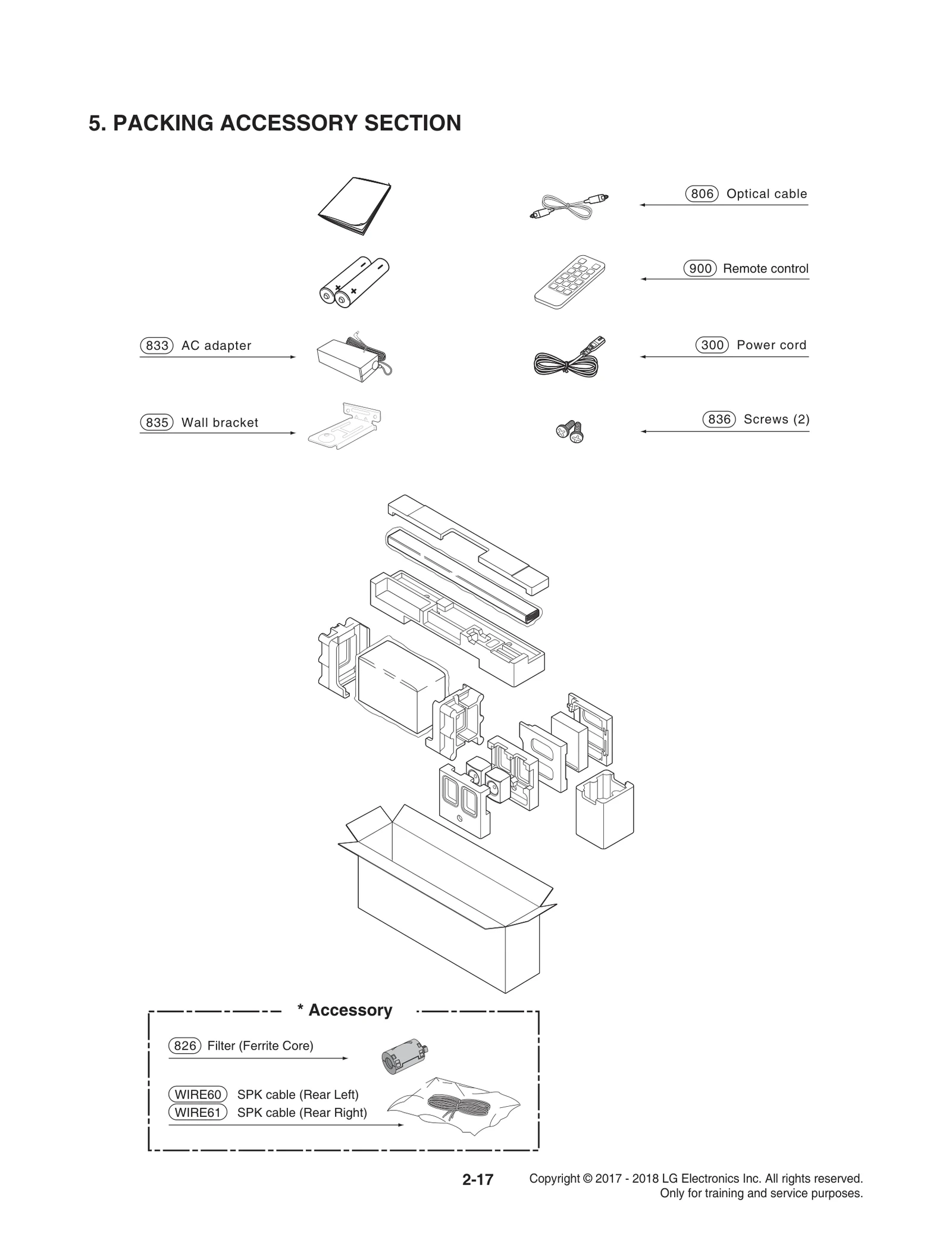

Diagram 4
Diagram 5
Common parts from model LG LASC58R
264
Holder Assembly LGE AEJ74999615 Contact Us For Availability
265
Holder Assembly LGE AEJ74999616 Contact Us For Availability
267
Holder Assembly LGE AEJ74900102 Contact Us For Availability
271L
Decor Assembly LGE ACW75157401 Contact Us For Availability
271R
Decor Assembly LGE ACW75117701 Contact Us For Availability
272
Damper LGE MCQ67526914 Contact Us For Availability
277
Damper LGE MCQ67526916 Contact Us For Availability
278
Damper LGE MCQ68685304 Contact Us For Availability
285
Damper LGE MCQ68845101 Contact Us For Availability
287
Damper LGE MCQ67526918 Contact Us For Availability
288
Sheet LGE MHK65552403 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928328 Contact Us For Availability
390R
Cover LGE MCK67107002 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
835
Accessory Assembly LGE AAA76521207 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL75494306 Contact Us For Availability
952
Damper LGE MCQ68688602 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233204 Contact Us For Availability
956
Duct LGE MCZ63611901 Contact Us For Availability
958
Duct LGE MCZ63631801 Contact Us For Availability
960
Gasket LGE MDS63984201 Contact Us For Availability
961
Sheet LGE MHK65489401 Contact Us For Availability
A41
Case Assembly LGE ABQ75842501 Contact Us For Availability
A42
Case Assembly LGE ABQ75663803 Contact Us For Availability
A43
PCB Assembly LGE EBR85217901 Contact Us For Availability
A44
Board Assembly,Sub LGE AAX75527701 Contact Us For Availability
A45W
PCB Assembly LGE EBR83736201 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT64441624 Contact Us For Availability
A52
Module,Bluetooth LGE EAT63436201 Contact Us For Availability
A52
Module,Bluetooth LGE EAT63436203 Contact Us For Availability
A55
PCB Assembly LGE EBR85218001 Contact Us For Availability
A80L
Case Assembly LGE ABQ75684604 Contact Us For Availability
A80R
Case Assembly LGE ABQ75703404 Contact Us For Availability
A81A
PCB Assembly LGE EBR83882701 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76843001 Contact Us For Availability
A330
Board Assembly LGE AAX75508113 Contact Us For Availability
A600
Speaker System Total LGE TCG36668304 Contact Us For Availability
A900
Active Woofer LGE TCG36748027 Contact Us For Availability
A900W
Board Assembly,Sub LGE AAX75627707 Contact Us For Availability
CABLE1
Harness,Single LGE EAD33638856 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62185612 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62131522 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131525 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
IC101A
S/W,System Program LGE SAA38837602 Contact Us For Availability
IC102A
S/W,System Program LGE SAA38837801 Contact Us For Availability
IC103A
S/W,System Program LGE SAA35932250 Contact Us For Availability
IC104A
S/W,System Program LGE SAA35932251 Contact Us For Availability
IC503A
S/W,System Program LGE SAA38837501 Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932252 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932248 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
× ![]()
