Model LG LAA015FL7B2 – Common Parts & Diagrams
Diagram 0

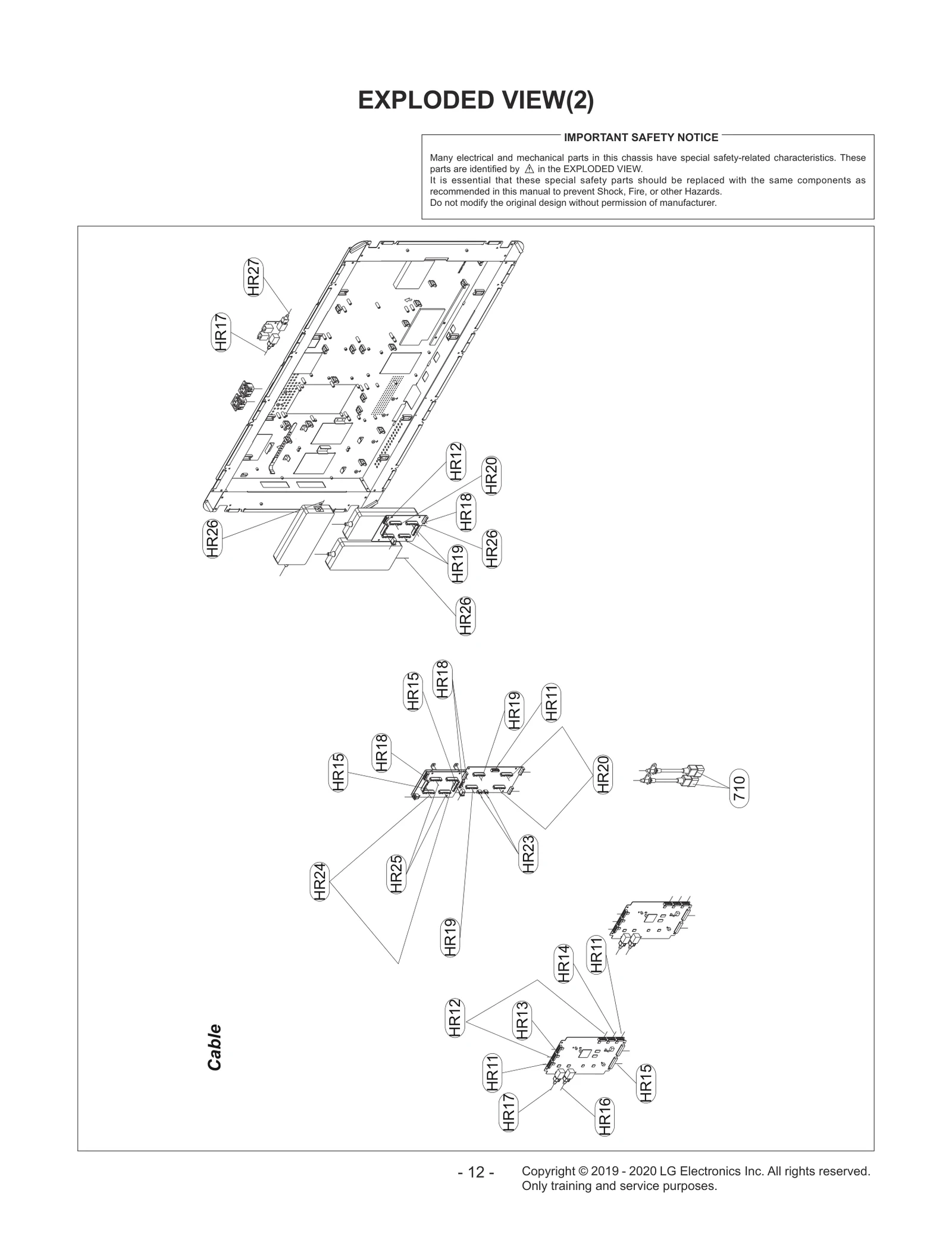

Diagram 1
Common parts from model LG LAA015FL7B2
200
Chassis Assembly LGE EBT66131402 Contact Us For Availability
200
BPR Total Assembly LGE EBU65769402 Contact Us For Availability
210
Chassis Assembly LGE EBT66173002 Contact Us For Availability
250
LED,PKG LGE EAV64833201 Contact Us For Availability
300
DMS Chassis Assembly LGE EBT66160704 Contact Us For Availability
310
Plate Assembly LGE AGU76949102 Contact Us For Availability
350
Frame Assembly LGE ADV77727704 Contact Us For Availability
400
Cover Assembly LGE ACQ91510304 Contact Us For Availability
410
Cover LGE MCK71065501 Contact Us For Availability
520
Sub PCBA,BPR Total Assembly LGE EBU65657401 Contact Us For Availability
520
Sub PCBA,BPR Total Assembly LGE EBU66311811 Contact Us For Availability
525
Sub PCBA,BPR Total Assembly LGE EBU65657201 Contact Us For Availability
525
Sub PCBA,BPR Total Assembly LGE EBU66311311 Contact Us For Availability
526
Sub PCBA,BPR Total Assembly LGE EBU66311411 Contact Us For Availability
526
Sub PCBA,BPR Total Assembly LGE EBU65717801 Contact Us For Availability
550
Socket,Power LGE EAG66453301 Contact Us For Availability
560
BPR Total Assembly LGE EBU65788002 Contact Us For Availability
561
Bracket LGE MAZ67144101 Contact Us For Availability
565
PCB Assembly,Sub LGE EBR88657001 Contact Us For Availability
566
Bracket LGE MAZ67084301 Contact Us For Availability
580
BPR Total Assembly LGE EBU66070201 Contact Us For Availability
720
Adapters LGE EAY65068601 Contact Us For Availability
721
Bracket LGE MAZ66423701 Contact Us For Availability
810
Insulator LGE MEV67451302 Contact Us For Availability
HR11
Harness,Single LGE EAD65611503 Contact Us For Availability
HR12
Harness,Single LGE EAD65611502 Contact Us For Availability
HR13
Harness,Single LGE EAD65611504 Contact Us For Availability
HR14
Harness,Single LGE EAD65611102 Contact Us For Availability
HR15
Harness,Single LGE EAD62595303 Contact Us For Availability
HR16
Cable,Assembly LGE EAD63647508 Contact Us For Availability
HR17
Cable,Assembly LGE EAD63647509 Contact Us For Availability
HR18
Harness,Single LGE EAD65611501 Contact Us For Availability
HR19
Harness,Single LGE EAD65611604 Contact Us For Availability
HR20
Harness,Single LGE EAD65611601 Contact Us For Availability
HR23
Harness,Multi LGE EAD63727339 Contact Us For Availability
HR24
Harness,Single LGE EAD65611603 Contact Us For Availability
HR25
Harness,Single LGE EAD65611602 Contact Us For Availability
HR26
Power Cord Assembly LGE EAD65566101 Contact Us For Availability
HR27
Cable,Assembly LGE EAD63647510 Contact Us For Availability
× ![]()
