Model Electrolux LA560JXH3 WASHER – Common Parts & Diagrams

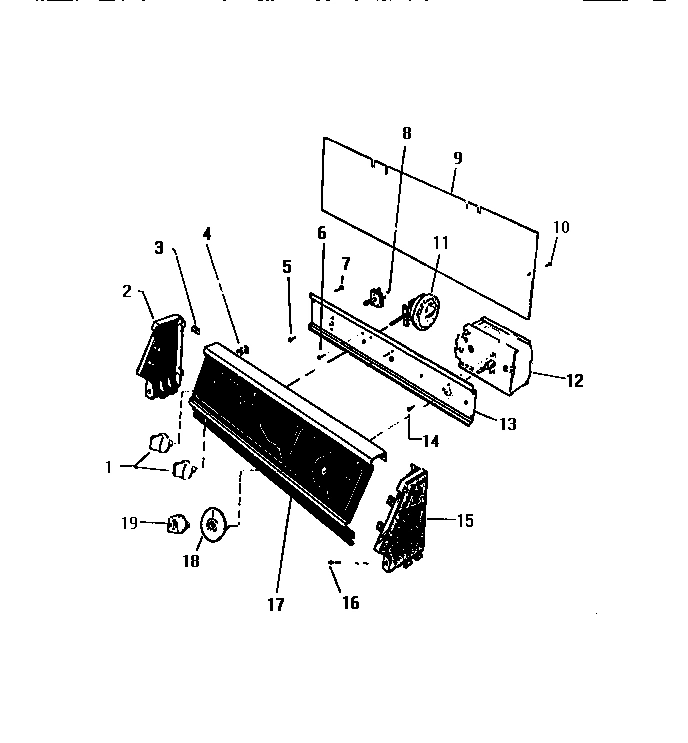

02 - CONSOLE & CONTROLS

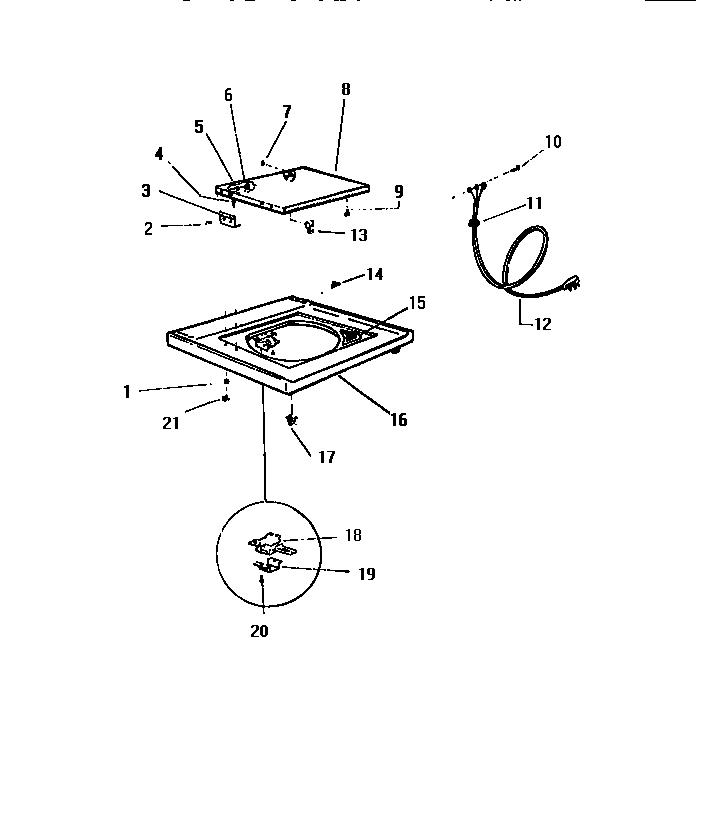

03 - TOP PANEL

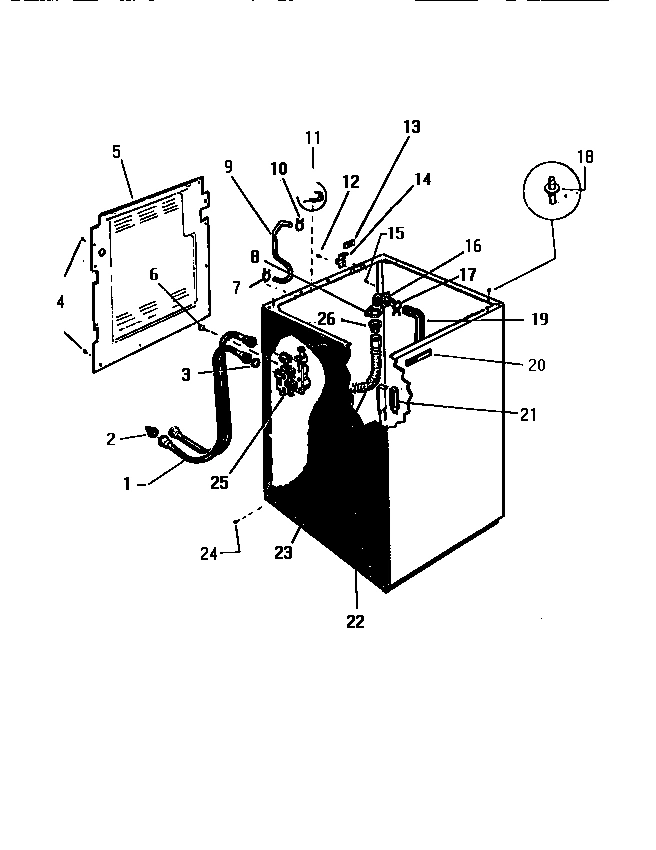

04 - CABINET, HOSES

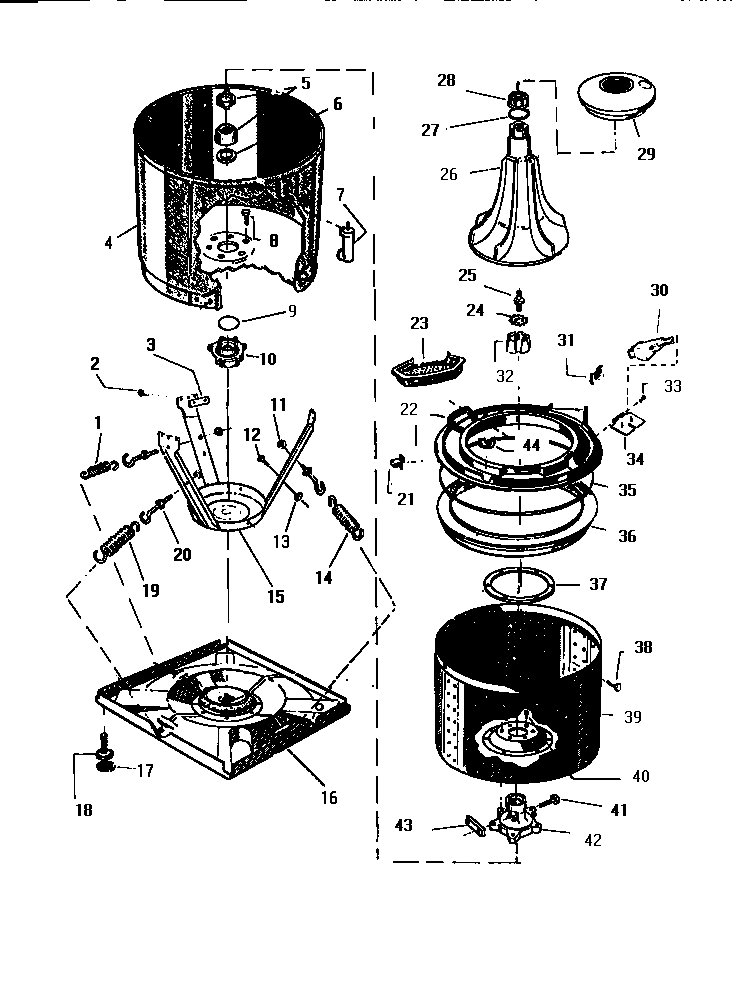

05 - PUMP ASSEMBLY

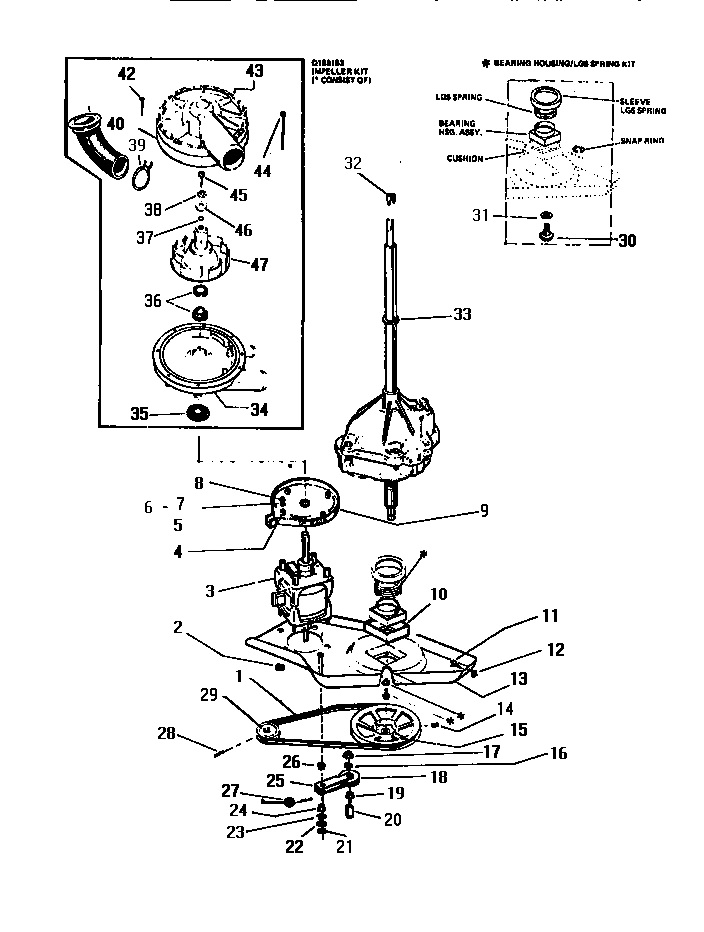

06 - TRANSMISSION

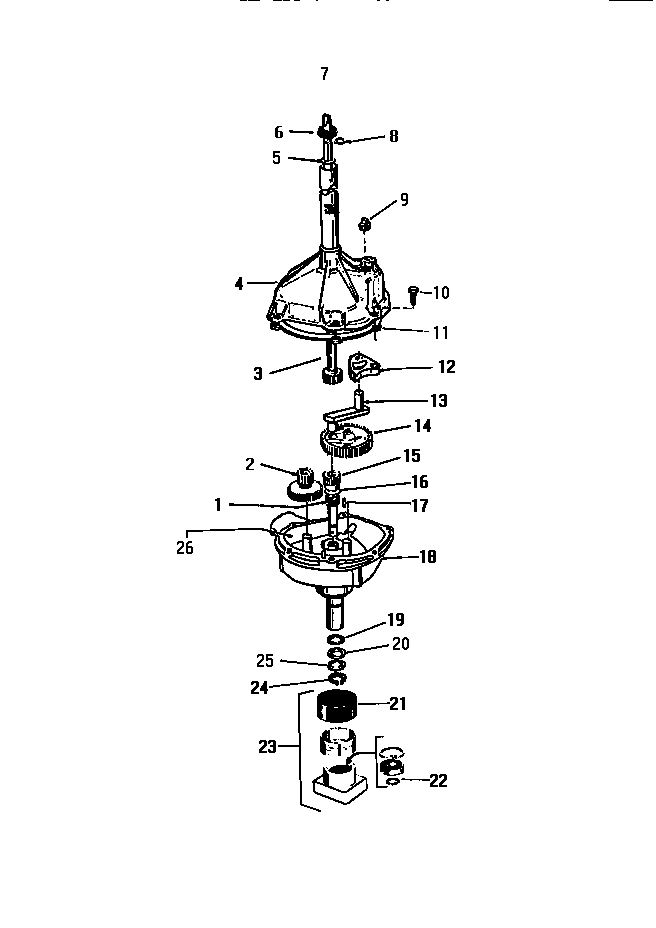

07 - TRANSMISSION

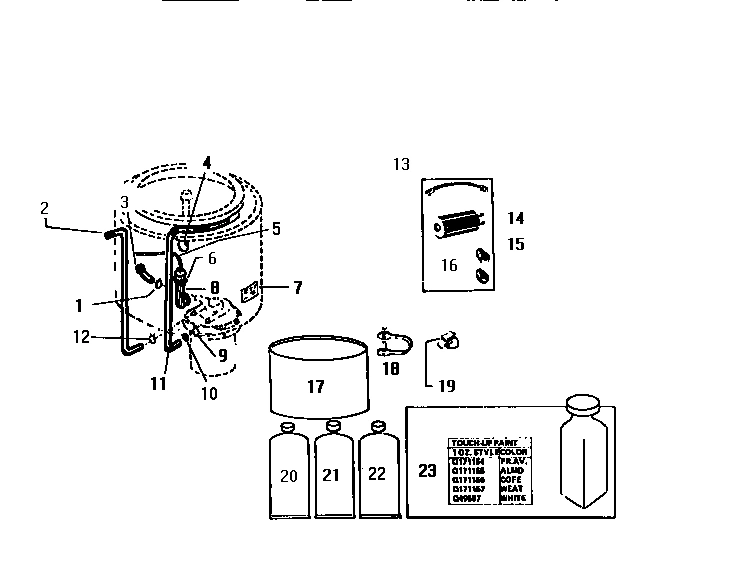

08 - MISCELLANEOUS
Common parts from model Electrolux LA560JXH3 WASHER
1
KNOB WCI Q633722 Contact Us For Availability
1
WCI Q600921 WCI Q600921 Contact Us For Availability
1
SPRING - RED WCI Q6871 Contact Us For Availability
1
WCI Q622451 WCI Q622451 Contact Us For Availability
1
WCI Q501154 WCI Q501154 Contact Us For Availability
1
WCI F077052000 WCI F077052000 Contact Us For Availability
2
WCI Q616731 WCI Q616731 Contact Us For Availability
2
WASHER (2) WCI Q19801 Contact Us For Availability
2
HOSE, INNER DRAIN WCI Q158314 Contact Us For Availability
2
BOLT WCI Q504881 Contact Us For Availability
2
NUT WCI Q500829 Contact Us For Availability
2
WCI F130403100 WCI F130403100 Contact Us For Availability
3
SPEEDNUT WCI Q502958 Contact Us For Availability
3
HINGE (2) WCI Q622182 Contact Us For Availability
3
WCI Q412501 WCI Q412501 Contact Us For Availability
3
WCI Q607012 WCI Q607012 Contact Us For Availability
3
WCI Q603183 WCI Q603183 Contact Us For Availability
3
WCI Q622261 WCI Q622261 Contact Us For Availability
3
WCI F140482000 WCI F140482000 Contact Us For Availability
4
WCI Q504803 WCI Q504803 Contact Us For Availability
4
SCREW (16) WCI Q505553 Contact Us For Availability
4
SCREW (2) WCI Q505101 Contact Us For Availability
4
WCI 1022602 WCI 1022602 Contact Us For Availability
4
WCI Q502788 WCI Q502788 Contact Us For Availability
4
HOUSING, UPPER ASSEMBLY WCI F140587000 Contact Us For Availability
4
TIE, HOSE WCI Q502072 Contact Us For Availability
5
WCI Q435056 WCI Q435056 Contact Us For Availability
5
SPACER WCI Q409308 Contact Us For Availability
5
WCI Q171312 WCI Q171312 Contact Us For Availability
5
WCI Q631335 WCI Q631335 Contact Us For Availability
5
WCI Q440113 WCI Q440113 Contact Us For Availability
5
WCI F062568000 WCI F062568000 Contact Us For Availability
5
WCI Q29554 WCI Q29554 Contact Us For Availability
6
WCI Q69545 WCI Q69545 Contact Us For Availability
6
SPACER (1) WCI Q440120 Contact Us For Availability
6
WCI Q502070 WCI Q502070 Contact Us For Availability
7
WCI Q501589 WCI Q501589 Contact Us For Availability
7
SPACER WCI Q440063 Contact Us For Availability
7
WCI Q631032 WCI Q631032 Contact Us For Availability
7
WCI Q607191 WCI Q607191 Contact Us For Availability
8
SWITCH TEMP. WCI Q613923 Contact Us For Availability
8
WCI Q504921 WCI Q504921 Contact Us For Availability
8
HOSE WCI Q620951 Contact Us For Availability
8
BOLT (6) WCI Q502147 Contact Us For Availability
8
WCI Q502404 WCI Q502404 Contact Us For Availability
8B
WCI Q627623 WCI Q627623 Contact Us For Availability
9
WCI Q616741 WCI Q616741 Contact Us For Availability
9
WCI Q13435 WCI Q13435 Contact Us For Availability
9
WCI C156173 WCI C156173 Contact Us For Availability
9
WCI Q147982 WCI Q147982 Contact Us For Availability
9
WCI Q164261 WCI Q164261 Contact Us For Availability
9
WCI F077061000 WCI F077061000 Contact Us For Availability
9
WCI Q501142 WCI Q501142 Contact Us For Availability
10
SCREW (4 REQ) WCI Q405802 Contact Us For Availability
10
CLAMP WCI C503356 Contact Us For Availability
10
WCI Q622483 WCI Q622483 Contact Us For Availability
10
WCI Q622331 WCI Q622331 Contact Us For Availability
10
SCREW (6) WCI F079688000 Contact Us For Availability
10
WCI Q440057 WCI Q440057 Contact Us For Availability
11
WCI Q633732 WCI Q633732 Contact Us For Availability
11
WCI Q63137 WCI Q63137 Contact Us For Availability
11
WCI Q501171 WCI Q501171 Contact Us For Availability
11
NUT (3) WCI Q402601 Contact Us For Availability
11
BOLT (3) WCI Q502126 Contact Us For Availability
11
WCI F130895000 WCI F130895000 Contact Us For Availability
11
WCI Q158303 WCI Q158303 Contact Us For Availability
12
WCI Q634551 WCI Q634551 Contact Us For Availability
12
CORD WCI Q86065 Contact Us For Availability
12
LOCKNUT WCI Q500831 Contact Us For Availability
12
WCI F130405100 WCI F130405100 Contact Us For Availability
12
WCI Q504897 WCI Q504897 Contact Us For Availability
13
WCI Q616711 WCI Q616711 Contact Us For Availability
13
WCI Q143172 WCI Q143172 Contact Us For Availability
13
WCI Q17471 WCI Q17471 Contact Us For Availability
13
WCI Q623011 WCI Q623011 Contact Us For Availability
13
CONNECTING, ROD WCI F066078100 Contact Us For Availability
13
WCI Q634583 WCI Q634583 Contact Us For Availability
14
WCI Q503033 WCI Q503033 Contact Us For Availability
14
WCI Q503065 WCI Q503065 Contact Us For Availability
14
WCI Q17461 WCI Q17461 Contact Us For Availability
14
WCI Q500870 WCI Q500870 Contact Us For Availability
14
WCI F130404100 WCI F130404100 Contact Us For Availability
14
SCREW, GROUND WCI Q500665 Contact Us For Availability
15
WCI Q616732 WCI Q616732 Contact Us For Availability
15
WCI Q152491 WCI Q152491 Contact Us For Availability
15
SCREW, ( 2 REQ ) WCI Q505564 Contact Us For Availability
15
WCI Q631152 WCI Q631152 Contact Us For Availability
15
WCI Q631112 WCI Q631112 Contact Us For Availability
15
LOWER DRIVE SHAFT & PINION ASSEMBLY WCI F140472000 Contact Us For Availability
15
WASHER, GROUND WCI Q500411 Contact Us For Availability
16
WCI Q504533 WCI Q504533 Contact Us For Availability
16
WCI Q604401 WCI Q604401 Contact Us For Availability
16
CAPACITOR KIT WCI Q149413 Contact Us For Availability
16
PAN WCI Q142968 Contact Us For Availability
16B
PANEL TOP, HARVEST WHEAT WCI Q632913 Contact Us For Availability
17
WCI Q634161 WCI Q634161 Contact Us For Availability
17
SPRING (2) WCI Q503041 Contact Us For Availability
17
WCI Q504892 WCI Q504892 Contact Us For Availability
17
CUP WCI Q16971 Contact Us For Availability
17
WCI Q501084 WCI Q501084 Contact Us For Availability
17
WCI F077058000 WCI F077058000 Contact Us For Availability
17
LITHIUM GREASE (1 LB.) WCI Q137186 Contact Us For Availability
18
WCI Q621222 WCI Q621222 Contact Us For Availability
18
WCI Q165346 WCI Q165346 Contact Us For Availability
18
WCI Q152431 WCI Q152431 Contact Us For Availability
18
WCI Q16567 WCI Q16567 Contact Us For Availability
18
WCI Q622341 WCI Q622341 Contact Us For Availability
18
HOUSING, LOWER ASSEMBLY WCI F140586000 Contact Us For Availability
18
WCI Q502063 WCI Q502063 Contact Us For Availability
19
WCI Q621212 WCI Q621212 Contact Us For Availability
19
WCI Q603021 WCI Q603021 Contact Us For Availability
19
WCI Q6872 WCI Q6872 Contact Us For Availability
19
WCI Q502207 WCI Q502207 Contact Us For Availability
20
WCI Q604443 WCI Q604443 Contact Us For Availability
20
BOLT, HOOD (3) WCI Q502665 Contact Us For Availability
20
WCI Q622462 WCI Q622462 Contact Us For Availability
20
WASHER, SPACER WCI F077051000 Contact Us For Availability
20
WCI Q22072 WCI Q22072 Contact Us For Availability
21
WCI 1076115 WCI 1076115 Contact Us For Availability
21
WCI Q102281 WCI Q102281 Contact Us For Availability
21
WCI 1467173 WCI 1467173 Contact Us For Availability
21
WCI F130417000 WCI F130417000 Contact Us For Availability
21
GLUE WCI Q15142 Contact Us For Availability
22
WCI Q102271 WCI Q102271 Contact Us For Availability
22
WCI Q409004 WCI Q409004 Contact Us For Availability
22
WCI F141261000 WCI F141261000 Contact Us For Availability
22
PLATE WCI Q15141 Contact Us For Availability
22B
BODY, HARVEST WHEAT WCI Q601461 Contact Us For Availability
23
WCI Q165347 WCI Q165347 Contact Us For Availability
23
WCI Q610671 WCI Q610671 Contact Us For Availability
23
WASHER SPRING WCI 1147601 Contact Us For Availability
23
BEARING HSG ASSEMBLY WCI F137014000 Contact Us For Availability
23C
TOUCH-UP PAINT, 1 OZ, HARVEST WHEAT WCI Q171157 Contact Us For Availability
24
SCREW WCI Q504382 Contact Us For Availability
24
WCI Q500377 WCI Q500377 Contact Us For Availability
24
WCI F068158000 WCI F068158000 Contact Us For Availability
25
WCI Q171447 WCI Q171447 Contact Us For Availability
25
WCI Q605802 WCI Q605802 Contact Us For Availability
25
WCI Q622472 WCI Q622472 Contact Us For Availability
25
WASHER, THRUST WCI F077098000 Contact Us For Availability
26
WCI Q17891 WCI Q17891 Contact Us For Availability
26
WCI Q620852 WCI Q620852 Contact Us For Availability
26
WCI Q607121 WCI Q607121 Contact Us For Availability
26
OIL, TRANSMISSION, 1 QUART WCI F060821100 Contact Us For Availability
27
WASHER WCI Q147985 Contact Us For Availability
27
WCI Q623001 WCI Q623001 Contact Us For Availability
28
CAP & WASHER WCI Q603993 Contact Us For Availability
28
PIN WCI Q501623 Contact Us For Availability
29
DISPENSER, FABRIC WCI Q613877 Contact Us For Availability
29
WCI Q622991 WCI Q622991 Contact Us For Availability
30
WCI 0154491 WCI 0154491 Contact Us For Availability
30
BOLT WCI Q505081 Contact Us For Availability
31
WCI Q152472 WCI Q152472 Contact Us For Availability
31
WCI WASHER WCI WASHER Contact Us For Availability
32
WCI Q622981 WCI Q622981 Contact Us For Availability
32
WCI SHIM (.005) WCI SHIM (.005) Contact Us For Availability
32A
WCI SHIM (.015) WCI SHIM (.015) Contact Us For Availability
32B
WCI Q631524 WCI Q631524 Contact Us For Availability
33
WCI Q435009 WCI Q435009 Contact Us For Availability
33
WCI Q440115 WCI Q440115 Contact Us For Availability
34
WCI Q152601 WCI Q152601 Contact Us For Availability
34
WCI Q612641 WCI Q612641 Contact Us For Availability
35
WCI Q606791 WCI Q606791 Contact Us For Availability
35
WCI Q69543 WCI Q69543 Contact Us For Availability
36
WCI Q618862 WCI Q618862 Contact Us For Availability
36
WCI Q69781 WCI Q69781 Contact Us For Availability
37
WCI Q631151 WCI Q631151 Contact Us For Availability
37
WCI Q503081 WCI Q503081 Contact Us For Availability
38
WCI Q502125 WCI Q502125 Contact Us For Availability
38
WCI Q500374 WCI Q500374 Contact Us For Availability
39
WCI Q174604 WCI Q174604 Contact Us For Availability
40
WCI Q502144 WCI Q502144 Contact Us For Availability
40
WCI Q181082 WCI Q181082 Contact Us For Availability
41
BOLT WCI Q425102 Contact Us For Availability
42
WCI Q631052 WCI Q631052 Contact Us For Availability
42
WCI Q435106 WCI Q435106 Contact Us For Availability
43
WCI Q600032 WCI Q600032 Contact Us For Availability
43
WCI Q612631 WCI Q612631 Contact Us For Availability
44
WCI Q18071 WCI Q18071 Contact Us For Availability
44
SCREW, CVR TO MTR WCI Q502492 Contact Us For Availability
45
WCI Q504204 WCI Q504204 Contact Us For Availability
46
WCI Q69561 WCI Q69561 Contact Us For Availability
47
WCI Q181601 WCI Q181601 Contact Us For Availability
× ![]()
