Model Electrolux LA400JXH4 WASHER – Common Parts & Diagrams

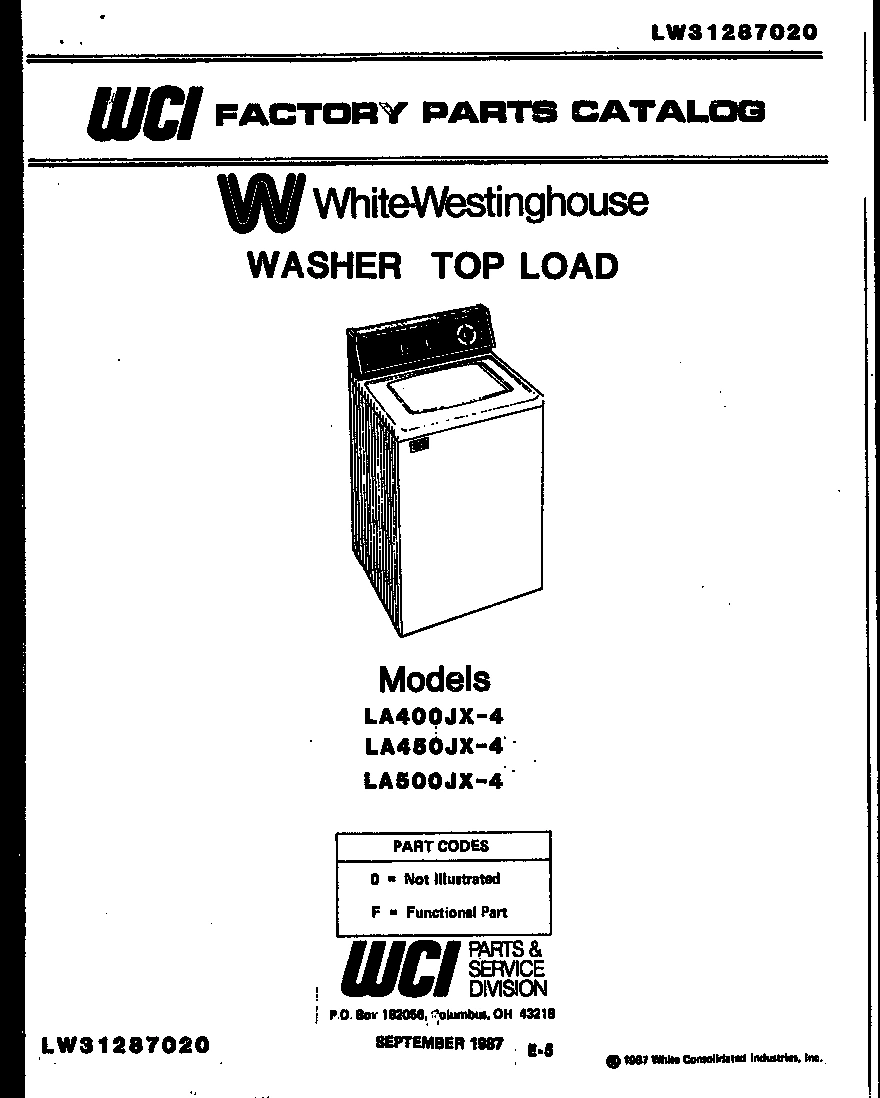

01 - COVER

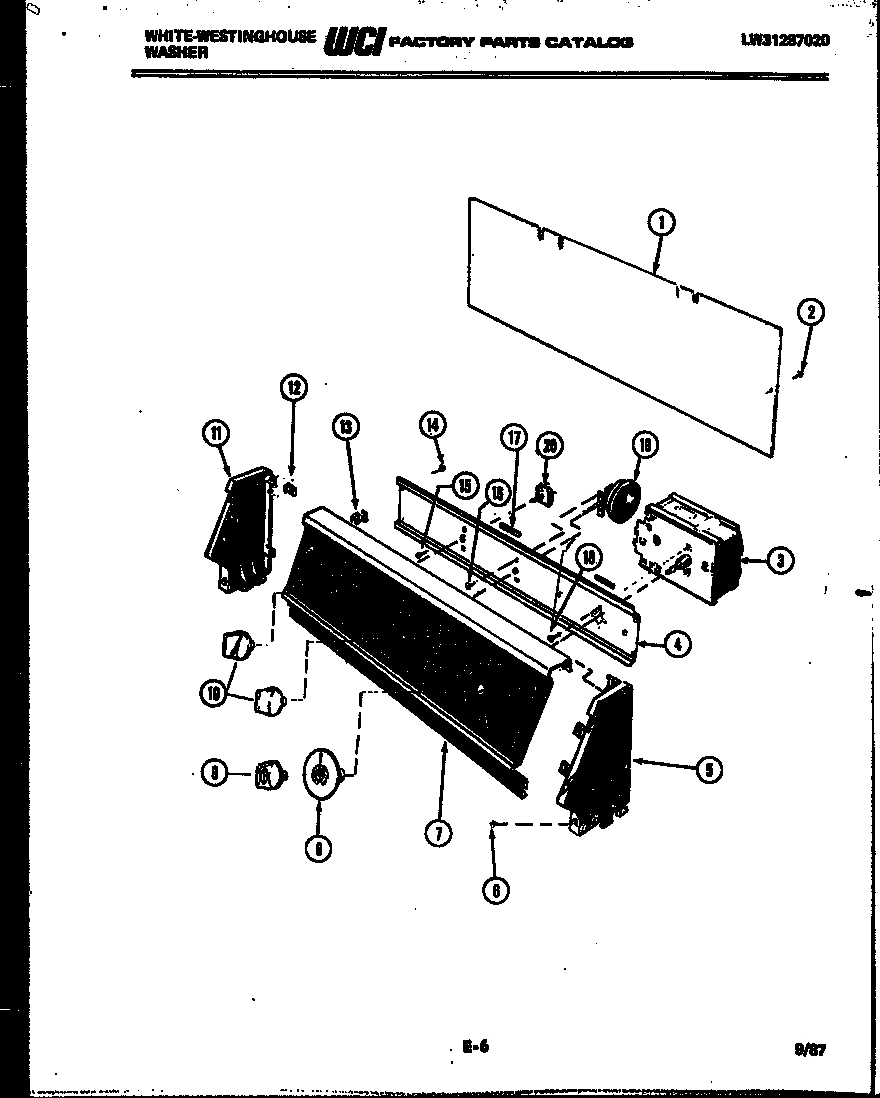

02 - CONSOLE AND CONTROL PARTS

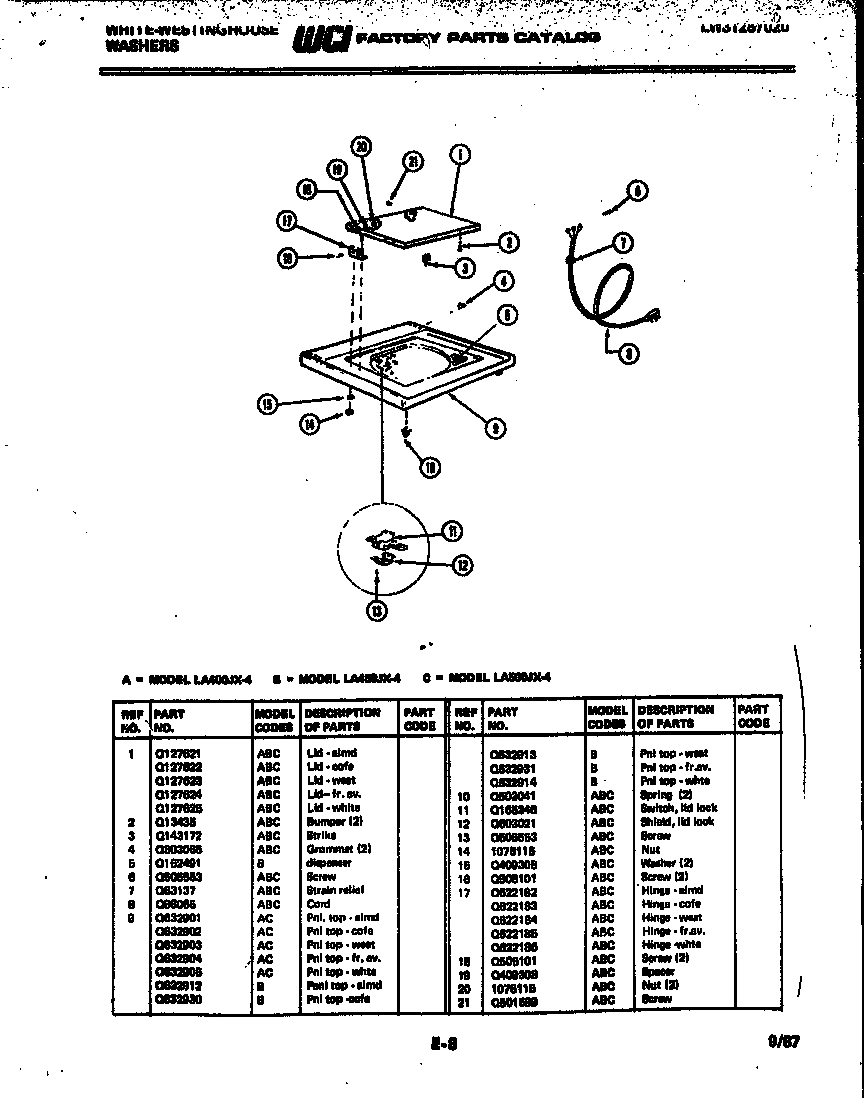

03 - TOP AND SWITCH PARTS

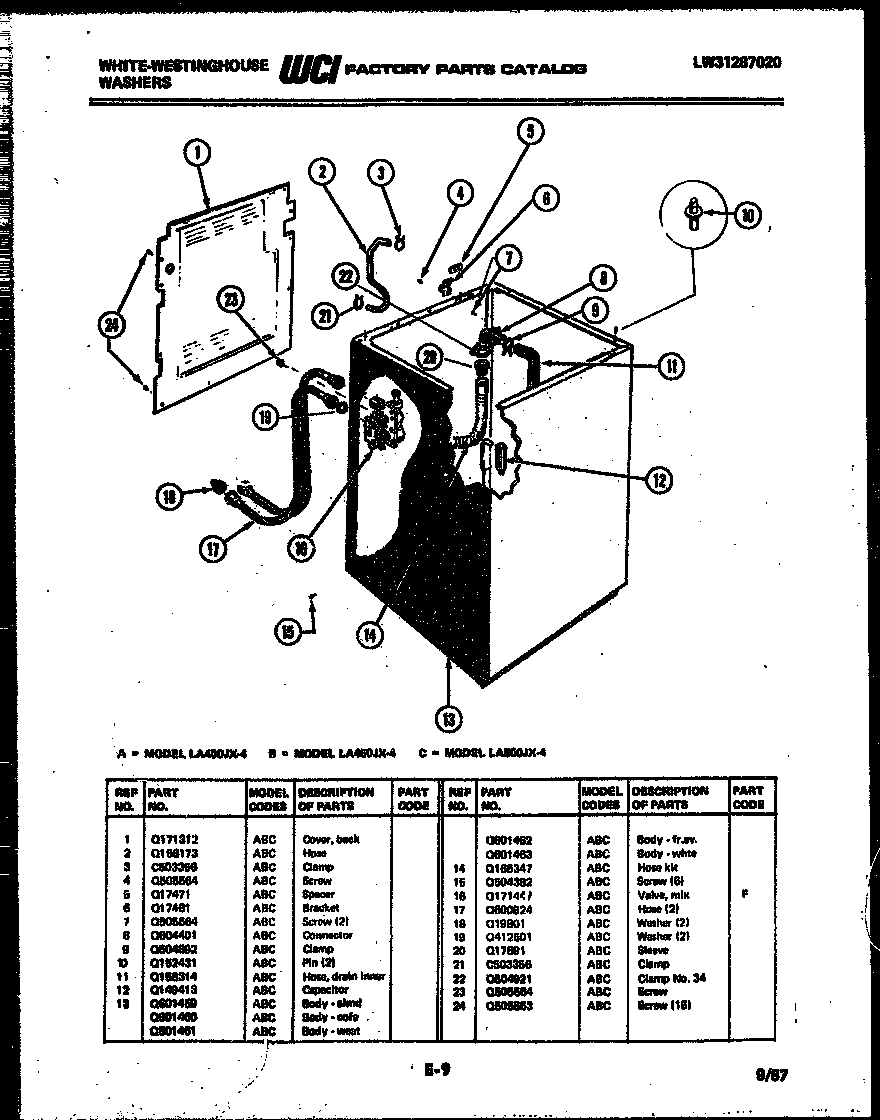

04 - CABINET PARTS

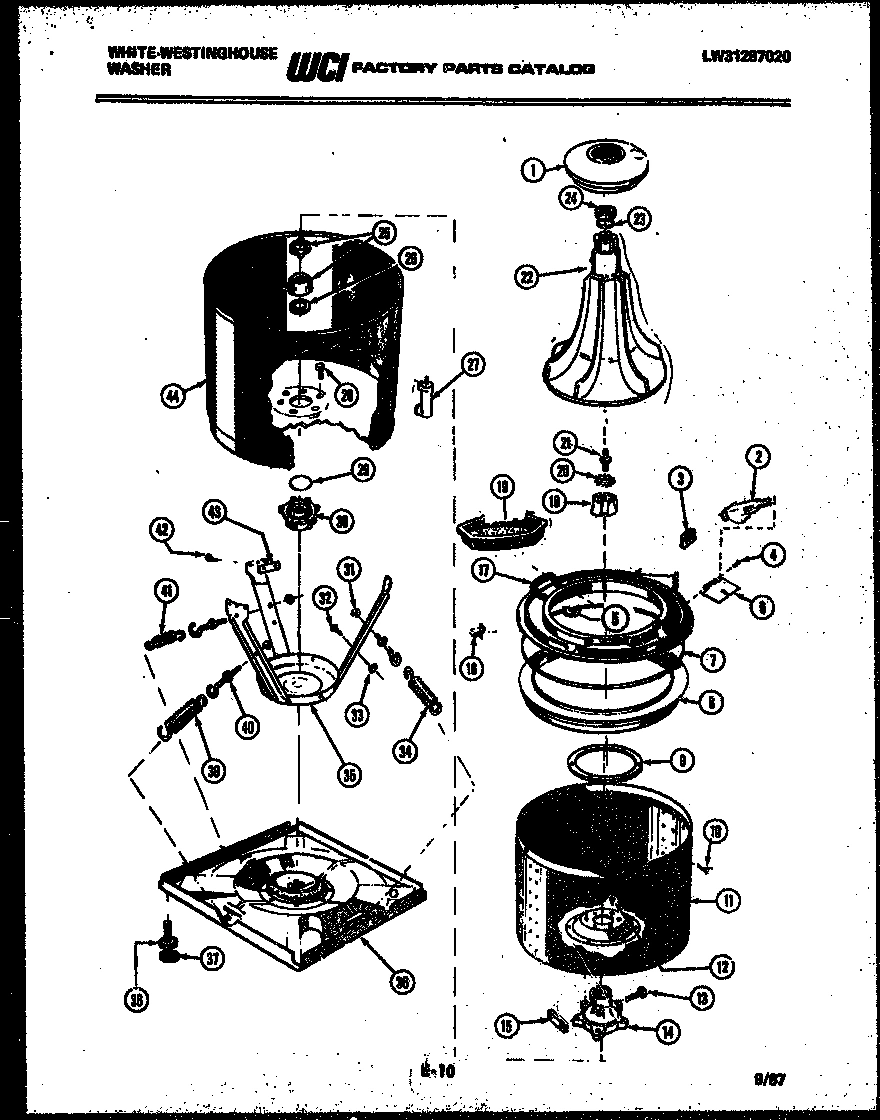

05 - TUB DETAIL

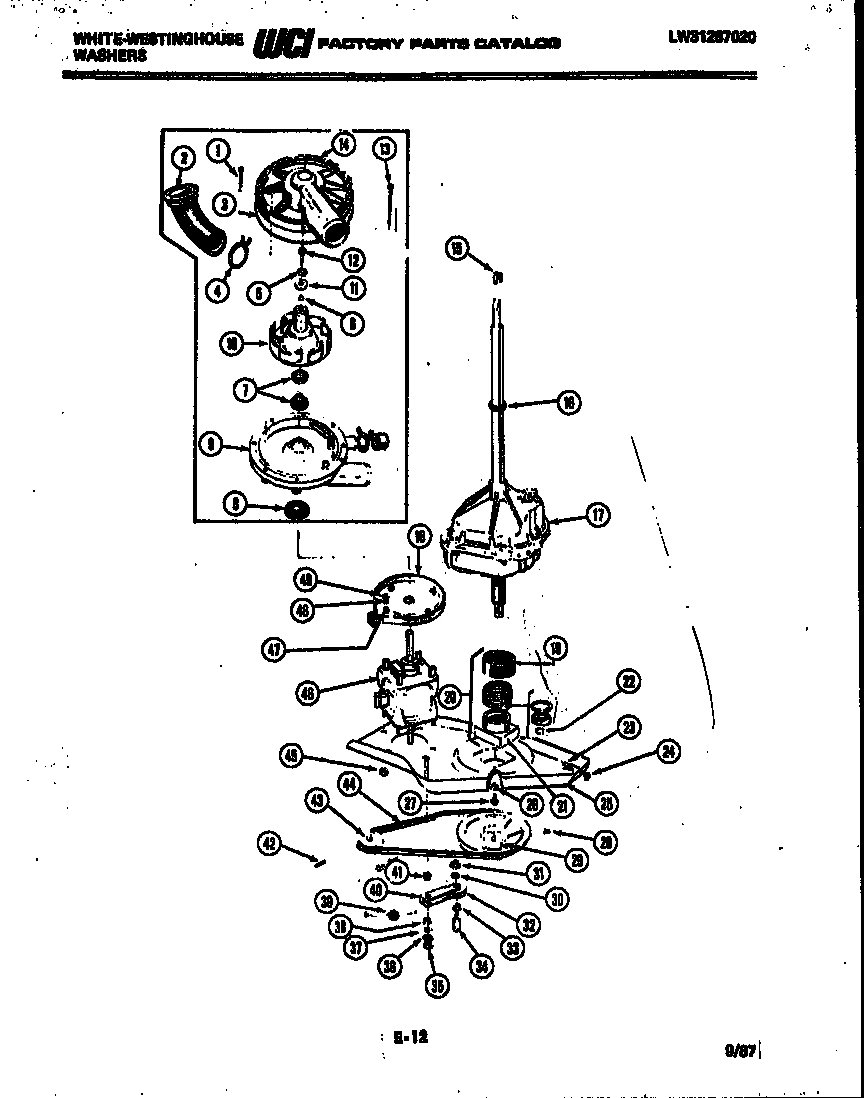

06 - MOTOR, TRANSMISSION AND DRIVE PARTS

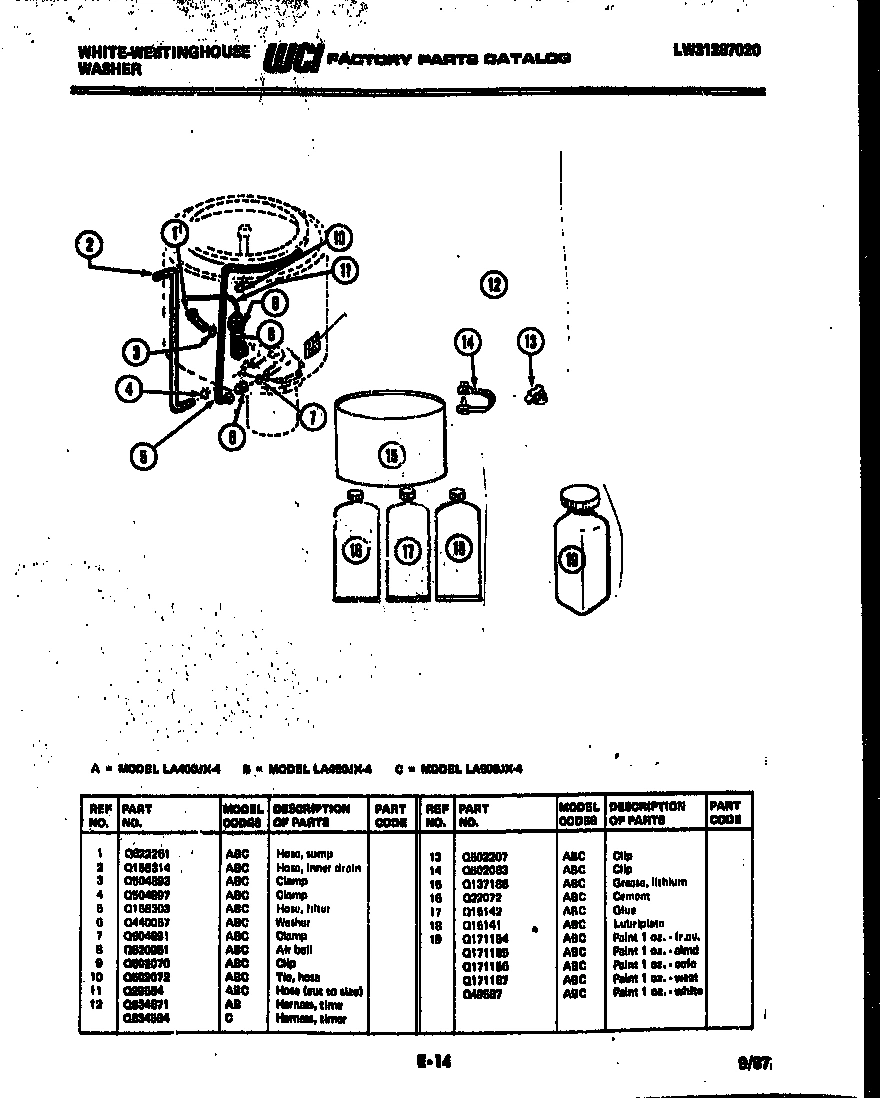

07 - WASHER AND MISCELLANEOUS PARTS

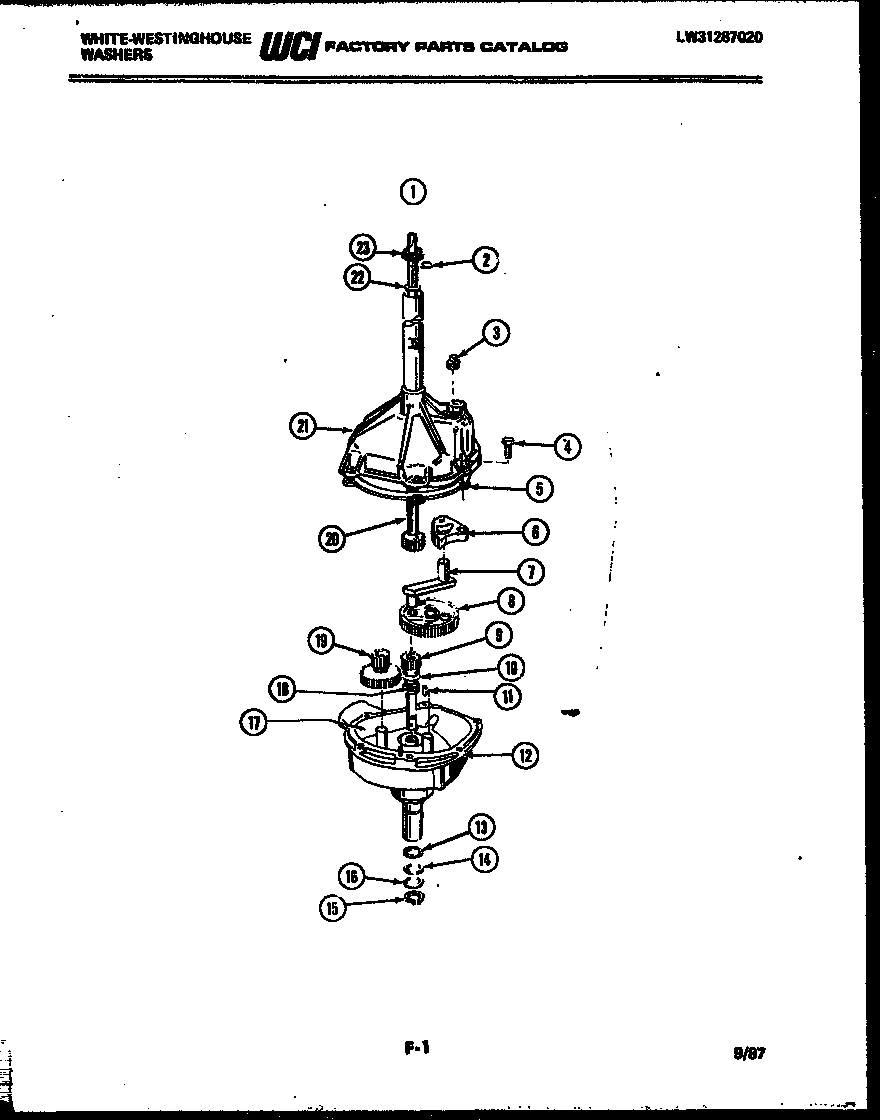

08 - TRANSMISSION PARTS
Common parts from model Electrolux LA400JXH4 WASHER
1
WCI Q616741 WCI Q616741 Contact Us For Availability
1
LID, WEAT WCI Q127623 Contact Us For Availability
1
WCI Q171312 WCI Q171312 Contact Us For Availability
1
DISPENSER, FABRIC WCI Q613877 Contact Us For Availability
1
SCRW, BODY WCI Q435106 Contact Us For Availability
1
WCI Q622261 WCI Q622261 Contact Us For Availability
2
SCREW (4) WCI Q405802 Contact Us For Availability
2
WCI Q13435 WCI Q13435 Contact Us For Availability
2
WCI Q156173 WCI Q156173 Contact Us For Availability
2
HOSE, INNER DRAIN WCI Q158314 Contact Us For Availability
2
WCI Q154491 WCI Q154491 Contact Us For Availability
3
WCI Q634521 WCI Q634521 Contact Us For Availability
3
WCI Q143172 WCI Q143172 Contact Us For Availability
3
WCI Q152472 WCI Q152472 Contact Us For Availability
3
GASKET (INCLUDED IN IMPELLER KIT Q198163) WCI Q181082 Contact Us For Availability
3
WCI Q504893 WCI Q504893 Contact Us For Availability
3
WCI F077061000 WCI F077061000 Contact Us For Availability
4
WCI Q616711 WCI Q616711 Contact Us For Availability
4
WCI Q503065 WCI Q503065 Contact Us For Availability
4
WCI Q435008 WCI Q435008 Contact Us For Availability
4
WCI Q504897 WCI Q504897 Contact Us For Availability
4
SCREW (6) WCI F079688000 Contact Us For Availability
5
WCI Q616732 WCI Q616732 Contact Us For Availability
5
WCI Q17471 WCI Q17471 Contact Us For Availability
5
WCI Q180711 WCI Q180711 Contact Us For Availability
5
WCI Q500374 WCI Q500374 Contact Us For Availability
5
WCI Q158303 WCI Q158303 Contact Us For Availability
5
WCI F13089500 WCI F13089500 Contact Us For Availability
6
SCREW (2) WCI Q504533 Contact Us For Availability
6
WCI Q17461 WCI Q17461 Contact Us For Availability
6
WCI Q152601 WCI Q152601 Contact Us For Availability
6
O-RING (INCLUDED IN IMPELLER KIT Q198163) WCI Q503081 Contact Us For Availability
6
WCI Q440057 WCI Q440057 Contact Us For Availability
6
WCI F130405100 WCI F130405100 Contact Us For Availability
7
WCI Q634131 WCI Q634131 Contact Us For Availability
7
WCI Q63137 WCI Q63137 Contact Us For Availability
7
WCI Q606791 WCI Q606791 Contact Us For Availability
7
SEAL, KIT (INCLUDED IN IMPELLER KIT Q198163) WCI Q69781 Contact Us For Availability
7
WCI Q504891 WCI Q504891 Contact Us For Availability
7
CONNECTING, ROD WCI F066078100 Contact Us For Availability
8
WCI Q621222 WCI Q621222 Contact Us For Availability
8
CORD WCI Q86065 Contact Us For Availability
8
WCI Q604401 WCI Q604401 Contact Us For Availability
8
WCI Q618862 WCI Q618862 Contact Us For Availability
8
WCI Q620951 WCI Q620951 Contact Us For Availability
8
WCI Q69543 WCI Q69543 Contact Us For Availability
8
WCI F130404100 WCI F130404100 Contact Us For Availability
9
WCI Q621212 WCI Q621212 Contact Us For Availability
9
PNL. TOP - ALMD WCI Q632901 Contact Us For Availability
9
PNL. TOP - COFE WCI Q632902 Contact Us For Availability
9
PNL. TOP - WEAT WCI Q632903 Contact Us For Availability
9
PNL. TOP - FR. AV. WCI Q632904 Contact Us For Availability
9
PNL. TOP - WHTE WCI Q632905 Contact Us For Availability
9
WCI Q504892 WCI Q504892 Contact Us For Availability
9
WCI Q631141 WCI Q631141 Contact Us For Availability
9
WCI Q612641 WCI Q612641 Contact Us For Availability
9
WCI Q502070 WCI Q502070 Contact Us For Availability
9
SHAFT, LOWER WCI F140472000 Contact Us For Availability
10
KNOB WCI Q633722 Contact Us For Availability
10
SPRING (2) WCI Q503041 Contact Us For Availability
10
WCI Q152431 WCI Q152431 Contact Us For Availability
10
WCI Q502125 WCI Q502125 Contact Us For Availability
10
IMPELLER (INCLUDED IN IMPELLER KIT Q198163) WCI Q181601 Contact Us For Availability
10
TIE, HOSE WCI Q502072 Contact Us For Availability
11
WCI Q616731 WCI Q616731 Contact Us For Availability
11
WCI Q165346 WCI Q165346 Contact Us For Availability
11
WCI Q174604 WCI Q174604 Contact Us For Availability
11
WCI Q69561 WCI Q69561 Contact Us For Availability
11
WCI Q29554 WCI Q29554 Contact Us For Availability
11
PIN WCI F077058000 Contact Us For Availability
12
SPEEDNUT (8) WCI Q502958 Contact Us For Availability
12
SHIELD, LID LOCK WCI Q603021 Contact Us For Availability
12
WCI Q149413 WCI Q149413 Contact Us For Availability
12
WCI Q502149 WCI Q502149 Contact Us For Availability
12
WCI Q504204 WCI Q504204 Contact Us For Availability
12
HARNESS TIMER WCI Q634671 Contact Us For Availability
12
HOUSING, LOWER WCI F140586000 Contact Us For Availability
13
CLIP, GRND WCI Q504803 Contact Us For Availability
13
BODY, WEAT WCI Q601461 Contact Us For Availability
13
BOLT WCI Q425102 Contact Us For Availability
13
SCREW, TO MOTOR WCI Q502492 Contact Us For Availability
13
WCI Q502207 WCI Q502207 Contact Us For Availability
14
WCI Q165347 WCI Q165347 Contact Us For Availability
14
WCI Q631052 WCI Q631052 Contact Us For Availability
14
WCI Q612631 WCI Q612631 Contact Us For Availability
14
WCI Q502063 WCI Q502063 Contact Us For Availability
14
WASHER, SPACER WCI F077051000 Contact Us For Availability
15
SCREW (6) WCI Q504382 Contact Us For Availability
15
WCI Q600032 WCI Q600032 Contact Us For Availability
15
SHIM WCI Q631524 Contact Us For Availability
15
GREASE-LITHIUM WCI Q137186 Contact Us For Availability
15
WCI F068158000 WCI F068158000 Contact Us For Availability
16
WCI Q171447 WCI Q171447 Contact Us For Availability
16
WCI Q500685 WCI Q500685 Contact Us For Availability
16
WCI Q440115 WCI Q440115 Contact Us For Availability
16
WCI Q22072 WCI Q22072 Contact Us For Availability
16
WASHER, THRUST WCI F077098000 Contact Us For Availability
17
WCI Q500925 WCI Q500925 Contact Us For Availability
17
WCI Q622184 WCI Q622184 Contact Us For Availability
17
WCI Q600924 WCI Q600924 Contact Us For Availability
17
WCI Q102271 WCI Q102271 Contact Us For Availability
17
GLUE WCI Q15142 Contact Us For Availability
17
OIL, 1 QUART WCI F060821100 Contact Us For Availability
18
SCREW (4) WCI Q503033 Contact Us For Availability
18
SCREW (2) WCI Q505101 Contact Us For Availability
18
WASHER (2) WCI Q19801 Contact Us For Availability
18
WCI Q622981 WCI Q622981 Contact Us For Availability
18
WCI Q164261 WCI Q164261 Contact Us For Availability
18
LUBRIPLATE WCI Q15141 Contact Us For Availability
18
WCI F077052000 WCI F077052000 Contact Us For Availability
19
WCI Q633732 WCI Q633732 Contact Us For Availability
19
SPACER WCI Q409308 Contact Us For Availability
19
WASHER (2) WCI Q412501 Contact Us For Availability
19
WCI Q610671 WCI Q610671 Contact Us For Availability
19
SLEEVE WCI F130417000 Contact Us For Availability
19
PAINT (1 OZ. WEAT) WCI Q171157 Contact Us For Availability
19
WCI F130403100 WCI F130403100 Contact Us For Availability
20
NUT (2) WCI 1076115 Contact Us For Availability
20
WCI Q17891 WCI Q17891 Contact Us For Availability
20
WCI Q500377 WCI Q500377 Contact Us For Availability
20
BEARING ASSY WCI F137014000 Contact Us For Availability
20
WCI F140482000 WCI F140482000 Contact Us For Availability
21
WCI Q501589 WCI Q501589 Contact Us For Availability
21
CLAMP WCI C503356 Contact Us For Availability
21
WCI Q605802 WCI Q605802 Contact Us For Availability
21
WCI Q622331 WCI Q622331 Contact Us For Availability
21
HOUSING, UPPER WCI F140587000 Contact Us For Availability
22
WCI Q504921 WCI Q504921 Contact Us For Availability
22
WCI Q620852 WCI Q620852 Contact Us For Availability
22
WCI F141261000 WCI F141261000 Contact Us For Availability
22
WCI F062568000 WCI F062568000 Contact Us For Availability
23
WCI Q505564 WCI Q505564 Contact Us For Availability
23
WASHER WCI Q147985 Contact Us For Availability
23
BOLT (3) WCI Q502126 Contact Us For Availability
24
SCREW (16) WCI Q505553 Contact Us For Availability
24
CAP & WASHER WCI Q603993 Contact Us For Availability
24
LOCKNUT WCI Q500831 Contact Us For Availability
25
WCI Q631335 WCI Q631335 Contact Us For Availability
25
WCI Q623011 WCI Q623011 Contact Us For Availability
26
WCI Q69545 WCI Q69545 Contact Us For Availability
26
WASHER NEOPRENE WCI Q69546 Contact Us For Availability
27
BOLT WCI Q505081 Contact Us For Availability
28
BOLT (6) WCI Q502147 Contact Us For Availability
28
WCI Q500871 WCI Q500871 Contact Us For Availability
29
WCI Q147982 WCI Q147982 Contact Us For Availability
29
WCI Q631112 WCI Q631112 Contact Us For Availability
30
WCI Q622483 WCI Q622483 Contact Us For Availability
31
WCI Q443003 WCI Q443003 Contact Us For Availability
31
WCI Q501084 WCI Q501084 Contact Us For Availability
32
WCI Q622341 WCI Q622341 Contact Us For Availability
34
WCI Q622462 WCI Q622462 Contact Us For Availability
35
WCI Q634722 WCI Q634722 Contact Us For Availability
35
WCI 1467173 WCI 1467173 Contact Us For Availability
36
PAN WCI Q142968 Contact Us For Availability
36
WCI Q409004 WCI Q409004 Contact Us For Availability
37
CUP WCI Q16971 Contact Us For Availability
37
WASHER SPRING WCI 1147601 Contact Us For Availability
38
WCI Q16567 WCI Q16567 Contact Us For Availability
39
WCI Q6872 WCI Q6872 Contact Us For Availability
39
WCI Q623001 WCI Q623001 Contact Us For Availability
40
BOLT, HOOK (3) WCI Q502665 Contact Us For Availability
40
WCI Q622472 WCI Q622472 Contact Us For Availability
41
SPRING - RED WCI Q6871 Contact Us For Availability
41
WCI Q607121 WCI Q607121 Contact Us For Availability
42
WCI Q504881 WCI Q504881 Contact Us For Availability
42
PIN WCI Q501623 Contact Us For Availability
43
WCI Q607012 WCI Q607012 Contact Us For Availability
43
WCI Q622991 WCI Q622991 Contact Us For Availability
44
WCI Q102262 WCI Q102262 Contact Us For Availability
44
WCI Q622451 WCI Q622451 Contact Us For Availability
45
NUT WCI Q500829 Contact Us For Availability
46
WCI Q603183 WCI Q603183 Contact Us For Availability
46
WCI Q603184 WCI Q603184 Contact Us For Availability
47
WCI Q502788 WCI Q502788 Contact Us For Availability
48
SPACER (1) WCI Q440063 Contact Us For Availability
48
SPACER (1) WCI Q440120 Contact Us For Availability
48A
SPACER (4) WCI Q440113 Contact Us For Availability
49
WCI Q502404 WCI Q502404 Contact Us For Availability
× ![]()
