Model LG L1717S-BN – Common Parts & Diagrams

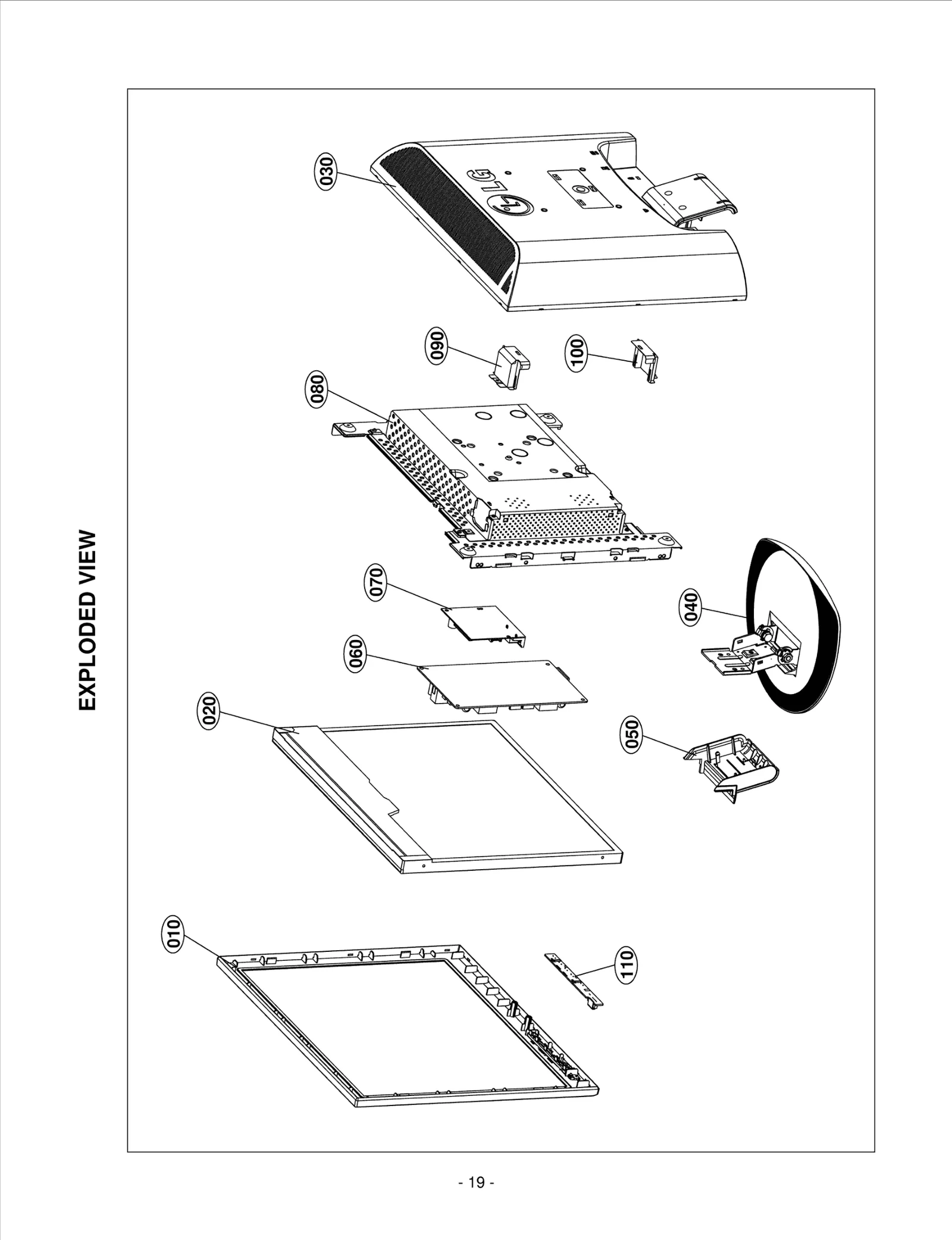

Diagram 0
Diagram 1
Common parts from model LG L1717S-BN
0
Card LGE 3840TRL085G Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
Screw Assembly LGE FAB30021802 Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171910042C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012W Contact Us For Availability
0
Screw Assembly LGE FAB30007701 Contact Us For Availability
0
Screw,Taptite LGE FAB30011006 Contact Us For Availability
0
Screw,Taptite LGE FAB30018401 Contact Us For Availability
0
Bag LGE 38809P0013U Contact Us For Availability
0
BOX LGE 3890TSEA68A Contact Us For Availability
0
PACKING LGE 3920TKE383A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
0
Screw,Taptite LGE FAB30009401 Contact Us For Availability
0
Screw,Taptite LGE FAB30013604 Contact Us For Availability
0
Taptite Screw LGE FAB30021205 Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FCP006C Contact Us For Availability
030
Cover Assembly LGE 3809TKL123A Contact Us For Availability
040
Base Assembly LGE 3043TKK264D Contact Us For Availability
050
COVER LGE 3550TKK925A Contact Us For Availability
060
PWB(PCB) ASSEMBLY,PO LGE 6871TPT312B Contact Us For Availability
070
MAIN TOTAL ASSEMBLY LGE 3313TL7110C Contact Us For Availability
080
METAL ASSEMBLY LGE 4951TKS105V Contact Us For Availability
090
Plate LGE 4814TKK235C Contact Us For Availability
100
Plate LGE 4814TKK235D Contact Us For Availability
110
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA92B Contact Us For Availability
C206
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C504
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C814
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J1
CONNECTOR ASSEMBLY LGE 6631T20022G Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q504
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q803
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R1
RESISTOR,FIXED CARBON FILM LGE 0RD4701Q609 Contact Us For Availability
R5
LGE 0RD2001Q609 LGE 0RD2001Q609 Contact Us For Availability
R202
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R530
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R702
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R814
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
SW5
SWITCH LGE 140-058E Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3017A Contact Us For Availability
U502
IC,EEPROM LGE EAN30296801 Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD2
Diode,Zener LGE 0DZ560009AG Contact Us For Availability
ZD703
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
