Model LG KUSXE181A – Common Parts & Diagrams

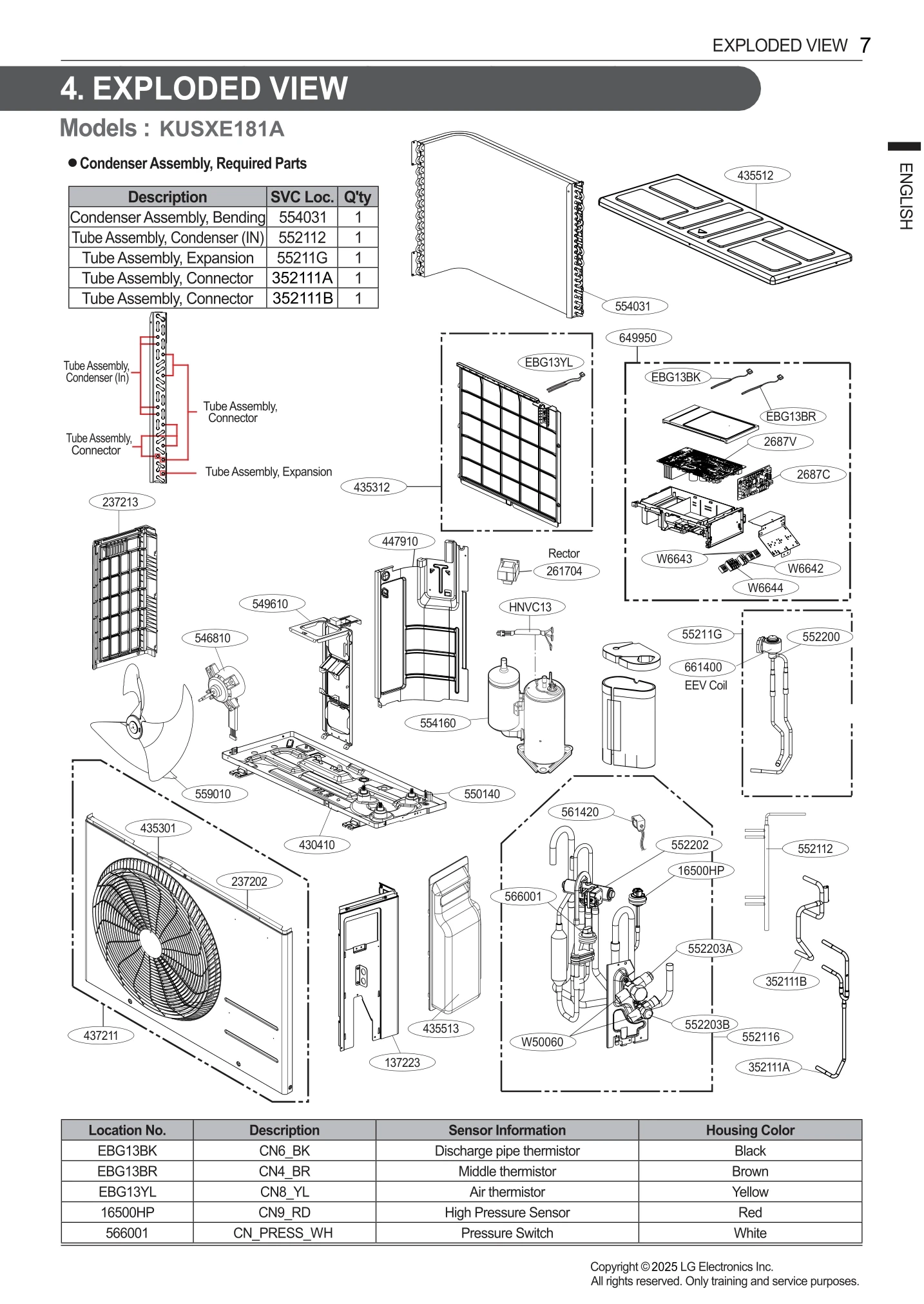

Diagram 0
Common parts from model LG KUSXE181A
2687C
PCB Assembly,Cycle LGE EBR24678606 Contact Us For Availability
2687V
PCB Assembly,Inverter LGE EBR23696803 Contact Us For Availability
55211G
Tube Assembly,Expansion LGE AJR74007727 Contact Us For Availability
352111A
Tube Assembly,Connector LGE AJR30072719 Contact Us For Availability
352111B
Tube Assembly,Connector LGE AJR30072720 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ85982711 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM75397007 Contact Us For Availability
549610
Bracket,Motor LGE MAZ64624509 Contact Us For Availability
552112
Tube Assembly,Condenser(In) LGE AJR74043403 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR74007512 Contact Us For Availability
552202
Valve,Reverse LGE MJX65106302 Contact Us For Availability
552203B
Valve,Service LGE MJX65116804 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG69396007 Contact Us For Availability
559010
Fan Assembly,Propeller LGE ADP75680501 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ30295202 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270706 Contact Us For Availability
EBG13BK
Thermistor Assembly,NTC LGE EBG61406002 Contact Us For Availability
EBG13YL
Thermistor Assembly,NTC LGE EBG61207505 Contact Us For Availability
W6643
Connector,Terminal Block LGE EAG63452309 Contact Us For Availability
W50060
Tube LGE MJU66977902 Contact Us For Availability
× ![]()
