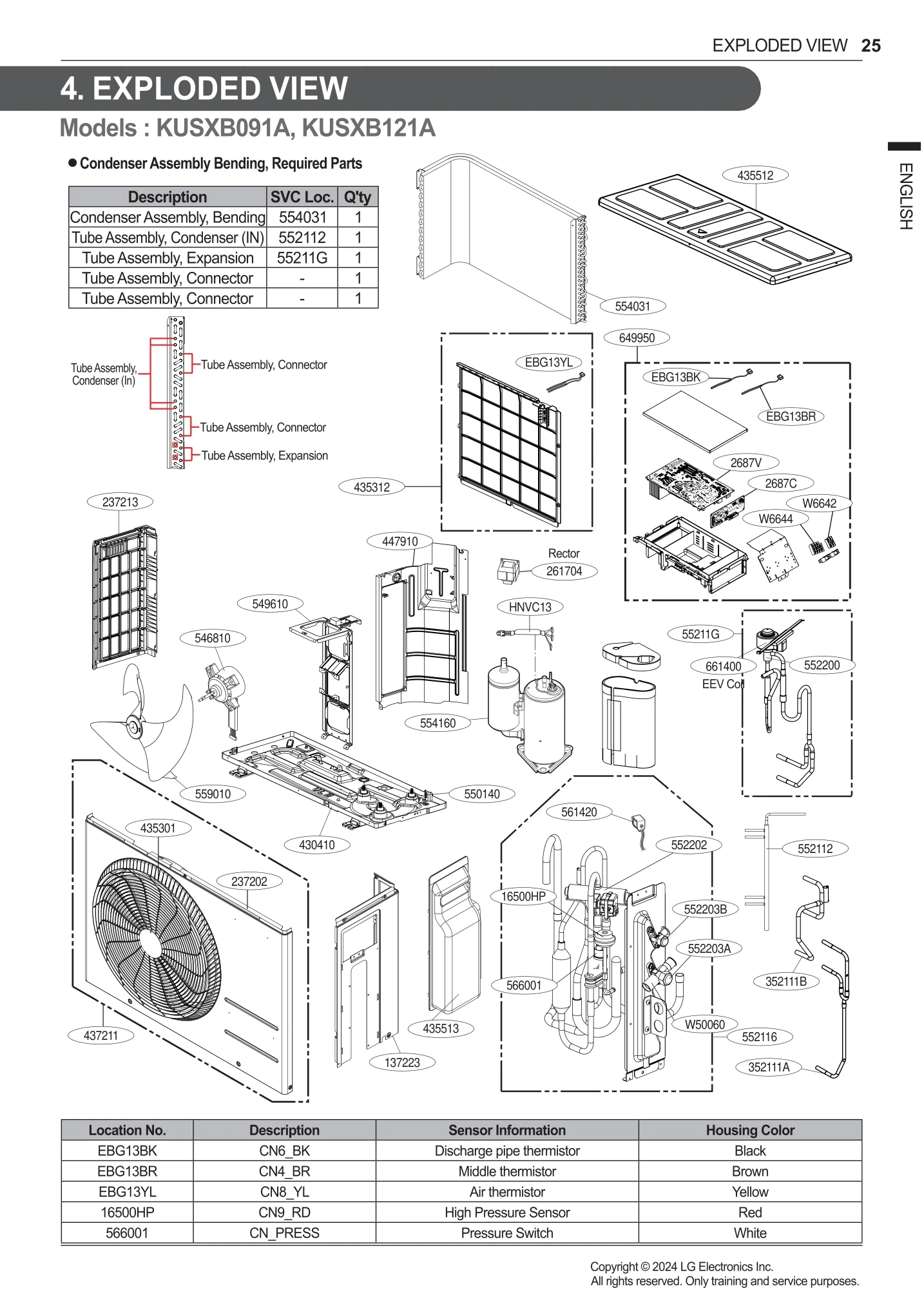

Model LG KUSXB091A – Common Parts & Diagrams

237202
Panel,Front
Panel,Front LGE MGC56983328 Contact Us For Availability
View on Model
237213
Panel,Side
Panel,Side LGE MGC65919304 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ36274426 Contact Us For Availability
View on Model
352111A
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR75564601 Contact Us For Availability
View on Model
352111B
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR75564706 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN75968715 Contact Us For Availability
View on Model
435312
Grille Assembly,Rear(Outdoor)
Grille Assembly,Rear(Outdoor) LGE AEB68981213 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ68979336 Contact Us For Availability
View on Model
435513
Cover Assembly,Tubing
Cover Assembly,Tubing LGE ACQ85982701 Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL68978073 Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM75397005 Contact Us For Availability
View on Model
549610
Bracket Assembly,Motor(Outdoor)
Bracket Assembly,Motor(Outdoor) LGE ABA75269301 Contact Us For Availability
View on Model
549610
Bracket,Motor
Bracket,Motor LGE MAZ64624509 Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE AJR74043403 Contact Us For Availability
View on Model
552116
Tube Assembly,Reverse
Tube Assembly,Reverse LGE AJR74007519 Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE MJX63932316 Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG69396032 Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ37596701 Contact Us For Availability
View on Model
559010
Fan Assembly,Propeller
Fan Assembly,Propeller LGE ADP75680501 Contact Us For Availability
View on Model
661400
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270706 Contact Us For Availability
View on Model
EBG13BK
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61406002 Contact Us For Availability
View on Model
EBG13YL
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61207505 Contact Us For Availability
View on Model
W50060
Tube
Tube LGE MJU66977902 Contact Us For Availability
View on Model
