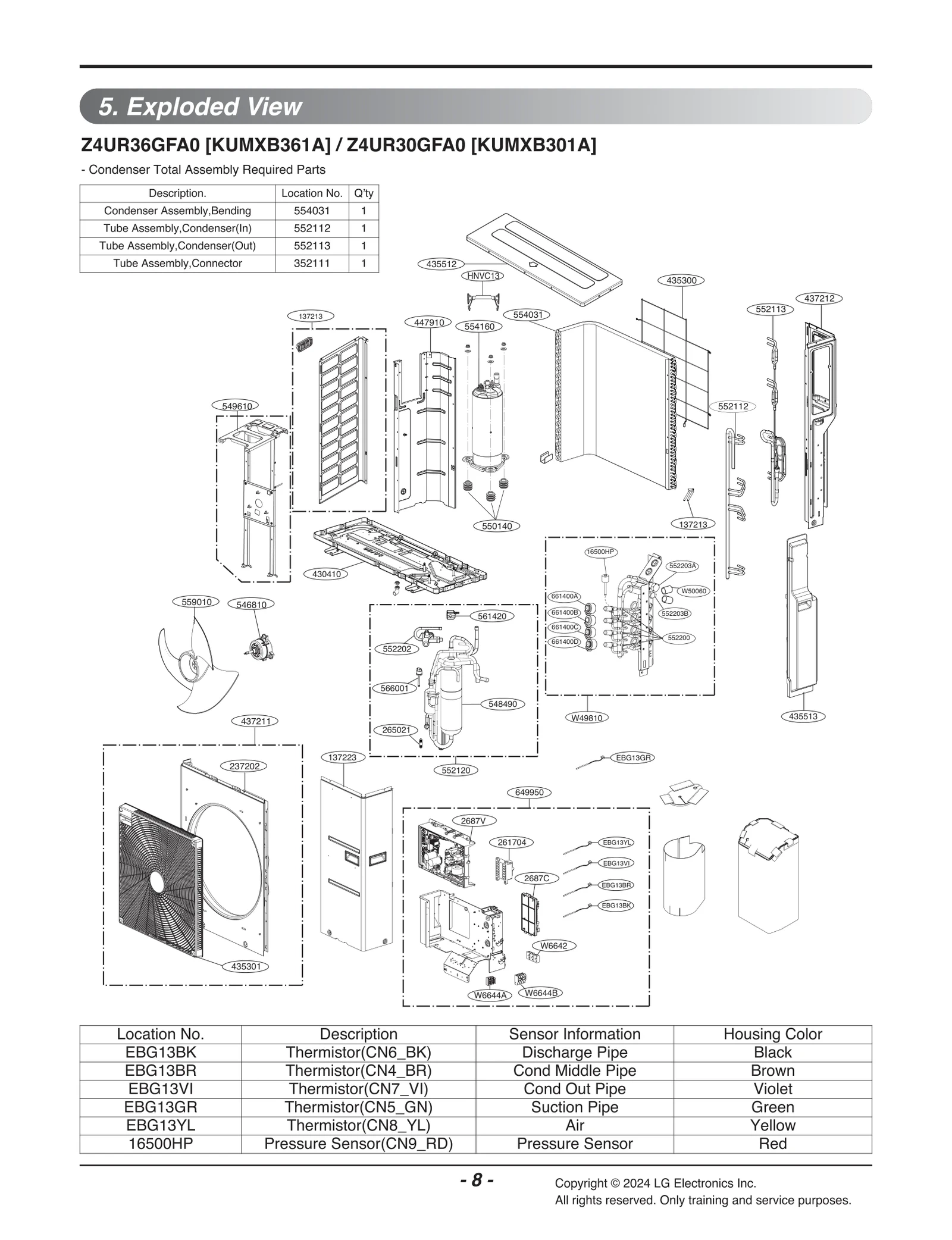

Model LG KUMXB361A – Common Parts & Diagrams

16500HP
Sensor Module,Pressure
Sensor Module,Pressure LGE EBD64386506 Contact Us For Availability
View on Model
137213
Panel Assembly,Side
Panel Assembly,Side LGE AGL72909311 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL76812512 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL76812513 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC66162414 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ61970010 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN75031001 Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE MDX61843733 Contact Us For Availability
View on Model
435301
Grille,Discharge
Grille,Discharge LGE MDX30067404 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ35131836 Contact Us For Availability
View on Model
435513
Cover Assembly,Tubing
Cover Assembly,Tubing LGE ACQ30672901 Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL72770358 Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM72909152 Contact Us For Availability
View on Model
546810
Motor Assembly,DC,Outdoor
Motor Assembly,DC,Outdoor LGE EAU60905422 Contact Us For Availability
View on Model
548490
Accumulator
Accumulator LGE MAA63804602 Contact Us For Availability
View on Model
549610
Bracket Assembly,Motor(Outdoor)
Bracket Assembly,Motor(Outdoor) LGE ABA71610521 Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR75786804 Contact Us For Availability
View on Model
552120
Tube Assembly
Tube Assembly LGE AJR76122304 Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20035C Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20029P Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG76524501 Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ39281001 Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ30281502 Contact Us For Availability
View on Model
661400B
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270738 Contact Us For Availability
View on Model
661400C
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270739 Contact Us For Availability
View on Model
661400C
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270709 Contact Us For Availability
View on Model
661400D
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270712 Contact Us For Availability
View on Model
661400D
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270740 Contact Us For Availability
View on Model
EBG13BK
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61406012 Contact Us For Availability
View on Model
EBG13GR
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61405904 Contact Us For Availability
View on Model
HNVC13
Harness,Multi
Harness,Multi LGE EAD64565407 Contact Us For Availability
View on Model
W49810
Supporter Assembly
Supporter Assembly LGE AJJ76566923 Contact Us For Availability
View on Model
W50060
Tube
Tube LGE MJU66977902 Contact Us For Availability
View on Model
