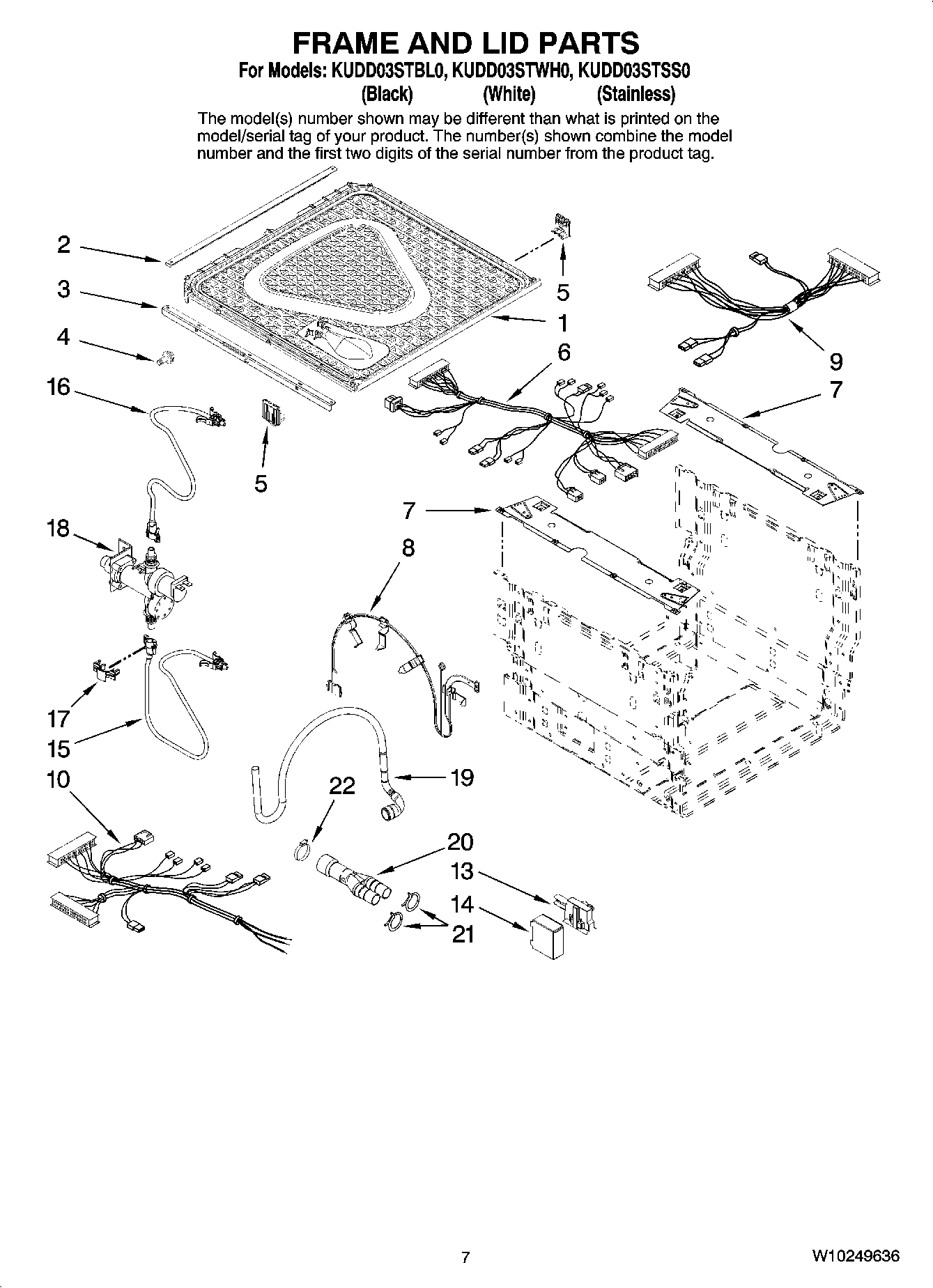

Model Whirlpool KUDD03STWH0 DRAWER DISHWASHER – Common Parts & Diagrams

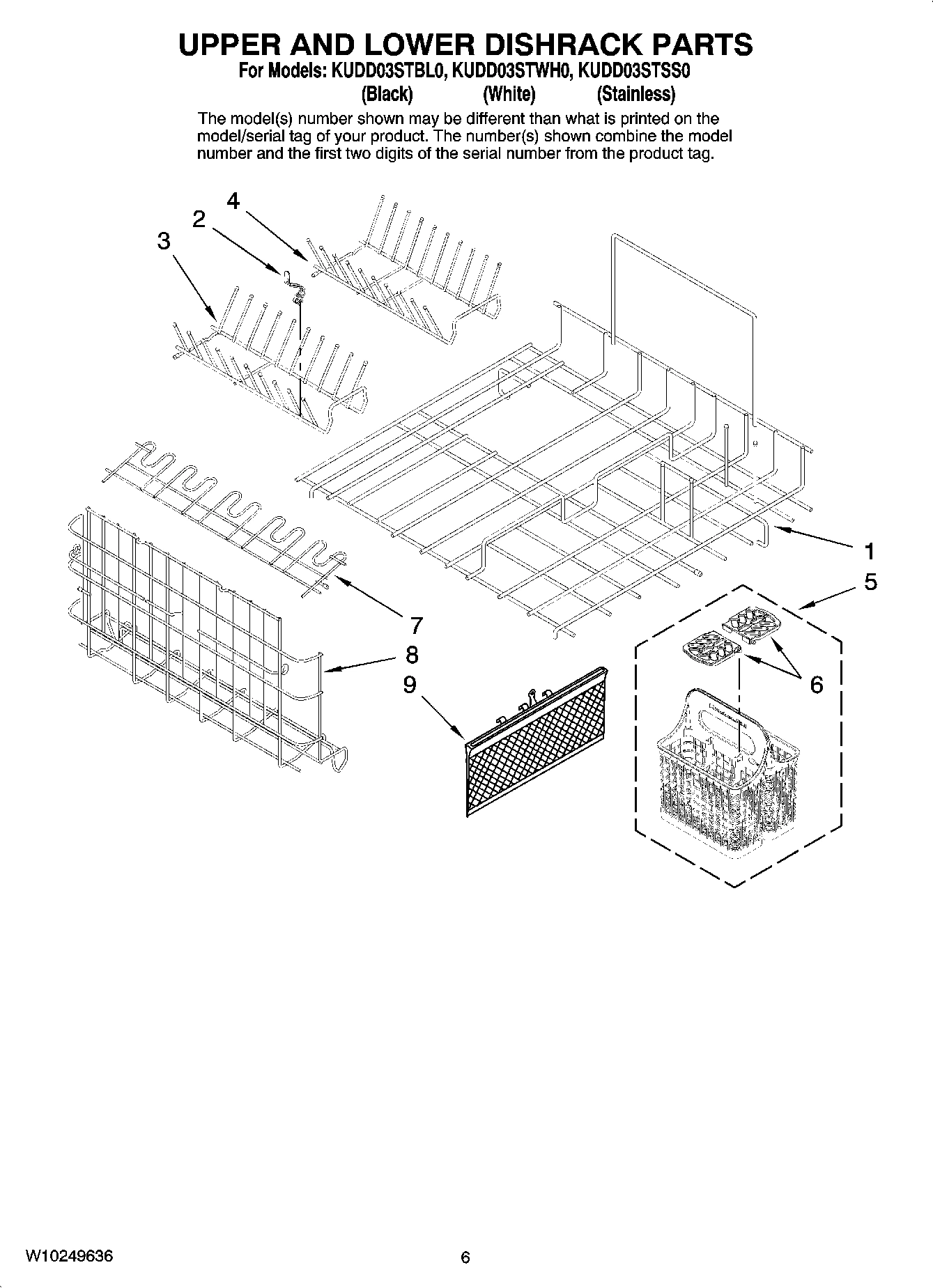

1
Rack, Base
Rack, Base WPL W10118023 Contact Us For Availability
View on Model

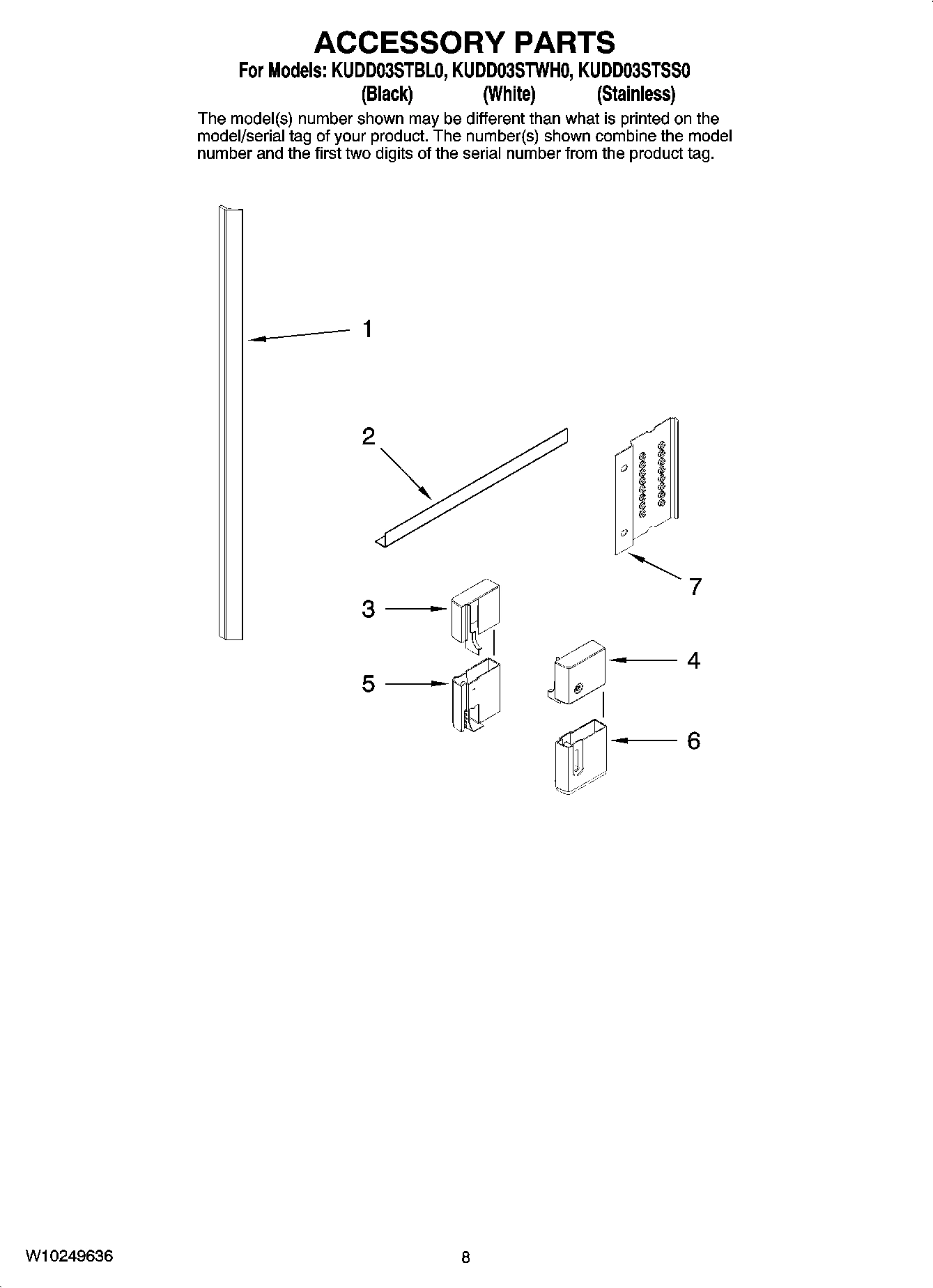

1
Trim, Side
Trim, Side WPL W10133725 Contact Us For Availability
View on Model

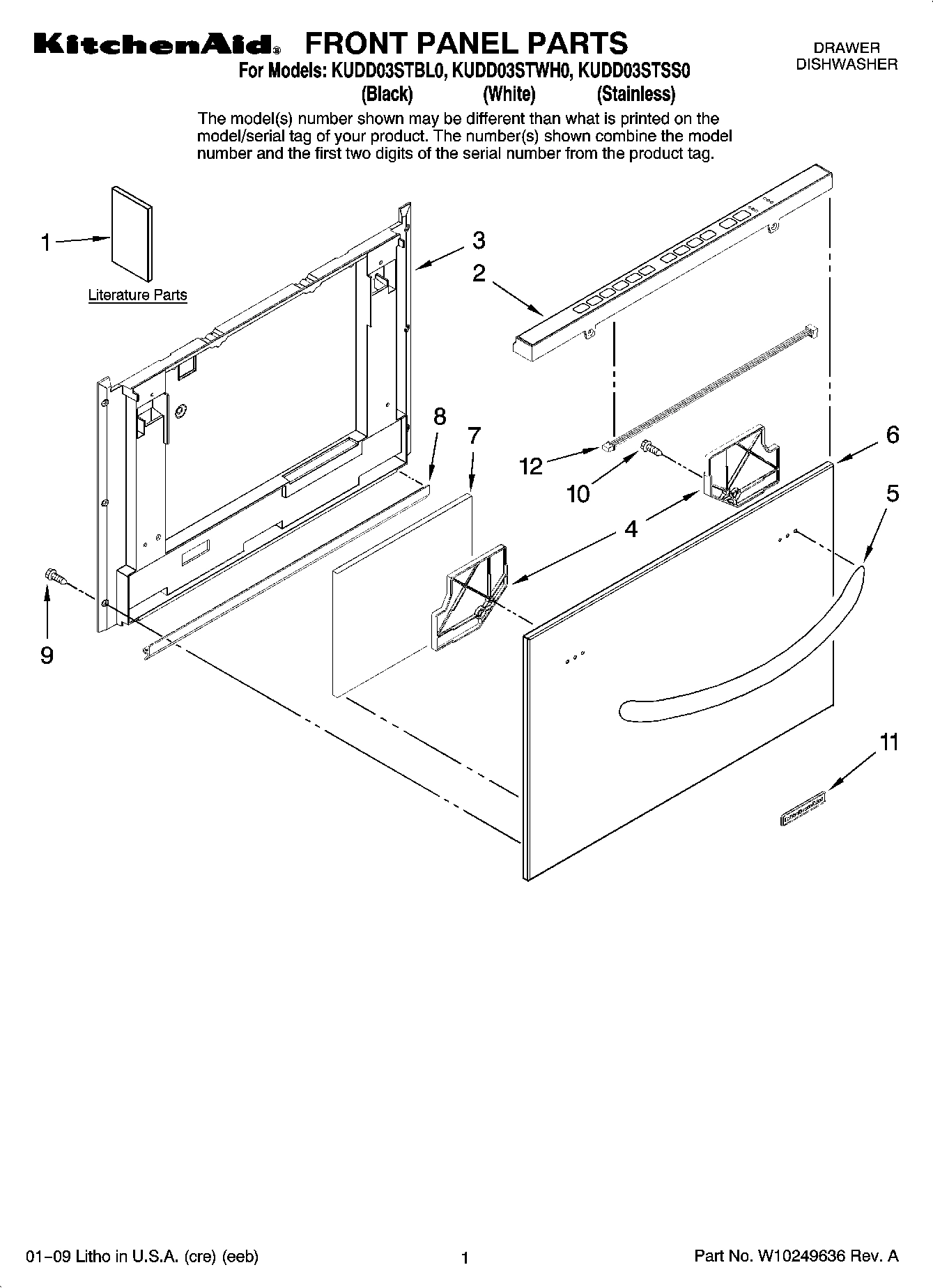

2
Control Panel (Includes User Interface) (Blac
Control Panel (Includes User Interface) (Blac WPL W10117977 Contact Us For Availability
View on Model
2
Bracket, Lid (Rear)
Bracket, Lid (Rear) WPL Y6920305 Contact Us For Availability
View on Model
2
DISPENSER
DISPENSER WPL W10158752 Contact Us For Availability
View on Model
3
Intermediate Panel
Intermediate Panel WPL W10117987 Contact Us For Availability
View on Model
3
Rack, Insert (Includes Item 2)
Rack, Insert (Includes Item 2) WPL W10154735 Contact Us For Availability
View on Model
3
Toe Kick Base (LH) (White)
Toe Kick Base (LH) (White) WPL Y6920297 Contact Us For Availability
View on Model
4
Rack, Insert (Small Tines)
Rack, Insert (Small Tines) WPL W10118019 Contact Us For Availability
View on Model
5
Lid Slider Assy. (Right Hand)
Lid Slider Assy. (Right Hand) WPL 99003725 Contact Us For Availability
View on Model
5
Basket, Silverware Assembly
Basket, Silverware Assembly WPL W10118031 Contact Us For Availability
View on Model
6
Harness, Drawer
Harness, Drawer WPL 99003706 Contact Us For Availability
View on Model
6
Toe Kick Slide (RH) (Black)
Toe Kick Slide (RH) (Black) WPL Y6920296 Contact Us For Availability
View on Model
6
Cover, Silverware Basket
Cover, Silverware Basket WPL W10118032 Contact Us For Availability
View on Model
7
Shelf, Rack
Shelf, Rack WPL W10118001 Contact Us For Availability
View on Model
9
BASKET, SMALL ITEMS
BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability
View on Model
10
HEATER
HEATER WPL 99003625 Contact Us For Availability
View on Model
11
Nameplate (Stainless)
Nameplate (Stainless) WPL 8304603SS Contact Us For Availability
View on Model
11
Plate, MCM Enclosure
Plate, MCM Enclosure WPL W10118305 Contact Us For Availability
View on Model

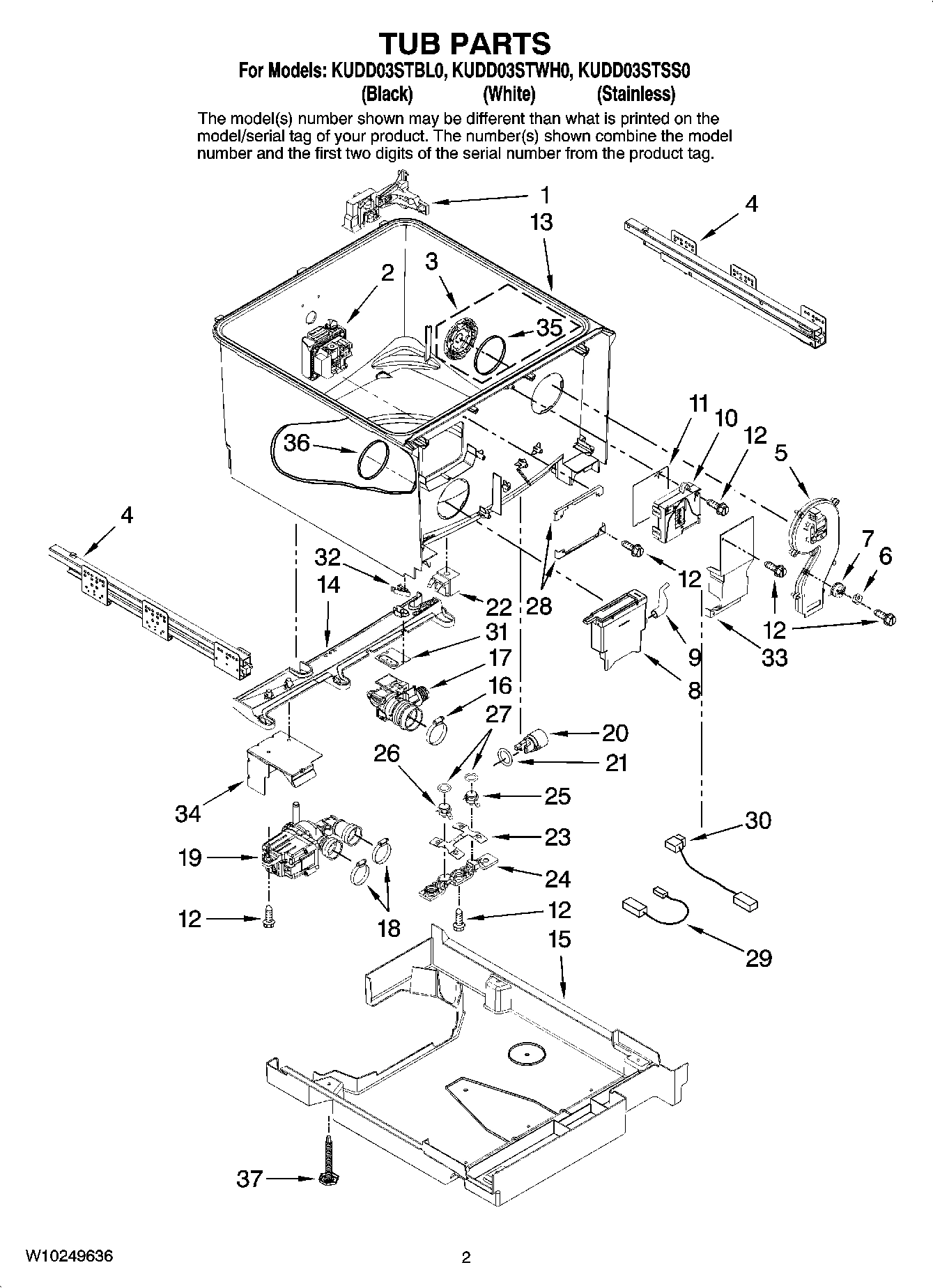

13
Drawer, Tub
Drawer, Tub WPL W10180845 Contact Us For Availability
View on Model
14
Coarse Cup Cap
Coarse Cup Cap WPL 99003778 Contact Us For Availability
View on Model
14
Shield, Drip
Shield, Drip WPL Y6919650 Contact Us For Availability
View on Model
15
Cover, Bottom
Cover, Bottom WPL 99003714 Contact Us For Availability
View on Model
15
Hose, Fill (Lower)
Hose, Fill (Lower) WPL 99003766 Contact Us For Availability
View on Model

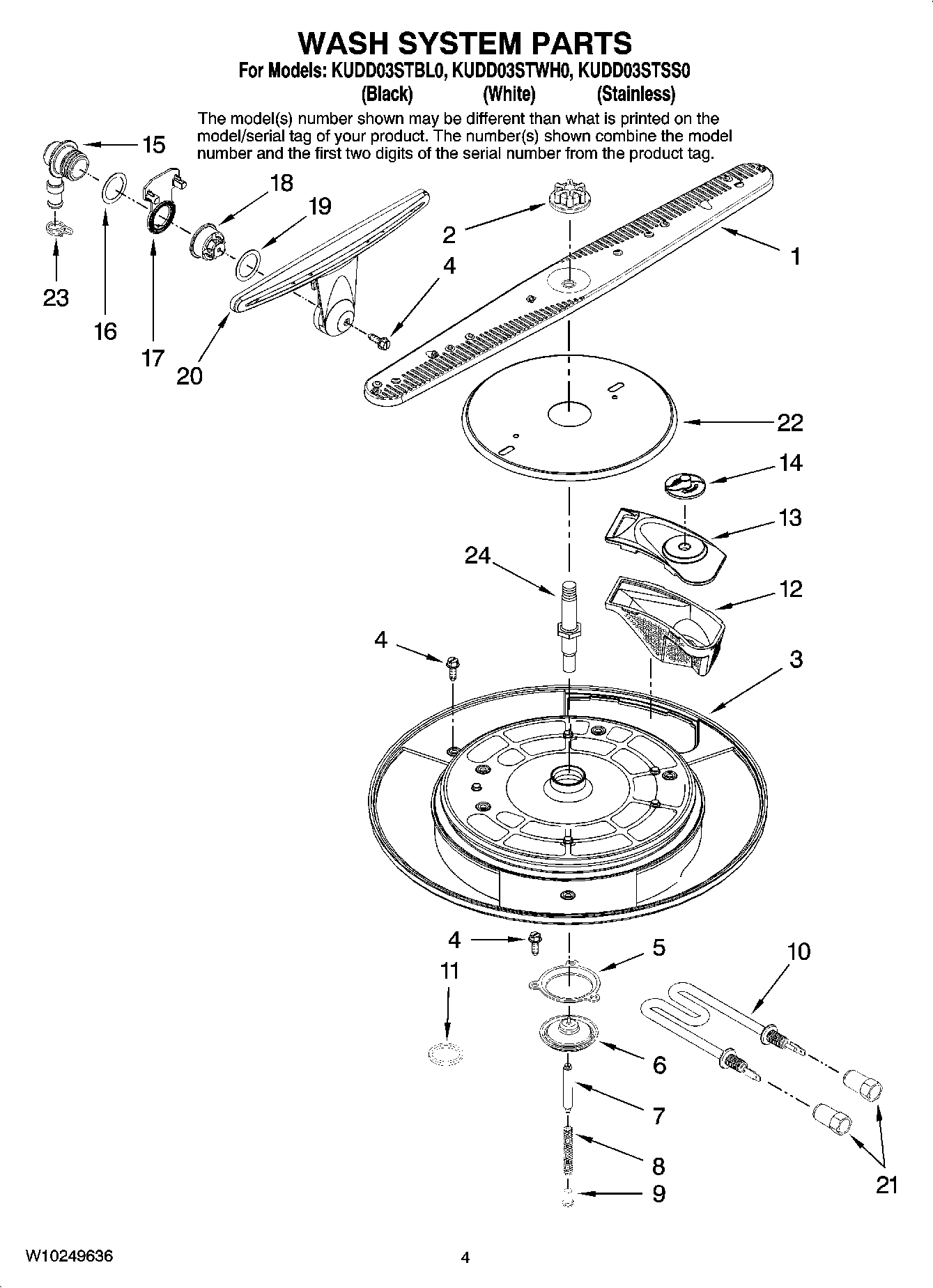

19
WASH PUMP
WASH PUMP WPL 99003730 Contact Us For Availability
View on Model
19
Hose, Drain
Hose, Drain WPL 99003597 Contact Us For Availability
View on Model
20
Y- Connector
Y- Connector WPL Y6919906 Contact Us For Availability
View on Model
22
Shield, Fine Filter
Shield, Fine Filter WPL 99003704 Contact Us For Availability
View on Model
22
Solenoid, Fine Drain
Solenoid, Fine Drain WPL 99003773 Contact Us For Availability
View on Model
23
H BRACKET
H BRACKET WPL 99003727 Contact Us For Availability
View on Model
24
Bracket, Thermostat
Bracket, Thermostat WPL 99003701 Contact Us For Availability
View on Model
28
Bracket, Dispenser
Bracket, Dispenser WPL 99003699 Contact Us For Availability
View on Model
30
Wire Jumper, Heater
Wire Jumper, Heater WPL 99003708 Contact Us For Availability
View on Model
31
Bracket, Drain Pump
Bracket, Drain Pump WPL W10118491 Contact Us For Availability
View on Model
33
Barrier, MCM
Barrier, MCM WPL 99003758 Contact Us For Availability
View on Model
34
Shield, Motor
Shield, Motor WPL W10121259 Contact Us For Availability
View on Model
35
Filter
Filter WPL 99003715 Contact Us For Availability
View on Model
