Model Whirlpool KUBL304EBS01 REFRIGERATOR, WINE CENTER, UNDERCOUNTER, 24 INCH – Common Parts & Diagrams

Common parts from model Whirlpool KUBL304EBS01 REFRIGERATOR, WINE CENTER, UNDERCOUNTER, 24 INCH

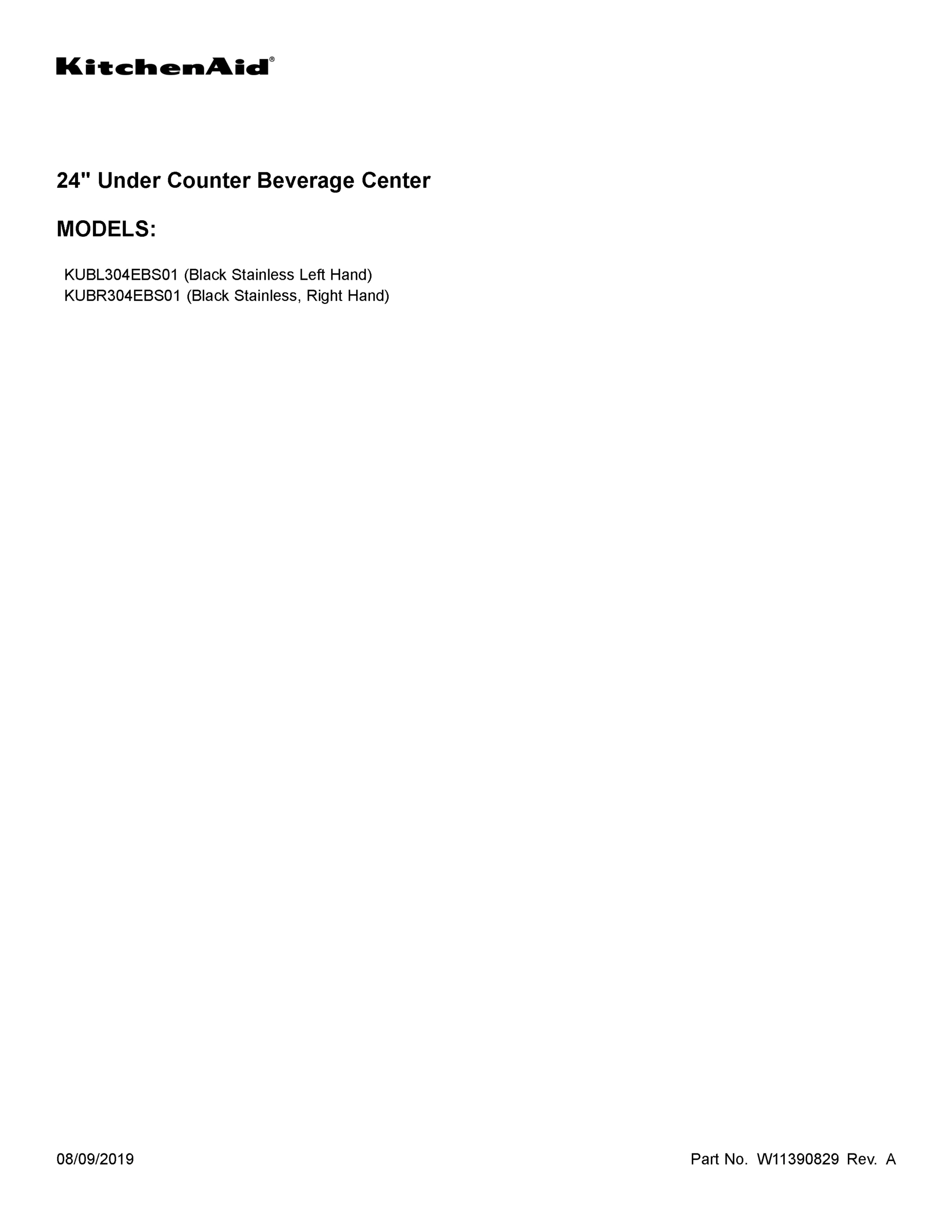

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

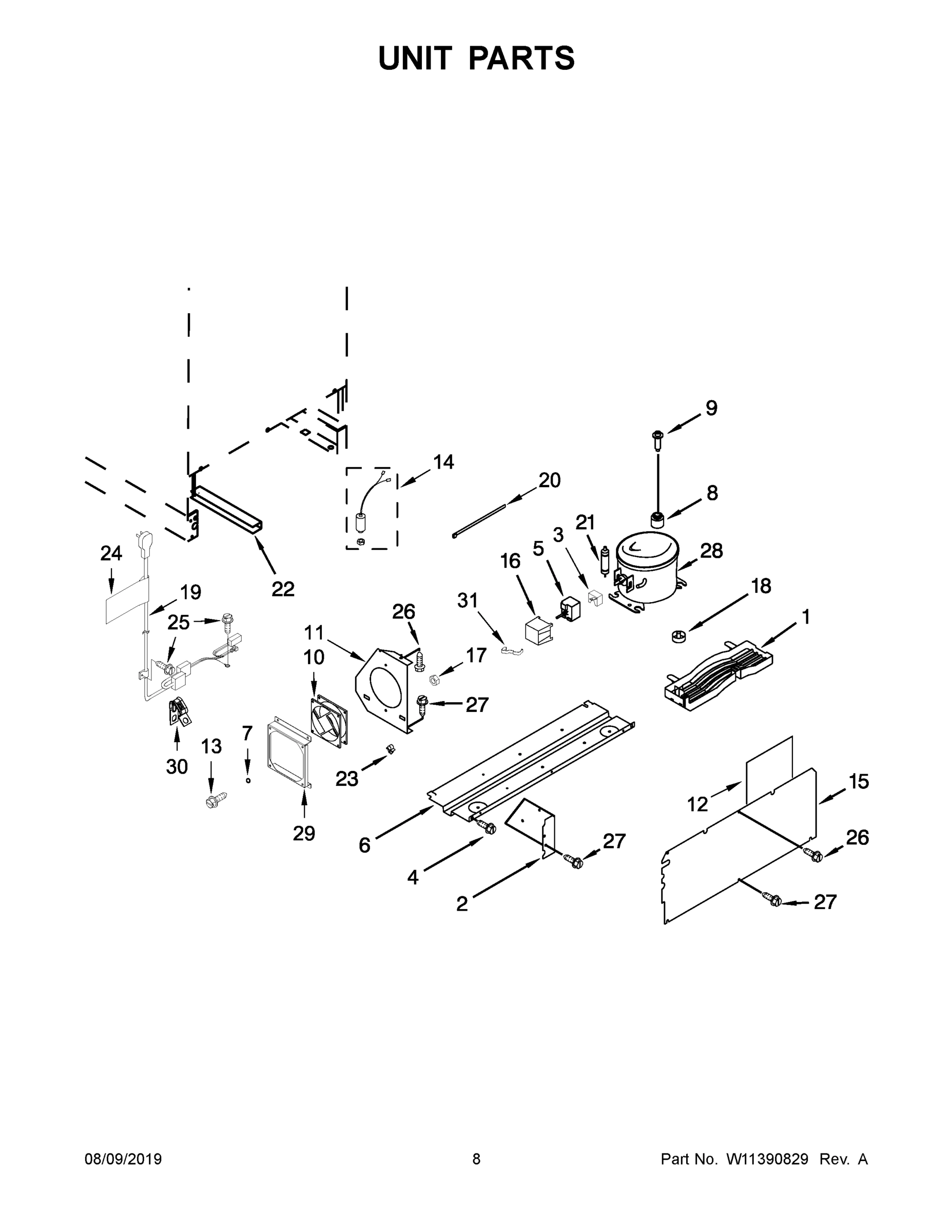

1

W11506518 Whirlpool Refrigerator Drip Pan Backorder WPL W11506518 View Details $69.83

View on Model

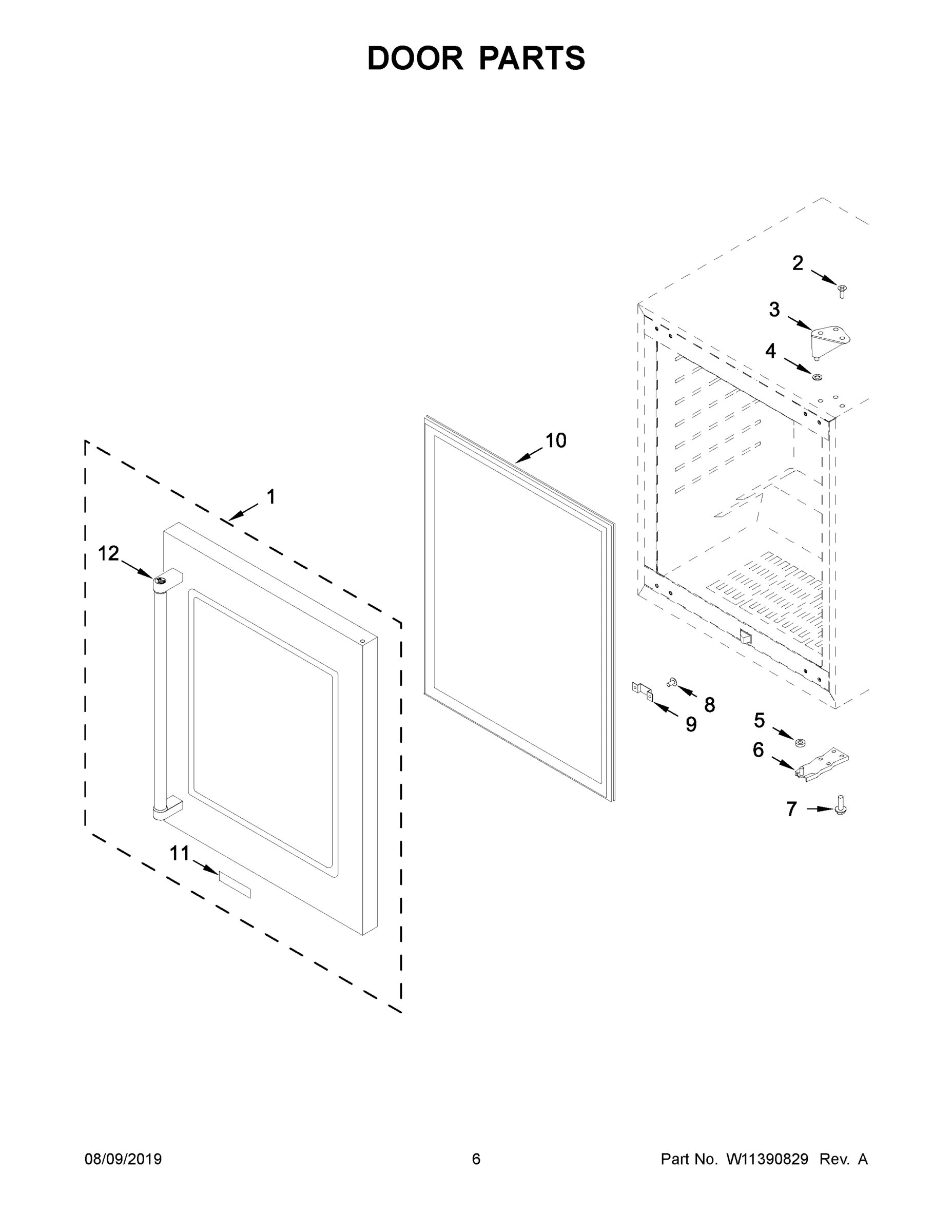

1

W11632845 Whirlpool Refrigerator Door Backorder WPL W11632845 View Details $704.27

View on Model

1A

W10913038 Whirlpool Refrigerator Door Backorder WPL W10913038 View Details $537.38

View on Model

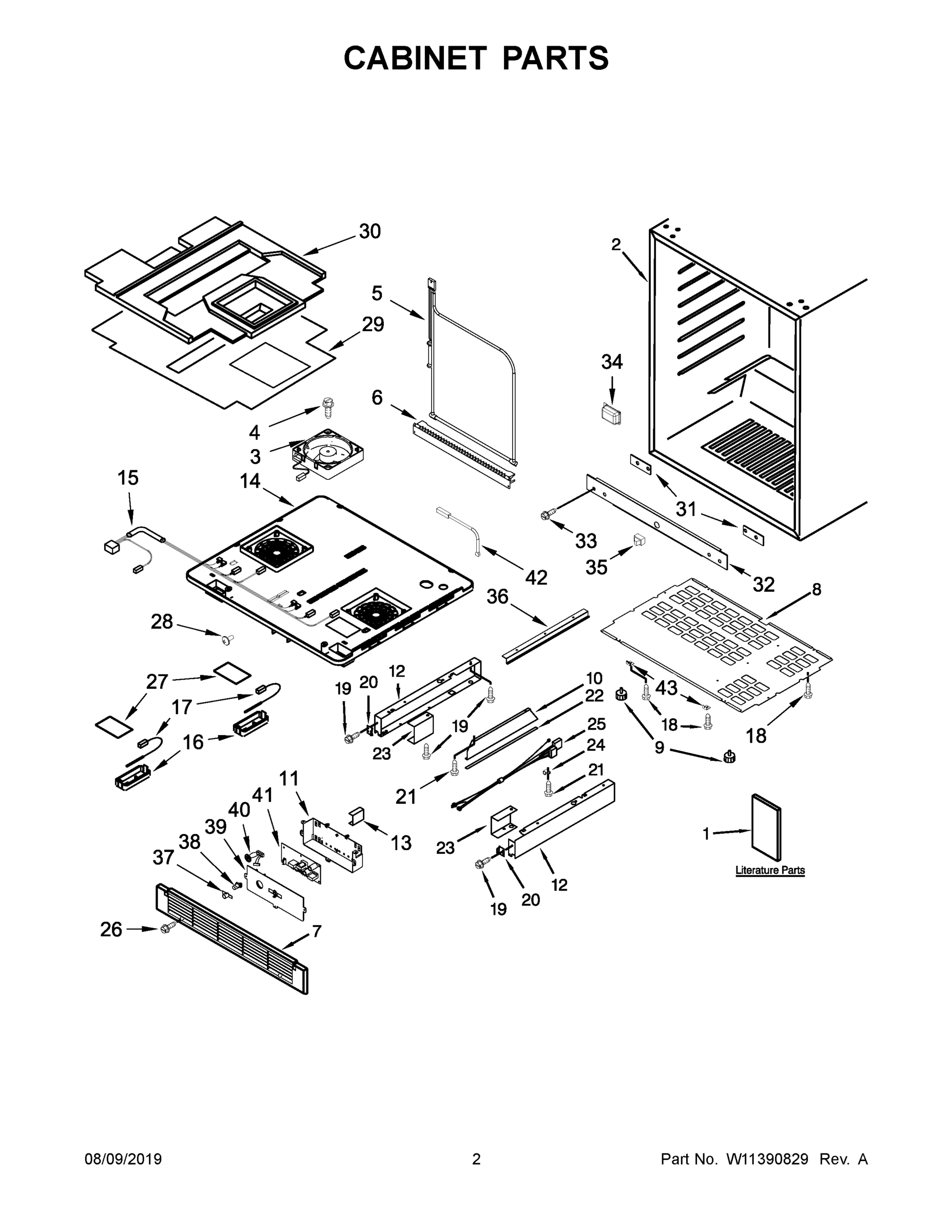

2

W10797333 Whirlpool Refrigerator Support Backorder WPL W10797333 View Details $18.24

View on Model

2

SCREW WPL W10162988 Contact Us For Availability

View on Model

2A

W10797332 Whirlpool Refrigerator Support Backorder WPL W10797332 View Details $18.24

View on Model

3

W10780361 Whirlpool Refrigerator Overload Rel Backorder WPL W10780361 View Details $116.33

View on Model

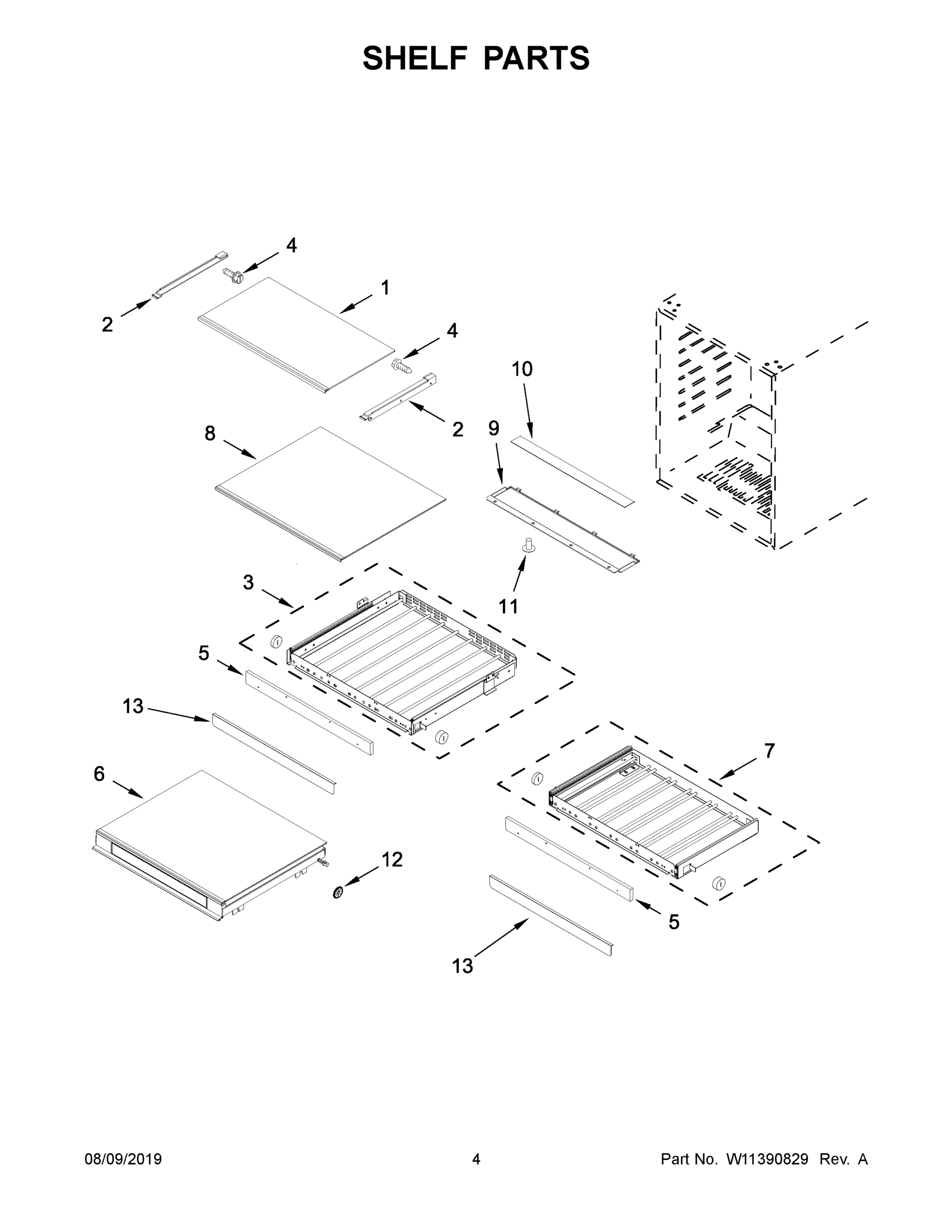

3

W10803968 Whirlpool Refrigerator Wine Shelf Backorder WPL W10803968 View Details $237.57

View on Model

3

W10854409 Whirlpool Refrigerator Evaporator M Backorder WPL W10854409 View Details $231.71

View on Model

3

W10913035 Whirlpool Refrigerator Door Hinge Backorder WPL W10913035 View Details $72.08

View on Model

3A

W10803969 Whirlpool Refrigerator Wine Shelf Backorder WPL W10803969 View Details $237.57

View on Model

4

4344760 Whirlpool Refrigerator Washer Backorder WPL 4344760 View Details $9.81

View on Model

5

W10287848 Whirlpool Refrigerator Thermistor Backorder WPL W10287848 View Details $113.97

View on Model

5

W10292475 Whirlpool Refrigerator Defrost Bime Backorder WPL W10292475 View Details $334.59

View on Model

5

W11241702 Whirlpool Refrigerator Washer Backorder WPL W11241702 View Details $8.39

View on Model

6

W10239363 Whirlpool Refrigerator Door Hinge Backorder WPL W10239363 View Details $54.13

View on Model

6A

4344787 Whirlpool Refrigerator Door Hinge Backorder WPL 4344787 View Details $149.71

View on Model

7

W10780351 Whirlpool Refrigerator Grille Backorder WPL W10780351 View Details $77.86

View on Model

7

W10803971 Whirlpool Refrigerator Wine Shelf Backorder WPL W10803971 View Details $237.57

View on Model

8

W10319187 Whirlpool Refrigerator Screw Backorder WPL W10319187 View Details $50.88

View on Model

9

W10622808 Whirlpool Bracket Backorder WPL W10622808 View Details $19.86

View on Model

9

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 View Details $10.50

View on Model

10

W10772882 Whirlpool Refrigerator Condenser Mo Backorder WPL W10772882 View Details $226.16

View on Model

10

W11441723 Whirlpool Refrigerator Light Backorder WPL W11441723 View Details $187.52

View on Model

10

W11625076 Whirlpool Refrigerator Gasket Backorder WPL W11625076 View Details $67.40

View on Model

11

W10772866 Whirlpool Refrigerator Control Box Backorder WPL W10772866 View Details $65.05

View on Model

11

W11179312 Whirlpool Refrigerator Nameplate Backorder WPL W11179312 View Details $61.35

View on Model

12

W10621514 Whirlpool Refrigerator Temperature Backorder WPL W10621514 View Details $17.38

View on Model

12

W10797389 Whirlpool Refrigerator Support Backorder WPL W10797389 View Details $203.90

View on Model

12

HANDLE (NOT SERVICED) WPL NP Contact Us For Availability

View on Model

13

W10803984 Whirlpool Refrigerator Shelf Trim Backorder WPL W10803984 View Details $88.61

View on Model

14

W10772895 Whirlpool Refrigerator Capacitor Backorder WPL W10772895 View Details $91.92

View on Model

14

W10802010 Whirlpool Refrigerator Evaporator C Backorder WPL W10802010 View Details $146.79

View on Model

17

W11238391 Whirlpool Refrigerator Thermistor Backorder WPL W11238391 View Details $84.14

View on Model

18

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 View Details $62.45

View on Model

19

W10780355 Whirlpool Refrigerator Screw Backorder WPL W10780355 View Details $34.77

View on Model

20

W10204640 Whirlpool Refrigerator Clip Backorder WPL W10204640 View Details $55.19

View on Model

21

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 View Details $67.94

View on Model

21

SCREW WPL 4344825 Contact Us For Availability

View on Model

23

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 View Details $94.38

View on Model

23A

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 View Details $148.43

View on Model

25

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 View Details $10.30

View on Model

25

W10772870 Whirlpool Refrigerator Wire Harness Backorder WPL W10772870 View Details $85.64

View on Model

28

W11765283 Whirlpool Compressor Backorder WPL W11765283 View Details $624.91

View on Model

29

W10802014 Whirlpool Refrigerator Cabinet Base Backorder WPL W10802014 View Details $172.73

View on Model

30

W10802011 Whirlpool Refrigerator Sealer Backorder WPL W10802011 View Details $16.61

View on Model

33

W10780349 Whirlpool Refrigerator Screw Backorder WPL W10780349 View Details $34.82

View on Model

34

W10788689 Whirlpool Cover Backorder WPL W10788689 View Details $77.08

View on Model

35

W10721454 Whirlpool Refrigerator Switch Backorder WPL W10721454 View Details $26.78

View on Model

36

W10204674 Whirlpool Refrigerator Baffle Backorder WPL W10204674 View Details $84.93

View on Model

37

W10797391 Whirlpool Refrigerator Cover Backorder WPL W10797391 View Details $59.45

View on Model

38

PROXIMITY SENSOR WPL W10780359 Contact Us For Availability

View on Model

39

W10772869 Whirlpool Refrigerator Cover Backorder WPL W10772869 View Details $71.37

View on Model

40

W10780358 Whirlpool Refrigerator Speaker Backorder WPL W10780358 View Details $108.18

View on Model

41

W10807595-includeCORE Whirlpool W10807595 Ref Backorder WPL W10807595-includeCORE View Details $332.04

View on Model

42

W11573590 Whirlpool Refrigerator Thermistor Backorder WPL W11573590 View Details $41.78

View on Model

43

W10239388 Whirlpool Brace Backorder WPL W10239388 View Details $53.03

View on Model

×
