Model Whirlpool KTT570 TOASTER – Common Parts & Diagrams

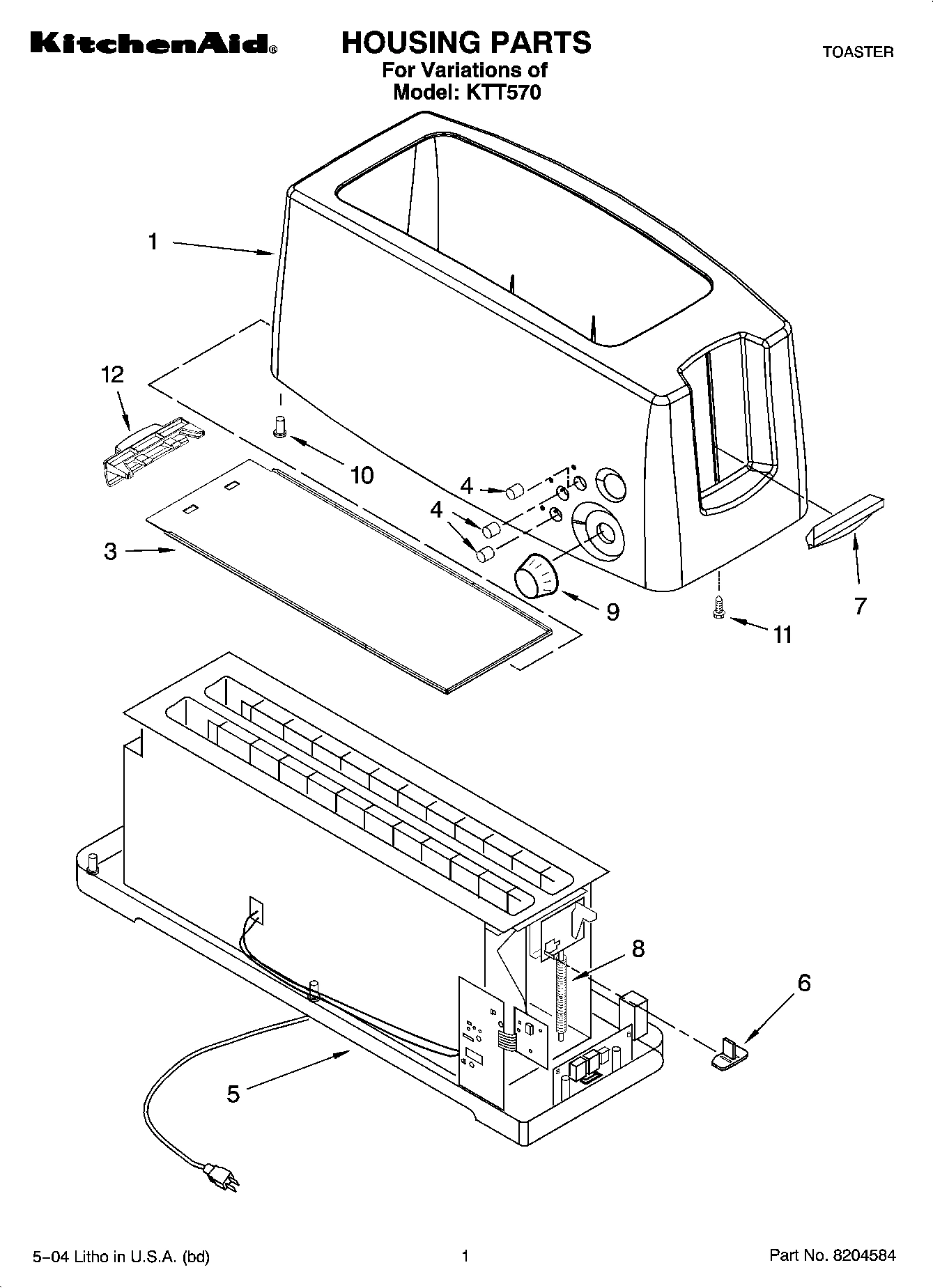

01 - HOUSING PARTS
Common parts from model Whirlpool KTT570 TOASTER
1
Housing, Upper Assembly (Includes Item 4) (Wh WPL 4176780 Contact Us For Availability
1
Housing, Upper Assembly (Includes Item 4) (Co WPL 4176781 Contact Us For Availability
1
Housing, Upper Assembly (Includes Item 4) (On WPL 4176782 Contact Us For Availability
1
Housing, Upper Assembly (Includes Item 4) (Em WPL 4176783 Contact Us For Availability
3
Tray, Crumb WPL 4176804 Contact Us For Availability
4
Button, Function (Top) WPL 4176788 Contact Us For Availability
4
Button, Function (Center) WPL 4176789 Contact Us For Availability
4
Button, Function (Bottom) WPL 4176790 Contact Us For Availability
5
Base-Core Assembly (Not Serviced) WPL ARI113086A Contact Us For Availability
6
Holder, Magnet WPL 4176690 Contact Us For Availability
7
Knob, Toast (White) WPL 4176791 Contact Us For Availability
7
Knob, Toast (Cobalt Blue) WPL 4176792 Contact Us For Availability
7
Knob, Toast (Onyx Black) WPL 4176793 Contact Us For Availability
7
Knob, Toast (Empire Red) WPL 4176794 Contact Us For Availability
8
Spring, Compression WPL 4176784 Contact Us For Availability
9
Knob, Darkness (White) WPL 4176776 Contact Us For Availability
9
Knob, Darkness (Cobalt Blue) WPL 4176777 Contact Us For Availability
9
Knob, Darkness (Onyx Black) WPL 4176778 Contact Us For Availability
9
Knob, Darkness (Empire Red) WPL 4176779 Contact Us For Availability
10
Foot, Rubber WPL 4176775 Contact Us For Availability
11
Screw, Housing WPL 4176800 Contact Us For Availability
12
Handle, Crumb Tray (White) WPL 4176785 Contact Us For Availability
12
Handle, Crumb Tray (Cobalt Blue) WPL 4176786 Contact Us For Availability
12
Handle, Crumb Tray (Onyx Black) WPL 4176787 Contact Us For Availability
12
Handle, Crumb Tray (Empire Red) WPL 4176803 Contact Us For Availability
12
Guide, Use and Care WPL 8204530 Contact Us For Availability
12
LITERATURE PARTS WPL ARI113087A Contact Us For Availability
× ![]()
