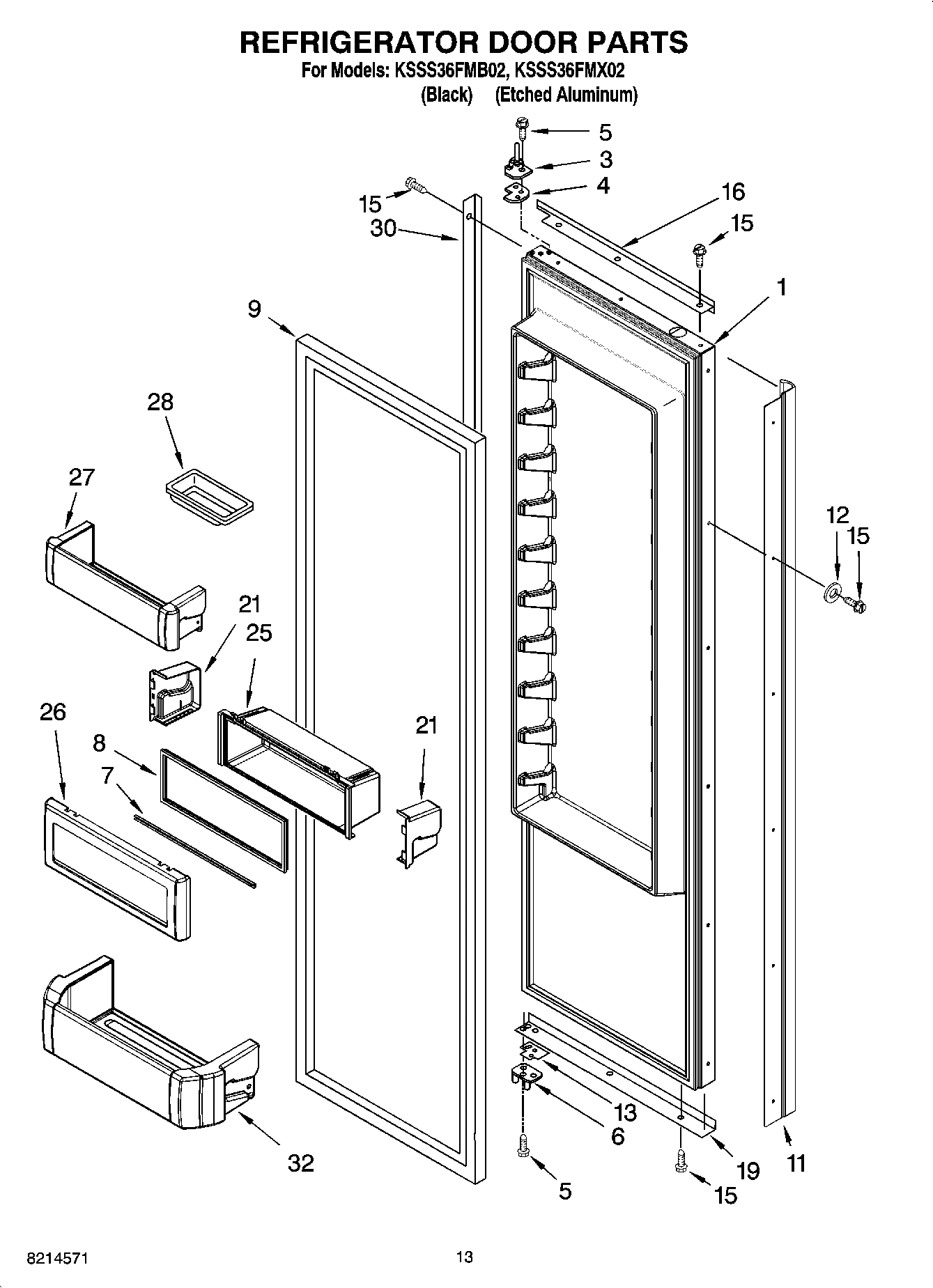

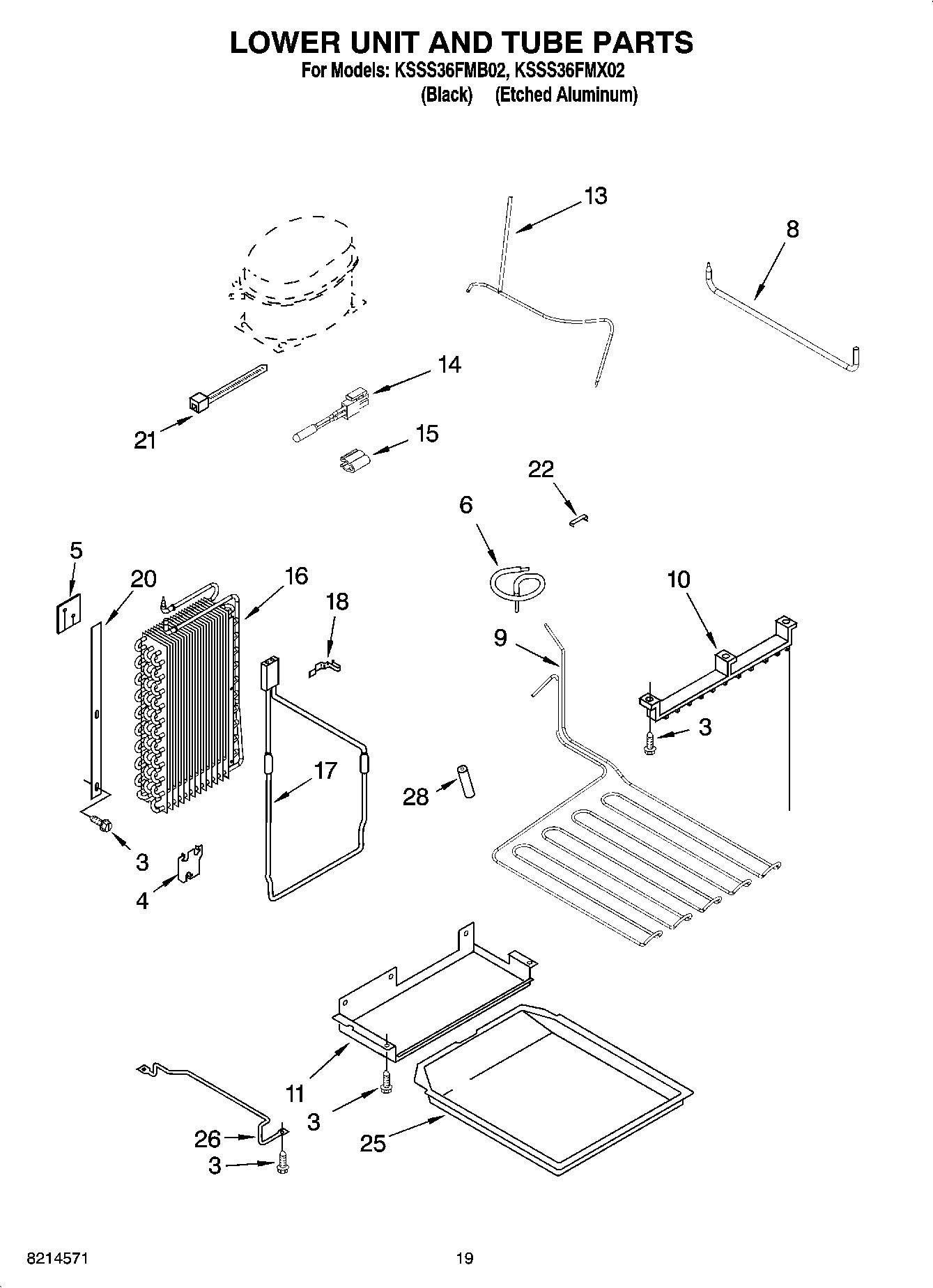

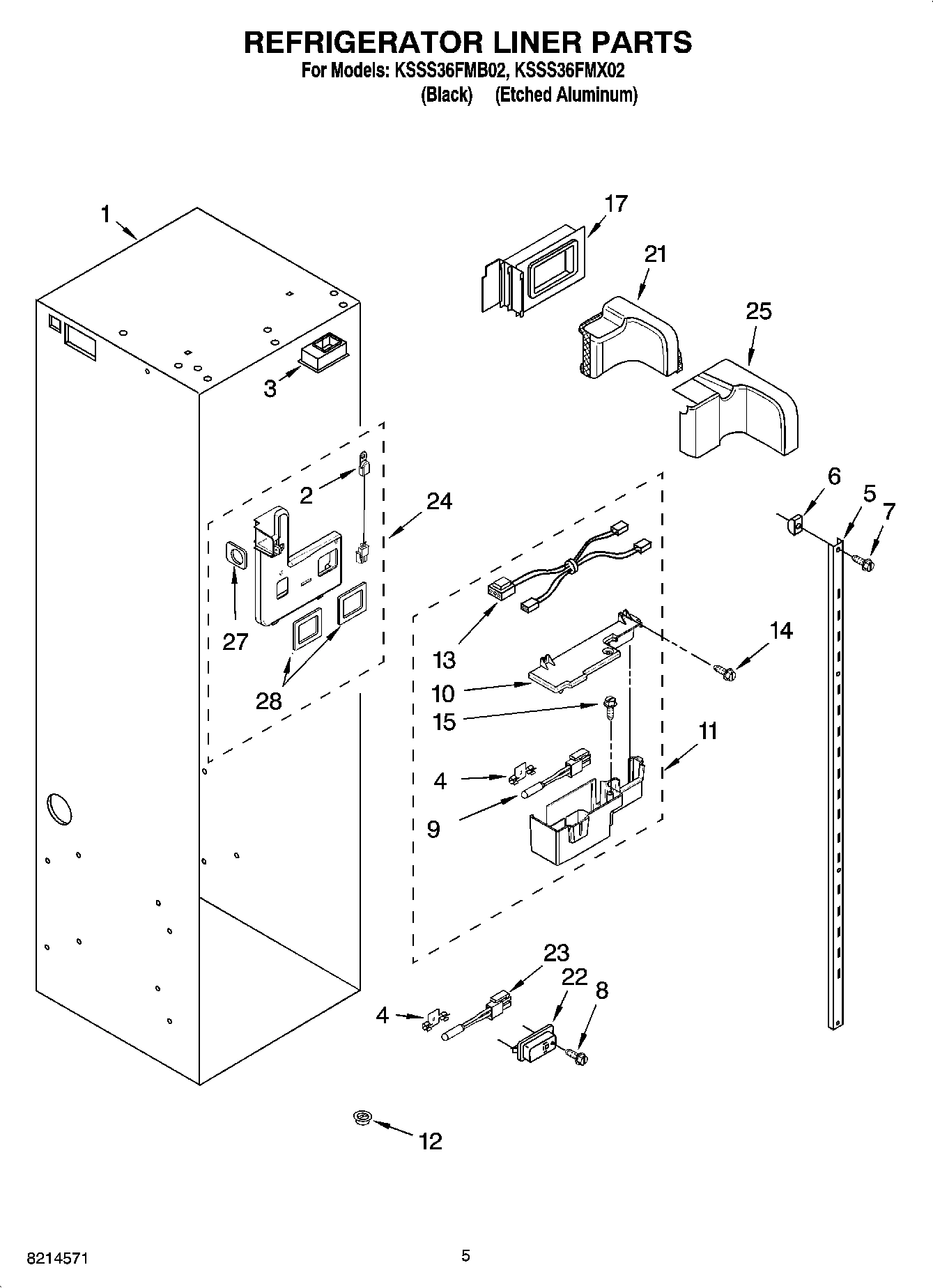

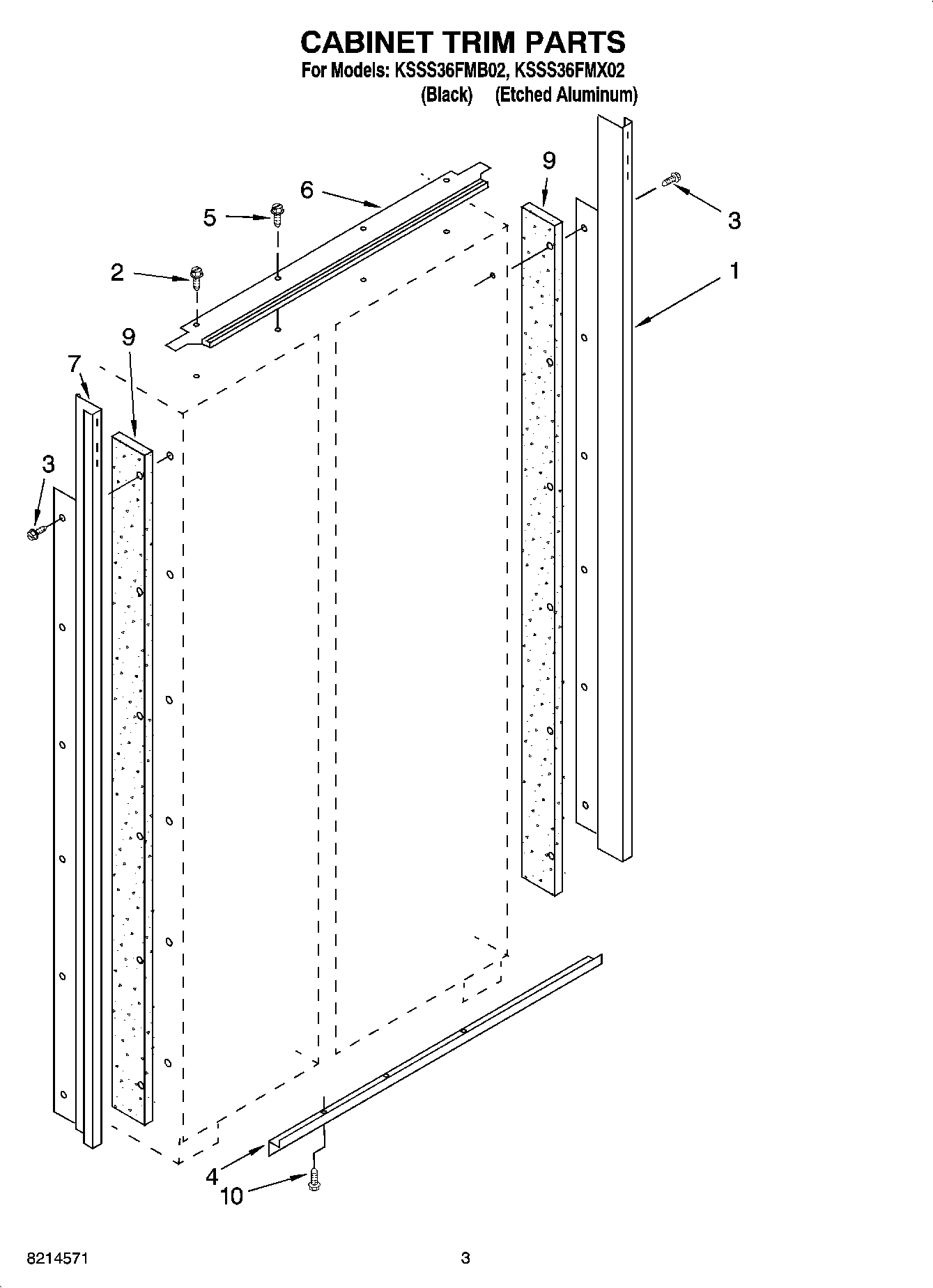

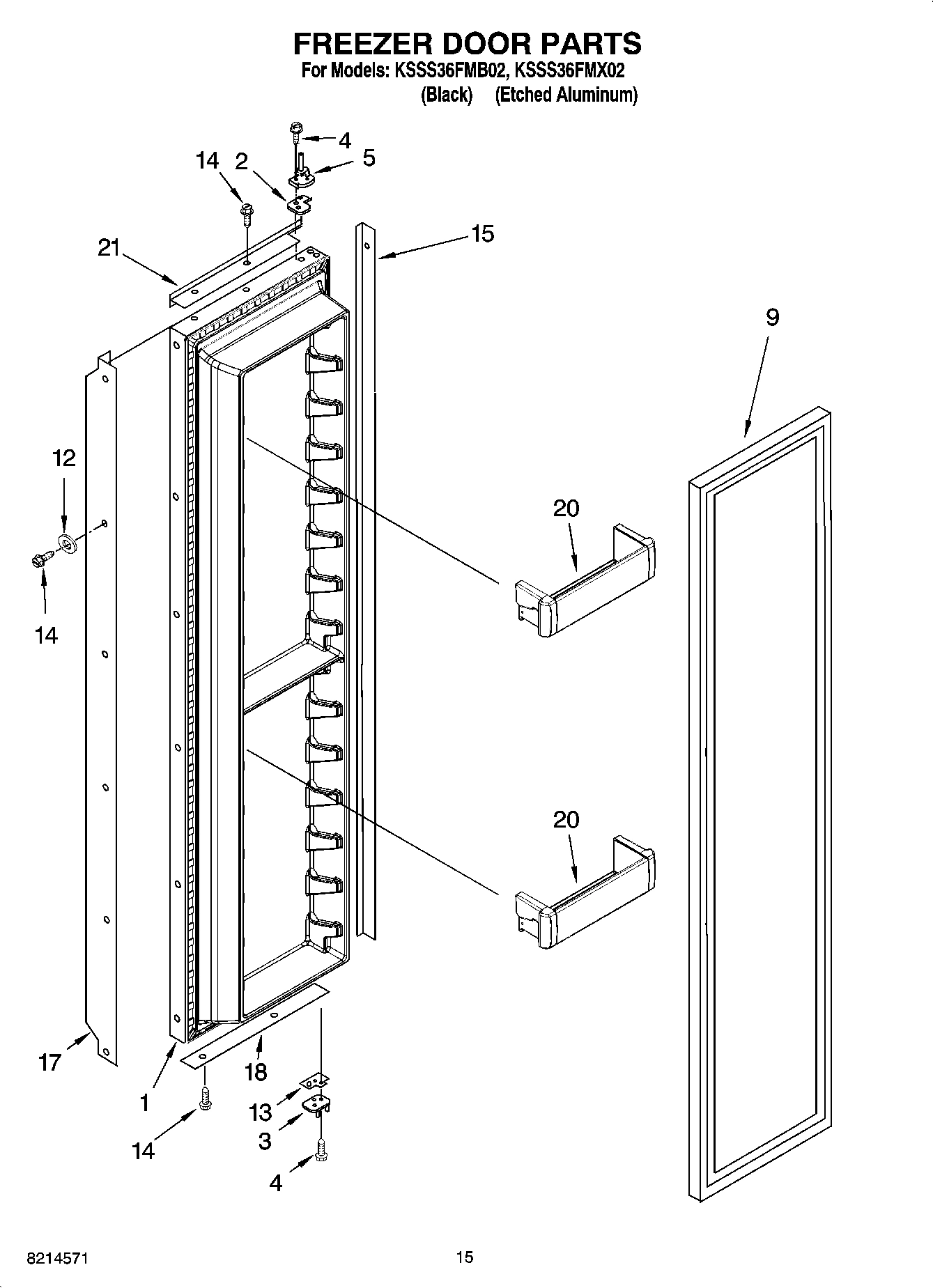

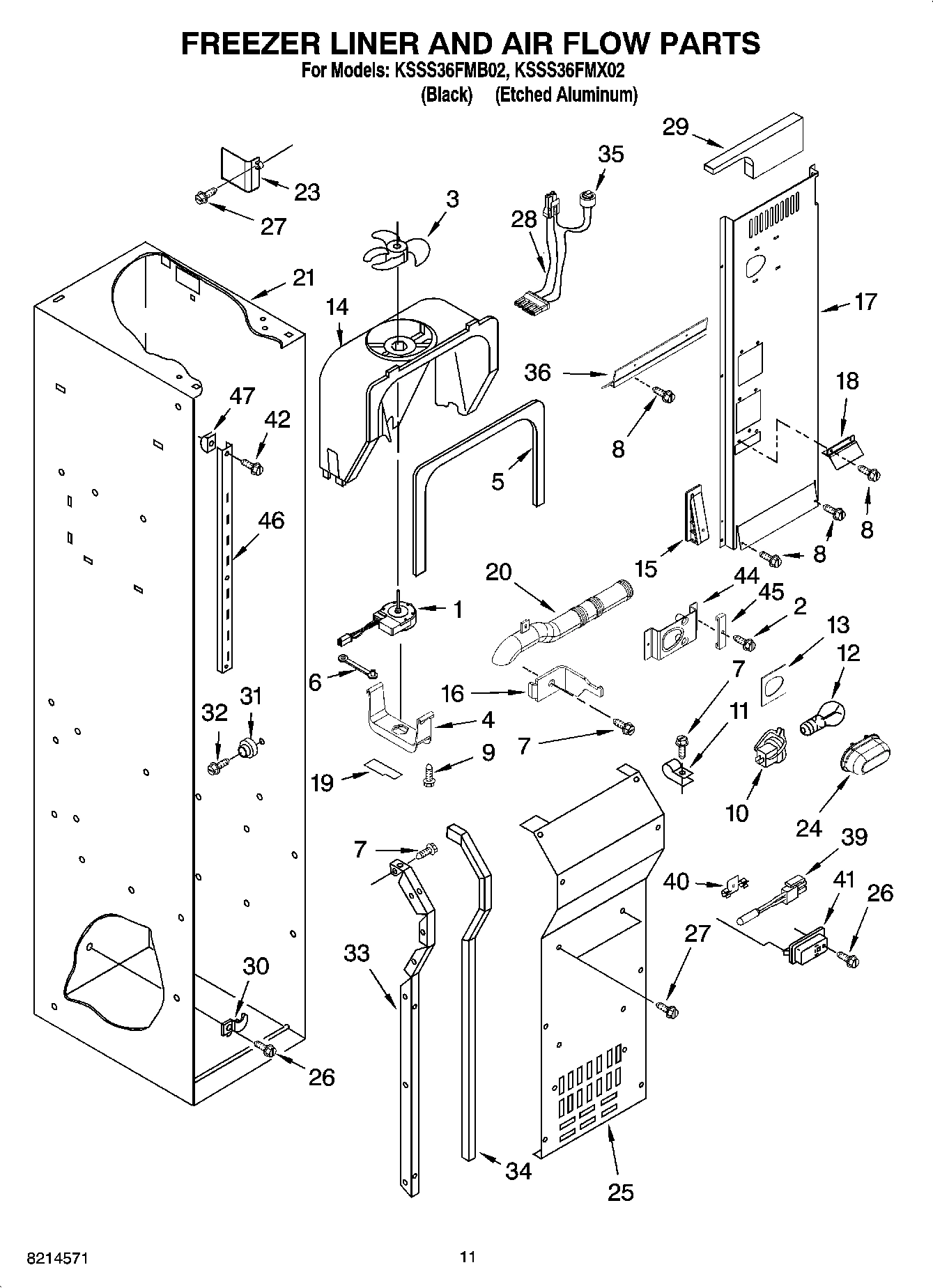

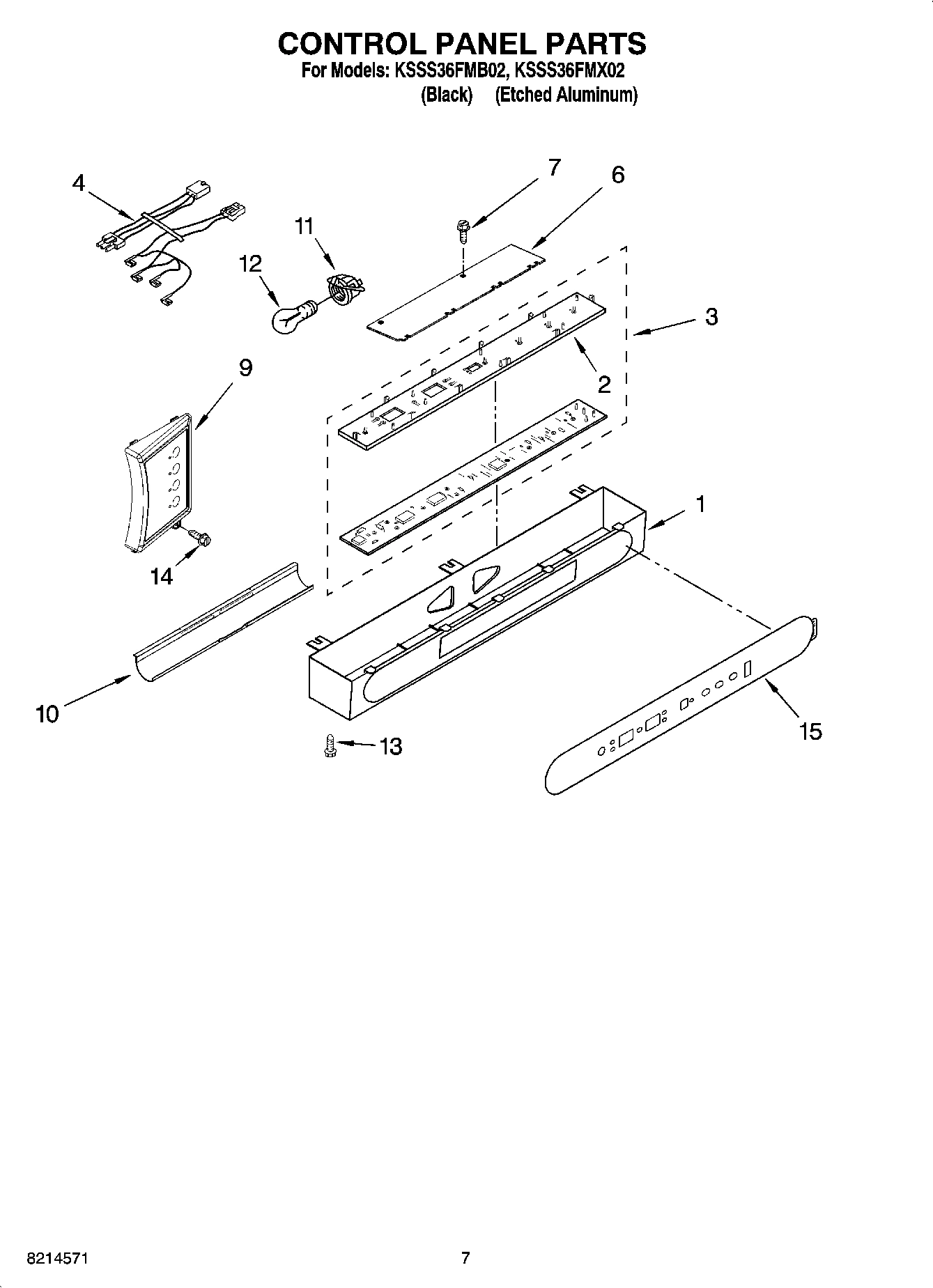

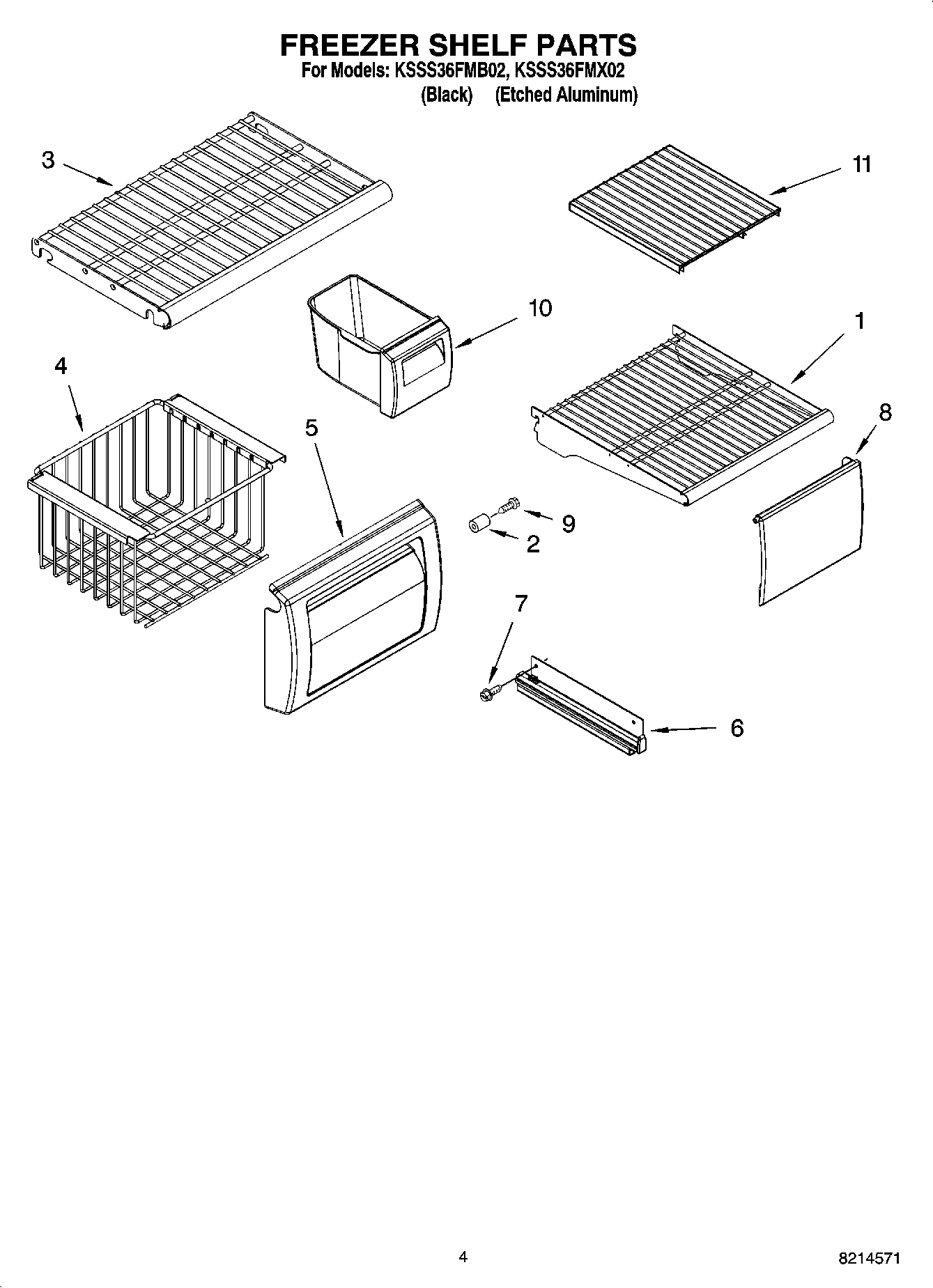

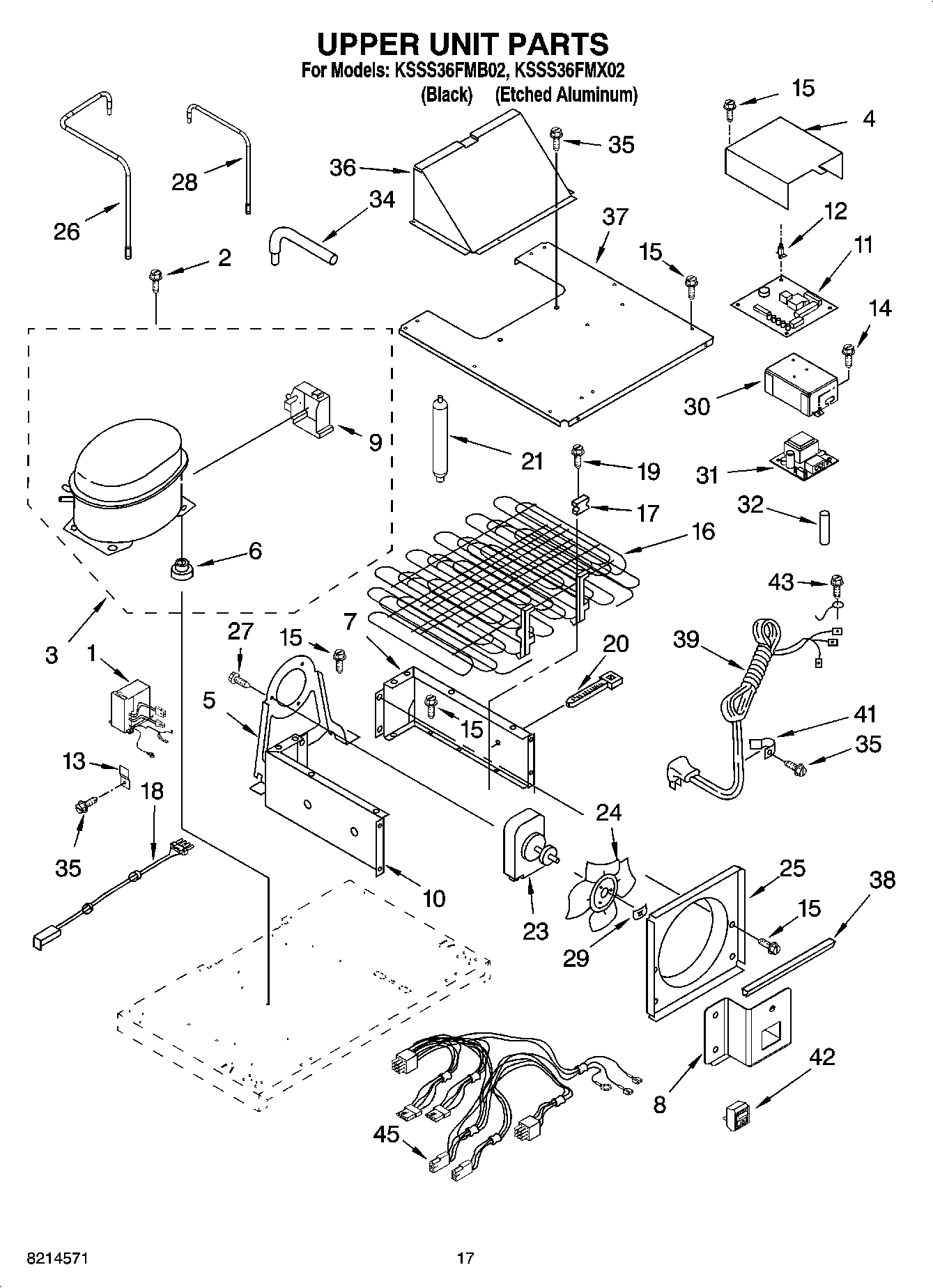

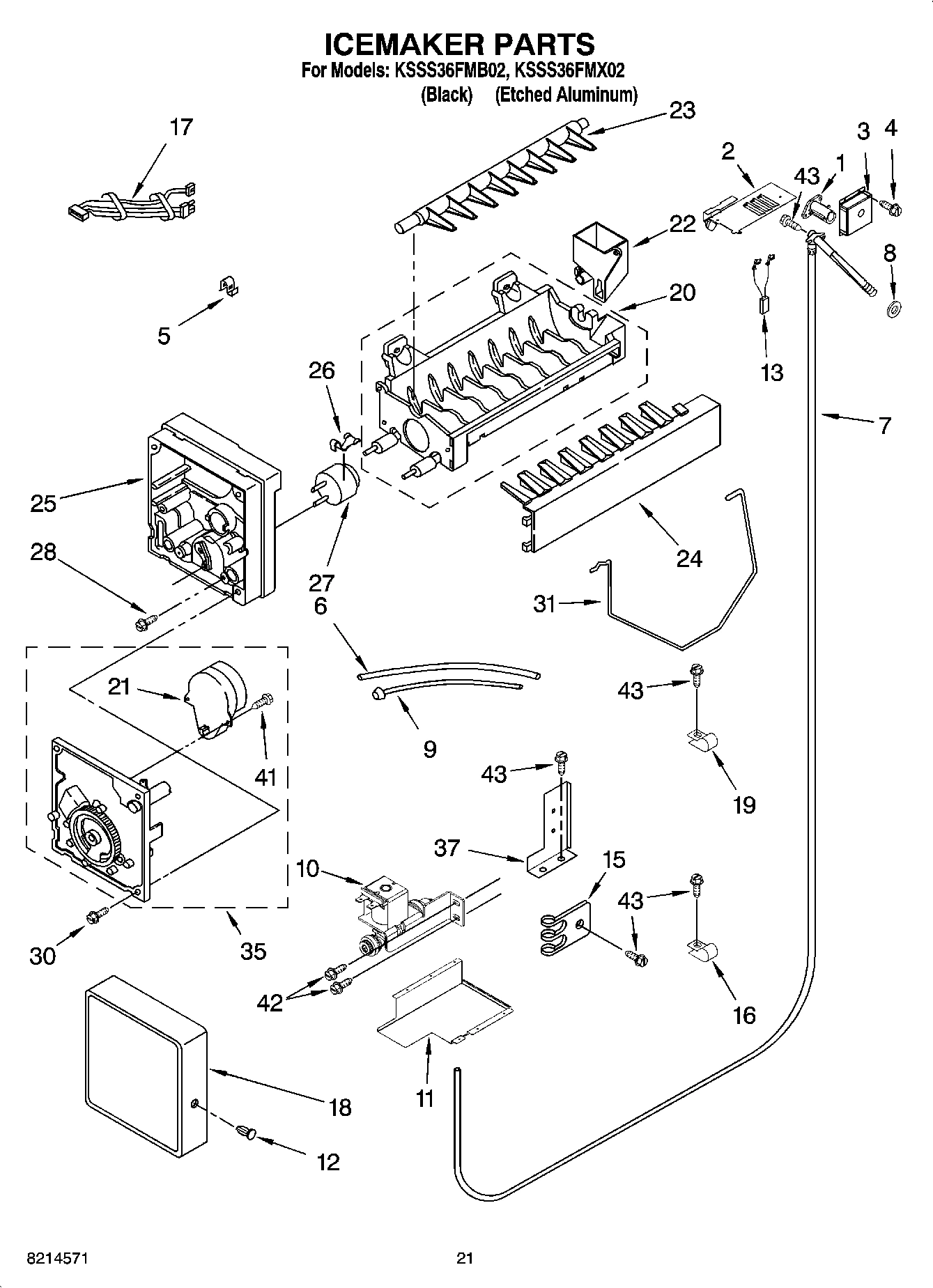

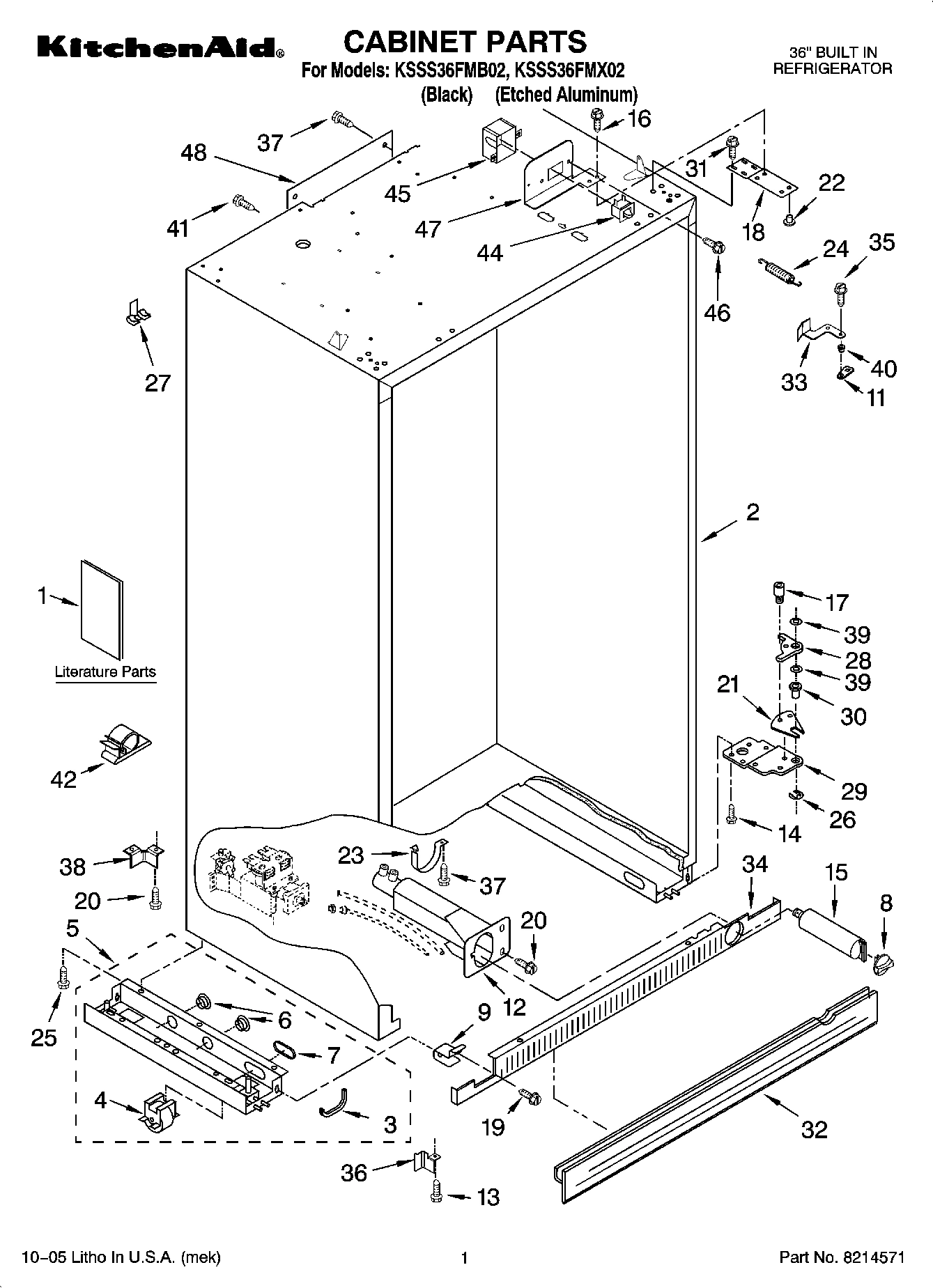

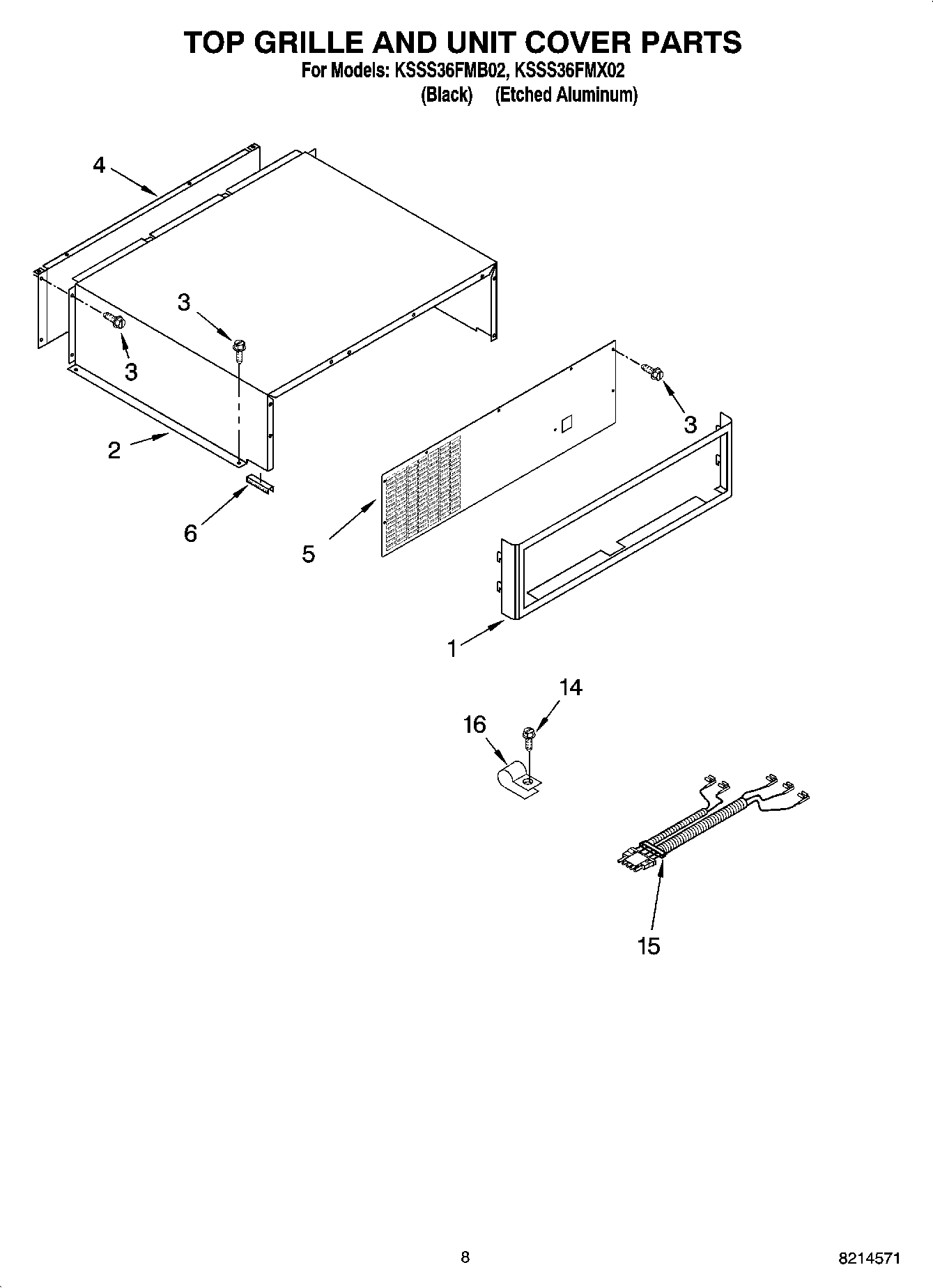

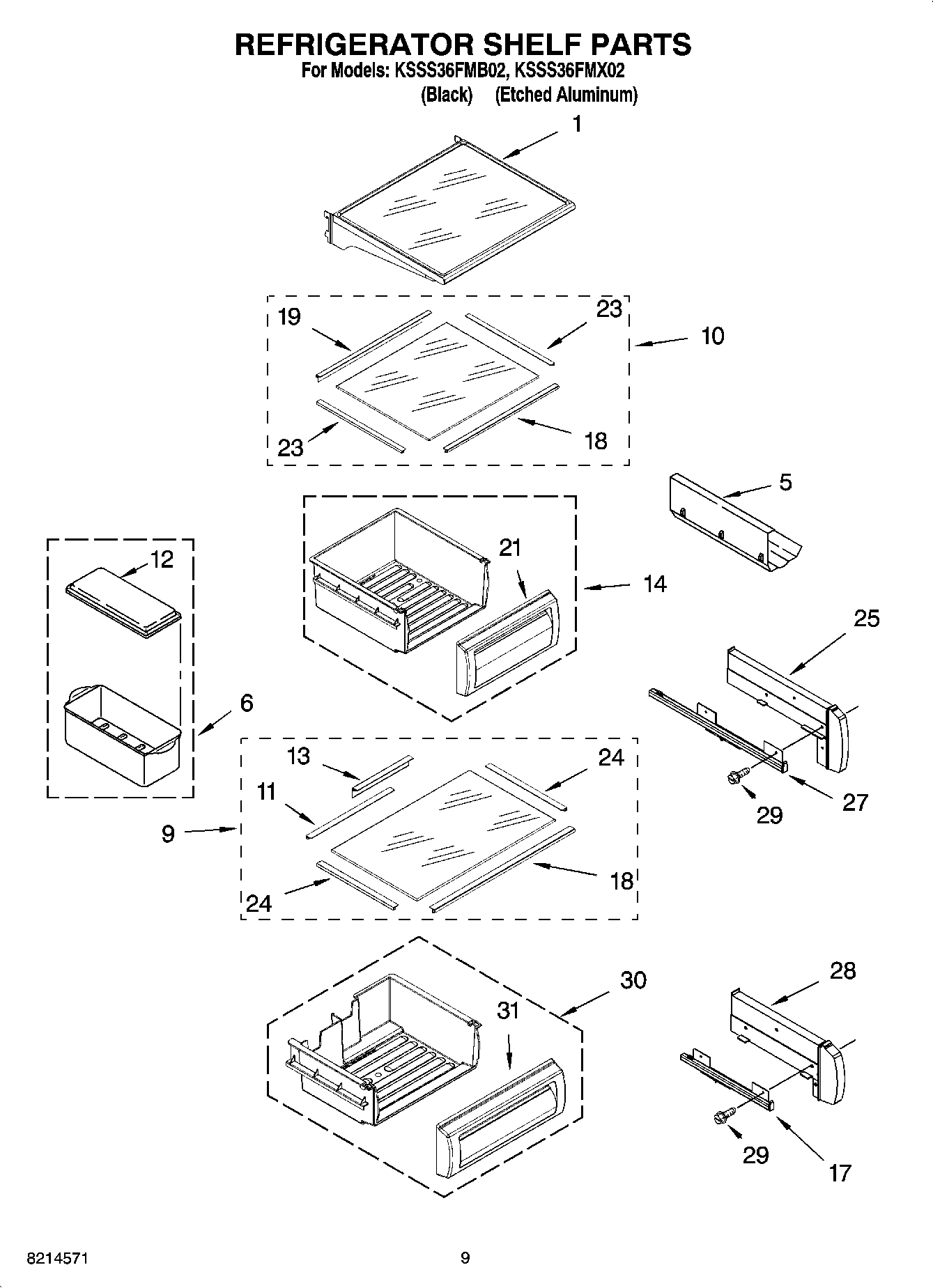

Model Whirlpool KSSS36FMX02 36`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Fan Motor WPL 2259385 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI106605A Contact Us For Availability

1

Control Box WPL 2302771 Contact Us For Availability

1

Shelf Assembly WPL 2222591 Contact Us For Availability

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $57.99

2

Spacer, Top Door WPL 2256381 Contact Us For Availability

2

Insert, Control Box WPL 2303938 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $97.38

3

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $36.99

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

3

Circuit Board, Housing Control WPL 2302913 Contact Us For Availability

4

2259081 Whirlpool Refrigerator Basket Backorder WPL 2259081 $219.36

4

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

4

Bracket WPL 2215508 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

5

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $176.96

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $50.70

5

WP2302817 Whirlpool Refrigerator Gasket Backorder WPL WP2302817 $62.15

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Side Support WPL 2302929 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $158.71

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $58.07

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

6

W11669856 Whirlpool Grommet Backorder WPL W11669856 $9.12

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $215.89

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Egg Bin Assembly WPL 2221071 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $8.39

7

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $54.62

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

8

WP2222981 Whirlpool Refrigerator Gasket In Stock WPL WP2222981 $140.92

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

8

Tube, Connect (Drier) WPL 2259304 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

W11624976 Whirlpool Refrigerator FIP Gasket Backorder WPL W11624976 $193.41

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $54.60

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $226.84

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Heater, Drain Pan WPL 2259329 Contact Us For Availability

9

Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $68.69

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $166.59

Hanger, Heater WPL 2209450 Contact Us For Availability

Shield, Light WPL 2302727 Contact Us For Availability

Crisper Cover Assembly WPL 2302834 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Side Glass WPL 2257611 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Baffle, Control Assembly WPL 2302987 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $165.50

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

Washer, Nylon WPL 2001230 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

Spacer, Door (Bottom) WPL 2257637 Contact Us For Availability

Seal-Light, Socket WPL 2302777 Contact Us For Availability

Tube, Discharge WPL 2259352 Contact Us For Availability

Harness, Jumper WPL 2187619 Contact Us For Availability

Trim, Rear Glass WPL 2257581 Contact Us For Availability

W10407623 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407623 $152.65

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $62.16

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $64.64

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Clip, Thermistor WPL 2209204 Contact Us For Availability

Trim, Side Door (Etched Aluminum) WPL 2005962 Contact Us For Availability

Trim, Side Door (Black) WPL 2005966 Contact Us For Availability

OVERLAY WPL 2257518 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

WP2306092 Whirlpool Refrigerator Evaporator Backorder WPL WP2306092 $216.13

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

CONDENSER WPL 2259307 Contact Us For Availability

Bracket, Vent Tube WPL 2302925 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $221.69

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $221.69

W11769878 Whirlpool Screw Backorder WPL W11769878 $8.39

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

Heater, Defrost WPL 2306387 Contact Us For Availability

Air Duct WPL 2306042 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2256472 Contact Us For Availability

Handle, Door (Black) WPL 2256472B Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $90.20

Deflector, Air WPL 2266801 Contact Us For Availability

Trim, Bottom Door (Etched Aluminum) WPL 2215984 Contact Us For Availability

Trim, Bottom Door (Black) WPL 2215984B Contact Us For Availability

Trim, Front Glass (Not Serviced Separately) WPL ARI106606A Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $59.00

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $126.77

Screw WPL 487522 Contact Us For Availability

Trim, Rear Glass WPL 2256253 Contact Us For Availability

20

W10323601 Whirlpool Refrigerator Cantilever B Backorder WPL W10323601 $58.43

20

Gasket, Evaporator WPL 2220832 Contact Us For Availability

20

Tube, Vent WPL 2302933 Contact Us For Availability

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

WP2256247 Whirlpool Front Pan Backorder WPL WP2256247 $79.99

WP2309222 Whirlpool Refrigerator Diffuser Backorder WPL WP2309222 $62.78

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Liner (Not A Serviceable Part) WPL ARI106607A Contact Us For Availability

Trim, Top Door (Etched Aluminum) WPL 2005019 Contact Us For Availability

Trim, Top Door (Black) WPL 2005885 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $58.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Bushing WPL 2300082 Contact Us For Availability

23

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $60.06

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

23

Trim, Side Glass Crisper Pan WPL 2252255 Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $54.61

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $198.06

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $57.59

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $54.61

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $11.41

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $170.91

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Cover, Evaporator WPL 2314042 Contact Us For Availability

26

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

26

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $203.21

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $155.33

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

2256243 Whirlpool Refrigerator Track In Stock WPL 2256243 $53.81

2256244 Whirlpool Refrigerator Track Backorder WPL 2256244 $67.29

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $8.23

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

Harness, Wire (Includes Item 35) WPL 2187673 Contact Us For Availability

DEFLECTOR Backorder WPL 2309282 $61.48

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $81.96

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $181.40

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $4.82

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.99

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $6.78

30

W10407626 Whirlpool Refrigerator Meat Pan Backorder WPL W10407626 $120.24

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $55.57

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2256365 Whirlpool Refrigerator Front Pan Backorder WPL WP2256365 $107.22

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $100.99

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $107.67

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $81.47

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $50.90

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $54.25

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $16.21

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

34

Grille Bottom, Front WPL 2209425B Contact Us For Availability

35

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $83.74

35

Screw WPL 2005921 Contact Us For Availability

36

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $23.27

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $59.47

36

Support, Air Duct WPL 2302849 Contact Us For Availability

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

42

WPL 2004514 WPL 2004514 Contact Us For Availability

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

44

Bracket, Light WPL 2257571 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $59.36

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Spacer, Light Bracket WPL 2259446 Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $49.71

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $63.54

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $63.54

47

Support, Screw WPL 2259397 Contact Us For Availability

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $65.16
