Model Whirlpool KRMF336SPS00 Refrigerator – Common Parts & Diagrams
COVER

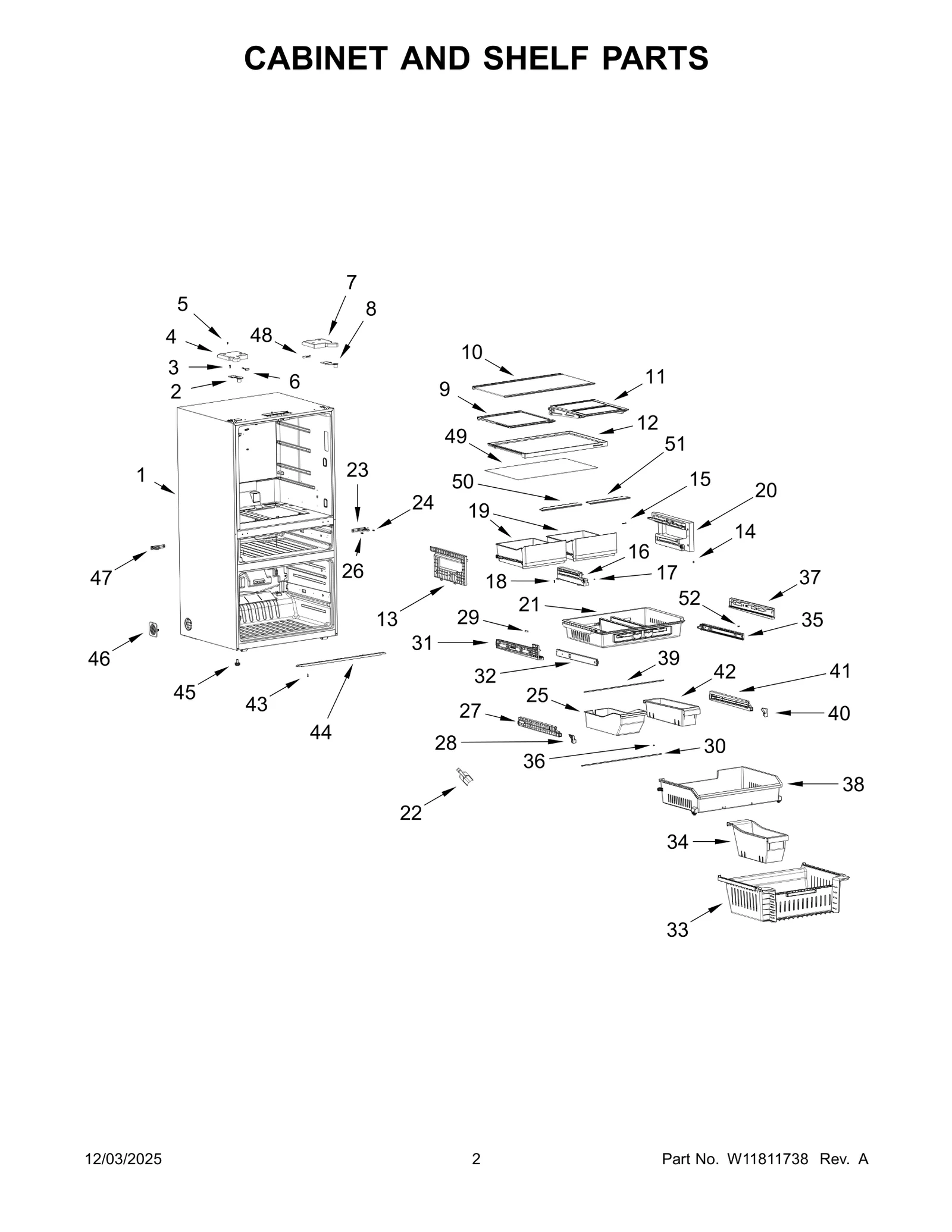

CABINET AND SHELF PARTS

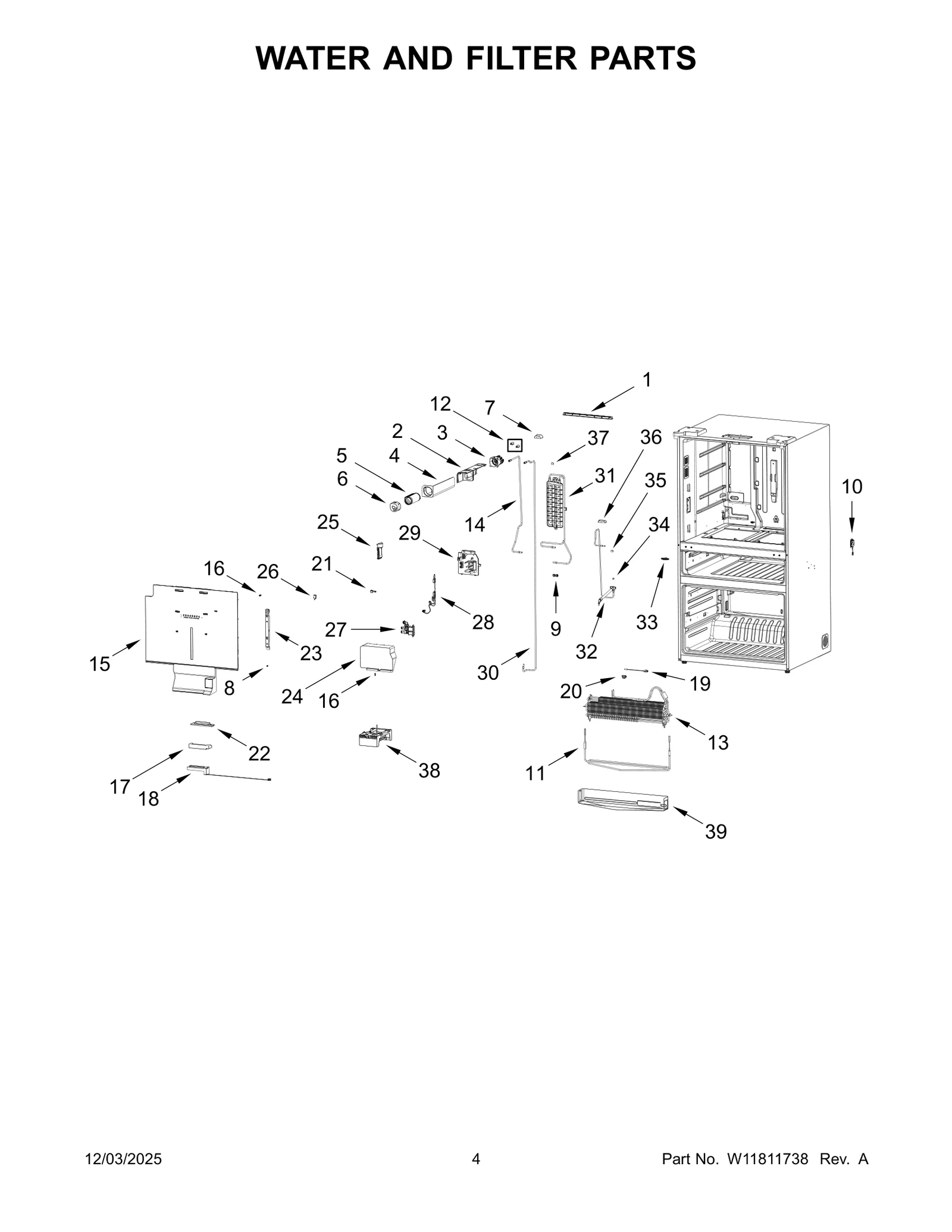

WATER AND FILTER PARTS

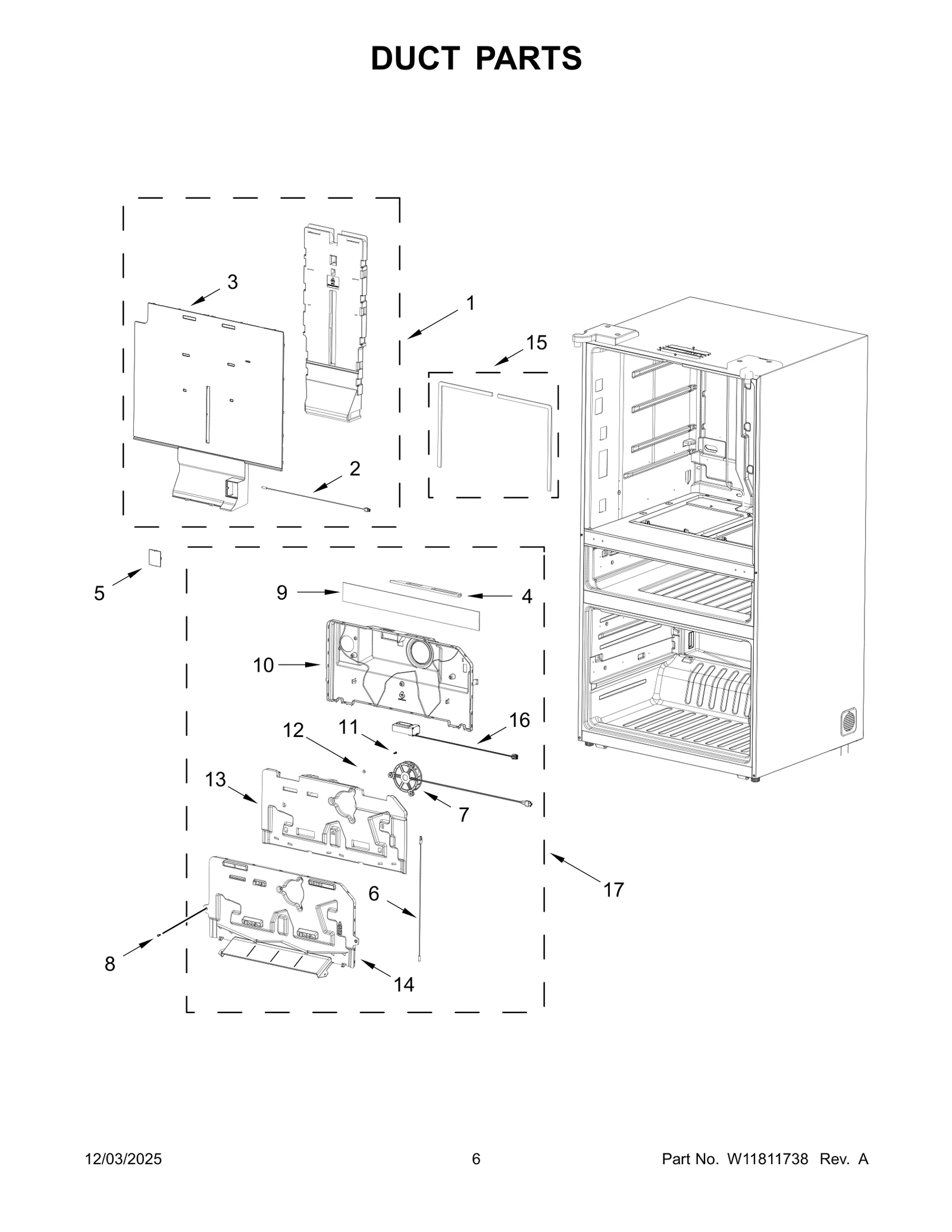

DUCT PARTS

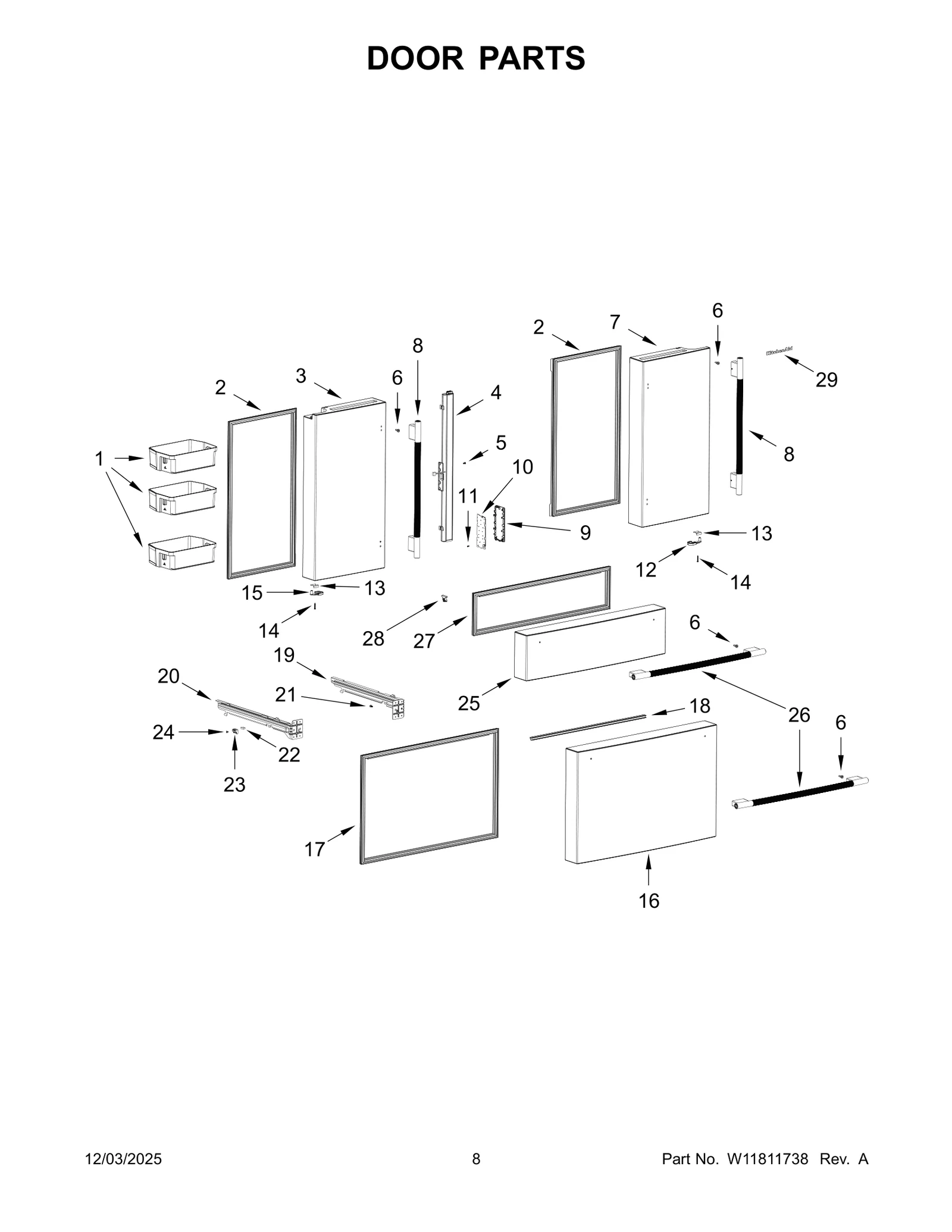

DOOR PARTS

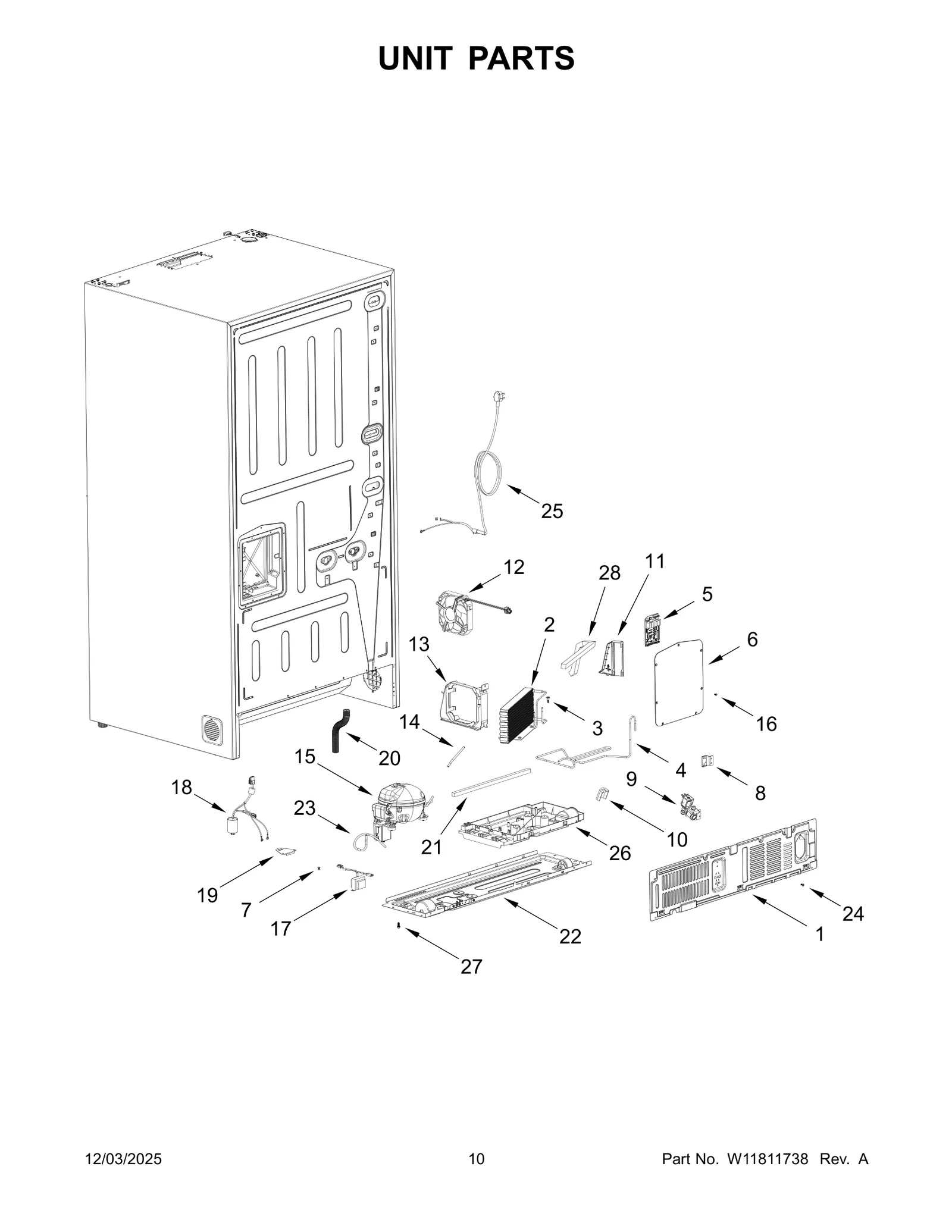

UNIT PARTS
Common parts from model Whirlpool KRMF336SPS00 Refrigerator
1
Cabinet (Not a Serviceable Part) WPL N/S Contact Us For Availability
1
Top Lighting Assembly WPL W11778099 Contact Us For Availability
1
Assembly, Air Duct WPL W11778745 Contact Us For Availability
1
Door Bin WPL W11778298 Contact Us For Availability
1
Cover, Unit Compartment WPL W11758093 Contact Us For Availability
2
Top Hinge Assembly WPL W11097769 Contact Us For Availability
2
Filter Bracket WPL W11778101 Contact Us For Availability
2
Temperature Sensor WPL W11778259 Contact Us For Availability
2
Assembly, Refrigerator Door Gasket (Grey) WPL W11778795 Contact Us For Availability
2
Condenser WPL W11758090 Contact Us For Availability
3
Screw WPL W11764730 Contact Us For Availability
3
Water Filter Seat WPL W11757829 Contact Us For Availability
3
Assembly, RC Air Duct Cover WPL W11779439 Contact Us For Availability
3
Assembly, Refrigerator Door (Stainless, Left WPL W11779786 Contact Us For Availability
3
Screw WPL W11764766 Contact Us For Availability
4
Left Hinge Cover WPL W11757742 Contact Us For Availability
4
Filter Trim Cover WPL W11778167 Contact Us For Availability
4
Insulation, Sealing WPL W11757927 Contact Us For Availability
4
Assembly, Flip Beam WPL W11779355 Contact Us For Availability
4
Precondenser WPL W11758091 Contact Us For Availability
5
Water Filter WPL W11757838 Contact Us For Availability
5
Wire Harness Cover WPL W11778248 Contact Us For Availability
5
Board, Main WPL W11778957 Contact Us For Availability
6
Filter Cover WPL W11778169 Contact Us For Availability
6
Freezer Temperature Sensor WPL W11757916 Contact Us For Availability
6
Handle Mounting Stud WPL W11755083 Contact Us For Availability
7
Right Hinge Cover WPL W11757743 Contact Us For Availability
7
Screw WPL W11764747 Contact Us For Availability
7
Seal, Filter Tubes WPL W11758065 Contact Us For Availability
7
Evaporator Fan WPL W11186092 Contact Us For Availability
7
Assembly, Refrigerator Door (Stainless, Right WPL W11779649 Contact Us For Availability
8
Top Hinge (Right Hand) WPL W11097767 Contact Us For Availability
8
Screw WPL W11764750 Contact Us For Availability
8
Screw WPL W11764748 Contact Us For Availability
8
Assembly, Refrigerator Handle (Stainless) WPL W11779631 Contact Us For Availability
8
Bracket, Water Valve WPL W11758073 Contact Us For Availability
9
Glass Shelf Assembly WPL W11777950 Contact Us For Availability
9
Connector, Tube WPL W11764791 Contact Us For Availability
9
Insulation, Evaporator WPL W11757918 Contact Us For Availability
9
Fascia WPL W11779784 Contact Us For Availability
10
Full Glass Assembly WPL W11777952 Contact Us For Availability
10
Single LED WPL W11778241 Contact Us For Availability
10
Cover, Rear Air Duct WPL W11757917 Contact Us For Availability
10
PCB, UI WPL W11779783 Contact Us For Availability
10
Guide, Water Tube WPL W11764755 Contact Us For Availability
11
Shelf, Tuck WPL W11804284 Contact Us For Availability
11
Defrost Heater WPL W11757860 Contact Us For Availability
11
Screw WPL W11764751 Contact Us For Availability
11
Screw WPL W11764754 Contact Us For Availability
11
Bracket, Condenser WPL W11758089 Contact Us For Availability
12
Pullout Glass Shelf WPL W11777956 Contact Us For Availability
12
Water Pipe Clamp WPL W11778451 Contact Us For Availability
12
Evaporator Spacer WPL W11764753 Contact Us For Availability
12
Door Closer Latch WPL W11306079 Contact Us For Availability
13
Crisper Support Assembly (Right) WPL W11777958 Contact Us For Availability
13
Evaporator WPL W11757865 Contact Us For Availability
13
Foam, Freezer Duct WPL W11778782 Contact Us For Availability
13
Frame, Condenser Fan WPL W11758076 Contact Us For Availability
14
Center Hinge Cover WPL W11779436 Contact Us For Availability
14
Screw WPL W11764732 Contact Us For Availability
14
Filter WPL W11778677 Contact Us For Availability
14
Cover, Freezer Air Duct WPL W11778252 Contact Us For Availability
15
Assembly, Duct Gasket WPL W11778789 Contact Us For Availability
15
Door Closer Latch WPL W11306401 Contact Us For Availability
15
Compressor WPL W11804286 Contact Us For Availability
16
Assembly, Middle Crisper Support WPL W11779427 Contact Us For Availability
16
Assembly, Damper WPL W11778791 Contact Us For Availability
16
Freezer Door Assembly (Stainless) WPL W11778410 Contact Us For Availability
16
Screw WPL W11764767 Contact Us For Availability
17
Cover, Screw WPL W11779433 Contact Us For Availability
17
Air Damper Insulation WPL W11757868 Contact Us For Availability
17
Assembly, Evaporator Cover WPL W11779670 Contact Us For Availability
17
Freezer Door Gasket WPL W11758056 Contact Us For Availability
17
Reactor, Electric WPL W11758079 Contact Us For Availability
18
Inner Freezer Door Gasket WPL W11778319 Contact Us For Availability
18
Filter, EMI WPL W11764756 Contact Us For Availability
19
Crisper Assembly WPL W11777968 Contact Us For Availability
19
Defrost Sensor WPL W11757869 Contact Us For Availability
19
Bracket Guide Rail WPL W11778337 Contact Us For Availability
19
Mounting Plate, Reactor WPL W11764757 Contact Us For Availability
20
Crisper Support Assembly (Left Hand) WPL W11777970 Contact Us For Availability
20
Fixed Buckle WPL W11757870 Contact Us For Availability
20
Bracket Guide Rail WPL W11778340 Contact Us For Availability
20
Tube, Drain WPL W11758082 Contact Us For Availability
21
Drawer WPL W11779424 Contact Us For Availability
21
Support, Water Pipe WPL W11778684 Contact Us For Availability
21
Screw WPL W11764768 Contact Us For Availability
21
Gasket, Foam WPL W11764758 Contact Us For Availability
22
Ice Scoop WPL W11764734 Contact Us For Availability
22
Damper Cover WPL W11757873 Contact Us For Availability
22
Mounting Plate, Compressor WPL W11758084 Contact Us For Availability
23
Center Hinge (Right Hand) WPL W11757765 Contact Us For Availability
23
Ladder, Half Shelf Glass WPL W11779049 Contact Us For Availability
23
Bracket Magnet WPL W11778345 Contact Us For Availability
23
Suction Tube WPL W11728019 Contact Us For Availability
24
Screw WPL W11764731 Contact Us For Availability
24
Screw WPL W11764745 Contact Us For Availability
24
Cover, Water Valve WPL W11779448 Contact Us For Availability
25
Ice Cube Pan WPL W11757766 Contact Us For Availability
25
Water Mask WPL W11778208 Contact Us For Availability
25
Assembly, Pantry Door WPL W11779657 Contact Us For Availability
25
Cord, Power WPL W11758086 Contact Us For Availability
26
Water Dispenser Microswitch WPL W11757884 Contact Us For Availability
26
Handles, Freezer Door WPL W11779599 Contact Us For Availability
26
Tray, Drain WPL W11758088 Contact Us For Availability
27
Screw WPL W11764746 Contact Us For Availability
27
Tray Rail (Left) WPL W11778039 Contact Us For Availability
27
Valve Assembly, Dual Water WPL W11167973 Contact Us For Availability
27
Assembly, Freezer Door Gasket (Grey) WPL W11778836 Contact Us For Availability
28
Tray Drawer Stop (Left Hand) WPL W11778042 Contact Us For Availability
28
Water Valve Harness WPL W11757887 Contact Us For Availability
28
Block, Stop WPL W11779598 Contact Us For Availability
28
Gasket, Foam REFRIGERANT CHARGE 85 grams (R60 WPL W11764759 Contact Us For Availability
29
Reed Switch WPL W11757771 Contact Us For Availability
29
Support, Water Valve WPL W11779441 Contact Us For Availability
29
Badge WPL W11779666 Contact Us For Availability
30
Synchronization Bar WPL W11757772 Contact Us For Availability
30
Tube, Water (Inlet Valve to Filter Inlet) WPL W11758063 Contact Us For Availability
31
Bracket Guide Rail WPL W11778043 Contact Us For Availability
31
Assembly, Tank Coil WPL W11778699 Contact Us For Availability
32
Freezer Guide Rail WPL W11757776 Contact Us For Availability
32
Pipe, Injection WPL W11778701 Contact Us For Availability
33
Lower Drawer WPL W11778046 Contact Us For Availability
33
Cover, Thermal WPL W11778732 Contact Us For Availability
34
Storage Box WPL W11778048 Contact Us For Availability
35
Freezer Guide Rail WPL W11757782 Contact Us For Availability
35
Clamp, Tube WPL W11758094 Contact Us For Availability
36
Seal, Inlet And Outlet WPL W11778735 Contact Us For Availability
37
Guide Bracket Rail WPL W11778055 Contact Us For Availability
37
Clamp, Tube WPL W11758066 Contact Us For Availability
38
Upper Freezer Pan WPL W11778057 Contact Us For Availability
39
Bar, Synchronization WPL W11778447 Contact Us For Availability
39
Shield, Evaporator Heat WPL W11778739 Contact Us For Availability
40
Drawer Tray Stop WPL W11778060 Contact Us For Availability
41
Tray Rail (Right Hand) WPL W11778064 Contact Us For Availability
42
Top Box Storage WPL W11778066 Contact Us For Availability
43
Screw WPL W11764749 Contact Us For Availability
44
Air Strip Lock WPL W11778069 Contact Us For Availability
45
Leveling Leg WPL W11757796 Contact Us For Availability
46
Outer Grille (Grey) WPL W11757797 Contact Us For Availability
47
Center Hinge (Left Hand) WPL W11757802 Contact Us For Availability
49
Glass Shelf WPL W11779408 Contact Us For Availability
50
Crisper Sealing Strip WPL W11778089 Contact Us For Availability
51
Crisper Sealing Strip WPL W11804285 Contact Us For Availability
× ![]()
