Model Whirlpool KRFF436SBE00 Refrigerator – Common Parts & Diagrams
COVER

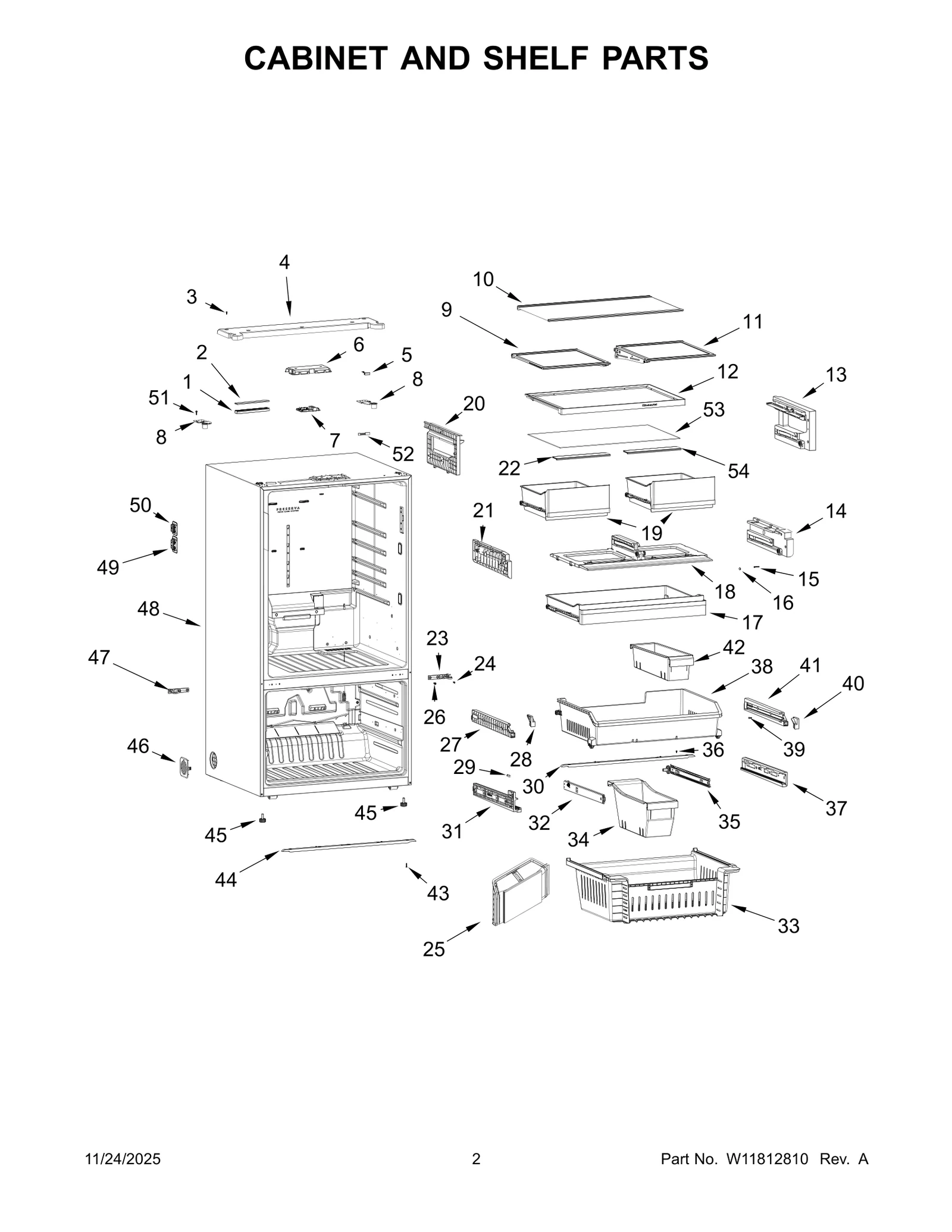

CABINET AND SHELF PARTS

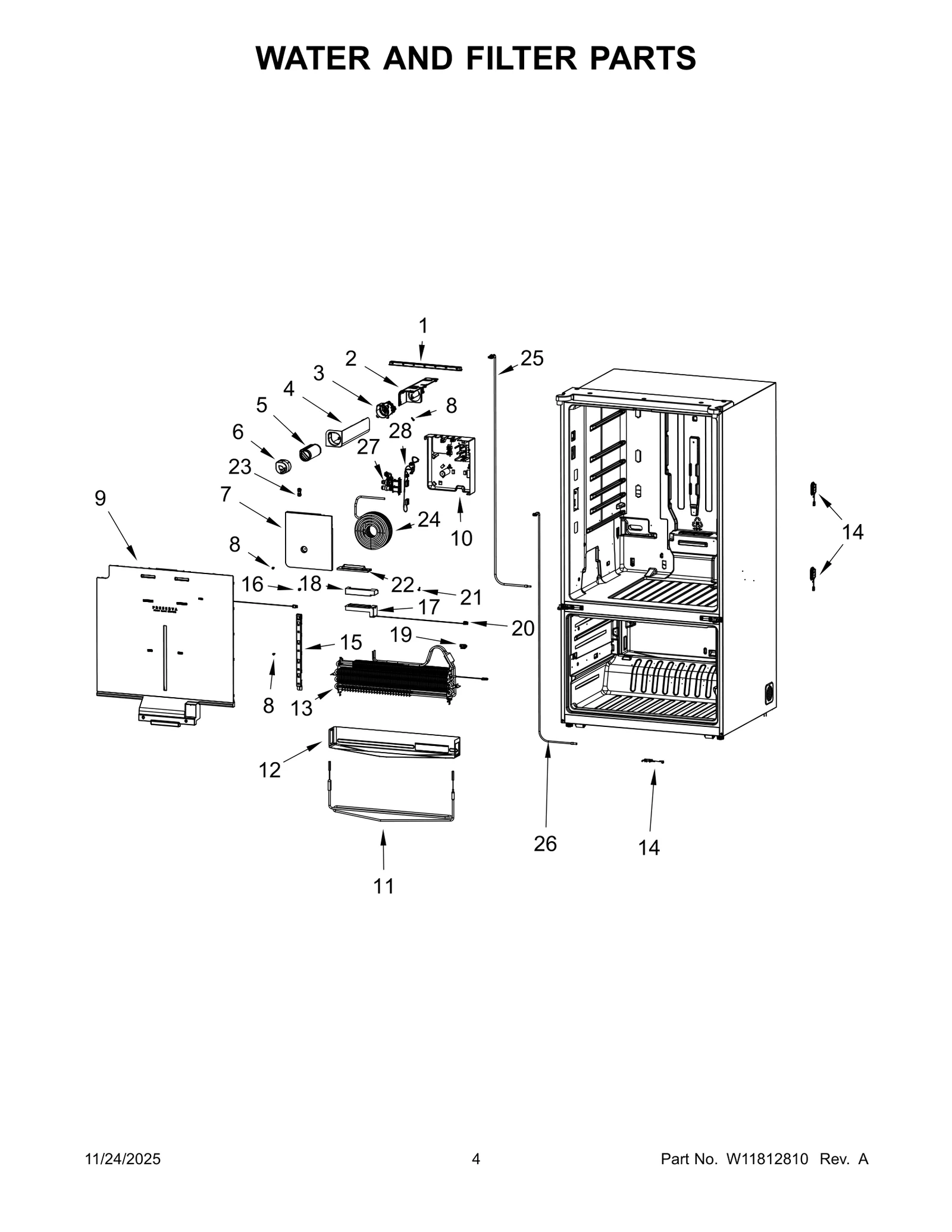

WATER AND FILTER PARTS

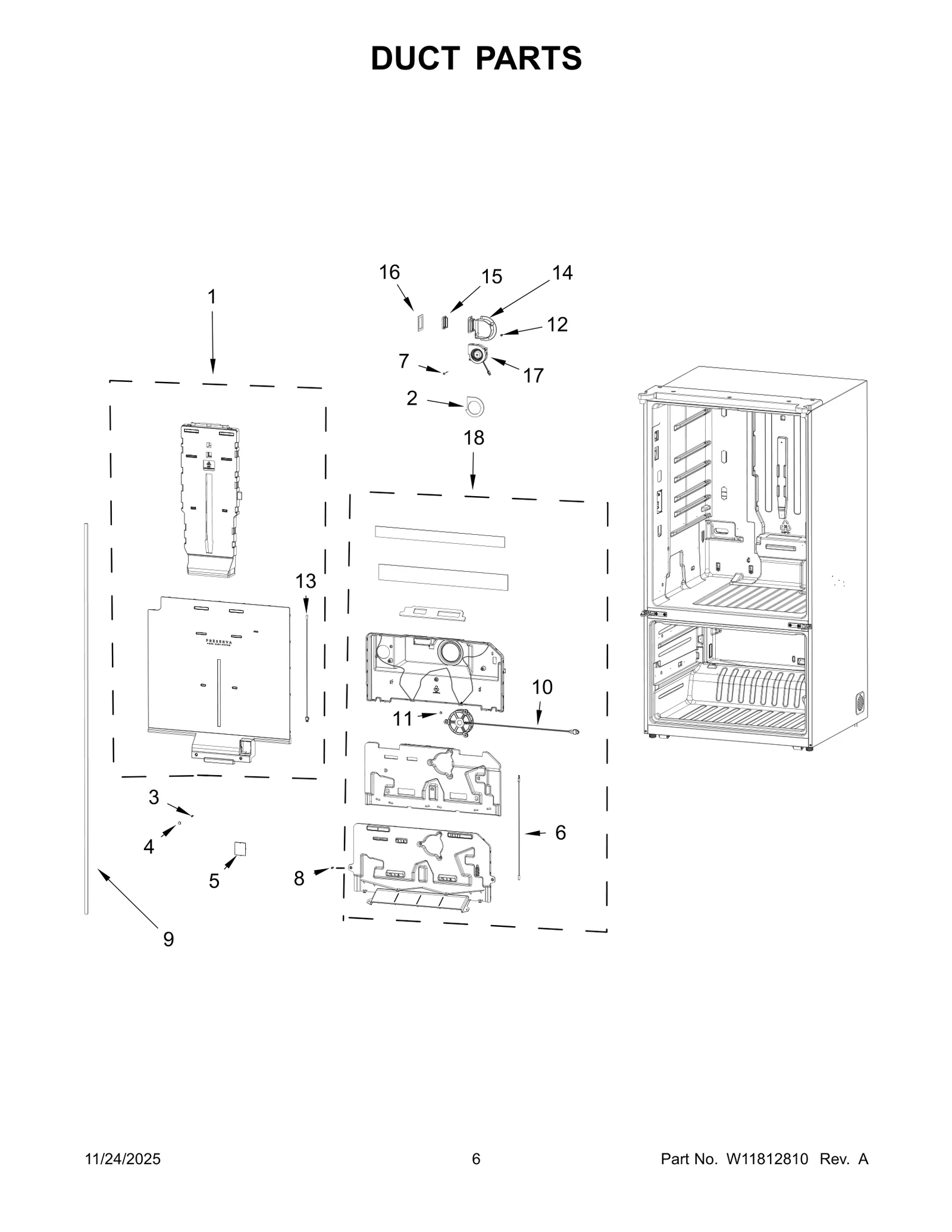

DUCT PARTS

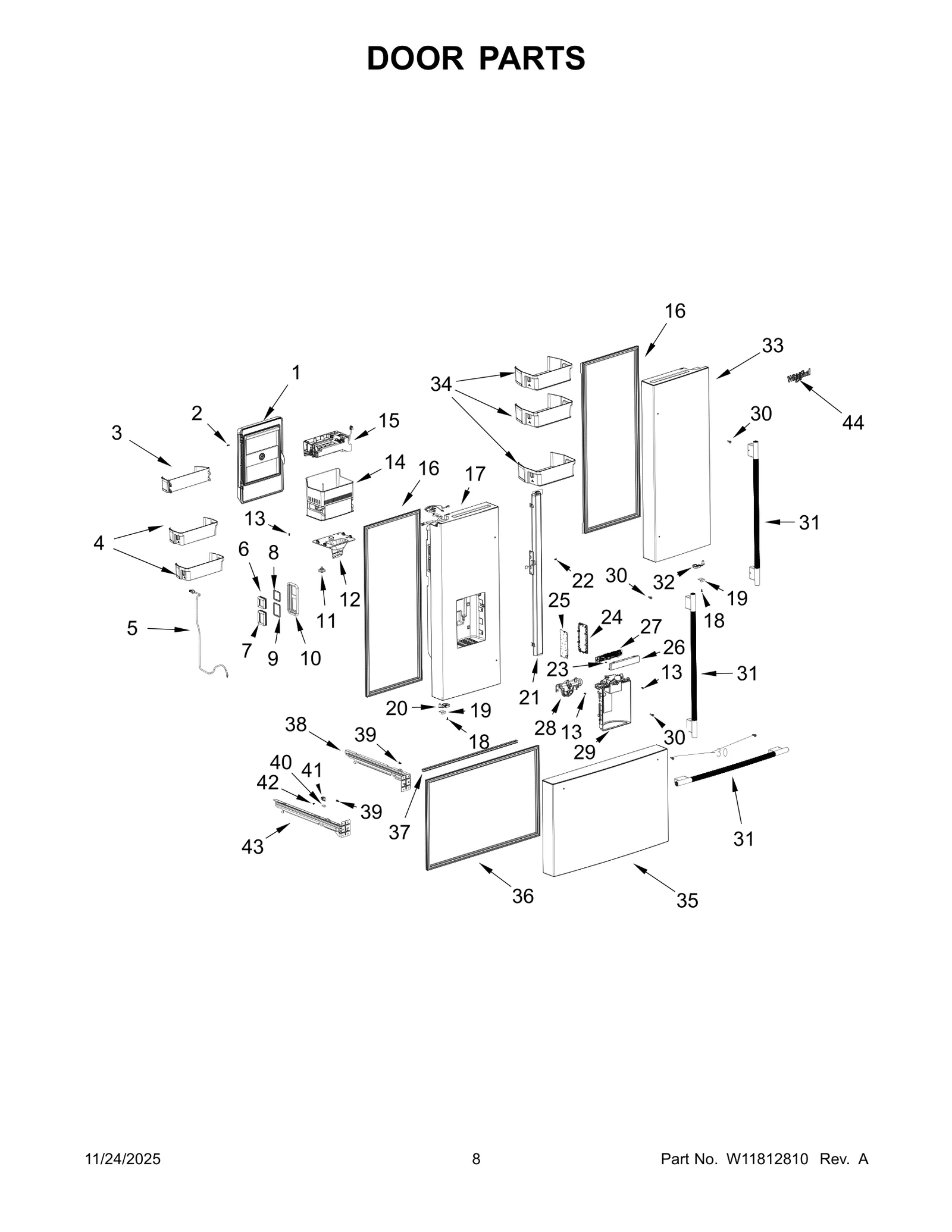

DOOR PARTS

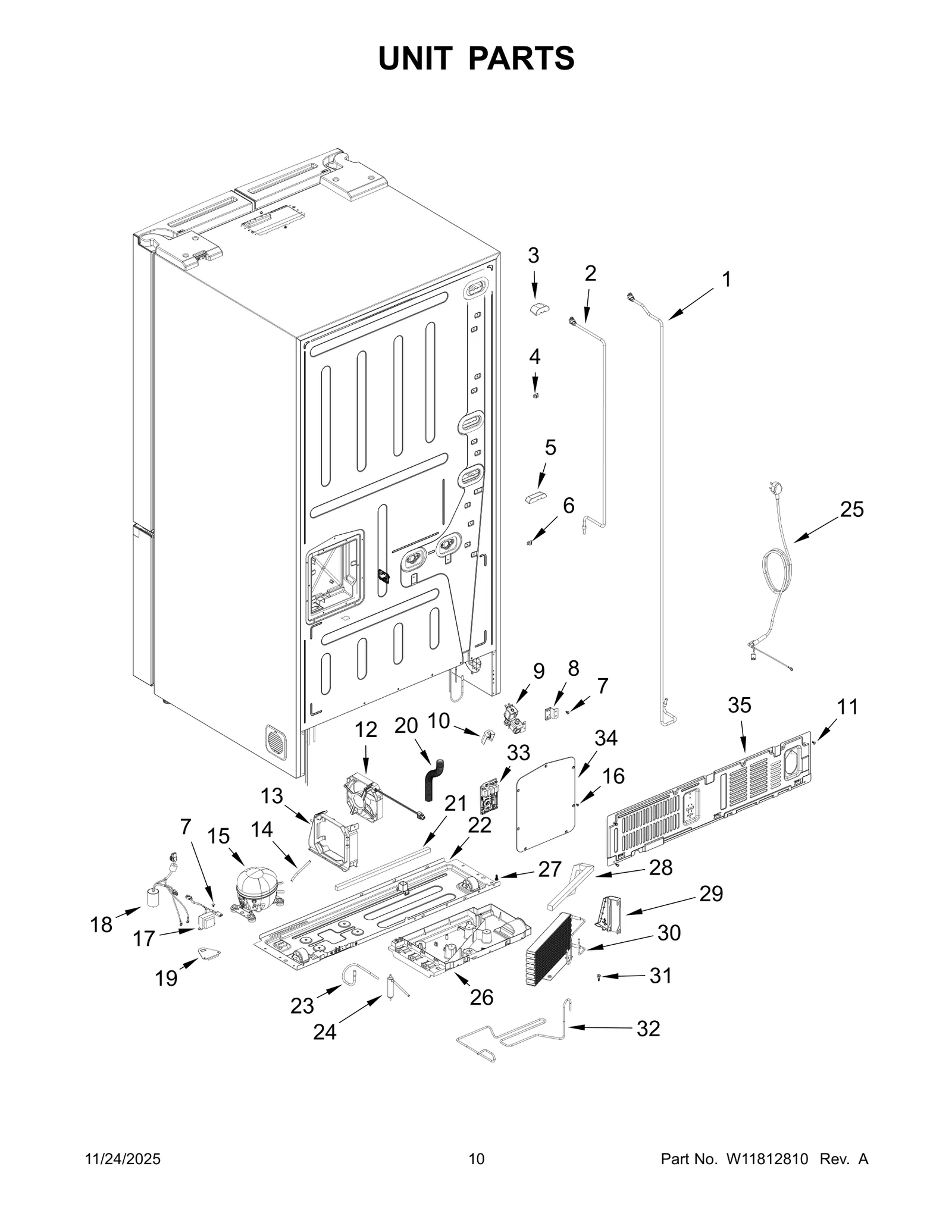

UNIT PARTS
Common parts from model Whirlpool KRFF436SBE00 Refrigerator
1
Top Lighting Assembly WPL W11778099 Contact Us For Availability
1
Air Duct Foam WPL W11757901 Contact Us For Availability
1
Assembly, Door Ice WPL W11779587 Contact Us For Availability
1
Tube, Water (Inlet Valve to Filter Inlet) WPL W11758063 Contact Us For Availability
2
Filter Bracket WPL W11778101 Contact Us For Availability
2
Gasket, Fan WPL W11767401 Contact Us For Availability
2
Screw WPL W11779357 Contact Us For Availability
2
Tube, Water (Filter Outlet to Water Tank) WPL W11758064 Contact Us For Availability
3
Water Filter Seat WPL W11757829 Contact Us For Availability
3
Screw WPL W11764750 Contact Us For Availability
3
Trivet, Ice Door WPL W11779589 Contact Us For Availability
3
Seal, Filter Tubes WPL W11758065 Contact Us For Availability
4
Cover, Hinge (Black) WPL W11767091 Contact Us For Availability
4
Center Hinge Cover WPL W11779436 Contact Us For Availability
4
Filter Trim Cover WPL W11778167 Contact Us For Availability
4
Bin, Stadium WPL W11779592 Contact Us For Availability
4
Clamp, Tube WPL W11758066 Contact Us For Availability
5
Water Filter WPL W11757838 Contact Us For Availability
5
Wire Harness Cover WPL W11778248 Contact Us For Availability
5
Tube, Water Dispenser WPL W11767421 Contact Us For Availability
5
Seal, Inlet/Outlet Water WPL W11758068 Contact Us For Availability
6
Cover, Ice Maker Control Board WPL W11772365 Contact Us For Availability
6
Filter Cover WPL W11778169 Contact Us For Availability
6
Freezer Temperature Sensor WPL W11757916 Contact Us For Availability
6
Gasket, Supply Duct WPL W11292787 Contact Us For Availability
6
Clamp, Tube WPL W11758094 Contact Us For Availability
7
PCBA, Icemaker WPL W11767103 Contact Us For Availability
7
Screw WPL W11764747 Contact Us For Availability
7
Tank Cover WPL W11778189 Contact Us For Availability
7
Fan, Ice Box WPL W11767395 Contact Us For Availability
7
Gasket, Return Duct WPL W11292785 Contact Us For Availability
8
Top Hinge Assembly WPL W11097769 Contact Us For Availability
8
Screw WPL W11764748 Contact Us For Availability
8
Clip, Supply Duct Gasket WPL W11292783 Contact Us For Availability
8
Bracket, Water Valve WPL W11758073 Contact Us For Availability
9
Glass Shelf Assembly WPL W11777950 Contact Us For Availability
9
Air Duct Assembly WPL W11778192 Contact Us For Availability
9
Assembly, Duct Gasket WPL W11767407 Contact Us For Availability
9
Clip, Return Duct Gasket WPL W11292789 Contact Us For Availability
10
Full Glass Assembly WPL W11777952 Contact Us For Availability
10
Water Tank Bracket WPL W11778237 Contact Us For Availability
10
Evaporator Fan WPL W11186092 Contact Us For Availability
10
Duct, Supply Gasket WPL W11779594 Contact Us For Availability
10
Guide, Water Tube WPL W11764755 Contact Us For Availability
11
Screw WPL W11764731 Contact Us For Availability
11
Glass Shelf Assembly WPL W11777954 Contact Us For Availability
11
Defrost Heater WPL W11757860 Contact Us For Availability
11
Evaporator Spacer WPL W11764753 Contact Us For Availability
12
Pullout Glass Shelf WPL W11777956 Contact Us For Availability
12
Shield, Heat WPL W11767305 Contact Us For Availability
12
Assembly, Ice Chute WPL W11779585 Contact Us For Availability
13
Crisper Support Assembly (Right) WPL W11777958 Contact Us For Availability
13
Evaporator WPL W11757865 Contact Us For Availability
13
Screw WPL W11764751 Contact Us For Availability
13
Temperature Sensor WPL W11778259 Contact Us For Availability
13
Frame, Condenser Fan WPL W11758076 Contact Us For Availability
14
Pantry Support Assembly (Right) WPL W11777960 Contact Us For Availability
14
Single LED WPL W11778241 Contact Us For Availability
14
Bracket, Ice Box Fan WPL W11091630 Contact Us For Availability
14
Ice Bin Assembly WPL W11316216 Contact Us For Availability
15
Half Glass Shelf Ladder WPL W11767306 Contact Us For Availability
15
Seal, Ice Box Fan WPL W11251035 Contact Us For Availability
15
Ice Maker Assembly WPL W11361143 Contact Us For Availability
15
Compressor WPL W11758078 Contact Us For Availability
16
Gasket WPL W11767394 Contact Us For Availability
16
Refrigerator Gasket WPL W11758046 Contact Us For Availability
16
Screw WPL W11764767 Contact Us For Availability
17
Pantry Assembly WPL W11777964 Contact Us For Availability
17
Air Damper Insulation WPL W11757868 Contact Us For Availability
17
Fan, Ice Box WPL W11284795 Contact Us For Availability
17
Assembly, Refrigerator Door (Black Ore, Left WPL W11779739 Contact Us For Availability
17
Reactor, Electric WPL W11758079 Contact Us For Availability
18
Screw WPL W11764732 Contact Us For Availability
18
Pantry Cover Assembly WPL W11777966 Contact Us For Availability
18
Assembly, Evaporator Cover WPL W11779670 Contact Us For Availability
18
Filter, EMI WPL W11764756 Contact Us For Availability
19
Crisper Assembly WPL W11777968 Contact Us For Availability
19
Defrost Sensor WPL W11757869 Contact Us For Availability
19
Mounting Plate, Reactor WPL W11764757 Contact Us For Availability
20
Crisper Support Assembly (Left Hand) WPL W11777970 Contact Us For Availability
20
Fixed Buckle WPL W11757870 Contact Us For Availability
20
Door Closer Latch WPL W11306401 Contact Us For Availability
20
Tube, Drain WPL W11758082 Contact Us For Availability
21
Pantry Support Assembly (Left Hand) WPL W11806886 Contact Us For Availability
21
Screw WPL W11764752 Contact Us For Availability
21
Assembly, Flip Beam WPL W11779696 Contact Us For Availability
21
Gasket, Foam WPL W11764758 Contact Us For Availability
22
Crisper Sealing Strip WPL W11804285 Contact Us For Availability
22
Damper Cover WPL W11757873 Contact Us For Availability
22
Mounting Plate, Compressor WPL W11758084 Contact Us For Availability
23
Center Hinge (Right Hand) WPL W11757765 Contact Us For Availability
23
Connector, Tube WPL W11764791 Contact Us For Availability
23
Screw WPL W11764754 Contact Us For Availability
23
Suction Tube WPL W11728019 Contact Us For Availability
24
Screw WPL W11764745 Contact Us For Availability
24
Water Tank Coil WPL W11757881 Contact Us For Availability
24
Fascia, UI WPL W11779695 Contact Us For Availability
25
Tube, Water (Valve to Door, Ice Maker) WPL W11767389 Contact Us For Availability
25
PCB, UI WPL W11779698 Contact Us For Availability
25
Cord, Power WPL W11758086 Contact Us For Availability
26
Tube, Water (Valve to Door, Dispenser) WPL W11767390 Contact Us For Availability
26
Fascia, UI WPL W11779624 Contact Us For Availability
26
Tray, Drain WPL W11758088 Contact Us For Availability
27
Screw WPL W11764746 Contact Us For Availability
27
Tray Rail (Left) WPL W11778039 Contact Us For Availability
27
Dual Water Valve WPL W11757885 Contact Us For Availability
27
PCB, UI WPL W11779621 Contact Us For Availability
28
Tray Drawer Stop (Left Hand) WPL W11778042 Contact Us For Availability
28
Water Valve Harness WPL W11757887 Contact Us For Availability
28
Motor and Bracket Assembly, Ice Door WPL W11767579 Contact Us For Availability
28
Gasket, Foam WPL W11764759 Contact Us For Availability
29
Reed Switch WPL W11757771 Contact Us For Availability
29
Assembly, Dispenser Well WPL W11779612 Contact Us For Availability
29
Bracket, Condenser WPL W11758089 Contact Us For Availability
30
Synchronization Bar WPL W11757772 Contact Us For Availability
30
Handle Mounting Stud WPL W11755083 Contact Us For Availability
30
Condenser WPL W11758090 Contact Us For Availability
31
Bracket Guide Rail WPL W11778043 Contact Us For Availability
31
Assembly, Freezer Handles (Black Ore) WPL W11779701 Contact Us For Availability
31
Screw WPL W11764766 Contact Us For Availability
32
Freezer Guide Rail WPL W11757776 Contact Us For Availability
32
Door Closer Latch WPL W11306079 Contact Us For Availability
32
Precondenser WPL W11758091 Contact Us For Availability
33
Lower Drawer WPL W11778046 Contact Us For Availability
33
Assembly, Refrigerator Door (Black Ore, Right WPL W11779743 Contact Us For Availability
33
Main Board WPL W11773396 Contact Us For Availability
34
Storage Box WPL W11778048 Contact Us For Availability
34
Door Bin WPL W11778298 Contact Us For Availability
35
Freezer Guide Rail WPL W11757782 Contact Us For Availability
35
Assembly, Freezer Door (Black Ore) WPL W11779747 Contact Us For Availability
35
Cover, Unit Compartment REFRIGERANT CHARGE 85 WPL W11758093 Contact Us For Availability
36
Freezer Door Gasket WPL W11764945 Contact Us For Availability
37
Guide Bracket Rail WPL W11778055 Contact Us For Availability
37
Inner Freezer Door Gasket WPL W11778319 Contact Us For Availability
38
Upper Freezer Pan WPL W11778057 Contact Us For Availability
38
Bracket Guide Rail WPL W11778337 Contact Us For Availability
39
Screw WPL W11764768 Contact Us For Availability
40
Drawer Tray Stop WPL W11778060 Contact Us For Availability
41
Tray Rail (Right Hand) WPL W11778064 Contact Us For Availability
41
Bracket Magnet WPL W11778345 Contact Us For Availability
42
Top Box Storage WPL W11778066 Contact Us For Availability
43
Screw WPL W11764749 Contact Us For Availability
43
Bracket Guide Rail WPL W11778340 Contact Us For Availability
44
Air Strip Lock WPL W11778069 Contact Us For Availability
44
Badge WPL W11779666 Contact Us For Availability
45
Leveling Leg WPL W11757796 Contact Us For Availability
46
Outer Grille (Grey) WPL W11757797 Contact Us For Availability
47
Center Hinge (Left Hand) WPL W11757802 Contact Us For Availability
48
Cabinet (Not a Serviceable Part) WPL N/S Contact Us For Availability
49
Cover, Duct WPL W11779668 Contact Us For Availability
50
Duct, Grill WPL W11779669 Contact Us For Availability
51
Screw WPL W11764730 Contact Us For Availability
53
Glass Shelf WPL W11779408 Contact Us For Availability
54
Crisper Sealing Strip WPL W11778089 Contact Us For Availability
× ![]()
