Model LG KNMAB241A.EWHHEUS Flexible Multi_I/D_Wall Mounted – Common Parts & Diagrams

Common parts from model LG KNMAB241A.EWHHEUS Flexible Multi_I/D_Wall Mounted

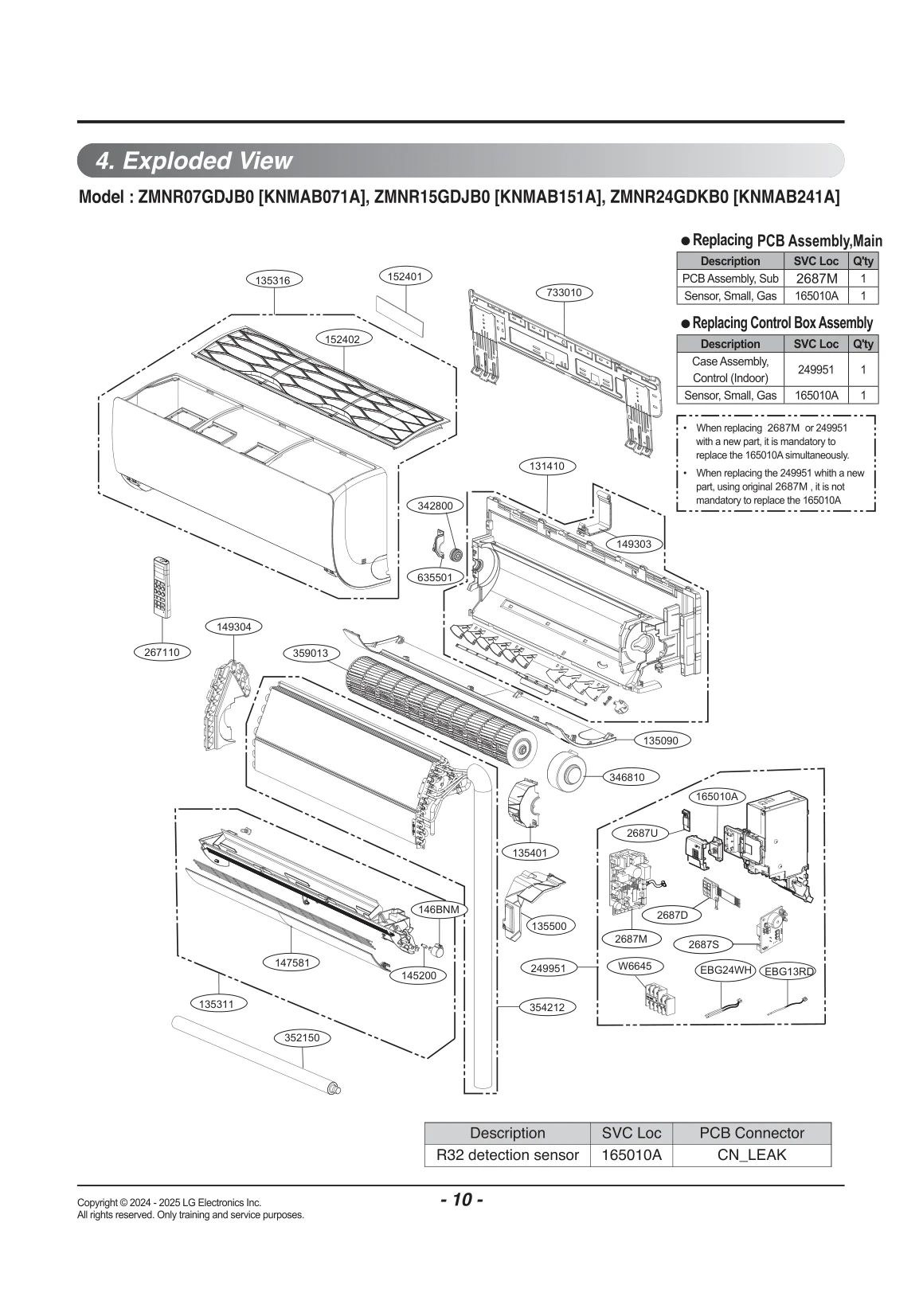

Diagram 0

Print

• This Diagram
• All Diagrams

2687M

PCB Assembly,Main LGE EBR43130703 Contact Us For Availability

View on Model

2687S

PCB Assembly,Sub(H/W) Backorder LGE EBR35472201 View Details $102.70

View on Model

2687U

EBR32418501 LG Pcb Assembly,Wifi Backorder LGE EBR32418501 View Details $48.01

View on Model

131410

Chassis Assembly Backorder LGE ABW74032608 View Details $91.18

View on Model

135090

Decor Assembly LGE ACW76637703 Contact Us For Availability

View on Model

135311

Grille Assembly,Discharge(Indoor) LGE AEB76303802 Contact Us For Availability

View on Model

135316

Grille Assembly,Front(Indoor) Backorder LGE AEB74384638 View Details $91.18

View on Model

135401

MCK68484803 LG Cover Backorder LGE MCK68484803 View Details $8.52

View on Model

135401

Cover LGE MCK68484810 Contact Us For Availability

View on Model

135500

MCK69546601 LG Cover Backorder LGE MCK69546601 View Details $15.11

View on Model

135500

Cover LGE MCK69546612 Contact Us For Availability

View on Model

145200

MFF60198910 LG Link Backorder LGE MFF60198910 View Details $3.64

View on Model

147581

MFH62983601 LG Horizontal Louver Backorder LGE MFH62983601 View Details $28.39

View on Model

149303

MEG56994610 LG Tubing Holder Backorder LGE MEG56994610 View Details $3.64

View on Model

149303

Holder,Tubing LGE MEG56994618 Contact Us For Availability

View on Model

149304

Holder,Evaporator Backorder LGE MEG64118609 View Details $8.52

View on Model

152401

MDJ61144755 LG Air Filter Backorder LGE MDJ61144755 View Details $15.11

View on Model

152402

MDJ64344607 LG Air Filter Backorder LGE MDJ64344607 View Details $48.13

View on Model

152402

Filter,Air Backorder LGE MDJ64344618 View Details $28.39

View on Model

165010A

SENSOR,SMELL,GAS Backorder LGE EBD64415301 View Details $257.14

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30288703 Contact Us For Availability

View on Model

267110

REMOTE CONTROLLER ASSEMBLY Backorder LGE AKB76044208 View Details $92.00

View on Model

342800

Bearing Backorder LGE MAP64313505 View Details $5.63

View on Model

346810

EAU62543502 LG Indoor DC Motor Assembly Backorder LGE EAU62543502 View Details $222.67

View on Model

352150

AEM73493417 LG Assembly Drain Hose Backorder LGE AEM73493417 View Details $11.65

View on Model

352150

Hose Assembly,Drain LGE AEM73493425 Contact Us For Availability

View on Model

354212

Evaporator Assembly,Final LGE ADL76724718 Contact Us For Availability

View on Model

359013

ADP73513403 LG Fan Cross Flow Assembly Backorder LGE ADP73513403 View Details $60.27

View on Model

359013

Fan Assembly,Cross Flow Backorder LGE ADP73513409 View Details $48.13

View on Model

635501

MCK67886605 LG Bearing Cover Backorder LGE MCK67886605 View Details $3.64

View on Model

733010

AGU65884502 LG Installation Plate Assembly Backorder LGE AGU65884502 View Details $42.17

View on Model

733010

Plate Assembly,Installation LGE AGU76189201 Contact Us For Availability

View on Model

EBG13RD

EBG61325801 LG Temperature Sensor Assembly Th Backorder LGE EBG61325801 View Details $13.12

View on Model

EBG24WH

EBG61108915 LG NTC Thermistor Assembly Backorder LGE EBG61108915 View Details $23.81

View on Model

W6645

Connector,Terminal Block Backorder LGE EAG38884403 View Details $13.12

View on Model

×
