Model Whirlpool KHWG160YCR0 HOT WATER DISPENSER – Common Parts & Diagrams

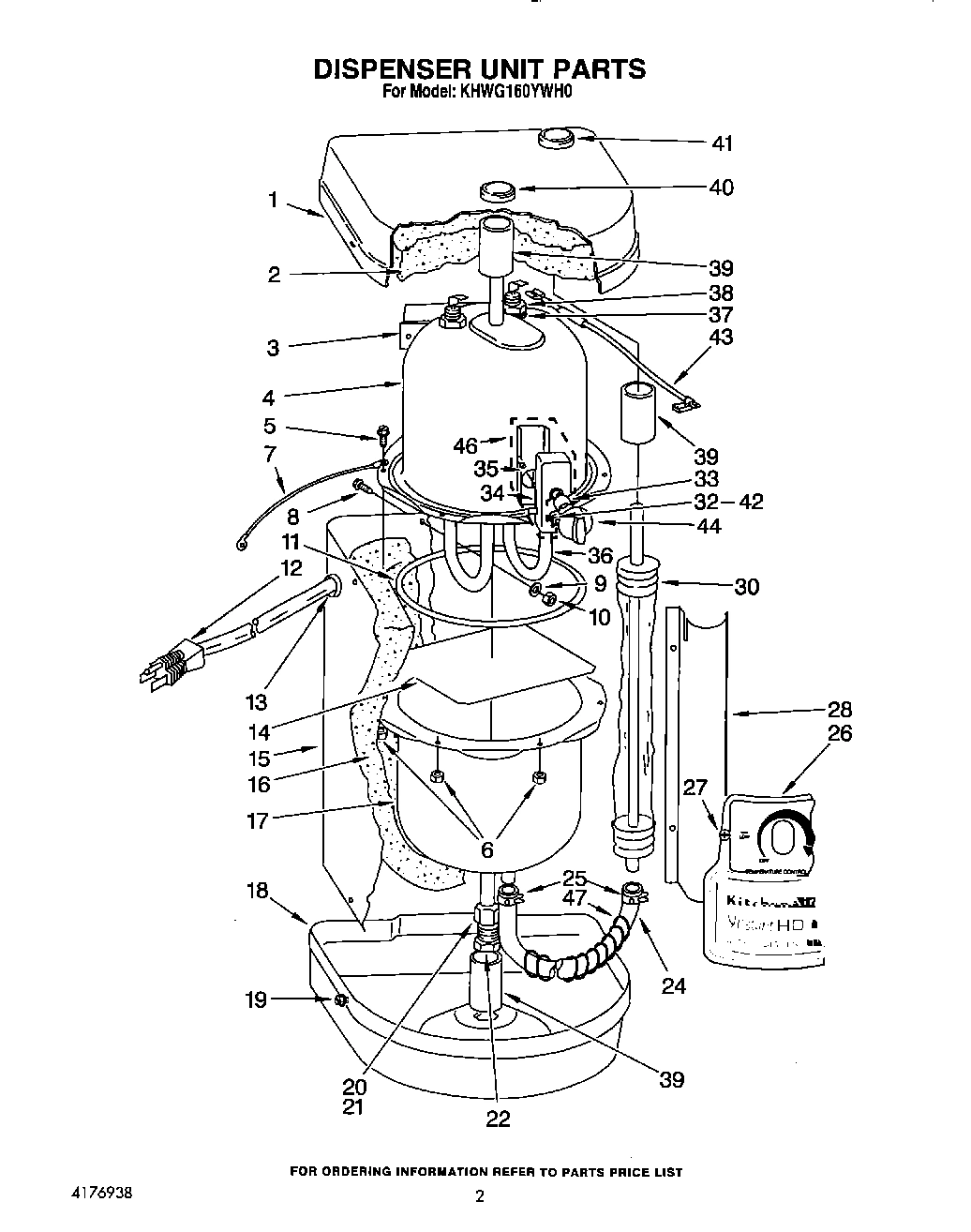

02 - SECTION

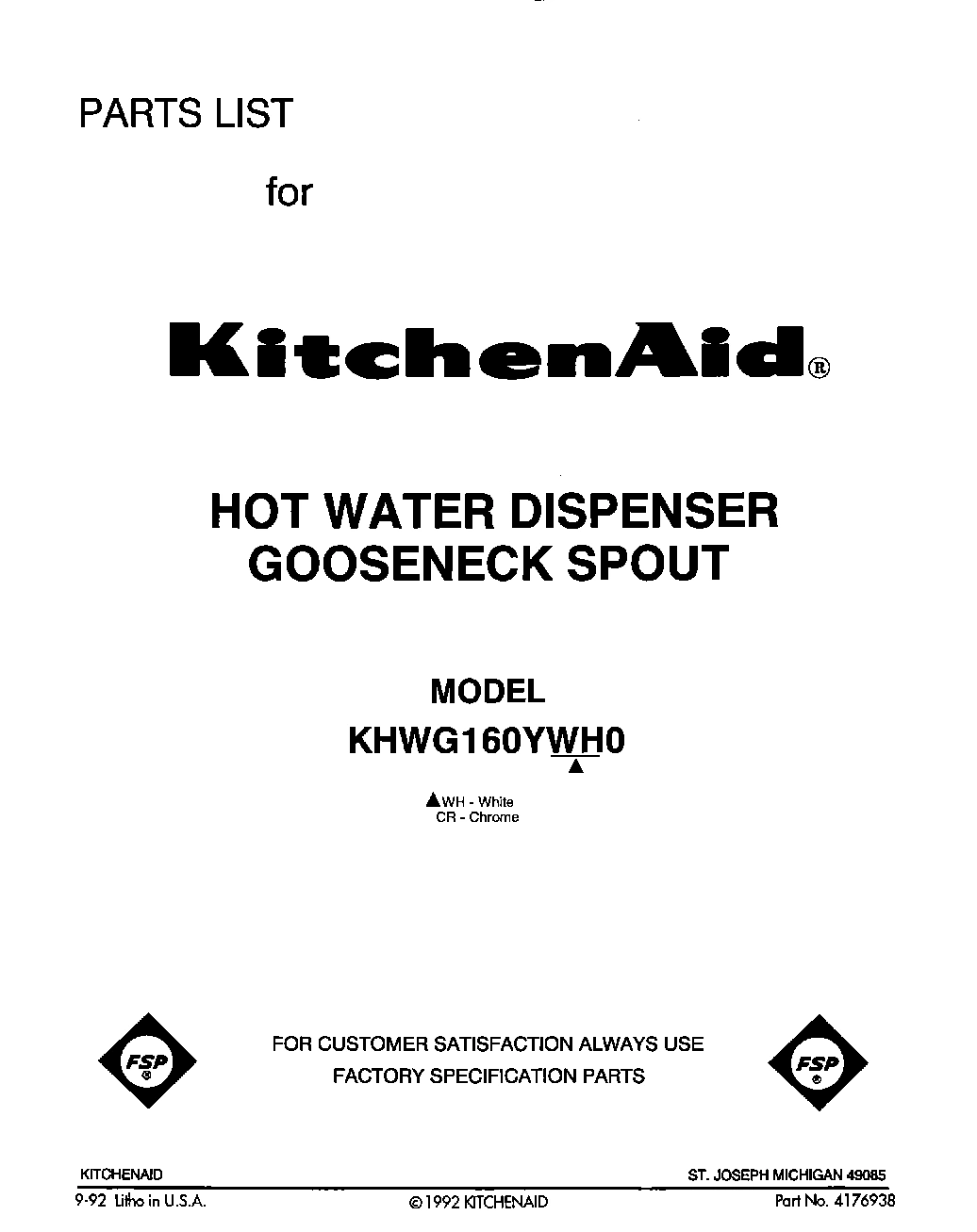

01 - SECTION

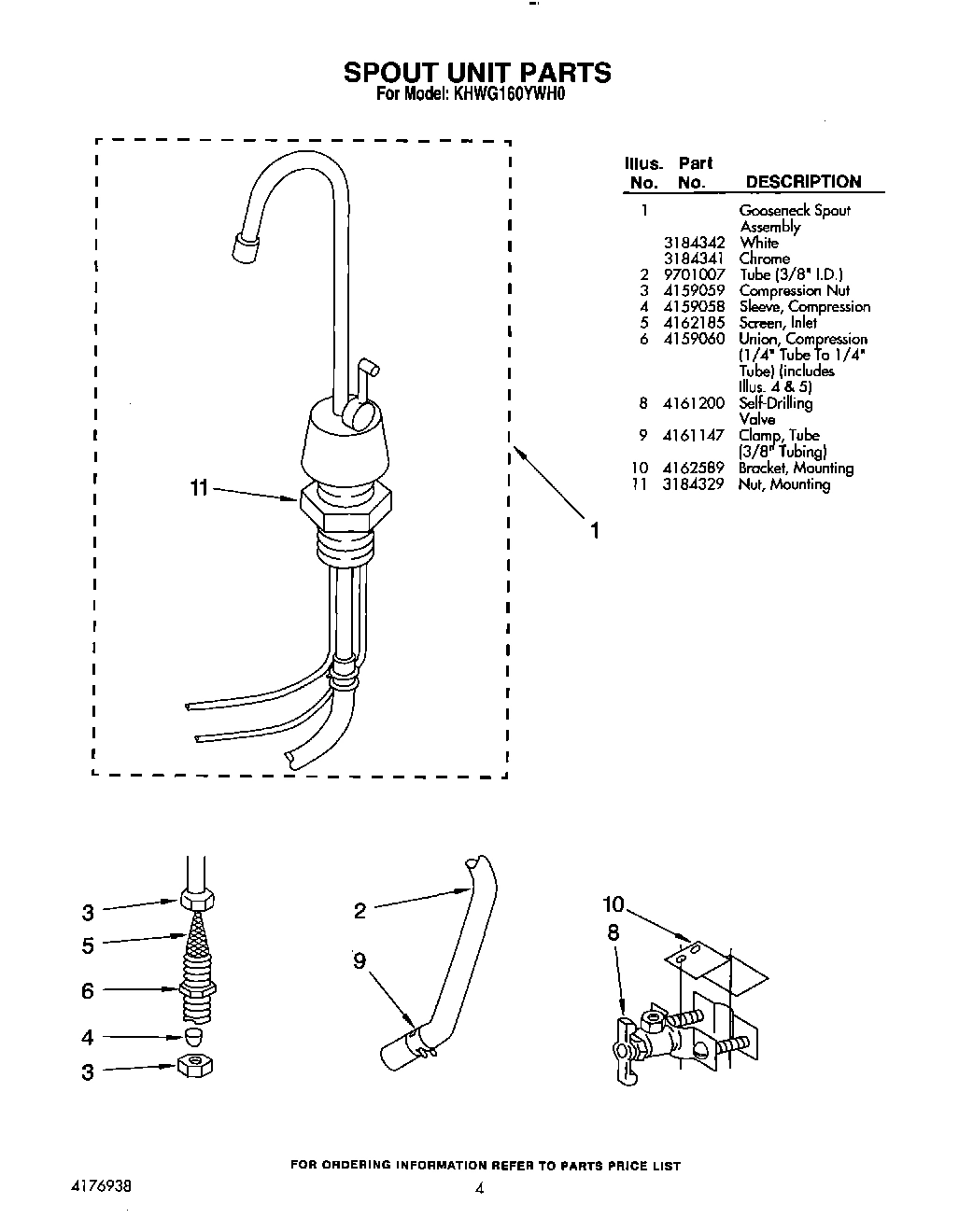

03 - SECTION
Common parts from model Whirlpool KHWG160YCR0 HOT WATER DISPENSER
1
Gooseneck Spout Assembly (Chrome) WPL 3184341 Contact Us For Availability
1
Gooseneck Spout Assembly (White) WPL 3184342 Contact Us For Availability
2
Tube (3/8`` I.D.) WPL 9701007 Contact Us For Availability
4
Upper Tank & Tube WPL 4162372 Contact Us For Availability
4
Sleeve, Compression WPL 4159058 Contact Us For Availability
5
Screen, Inlet WPL 4162185 Contact Us For Availability
7
Ground Wire WPL 4162386 Contact Us For Availability
8
Valve, Self- Drilling WPL 4161200 Contact Us For Availability
9
Clamp, Tube (3/8`` Tubing) WPL 4161147 Contact Us For Availability
10
Bracket, Mounting WPL 4162589 Contact Us For Availability
11
O-Ring WPL 4159824 Contact Us For Availability
11
Nut, Mounting WPL 3184329 Contact Us For Availability
12
Cord & Plug WPL 4162195 Contact Us For Availability
13
Strain Relief WPL 4159032 Contact Us For Availability
14
Deflector WPL 4176126 Contact Us For Availability
15
Shell Cover WPL 4176123 Contact Us For Availability
16
Insulation Tank WPL 4162374 Contact Us For Availability
17
Lower Tank WPL 4162370 Contact Us For Availability
18
Cap, Bottom WPL 4176125 Contact Us For Availability
20
Nut, Tube Fitting (3/8``) WPL 4159056 Contact Us For Availability
21
Sleeve, Tube Fitting (3/8``) WPL 4159055 Contact Us For Availability
22
Plug, Drain WPL 4162591 Contact Us For Availability
24
Hose, Clear WPL 4162381 Contact Us For Availability
25
Clamp, Tube (9/16`` Tube) WPL 4161148 Contact Us For Availability
26
Cover, Front WPL 4162681 Contact Us For Availability
28
Cover, Aspirator WPL 4162590 Contact Us For Availability
30
Displacer WPL 4162380 Contact Us For Availability
32
Machine Nut No.8-32 Hex WPL 4159072 Contact Us For Availability
33
Bushing, Thermostat WPL 4162379 Contact Us For Availability
34
Thermostat WPL 3183056 Contact Us For Availability
35
Cover, Dust (Thermostat) WPL 4162378 Contact Us For Availability
36
Heater Element (Includes Illus. 38) WPL 4162387 Contact Us For Availability
37
``O`` Ring (2) WPL 4159825 Contact Us For Availability
38
Nut, (2) Heater Element WPL 4160076 Contact Us For Availability
39
Spacer (3) WPL 4162375 Contact Us For Availability
40
Bushing, Water Outlet Tube WPL 4161909 Contact Us For Availability
41
Bushing, Water Inlet Tube WPL 4161910 Contact Us For Availability
43
Fuse, Thermal WPL 4162641 Contact Us For Availability
44
Knob, Thermostat WPL 3183057 Contact Us For Availability
46
Thermostat & Dust Cover (Includes Illus. No.3 WPL 3183055 Contact Us For Availability
47
Upper Tank (Includes Illus. 4 & 36) WPL 4162361 Contact Us For Availability
47
Spring, Hose (Anti-Kink) WPL 4176042 Contact Us For Availability
× ![]()
