Model Whirlpool KGT341 GAS COOK-TOP – Common Parts & Diagrams

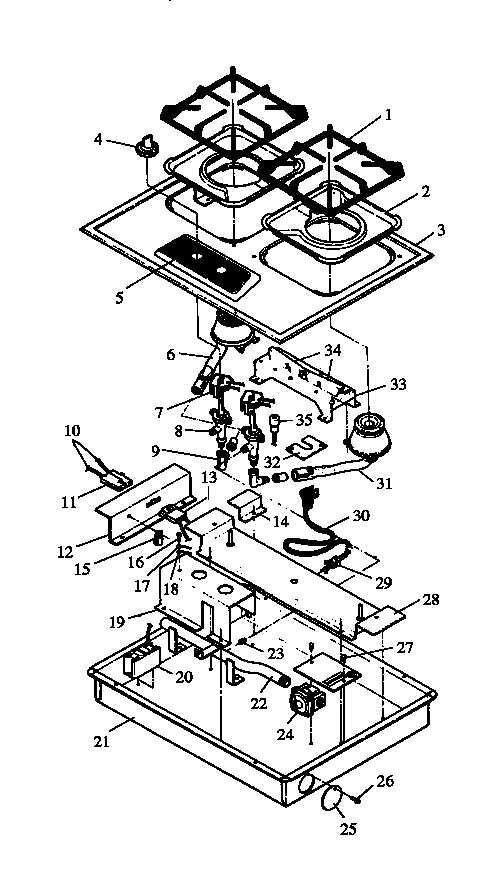

01 - Page 1
Common parts from model Whirlpool KGT341 GAS COOK-TOP
1
GRATE, TOP BURNER WPL 305810B Contact Us For Availability
2
BOWL,BURNER INSERT (CHROME) WPL 308492K Contact Us For Availability
3
TOP, MAIN (CHROME) WPL 308145K Contact Us For Availability
4
KNOB SET, TOP BNR-BLACK WPL Y0042650 Contact Us For Availability
4
SURFACE KNOB WPL Y0042653 Contact Us For Availability
4
KIT, KNOB WPL Y0046108 Contact Us For Availability
4
KNOB SET, TOP BNR-BLACK WPL Y0052643 Contact Us For Availability
5
NAME PLATE KGT-341 WPL 0042829 Contact Us For Availability
6
TOP BURNER LT KGT-341 WPL 0042367 Contact Us For Availability
7
LICON SWITCH SPARK WPL Y0042037 Contact Us For Availability
7
SPARK SWITCH WPL Y0061440 Contact Us For Availability
8
KIT, VALVE/SWITCH WPL Y0042311 Contact Us For Availability
8
VALVE, TOP BURNER WPL Y0306090 Contact Us For Availability
9
KIT, ORIFICE/ELBOW WPL 0042309 Contact Us For Availability
9
ORIFICE/ELBOW ASSEMBLY WPL 0308971 Contact Us For Availability
9
ORIFICE HOOD WPL 0308972 Contact Us For Availability
11
MOLEX RECEPT WPL Y0042111 Contact Us For Availability
12
MODULE COVER KGT-341 WPL Y0040764 Contact Us For Availability
13
WIRE, HARNESS WPL Y0043580 Contact Us For Availability
14
WIRE SHIELD KGT-341 WPL 0040766 Contact Us For Availability
15
WIRE CLAMP WPL Y074685 Contact Us For Availability
16
SCREW, NO. 8A X 1/4 WPL Y0041799 Contact Us For Availability
17
5643419 WPL 0043566 Contact Us For Availability
19
SHIELD, SWITCH WPL Y0306694 Contact Us For Availability
20
SUB 45644 KIT, MODULE WPL 0042200 Contact Us For Availability
20
KIT, SPARK MODULE WPL Y0052269 Contact Us For Availability
20
SPARK MODULE WPL Y0306035 Contact Us For Availability
21
BURNER BOX W/A KGT-341 WPL 0040465 Contact Us For Availability
22
MANIFOLD PIPE KGT-341 WPL Y0042368 Contact Us For Availability
23
PIPE PLUG 1/4-27 NPT WPL 0050527 Contact Us For Availability
24
REGULATOR WPL 0042303 Contact Us For Availability
25
COVER, INLET PIPE WPL Y0300823 Contact Us For Availability
28
BURNER SPACER W/A KGT-341 WPL Y0040768 Contact Us For Availability
29
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
30
CORD SET (J) WPL 0042028 Contact Us For Availability
31
TOP BURNER RIGHT KGT341 WPL Y0042366 Contact Us For Availability
32
MOUNTING BRKT ELECTRO WPL 0040912 Contact Us For Availability
33
FLASH TUBE BASE HI-BROIL WPL 0040913 Contact Us For Availability
34
FLASH TUBE ASSY KGT-341 WPL Y0041388 Contact Us For Availability
35
HARPER ELECTRODE KU617 647 WPL 0042208 Contact Us For Availability
35
ELECTRODE WPL 0052673 Contact Us For Availability
NI
TAPPING SCREW 8 18 HEX WPL Y0041793 Contact Us For Availability
NI
TAPPING SCREW 6 20X3/4 UC FH WPL Y0041797 Contact Us For Availability
NI
SCREW, No.8-32 X 3/8 HEX WSH HD WPL Y0041825 Contact Us For Availability
× ![]()
