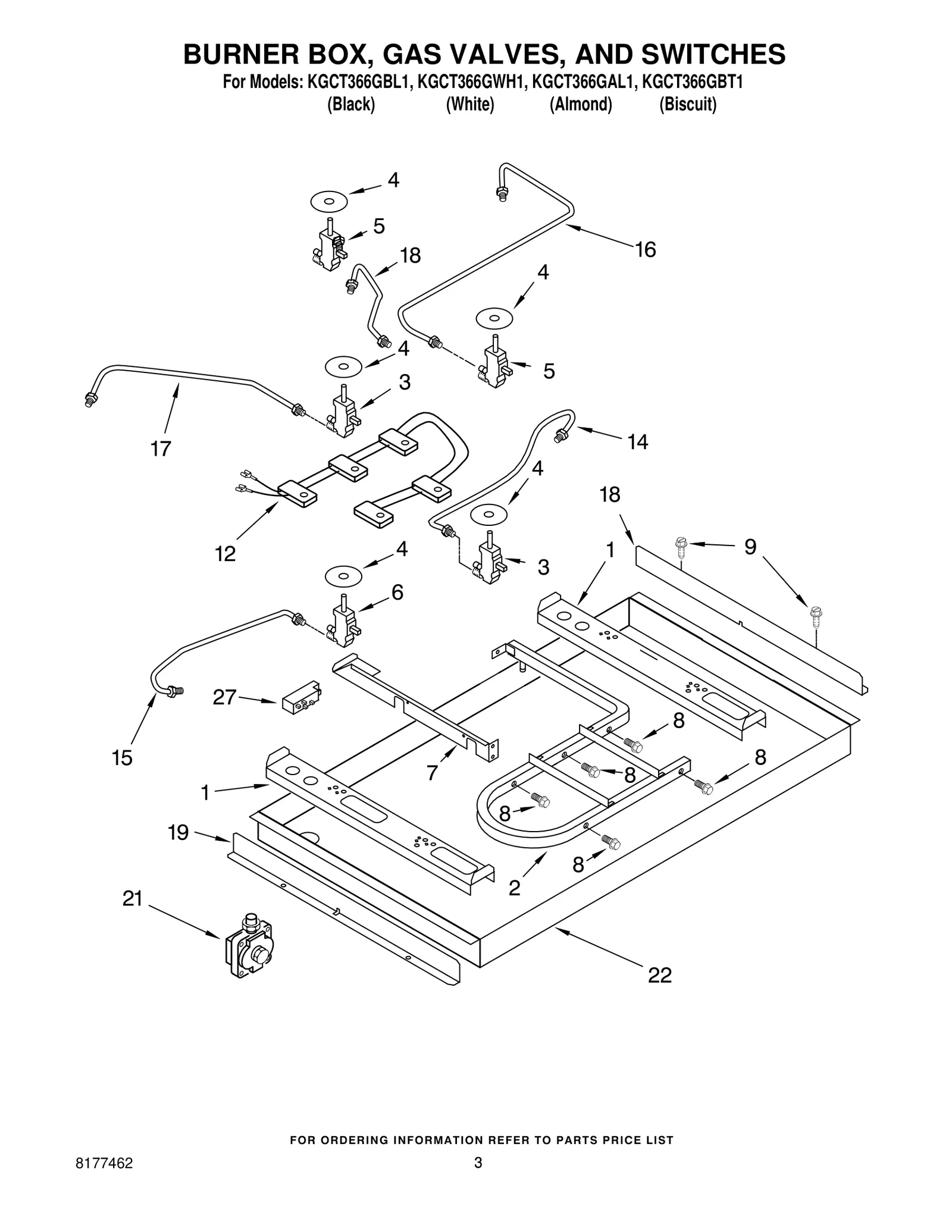

Model Whirlpool KGCT366GWH1 36&quot; Gas Glass Surface Cooktop Non−Reignition – Common Parts &amp; Diagrams

2

3192491 Whirlpool Support Bracket Backorder WPL 3192491 $5.79

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $6.20

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $5.23

2

Pipe, Manifold WPL 3191317 Contact Us For Availability

3

Valve, Gas Burner Burner, (RF)(LR) WPL 3191292 Contact Us For Availability

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $49.95

5

Valve, Gas Burner (RR)(Center) WPL 3191293 Contact Us For Availability

6

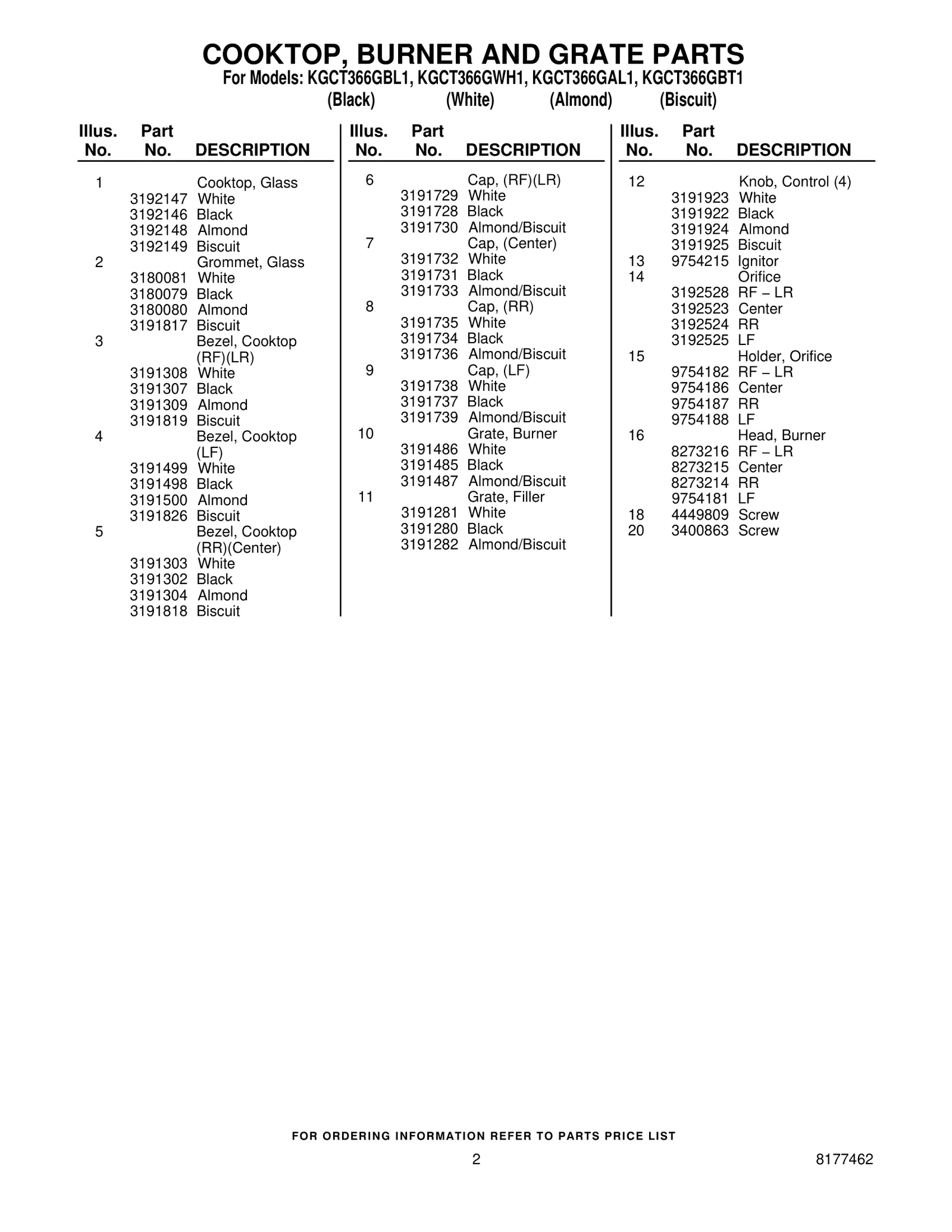

Cap, (RF)(LR) — Black WPL 3191728 Contact Us For Availability

6

Valve, Gas Burner (LF) WPL 3192157 Contact Us For Availability

7

Cap, (Center) — Black WPL 3191731 Contact Us For Availability

7

Rail, Center WPL 3192083 Contact Us For Availability

8

Cap, (RR) — Black WPL 3191734 Contact Us For Availability

8

Bolt, Gas Valve WPL 307630 Contact Us For Availability

9

Cap, (LF) — Black WPL 3191737 Contact Us For Availability

9

Cap, (LF) — White WPL 3191738 Contact Us For Availability

9

Cap, (LF) — Almond/Biscuit WPL 3191739 Contact Us For Availability

10

Grate, Burner — Black WPL 3191485 Contact Us For Availability

10

Grate, Burner — White WPL 3191486 Contact Us For Availability

10

Grate, Burner — Almond/Biscuit WPL 3191487 Contact Us For Availability

11

Grate, Filler — White WPL 3191281 Contact Us For Availability

11

Grate, Filler — Black WPL 3191280 Contact Us For Availability

11

Grate, Filler — Almond/Biscuit WPL 3191282 Contact Us For Availability

WP3191922 Whirlpool Control Knob In Stock WPL WP3191922 $4.53

Knob, Control (4) — White WPL 3191923 Contact Us For Availability

Knob, Control (4) — Biscuit WPL 3191925 Contact Us For Availability

Harness & Switches WPL 3191336 Contact Us For Availability

Knob, Control (4) — Almond WPL 3191924 Contact Us For Availability

13

WP9754215 Whirlpool Surface Igniter Backorder WPL WP9754215 $38.65

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 $68.10

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $68.10

Orifice — LF WPL 3192525 Contact Us For Availability

Tubing, Gas Burner (RF) WPL 3191324 Contact Us For Availability

Orifice — RF − LR WPL 3192528 Contact Us For Availability

Holder, Orifice — LF WPL 9754188 Contact Us For Availability

Holder, Orifice — RF − LR WPL 9754182 Contact Us For Availability

Holder, Orifice — RR WPL 9754187 Contact Us For Availability

Tubing, Gas Burner (LF) WPL 3191326 Contact Us For Availability

WP4455980 Whirlpool Burner Head In Stock WPL WP4455980 $45.85

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $64.63

Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability

Head, Burner — RF − LR WPL 8273216 Contact Us For Availability

Head, Burner — LF WPL 9754181 Contact Us For Availability

17

Tubing, Gas Burner (LR) WPL 3191327 Contact Us For Availability

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $5.30

18

Tubing, Gas Burner (Center) WPL 3191332 Contact Us For Availability

19

3191462 Whirlpool Oven Heat Shield Backorder WPL 3191462 $10.43

20

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.67

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

22

Burner Box WPL 3192494 Contact Us For Availability

4173634 Whirlpool Bushing Backorder WPL 4173634 $4.41

8186533 Whirlpool Hardware Backorder WPL 8186533 $64.21

W10392007 Whirlpool Power Cord Backorder WPL W10392007 $78.97

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

WPW10110486 Whirlpool Spark Module In Stock WPL WPW10110486 $161.75

Conversion Kit Natural Gas To L.P. WPL 3192261 Contact Us For Availability

Seal, Foam−Cooktop Miscellaneous WPL 3191933 Contact Us For Availability

Ground Screw WPL 3148443 Contact Us For Availability

Tinnerman Nut WPL 4167077 Contact Us For Availability

Hardware, Mounting WPL 3188310 Contact Us For Availability

Harness, Ignitor 15" (2) WPL 3192229 Contact Us For Availability

Harness, Ignitor 28" (2) WPL 3192230 Contact Us For Availability

Wire, Ground WPL 3191417 Contact Us For Availability
