Model Whirlpool KGCS105GSS09 30`` GAS COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool KGCS105GSS09 30`` GAS COOKTOP

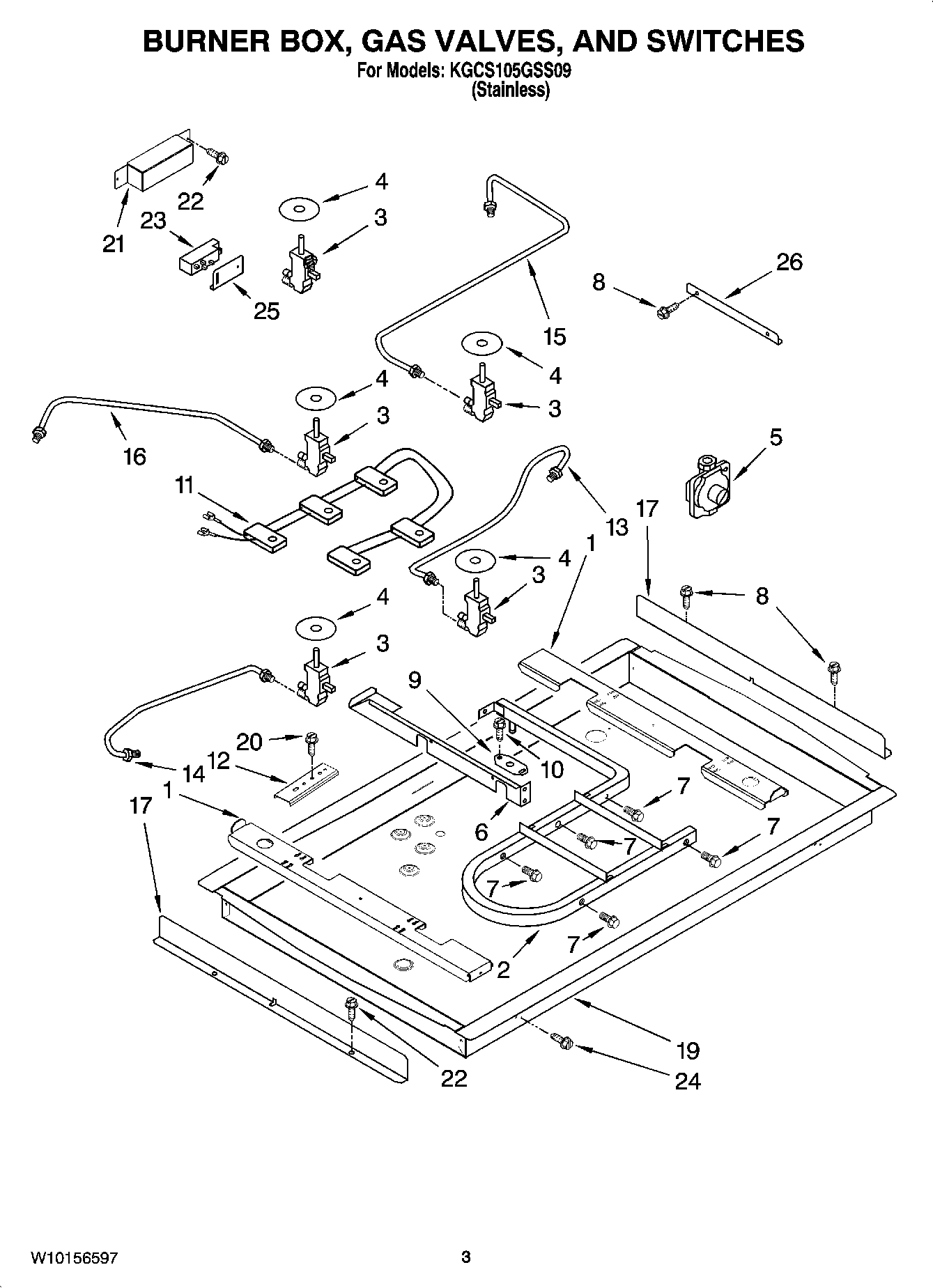

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

4456626 Whirlpool Wire In Stock WPL 4456626 View Details $49.96

View on Model

4456627 Whirlpool Wire Harness In Stock WPL 4456627 View Details $150.10

View on Model

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $73.80

View on Model

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $4.82

View on Model

WP3192741 Whirlpool LP Conversion Kit In Stock WPL WP3192741 View Details $33.99

View on Model

2

Pipe, Manifold WPL 8286069 Contact Us For Availability

View on Model

3

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 View Details $224.99

View on Model

3

Valve, Gas Burner (Bronze) WPL 4456818 Contact Us For Availability

View on Model

3

Valve, Gas Burner (White (2)) WPL 8286559 Contact Us For Availability

View on Model

3

Valve, Gas Burner (Purple) WPL 8286560 Contact Us For Availability

View on Model

4

WP8286153CB Whirlpool Burner Cap Backorder WPL WP8286153CB View Details $49.17

View on Model

4

WP8286154CB Whirlpool Burner Cap Backorder WPL WP8286154CB View Details $61.86

View on Model

4

WP8286155CB Whirlpool Burner Cap Backorder WPL WP8286155CB View Details $84.24

View on Model

5

W11170853 Whirlpool Regulator Assembly Backorder WPL W11170853 View Details $217.07

View on Model

5

WP9759505 Whirlpool Burner Grate Backorder WPL WP9759505 View Details $152.62

View on Model

6

Grate, Center WPL 9759509 Contact Us For Availability

View on Model

7

WP3191922 Whirlpool Control Knob In Stock WPL WP3191922 View Details $4.98

View on Model

8

WPW10128448 Whirlpool Igniter and Orifice Hol In Stock WPL WPW10128448 View Details $89.63

View on Model

8

WPW10128450 Whirlpool Orifice Holder In Stock WPL WPW10128450 View Details $82.69

View on Model

8

Holder, Orifice (RR) WPL 8287052 Contact Us For Availability

View on Model

9

Head, Burner ((LF)) WPL 4455849 Contact Us For Availability

View on Model

10

WP8273062 Whirlpool Screw In Stock WPL WP8273062 View Details $7.99

View on Model

11

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $6.99

View on Model

11

WP4456905 Whirlpool Wire Harness In Stock WPL WP4456905 View Details $167.62

View on Model

12

WP9782116 Whirlpool Surface Igniter In Stock WPL WP9782116 View Details $45.61

View on Model

13

8285793 Whirlpool Gas Tubing Backorder WPL 8285793 View Details $122.84

View on Model

13

8286551 Whirlpool Oven Orifice Backorder WPL 8286551 View Details $68.31

View on Model

13

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 View Details $63.65

View on Model

13

Orifice (LF) WPL 3192525 Contact Us For Availability

View on Model

14

8285794 Whirlpool Oven Gas Tubing Backorder WPL 8285794 View Details $135.83

View on Model

14

WP4457192 Whirlpool Cooktop Black Bezel Knob In Stock WPL WP4457192 View Details $38.99

View on Model

15

Nameplate WPL 3191514 Contact Us For Availability

View on Model

16

8285795 Whirlpool Oven Gas Tubing Backorder WPL 8285795 View Details $119.31

View on Model

17

3191462 Whirlpool Oven Heat Shield Backorder WPL 3191462 View Details $10.43

View on Model

21

8285788 Whirlpool Oven Heat Shield Backorder WPL 8285788 View Details $151.56

View on Model

24

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $7.99

View on Model

25

4455837 Whirlpool Oven Mounting Bracket Backorder WPL 4455837 View Details $53.07

View on Model

×
