Model Whirlpool KGCS105GAL1 30`` GAS COOKTOP – Common Parts & Diagrams

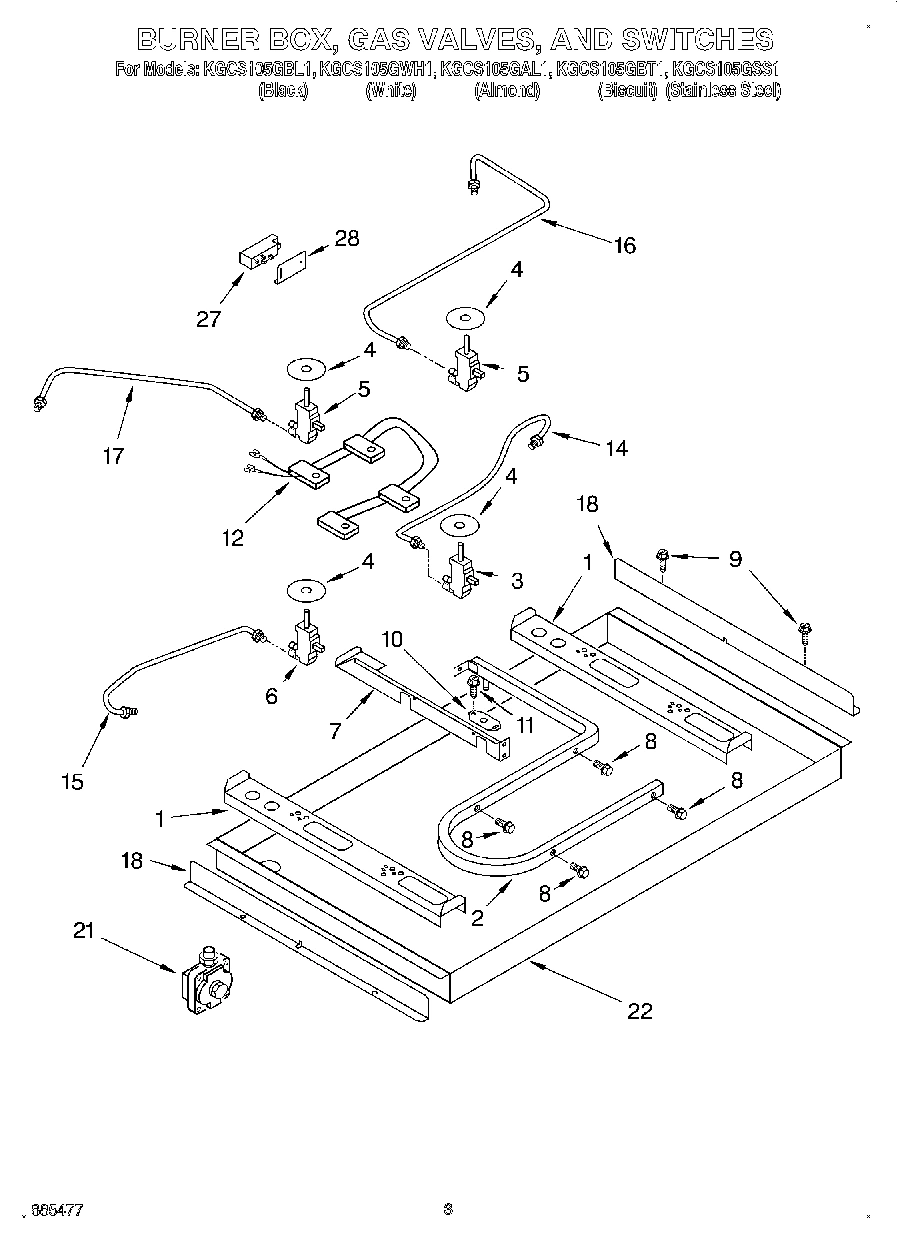

02 - BURNER BOX, GAS VALVES, AND SWITCHES

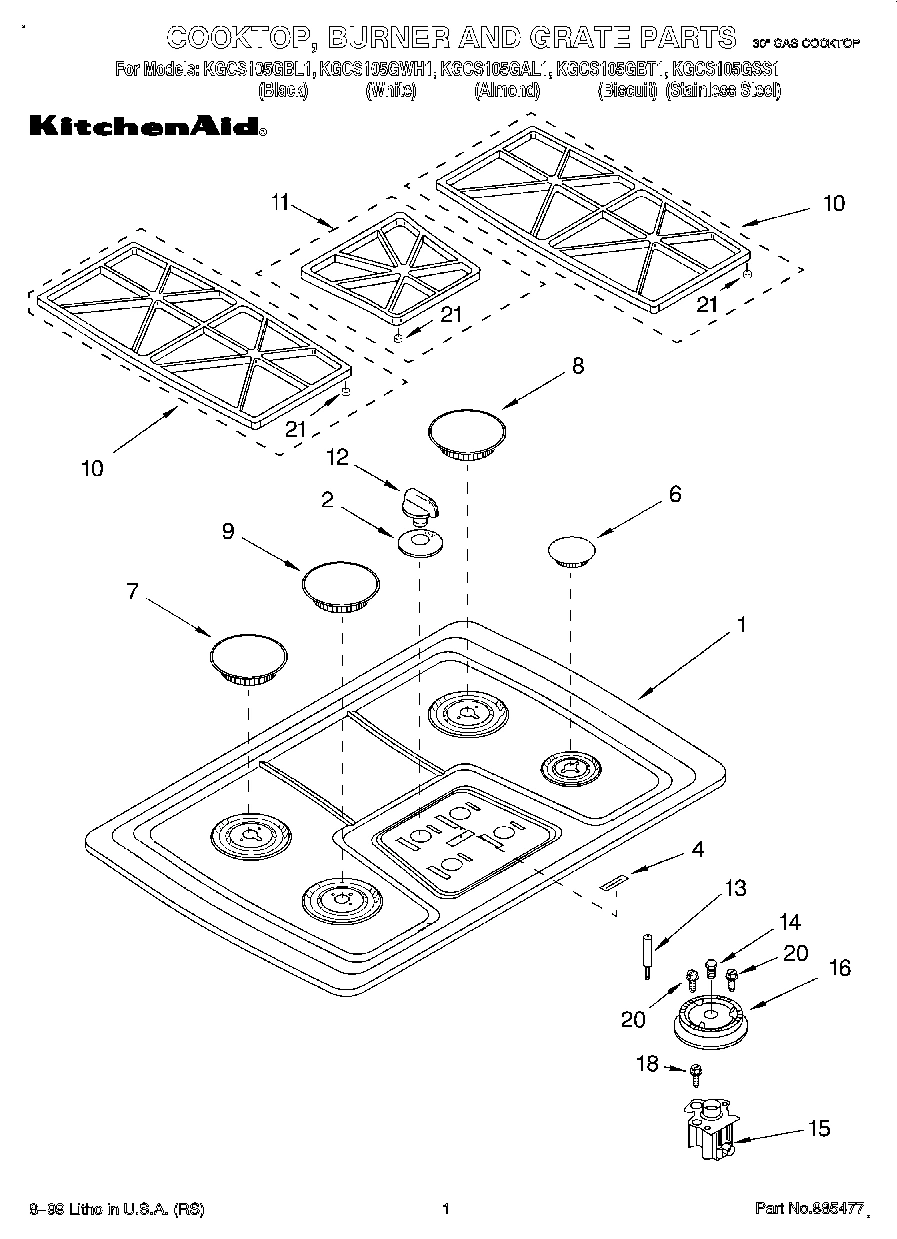

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCS105GAL1 30`` GAS COOKTOP
Conversion Kit Natural Gas To L.P. WPL 3192261 Contact Us For Availability
1
Cooktop (Black) WPL 3191245 Contact Us For Availability
1
Cooktop (White) WPL 3191246 Contact Us For Availability
1
Cooktop (Almond) WPL 3191247 Contact Us For Availability
1
Cooktop (Stainless Steel) WPL 3191248 Contact Us For Availability
1
Cooktop (Biscuit) WPL 3191294 Contact Us For Availability
2
Collar, Knob (White) WPL 3192165 Contact Us For Availability
2
Collar, Knob (Almond) WPL 3192166 Contact Us For Availability
2
Collar, Knob (Biscuit) WPL 3192167 Contact Us For Availability
3
Valve, Gas Burner Burner, (RF) WPL 3191292 Contact Us For Availability
4
Nameplate (Black) WPL 3191514 Contact Us For Availability
4
Nameplate (White) WPL 3191516 Contact Us For Availability
4
Nameplate (Almond) WPL 3191517 Contact Us For Availability
4
Nameplate (Biscuit) WPL 3191920 Contact Us For Availability
5
Valve, Gas Burner (RR & LR) WPL 3191293 Contact Us For Availability
6
Cap, (RF) (Use w/Stainless Steel Model) WPL 3192486 Contact Us For Availability
6
Cap, (RF) (Black) WPL 3191728 Contact Us For Availability
6
Cap, (RF) (White) WPL 3191729 Contact Us For Availability
6
Cap, (RF) (Biscuit) WPL 3191730 Contact Us For Availability
7
Cap, (LR) (Black) WPL 3191731 Contact Us For Availability
7
Cap, (LR) (White) WPL 3191732 Contact Us For Availability
7
Cap, (LR) (Biscuit) WPL 3191733 Contact Us For Availability
7
Cap, (LR) (Use w/Stainless Steel Model) WPL 3192487 Contact Us For Availability
8
Cap, (RR) (Use w/Stainless Steel Model) WPL 3192488 Contact Us For Availability
8
Cap, (RR) (Black) WPL 3191734 Contact Us For Availability
8
Cap, (RR) (White) WPL 3191735 Contact Us For Availability
8
Cap, (RR) (Biscuit) WPL 3191736 Contact Us For Availability
9
Cap, (LF) (Black) WPL 3191737 Contact Us For Availability
9
Cap, (LF) (White) WPL 3191738 Contact Us For Availability
9
Cap, (LF) (Biscuit) WPL 3191739 Contact Us For Availability
9
Cap, (LF) (Use w/Stainless Steel Model) WPL 3192489 Contact Us For Availability
10
Grate, Burner (Black) WPL 3191485 Contact Us For Availability
10
Grate, Burner (White) WPL 3191486 Contact Us For Availability
10
Grate, Burner (Biscuit) WPL 3191487 Contact Us For Availability
11
Grate, Filler (Black) WPL 3191277 Contact Us For Availability
11
Grate, Filler (White) WPL 3191278 Contact Us For Availability
11
Grate, Filler (Biscuit) WPL 3191279 Contact Us For Availability
11
Grate, Filler (Use w/Stainless Steel Model) WPL 3192484 Contact Us For Availability
12
Knob, Control (4) (White) WPL 3191923 Contact Us For Availability
12
Knob, Control (4) (Biscuit) WPL 3191925 Contact Us For Availability
12
Knob, Control (4) (Almond) WPL 3191924 Contact Us For Availability
13
Ignitor WPL 3192527 Contact Us For Availability
14
Orifi WPL 3192525 Contact Us For Availability
14
Tubing, Gas Burner (RF) WPL 3191324 Contact Us For Availability
14
WPL 3192528 WPL 3192528 Contact Us For Availability
15
WPL 3191740 WPL 3191740 Contact Us For Availability
15
WPL 3191742 WPL 3191742 Contact Us For Availability
15
WPL 3191743 WPL 3191743 Contact Us For Availability
16
Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability
16
WPL 9753109 WPL 9753109 Contact Us For Availability
16
WPL 9753110 WPL 9753110 Contact Us For Availability
16
WPL 9753111 WPL 9753111 Contact Us For Availability
22
Burner Box WPL 4455261 Contact Us For Availability
28
Bracket, Spark Module WPL 4455260 Contact Us For Availability
× ![]()
